Panel PC

Panel PC designed to thrive in harsh environments and fit into any scenario.

VariPPC Series 15”/19”

Multi-application Panel PC

  • Full range of CPU from Intel® Bay Trail J1900 / Ivy Bridge Mobile i3 Fanless to high end computing i3/i5.
  • 15” (S series) or 19” True Flat P-Cap Touch Screen
  • HDD or optional SSD storage option
  • Modular designed Panel PC to satisfy multi-scenario requirements
  • 8 colorful IO covers to suit any business environments
  • Extensive Peripheral Connectivity – MSR, iButton, SCR, Fingerprint, RFID, 10.4″ 2nd Display Stylish and durable Aluminum chassis with Fanless Heat Elimination
VariPPC Brochure
Medical PPC Datasheet

VariPPC Series
All In One Mountable Panel PC

Poindus VariPPC, the world’s first 15” True Flat Panel PC technology for busy environments  that demand workspace flexibility, frees up space with multiple mount options (Stand, Pole Wall).8 colorful IO covers to suit any business environments

Full Range of Intel® Processors
Combined with Protected Screen (IP66)

Intel Core i5 with Windows

Poindus VariPOS 15” and 19”, featuring Intel Bay Trail and Ivy Bridge Fanless architecture, also high end computing performance with Intel Core i5.

IP66 Spill Proof

Combined with full IP66 (Ingress Protection) dust and waterproof protection,
is perfectly suited for the rigours of hospitality and retail environments.

Outstanding Extendibility with
Companion Peripherals

Poindus VariPPC offers both 15” and 19” counter POS and Panel PC solutions. Providing complete hospitality and retail IO interface to service all scenarios. This system is designed with a modularized structure and is compliant with a full range of peripherals include MSR, I-Button, VFD, RFID, and Fingerprint…etc.

VariPPC 750
VariPPC 850
VariPPC 890

Rich Applications for Digital Transformation

Designs win, details make perfection. VariPPC has a stylish appearance for advanced software requirements and performance-oriented applications. With VESA Mount can be located anywhere required. No matter in F&B or any retail scenario, VariPOS has countless success stories and a proven track record with our partner’s great installations.

Seamless Service with Modular Design

Our robust build can handle the stresses of the workplace whatever the environment ensuring a long lifespan; with reliable modular design reduces the complexity of rollouts and simplifies maintenance and is backed by our network of international distributors, ISVs, SIs, VARs and resellers


  Model Name
  VariPPC 750、VariPPC 850、VariPPC890
  Main Board
  Processor VariPPC 750: Intel® Celeron J1900  2.0GHz , Cache 2MB
VariPPC  850:

Intel® Skylake Core i5-6300U 2.4 GHz up to 3.00 GHz, Cache 3MB

Intel® Skylake Core i3-6100U 2.3 GHz, Cache 3MB

VariPPC  890:

Intel® Skylake Core i5-6300U 2.4 GHz up to 3.00 GHz, Cache 3MB

Intel® Skylake Core i3-6100U 2.3 GHz, Cache 3MB

Intel® Skylake Celeron 3955U 2.00 GHz, Cache 2MB
*Celeron Project Only

  Chipset VariPPC 750 、VariPPC  850、 VariPPC  890 CPU Integrated
  System Memory VariPPC  750 1 x DDR3L SO-DIMM up to 8GB
VariPPC  850、VariPPC  890: 1 x SO-DIMM DDR3L 1600MHz, up to 8GB
  Display & Touch
  LCD Size VariPPC 750、VariPPC  850: 15″ TFT LCD(LED backlight)
VariPPC  890: 19” TFT LCD(LED backlight)
Brightness VariPPC  750 、 VariPPC  850、VariPPC  890 : 350nits
Touch Technology VariPPC  750 、 VariPPC  850、VariPPC  890 : True Flat Projected Capacitive Technology
Resolution VariPPC  750、VariPPC  850: 1024 x 768
VariPPC  890 1280 x 1024
  HDD/SSD 1 x SATA (2.5”) HDD or SSD

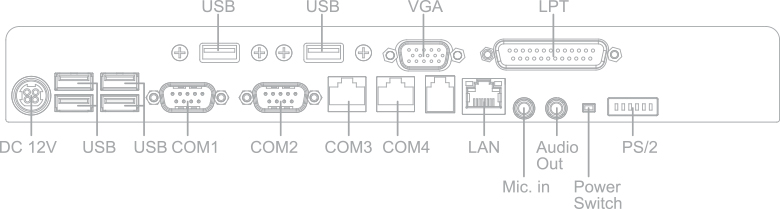

  I/O & Expansion
   DC Input VariPPC  750 、 VariPPC  850、VariPPC  890 : 1 x Mini Din 4P (DC 19V only)
  Cash Drawer VariPPC  750 、 VariPPC 850、VariPPC  890 :

1 x RJ-11 (Power Pin 12V or 24V(default))

Port Supports 2 Cash Drawer

  LAN port 1 x Gigabit Ethernet by RJ-45  (VariPOS 890: 2nd LAN Optional )
  USB port VariPPC  750 、 VariPPC  850: 2 x USB 2.0 , 4 x USB 3.0
VariPPC  890 : 3 x USB 2.0 , 4 x USB 3.0
  COM port VariPPC  750:  3 x RS-232(COM1/2:DB-9,COM3:RJ48) w/ RI/5V/12V, selectable by BIOS (default is RI)
VariPPC  850、VariPPC  890 : 4 x RS-232 (3 x RJ48+1 x D89 Connector), COM 1/2/3 with DC 0V/5V/12V, Selectable by BIOS. Default is DC 0V
  Audio port VariPPC  750、VariPPC  850: N/A
VariPPC  890 1 x Line-out ; 1 x Mic-In
  PS/2 port VariPPC  750 、 VariPPC  850、VariPPC  890 : N/A
  LPT port VariPPC 750、VariPPC  850: N/A
VariPPC  890 1 x DB-25 Printer port
  VGA port VariPPC  750 、 VariPPC  850、VariPPC  890 : 1 x DB-15 VGA port  Power enable by BIOS setting (default disable)
  Bus Expansion 1 x Mini-PCI-E Slot
  Power Switch 1 x power on / off switch button
  Speaker HD Audio, 2W Speaker x 2
  OS Support
VariPPC  750
Win10 IOT 2016, Win8.1, Win7
  VariPPC  850 、VariPPC 890 : Windows 10 IOT 2016 (64bit)
Windows 8.1 (64bit)
Windows 7 (32/64bit)
  Power Adapter
VariPPC 750 External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax
  VariPPC  850 External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax
  VariPPC  890 External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax
(Optional Medical Adapter)
  Certifications VariPPC  750 、 VariPPC  850 : CE, FCC, LVD, RoHS
VariPPC  890 CE, FCC, LVD, RoHS & Medical Certificates (CE: EN60601-1-2, FCC: Part 18, LVD: EN60601-1)
  Protection IP 66 on front panel
  VESA Mount
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
VariPPC  750、VariPPC  850  :
VariPPC  890 : Black / White
  Dimension( Wx H x D )
VariPPC  750
VariPPC  850
370 x 300 x 236mm
VariPPC 890
446 x 363 x 276mm (POS) / 446 x 377 x 70.4mm (PPC)
VariPPC  750
VariPPC  850
7 Kg (POS) /5.7 Kg (PPC)
VariPPC  890
9.3 Kg (POS) /7.3 Kg (PPC)
  Operating Condition 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
  Storage Condition -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing
  Optional Accessories (More Information)  / (*Optional Accessories are N/A VariPOS / VariPPC 890)
TSE Adapter for VariPOS  TSE Adapter for VariPOS (KassenSichV) Compliant
  VFD/LCM VFD: 2 x 20 attached
  MSR Front, 3 tracks USB Type
  iButton USB Type
  SCR USB Type
  Finger Print USB Type
  RFID USB Type, 13.56MHZ
  Scanner 2D Scanner, USB Type
  2nd Display VariPPC  750、VariPPC  850 10.4″ Resolution 800 x 600
VariPPC  890: N/A
  e-Brochure and Datasheet (VariPPC)↓
Medical PPC Datasheet (VariPPC 890)
