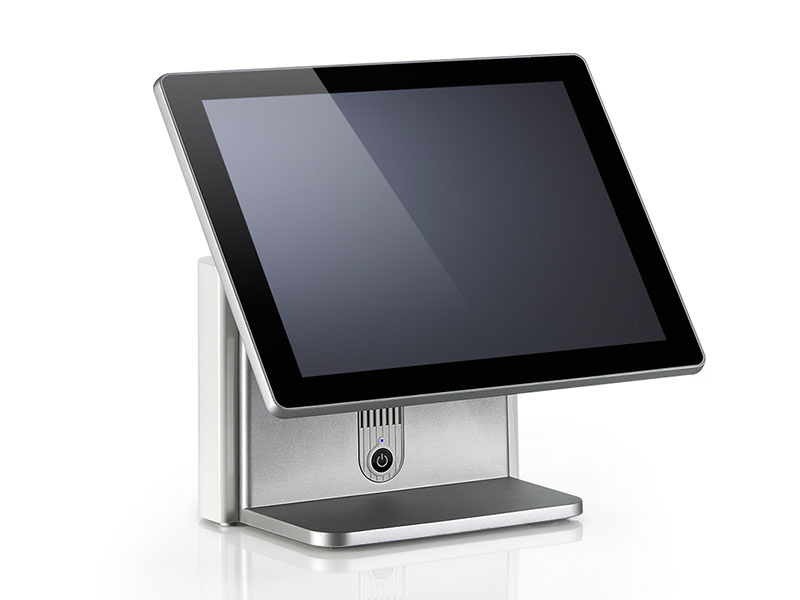

VariPOS 250/270
POS built for the future
- Full range of CPUs from J1900 to Intel 6th generation Celeron, Core i3/i5
- True flat 15” 4:3 / 17″ 5:4 LCD (LED backlight), 400 nits with IP66
- RAID 0/1 function with dual SSD/HDD support (PE21 Option)

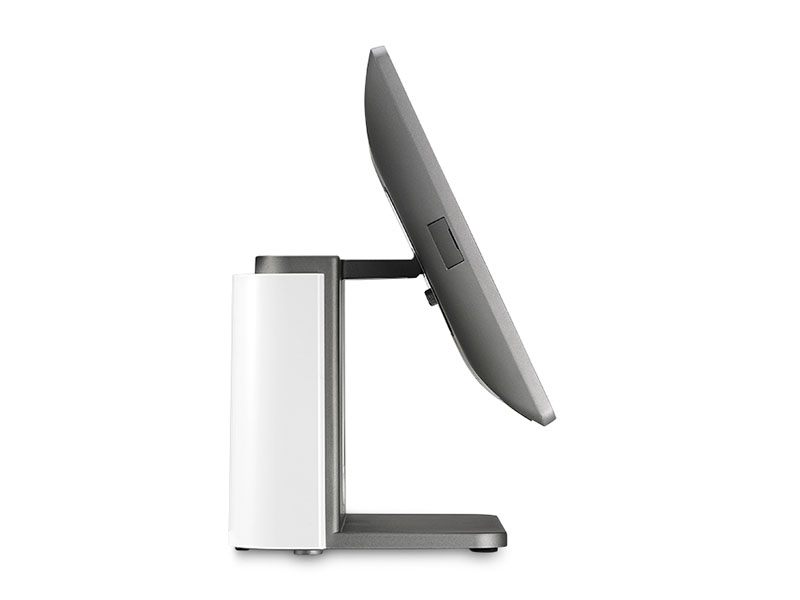

- Patented swivel arm with flexible height/tilt adjustment for 2nd display and dual (left/Right) base mounting points
- Dual Base Mounting Points for connecting 2nd Display, LCM or mPOS
- Supports 2x12v, 1x24v Powered USB (PE21 Option)
- Ultra slim front panel
- Durable die-cast aluminum chassis; built to last
- Redefines serviceability from design with easy access & quick swap modular design for SSD/HDD & MB box.
- Peripherals compatibility across the whole VariPOS 2 Series: LCM, 10.1” 2nd display with patented double hinge, MSR, iButton, Fingerprint, RFID, PinPad Bracket
- TSE Adapter for VariPOS (KassenSichV) Compliant
Modularized and Ultra Slim Design

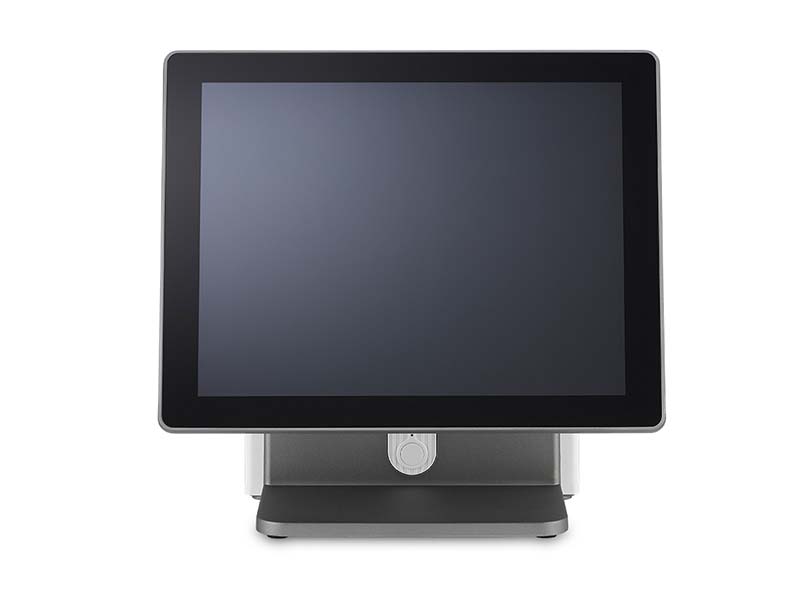

15” 4:3 / 17″ 5:4 Display
The VariPOS 250/270 brings power and performance for retail applications with a range of Intel processors and a modularized design providing simple service and maintenance or upgrading futureproofing your investment.
Following the Reddot Award Winning design of the VariPOS 210P the VariPOS 2 Series introduces a new aesthetic to POS terminals that fits with the retail brand image.
Robust Performance with Dual HDD Support for RAID Redundancy
RAID implementation allows for improved performance and redundancy giving your solution the resiliency to avoid downtime in your business. The VariPOS 250/270 provides cost-effective, high fault tolerance with disk mirroring and is seamless and simultaneous ensuring your critical business data is always safe (*Excludes J1900)
Full Range of Intel® CPU for
Processor Intensive Retail Applications
The VariPOS 250/270 is available with the Intel Celeron J1900 or Skylake Celeron, i3 and i5 with Intel AMT for remote maintenance and secure drive ; and supports up to 16GB of RAM. The high speed connectivity through Intel Gigabit LAN and a rich I/O including Powered USB; combined with an IP66 True Flat Projected Capacitive multi-touch display ensures VariPOS 250/270 can support the most performance intensive retail or hospitality applications.
Intel AMT & TPM
Technology
Intel® AMT, Query, Restore, Upgrade, and Help Protect Devices Remotely.
Intel® TPM protect system & data with hardware/software-based security hardening.
Full Range Intel Processors
Support for Microsoft Windows platform from POS Ready 7 (32/64bit) to Windows 10 (64bit) ensures compatibility with your preferred Windows software solution.
Powered USB Connections
The I/O provides all kinds of connections you would expect from a high performance POS terminal including Powered USB for your retail peripherals and environments.

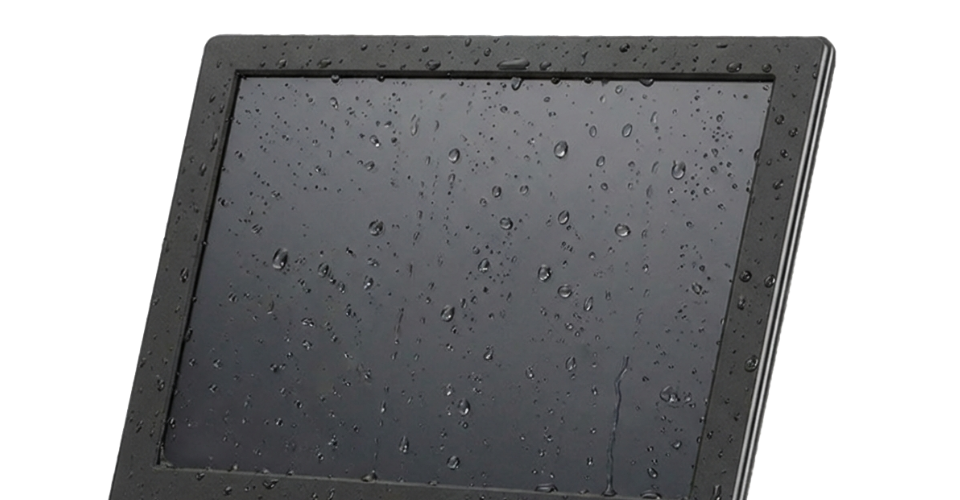

IP66
Spill Proof
Combined with full IP66 (Ingress Protection) dust and waterproof protection, is perfectly suited for the rigors of hospitality and retail environments.
Patented Double Hinged 2nd Display and Outstanding Extendibility with Companion Peripherals
The 10.1″ 2nd Display fits to the VariPOS 2 Series at either side of the POS base and is fitted with the new patented double hinge allowing for optimal positioning. The swivel arm with height and tilt adjustment brings a new level of flexibility pushing display limitations and connecting you directly with the customer. The dual mounting points allow flexible configuration with two simultaneously mounted devices (2nd Display, LCM or mPOS).
The VariPOS 2 Series introduces common peripherals that are compatible across the range. Cross compatibility allows System Integrators to reduce peripheral inventory and deploy peripherals to sites easily with no compatibility issues. The VariPOS 2 Series provides a full range of companion peripherals including LCM, MSR, iButton, Finger Print, RFID and 2nd Display.
Tangible Service Benefits with Quick Swap and Maintenance

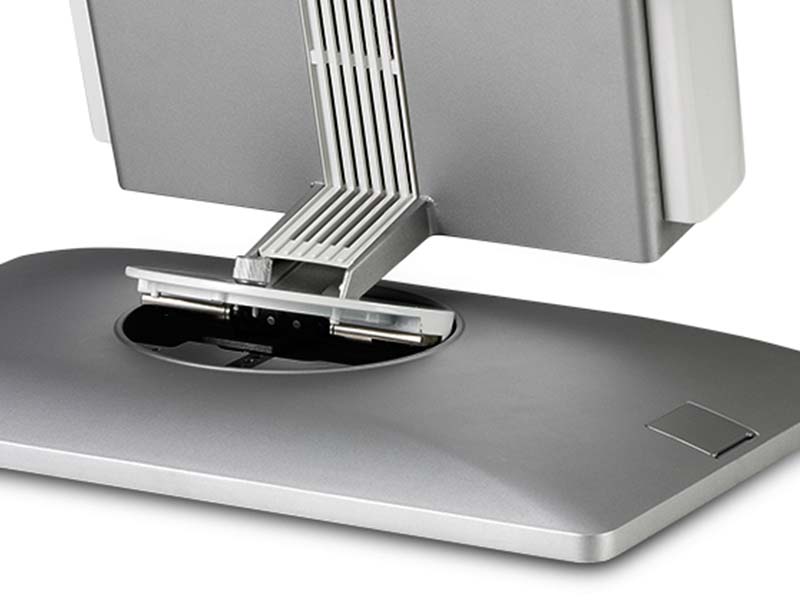

VariPOS 250/270 design provides quick and easy service for routine maintenance schedules, significantly reducing engineer onsite visit time. The modular design allows fast upgrade or replacement for motherboard/processor, display and SSD/HDD. The display can be easily detached from the base by thumb screw for rapid tool-less replacement. Simple Motherboard and SSD/HDD access has been implemented for easy maintenance with the quick service design
A proactive approach to servicing your technology will improve equipment effectiveness and increase lifespan; by simplifying the service process for System Integrators maintenance can be completed quickly and efficiently.
Specification
| VariPOS 250 /270 | ||
| Model Name | ||
| VariPOS 250/270 (PE21) | VariPOS 250/270 (PE20) | |
| Main Board | ||
| Processor | Intel® Skylake Core™ i5-6500TE Processor | Intel® Celeron® Processor J1900 |
| Intel® Skylake Core™ i3-6100TE Processor | ||
| Intel® Skylake Celeron® G3900TE Processor | ||
| Chipset | Intel® Q170 | CPU Integrated |
| System Memory | 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB. | 1 x SO-DIMM DDR3L slot, 4GB RAM as standard. Max. memory support up to 8GB |
| TPM | Intel F/W | N/A |
| Intel AMT | N/A / YES (i5 w/Q170 chipset) | N/A |
| Display & Touch | ||
| LCD Size | 15″ 4:3 TFT LCD (LED backlight) | |
| 17″ 5:4 TFT LCD (LED backlight) | ||
| Brightness | 400 nits | |
| Resolution | 15″ – 1024 x 768 (4:3) | |
| 17″ – 1280 x 1024 (5:4) | ||
| Touch | True Flat Projected Capacitive Technology 10 point Multi-touch |
|
| Storage | ||
| HDD/SSD | 1 x SATA III 2.5” / 2 x SATA III 2.5” (Option) | 1 x SATA II (2.5”) |
| RAID Function | N/A / YES. Support RAID 0/1 / (Q170 chipset) | N/A |
| I/O & Expansion | ||
| DC Input | 1 x Mini Din 4P (DC +19V only) | |
| Cash Drawer | 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers | |
| LAN port | 1 x Intel Gigabit Ethernet | 1 x Gigabit Ethernet |
| USB port | 4 x USB 3.0 | 4 x USB 3.0 |
| 2 x USB 2.0 | 2 x USB 2.0 | |
| Powered USB Port (Option) | 2 x 12v Powered USB | N/A |
| 1 x 24v Powered USB | ||
| COM port | 3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/DC 0V/+5V/+12V, Selectable by BIOS (default setting is DC 0V) | |
| VGA port | 1 x DB-15 w/DC+12V. Power enables by BIOS setting (default is Disable) | |
| Bus Expansion | 1 x Mini-PCI-E Slot | |
| Power Switch | 1 x power on/off button | |
| Speaker | HD Audio, 2W Speaker x 2 | |
| OS Support | ||
| Win10 2016, Win8.1, Win7/POS Ready 7 | ||
| Power Adapter | ||
| External adapter, DC Model : Voltage:+19VDC, Std. 90watt. (Powered USB will use 180watt adaptor) | External adapter, DC Model : Voltage:+19VDC Std. 65watt | |
| Compliance | ||
| Certifications | CE, FCC, LVD, RoHS | CE, FCC, LVD, RoHS |
| Protection | IP 66 on front panel | IP 66 on front panel |
| Material | ||
| Main Unit: Die-Cast Aluminum | ||
| Color | ||
| Main Unit: Space Gray / Black, Space Gray / White | ||
| Dimension( Wx H x D mm) | ||
| 365.89 x 354.48 x 196.55 | ||
| Environmental Condition | ||
| Operating | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing | |
| Storage | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing | |
| Optional Accessories | ||
| TSE Adapter for VariPOS | TSE Adapter for VariPOS (KassenSichV) Compliant | |
| 2nd Display | 10.1 ” Resolution 1280 x 800 (16:10 wide screen) USB Type, Touch / Non Touch | |
| VESA Bracket | Supports Display M Series | |
| Customer Display (LCM) | 2×20 LCM, USB Type, White color | |
| MSR | ISO 3-Tracks Slim MSR, USB Type | |
| ibutton | Dallas Key Reader, USB Type | |
| RFID | 13.56Mhz, USB Type | |
| Fingerprint | DigitalPersona U.are.U 4500 Module, USB Type | |

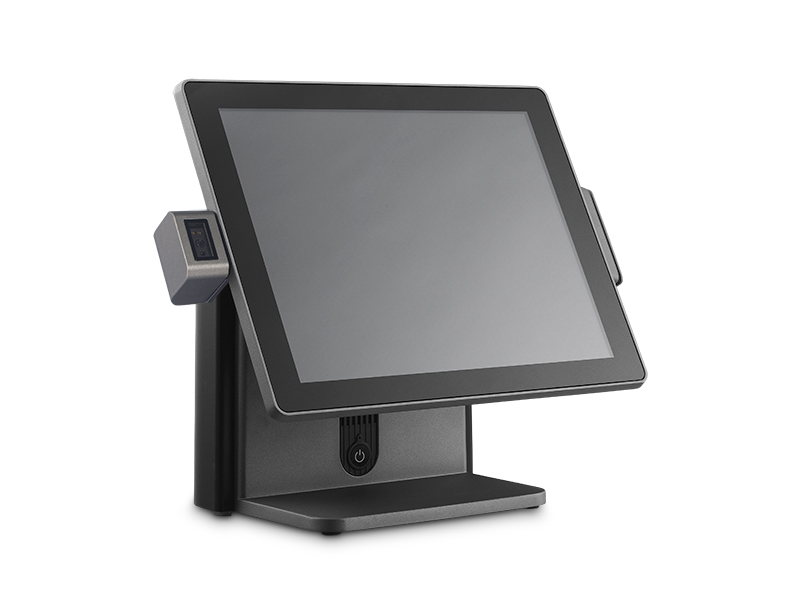

| Scanner | 2D scanner, USB Type | |

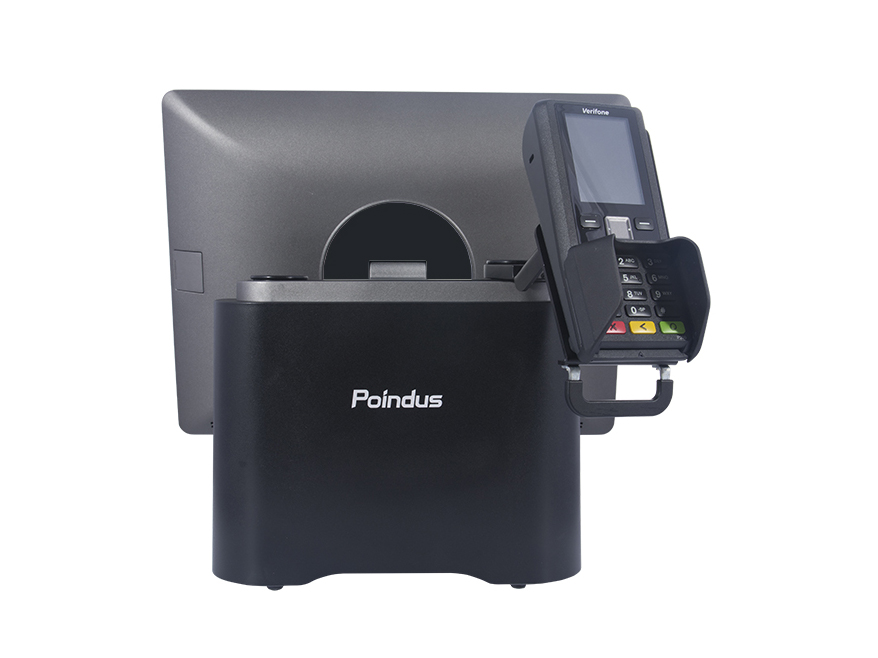

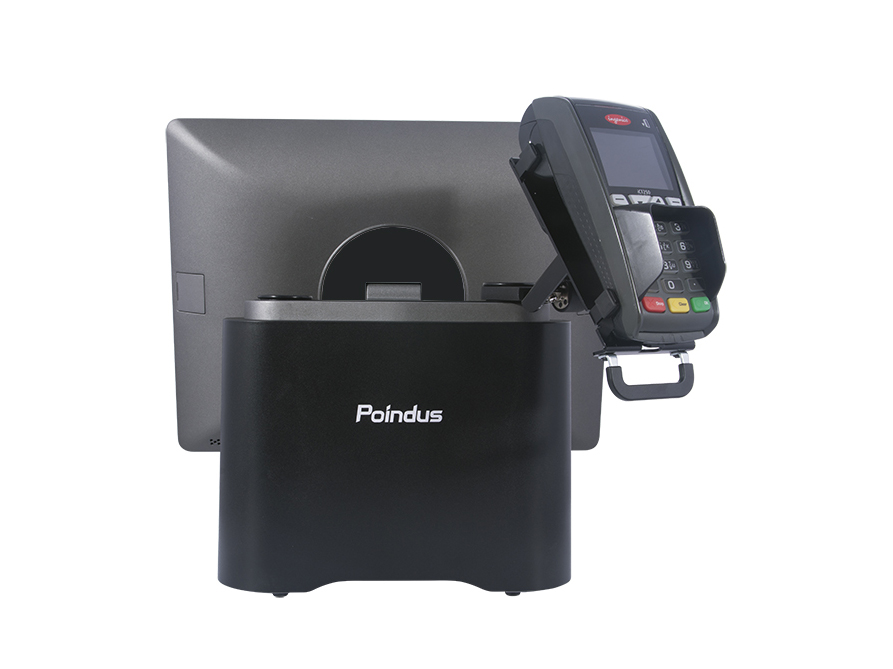

| PinPad Bracket | Verifone VX820, Verifone P400/P200, Ingenico iCT250 | |
| Carton | L460 x 300 x H510 mm | |
