All In One

Superior POS Systems, enabling you to respond to market demand.

VariPOS Series

All-in-One, One for All

  • Full range of CPU from Intel® Bay Trail J1900 / Ivy Bridge Mobile i3 fanless to high end computing i3/i5.
  • 15” (S series) or 19” True Flat P-Cap Touch Screen
  • HDD or optional SSD storage option

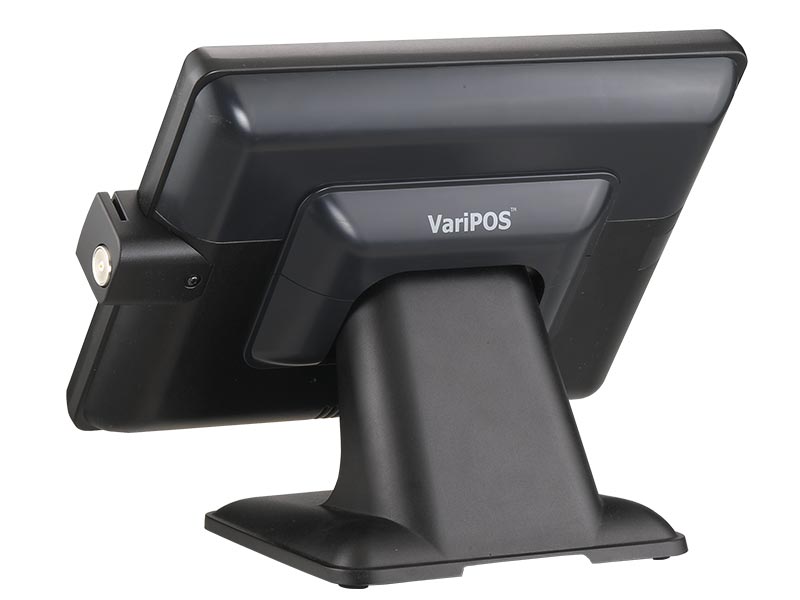

  • Extensive peripheral connectivity – MSR, iButton, SCR, Fingerprint, RFID, 10.4″ 2nd Display, VariPad 2nd Cradle
  • Stylish & durable Aluminum chassis with fanless heat elimination
  • Modular design to satisfy multi-scenario requirements
  • 8 colorful IO covers to suit any business environments
Contact Us

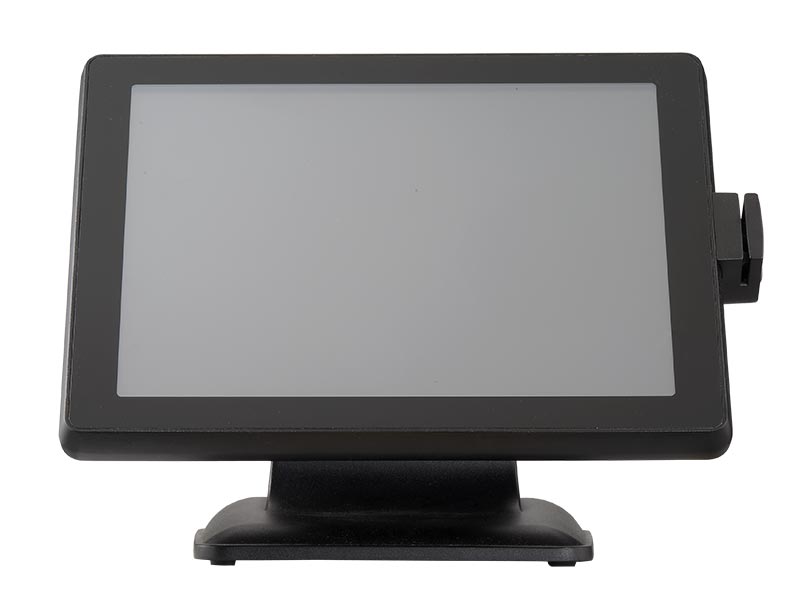

The world’s first 15” True Flat POS & Colorful Classic Forever

VariPOS, the first POS terminal that’s stands out from every POS in the Hospitality and Retail
industry. Great functionality drives great user experience, combined with the industries latest
technology.

Energy Efficiency & Performance

Full Range Intel Processors

Supporting a full range of Intel Bay Trail & Ivy Bridge processors, with Intel® Identity Protection & Anti-Theft Technology , from J1900 to high-end Intel Core i5 performance.

IP66 Spill Proof

Combined with full IP66
(Ingress Protection) dust and waterproof protection, is perfectly suited for the rigors of hospitality and retail environments.

Outstanding Extendibility with
Companion Peripherals

VariPOS offers both 15” and 19” counter POS and Panel PC solutions. Providing complete hospitality and retail IO interface to service all scenarios. This system is designed with a modularized structure and is compliant with a full range of peripherals including MSR, iButton, VFD, RFID, Fingerprint, 2nd Display, VariPad 2nd Cradle…etc.

VariPOS 715S
VariPOS 815  (Sandy Bridge)
VariPOS 815 (Core i3 3217U)
VariPOS 815S
VariPOS 719
VariPOS 819

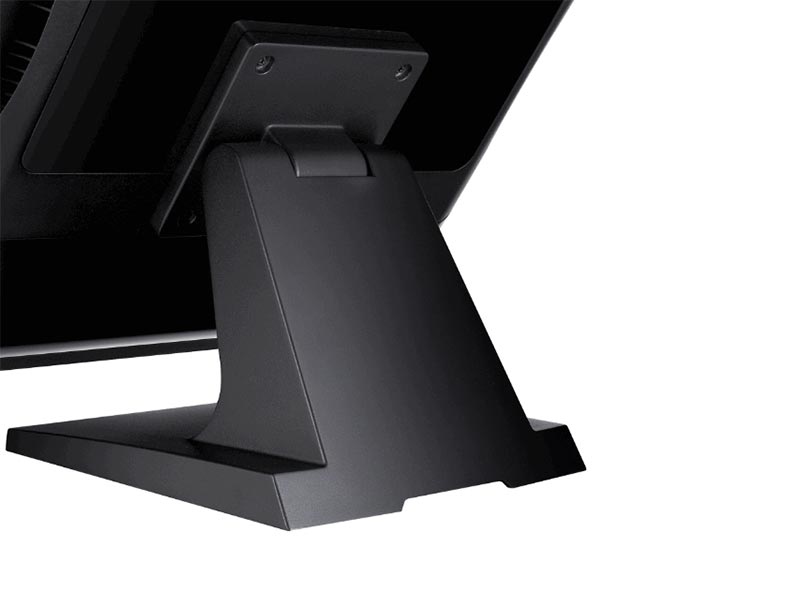

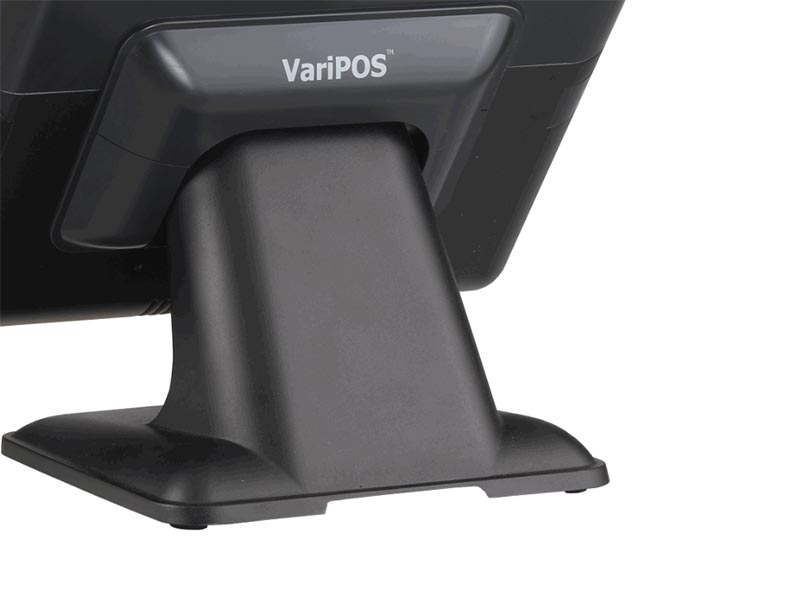

Multiple Mounting & Configuration Options Available

A winning design with its stylish appearance and performance to support performance-oriented applications and advanced software requirements. Available counter POS, Pole or VESA Mount for multiple scenario. No matter in F&B or any retail scenarios, VariPOS has countless success stories and a proven track record with our partner’s great installations.

Seamless Service with Modular Design

Our robust build can handle the stresses of the point of sale environment ensuring a longer lifespan; with reliable modular designs reduce the complexity of rollouts and simplify maintenance and are backed by our network of international distributors, ISVs, Sis, VARs and resellers

Contact Us

Specification

  VariPOS
  Model Name
  VariPOS 715S、VariPOS815、VariPOS815S、VariPOS719、VariPOS 819
  Main Board
  Processor VariPOS 715S: Intel® Celeron J1900  2.0GHz , Cache 2MB
VariPOS 815: Intel® Core i3-3217U  1.8GHz , Cache 3MB
Intel® Core i5-2510E 2.5GHz , Cache 3MB
Intel® Core i3-2330E 2.2GHz , Cache 3MB
Intel® Celeron B810 1.6GHz , Cache 2MB
VariPOS 815S: Intel® Core i3-3217U  1.8GHz , Cache 3MB
VariPOS 719: Intel® Celeron J1900  2.0GHz ,Cache 2MB
VariPOS 819: Intel® Core i5-2510E 2.5GHz , Cache 3MB
Intel® Core i3-2330E 2.2GHz , Cache 3MB
Intel® Celeron B810 1.6GHz , Cache 2MB
  Chipset VariPOS 715S: CPU Integrated
VariPOS 815: [Intel® Ivy Bridge]- HM76
[Intel® Sandy Bridge]-Intel® PCH HM65
VariPOS 815S: Intel® HM76
VariPOS 719: CPU Integrated
VariPOS 819: Intel® PCH HM65
  System Memory VariPOS 715S: 1 x DDR3L SO-DIMM up to 8GB
VariPOS 815、VariPOS 815S、VariPOS 819: 1 x SO-DIMM DDRIII 1600MHz, up to 8GB
VariPOS 719: 1 x DDR3L SO-DIMM up to 8GB
  Display & Touch
  LCD Size VariPOS 715S、VariPOS 815、VariPOS 815S: 15″ TFT LCD(LED backlight)
VariPOS 719、VariPOS 819: 19”TFT LCD(LED backlight)
Brightness VariPOS 715S、VariPOS 815S 250nits
VariPOS 815、VariPOS 719、VariPOS 819: 350nits
Touch Technology VariPOS 715S、VariPOS 815、VariPOS 815S: True Flat Projected Capacitive Technology / True Flat 5-Wire Resistive
VariPOS 719、VariPOS 819: True Flat Projected Capacitive Technology
Resolution VariPOS 715S、VariPOS 815、VariPOS 815S: 1024 x 768
VariPOS 719、VariPOS 819: 1280 x 1024
  Storage
  HDD/SSD 1 x SATA (2.5”) HDD or SSD

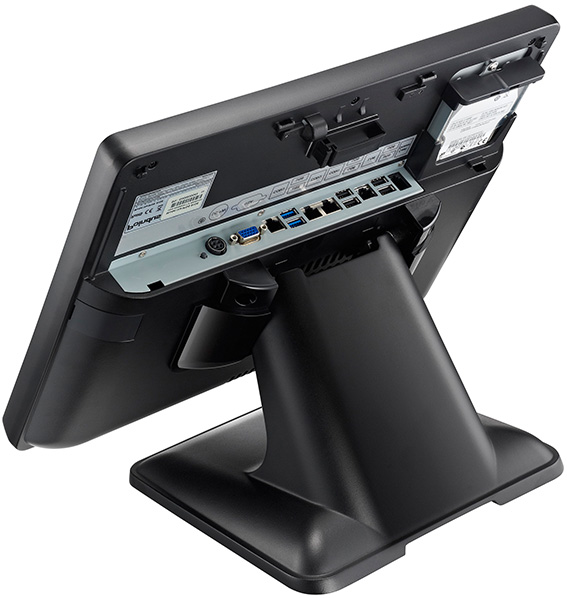

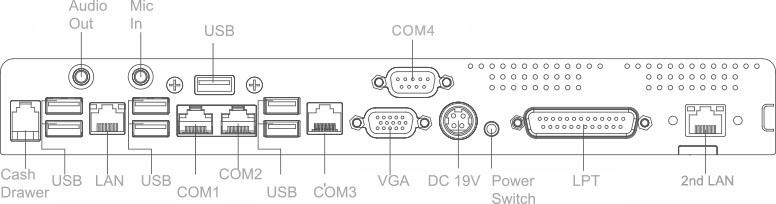

  I/O & Expansion
   DC Input VariPOS 715S、VariPOS 815S: 1 x Mini Din 4P (DC 19V only)
VariPOS 815:  [Intel® Ivy Bridge]- 1 x Mini Din 4P (DC 19V only)
[Intel® Sandy Bridge] – 1 x Mini Din 4P (DC 12V only)
VariPOS 719: 1 x Mini Din 4P (DC 19V only)
VariPOS 819: 1 x Mini Din 4P (DC 12V only)
  Cash Drawer VariPOS 715S、VariPOS 815S: 1 x RJ-11 (12V or 24V(default))
VariPOS 815:  [Intel® Ivy Bridge]- 1 x RJ-11 (Power Pin 12V or 24V(default))
[Intel® Sandy Bridge] -1 x RJ-11 (Power Pin 12V(default))
VariPOS 719: 1 x RJ-11 (Power Pin 12V or 24V(default))
VariPOS 819: 1 x RJ-11 (Power Pin 12V)
  LAN port 1 x Gigabit Ethernet by RJ-45
  USB port VariPOS 715S、VariPOS 815S: 4 x USB 2.0 , 1 x USB 3.0
VariPOS 815:  [Intel® Ivy Bridge]-  4 x USB 2.0, 2 x USB3.0
[Intel® Sandy Bridge] – 4 x USB 2.0
VariPOS 719: 5 x USB 2.0, 1 x USB 3.0
VariPOS 819: 6 x USB 2.0
  COM port VariPOS 715S:  3 x RS-232(RJ48 connector),COM1/2/3 Pin10 w/RI/5V/12V Selectable by BIOS (default is RI)
VariPOS 815:  [Intel® Ivy Bridge]- 3 x RS-232(RJ48 connector),COM1/2 Pin10(5V); COM3 Pin10(12V), Power enabled by BIOS setting (default RI)
[Intel® Sandy Bridge] – 4 x RS-232(COM1/2:DB-9, COM3/4:RJ-48) w/ RI/5V/12V Selectable by BIOS (default is RI)
VariPOS 815S: 3 x RS-232(RJ48 connector),COM1/2 Pin10(5V); COM3 Pin10(12V), Power enabled by BIOS setting (default RI)
VariPOS 719:  3 x RS-232(RJ48 connector),COM1/2/3 Pin10 w/RI/5V/12V Selectable by BIOS (default is RI); 1 x RS-232(DB9 connector),COM5
VariPOS 819:  [Intel® Sandy Bridge] – 4 x RS-232(COM1/2:DB-9, COM3/4:RJ-48) w/ RI/5V/12V Selectable by BIOS (default is RI)
  Audio port VariPOS 715S、VariPOS 815S: N/A
VariPOS 815: [Intel® Ivy Bridge]- N/A
[Intel® Sandy Bridge] -1 x Line-out ; 1 x Mic-In
VariPOS 719、VariPOS 819: 1 x Line-out ; 1 x Mic-In
  PS/2 port VariPOS 715S、VariPOS 815S、VariPOS 719: N/A
VariPOS 815:  [Intel® Ivy Bridge]- N/A
[Intel® Sandy Bridge] -1 x PS/2 connector for Keyboard
VariPOS 819: 1 x PS/2 connector for Keyboard
  LPT port VariPOS 715S、VariPOS 815S: N/A
VariPOS 815:  [Intel® Ivy Bridge]- 1 x DB-25 Printer port
[Intel® Sandy Bridge] -1 x DB-25 Printer port  (Optional)
VariPOS 719、VariPOS 819: 1 x DB-25 Printer port
  VGA port VariPOS 715S、VariPOS 815S: 1 x DB-15 VGA port  Power enable by BIOS setting (default disable)
VariPOS 815:  [Intel® Ivy Bridge]- 1 x DB-15 VGA port, Power enabled by BIOS setting (default disable)
[Intel® Sandy Bridge] -1 x DB-15 VGA port (optional)
VariPOS 719: 1 x DB-15 VGA port  Power enable by BIOS setting (default disable)
VariPOS 819: 1 x DB-15 VGA port
  Bus Expansion 1 x Mini-PCI-E Slot
  Power Switch 1 x power on / off switch button
  Speaker HD Audio, 2W Speaker x 2
  OS Support
VariPOS 715S
VariPOS 815S
VariPOS 719
Windows 10 IOT, Windows 8.1, Windows 7, POSready 7
  VariPOS 815 [Intel® Ivy Bridge]- Windows 10 IOT, Windows 8.1, Windows 7, POSready 7
[Intel® Sandy Bridge] -Windows 8.1, Windows 7, POSready 7
  VariPOS 819 Windows 8.1, Windows 7, POSready 7
  Power Adapter
VariPOS 715S
VariPOS 815S
VariPOS 719
External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax
  VariPOS 815 [Intel® Ivy Bridge]- External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax
[Intel® Sandy Bridge] -External adapter, DC Model:120 Watts, Voltage:+12VDC 10 Amax
  VariPOS 819 External adapter, DC Model:120 Watts, Voltage:+12VDC 10 Amax
  Compliance
  Certifications VariPOS 715S: CE, FCC, LVD, RoHS, CB, CCC
VariPOS 815、VariPOS 815S、VariPOS 719、VariPOS 819: CE, FCC, LVD, RoHS
  Protection IP 66 on front panel
  VESA Mount
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
  Material
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
  Color
VariPOS 715S
VariPOS 815S
Black
  VariPOS 815 Black / White / Grey
  VariPOS 719 Black / White
  Dimension( Wx H x D )
VariPOS 715S
VariPOS 815
VariPOS 815S
370 x 300 x 236
VariPOS 719
VariPOS 819
446 x 363 x 276
  Weight
VariPOS 715S
VariPOS 815S
5.68Kg
  VariPOS 815 7Kg
VariPOS 719
VariPOS 819
9.3Kg
  Environmental
  Operating Condition 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
  Storage Condition -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing
  Optional Accessories (More Information)

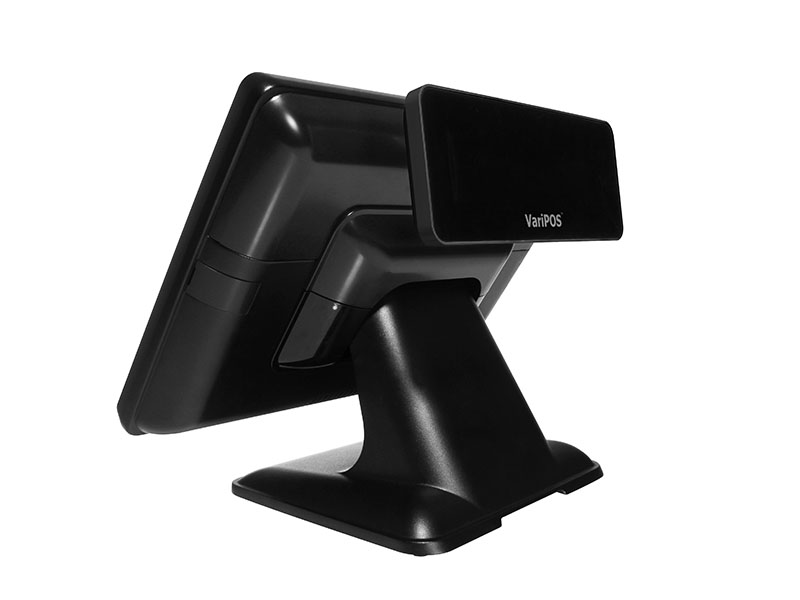

  VFD/LCM VFD: 2 x 20 attached
  MSR Front, 3 tracks RS-232 Type or PS/2 Type
  MSR & iButton MSR-Front & iButton, RS-232 Type or PS/2 Type
  iButton RS-232 Type or PS/2 Type
  SCR USB Type
  Finger Print USB Type
  RFID USB Type, 13.56MHZ

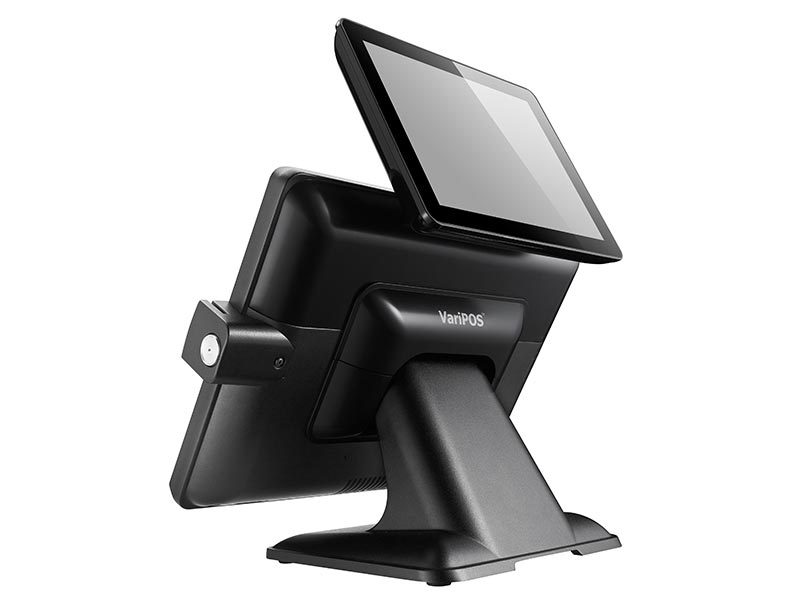

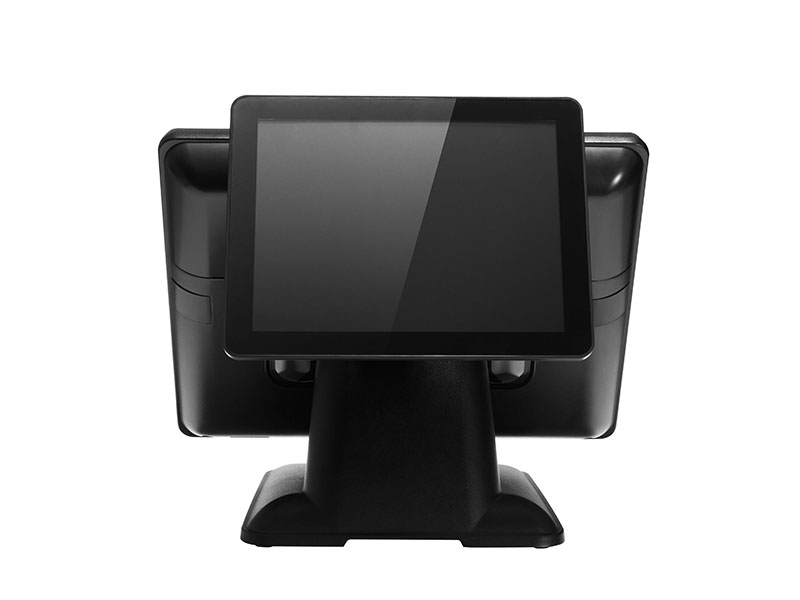

  2nd Display VariPOS 715S、VariPOS 815、VariPOS 815S、VariPOS 819: 10.4″ Resolution 800 x 600
VariPOS 719: N/A
 e-Brochure and Datasheet (VariPOS)↓   e-Brochure and Datasheet (VariPOS S)↓
