All In One

Superior POS Systems, enabling you to respond to market demand.

VariPOS Series

All-in-One, One for All

  • Full range of CPU from Intel® Bay Trail J1900 / Ivy Bridge Mobile i3 fanless to high end computing i3/i5.
  • 15” (S series) or 19” True Flat P-Cap Touch Screen
  • HDD or optional SSD storage option
  • Extensive peripheral connectivity – MSR, iButton, SCR, Fingerprint, RFID, 10.4″ 2nd Display
  • Stylish & durable Aluminum chassis with fanless heat elimination
  • Modular design to satisfy multi-scenario requirements
  • 8 colorful IO covers to suit any business environments
Contact Us

The world’s first 15” True Flat POS & Colorful Classic Forever

VariPOS, the first POS terminal that’s stands out from every POS in the Hospitality and Retail
industry. Great functionality drives great user experience, combined with the industries latest
technology.

Energy Efficiency & Performance

Full Range Intel Processors

Supporting a full range of Intel Bay Trail & Ivy Bridge processors, with Intel® Identity Protection & Anti-Theft Technology , from J1900 to high-end Intel Core i5 performance.

Intel TPM

6th Gen Intel Core processors protect IoT systems and data through hardware- and software-based security hardening ,keeping connected devices secure.rmance.

IP66 Spill Proof

Combined with full IP66
(Ingress Protection) dust and waterproof protection, is perfectly suited for the rigors of hospitality and retail environments.

Outstanding Extendibility with
Companion Peripherals

VariPOS offers both 15” and 19” counter POS and Panel PC solutions. Providing complete hospitality and retail IO interface to service all scenarios. This system is designed with a modularized structure and is compliant with a full range of peripherals including MSR, iButton, VFD, RFID, Fingerprint, 2nd Display…etc.

VariPOS 750
VariPOS 850
VariPOS 890

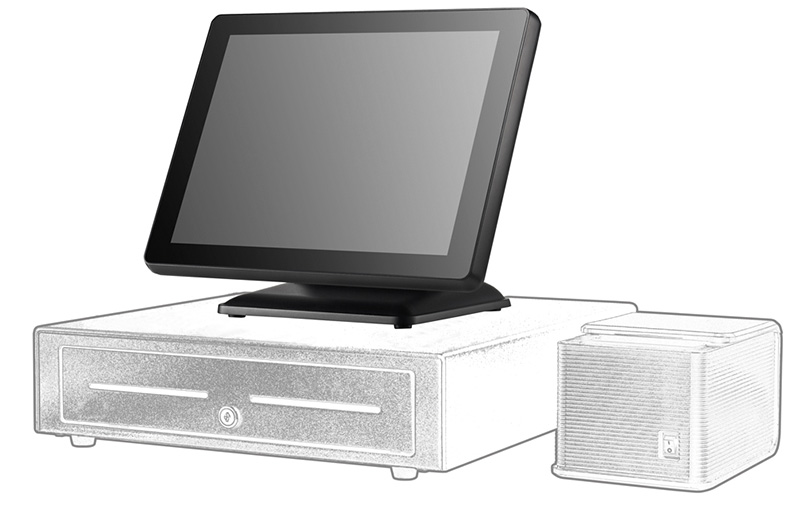

Multiple Mounting & Configuration Options Available

A winning design with its stylish appearance and performance to support performance-oriented applications and advanced software requirements. Available counter POS, Pole or VESA Mount for multiple scenario. No matter in F&B or any retail scenarios, VariPOS has countless success stories and a proven track record with our partner’s great installations.

Seamless Service with Modular Design

Our robust build can handle the stresses of the point of sale environment ensuring a longer lifespan; with reliable modular designs reduce the complexity of rollouts and simplify maintenance and are backed by our network of international distributors, ISVs, Sis, VARs and resellers

Contact Us

Specification

  VariPOS
  Model Name
  VariPOS 750、VariPOS 850、VariPOS 890
  Main Board
  ProcessorVariPOS 750Intel® Celeron J1900  2.0GHz , Cache 2MB
VariPOS 850:

Intel® Skylake Core i5-6300 2.4 GHz up to 3.00 GHz, Cache 3MB

Intel® Skylake Core i3-6100 2.3 GHz, Cache 3MB

VariPOS 890:

Intel® Skylake Core i5-6300 2.4 GHz up to 3.00 GHz, Cache 3MB

Intel® Skylake Core i3-6100 2.3 GHz, Cache 3MB

Intel® Skylake Celeron 3955U 2.00 GHz, Cache 2MB

  ChipsetVariPOS 750 、VariPOS 850、 VariPOS 890CPU Integrated
  TPMVariPOS 850、VariPOS 890 :Intel F/W
  System MemoryVariPOS 7501 x DDR3L SO-DIMM up to 8GB
VariPOS 850、VariPOS 890:1 x SO-DIMM DDR3L 1600MHz, up to 8GB
  Display & Touch
  LCD SizeVariPOS 750、VariPOS 850:15″ TFT LCD(LED backlight)
VariPOS 890:19” TFT LCD(LED backlight)
BrightnessVariPOS 750 、 VariPOS 850、VariPOS 890 :350nits
Touch TechnologyVariPOS 750 、 VariPOS 850、VariPOS 890 :True Flat Projected Capacitive Technology
ResolutionVariPOS 750、VariPOS 850:1024 x 768
VariPOS 8901280 x 1024
  Storage
  HDD/SSD1 x SATA (2.5”) HDD or SSD
  I/O & Expansion
   DC InputVariPOS 750 、 VariPOS 850、VariPOS 890 :1 x Mini Din 4P (DC 19V only)
  Cash DrawerVariPOS 750 、 VariPOS 850、VariPOS 890 :

1 x RJ-11 (Power Pin 12V or 24V(default))

Port Supports 2 Cash Drawer

  LAN port1 x Gigabit Ethernet by RJ-45  (VariPOS 890: 2nd LAN Optional )
  USB portVariPOS 750 、 VariPOS 850:2 x USB 2.0 , 4 x USB 3.0
VariPOS 890 :3 x USB 2.0 , 4 x USB 3.0
  COM portVariPOS 750: 3 x RS-232(COM1/2:DB-9,COM3:RJ48) w/ RI/5V/12V, selectable by BIOS (default is RI)
VariPOS 850、VariPOS 890 :4 x RS-232 (3 x RJ48+1 x D89 Connector), COM 1/2/3 with DC 0V/5V/12V, Selectable by BIOS. Default is DC 0V
  Audio portVariPOS 750、VariPOS 850:N/A
VariPOS 8901 x Line-out ; 1 x Mic-In
  PS/2 portVariPOS 750 、 VariPOS 850、VariPOS 890 :N/A
  LPT portVariPOS 750、VariPOS 850:N/A
VariPOS 8901 x DB-25 Printer port
  VGA portVariPOS 750 、 VariPOS 850、VariPOS 890 :1 x DB-15 VGA port  Power enable by BIOS setting (default disable)
  Bus Expansion1 x Mini-PCI-E Slot
  Power Switch1 x power on / off switch button
  SpeakerHD Audio, 2W Speaker x 2
  OS Support
VariPOS 750
Win10 IOT 2016, Win8.1, Win7
  VariPOS 850 、VariPOS 890 :Windows 10 IOT 2016 (64bit)
Windows 8.1 (64bit)
Windows 7 (32/64bit)
  Power Adapter
VariPOS 750External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax
  VariPOS 850External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax
  VariPOS 890External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax
(Optional Medical Adapter)
  Compliance
  CertificationsVariPOS 750 、 VariPOS 850 :CE, FCC, LVD, RoHS
VariPOS 890CE, FCC, LVD, RoHS & Medical Certificates (CE: EN60601-1-2, FCC: Part 18, LVD: EN60601-1)
  ProtectionIP 66 on front panel
  VESA Mount
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
  Material
  Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic
  Color
VariPOS 750、VariPOS 850、VariPOS 890 :
Black
  Dimension( Wx H x D )
VariPOS 750
VariPOS 850
370 x 300 x 236mm
VariPOS 890
446 x 363 x 276mm (POS) / 446 x 377 x 70.4mm (PPC)
  Weight
VariPOS 750
VariPOS 850
7 Kg (POS) /5.7 Kg (PPC)
VariPOS 890
9.3 Kg (POS) /7.3 Kg (PPC)
  Environmental
  Operating Condition0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
  Storage Condition-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing
  Optional Accessories (More Information) / (*Optional Accessories are N/A VariPOS / VariPPC 890)
  VFD/LCMVFD: 2 x 20 attached
  MSRFront, 3 tracks USB Type
  iButtonUSB Type
  SCRUSB Type
  Finger PrintUSB Type
  RFIDUSB Type, 13.56MHZ
  Scanner2D Scanner, USB Type
  2nd DisplayVariPOS 750、VariPOS 85010.4″ Resolution 800 x 600
VariPOS 890:N/A
  e-Brochure and Datasheet (VariPOS)↓
