All In One

PT Series POS Systems, respond to market demand.

PT56B

Streamlined Style.
Unmatched Functionality.

  • Supports CPUs from Celeron J6412 to Intel 12th Gen. Core i3/i5
  • 4.8mm slimmest bezel in the present market.
  • Easy service cover for Memory Module & M.2 SSD.
  • Quick release of dual IO covers for easy access & peripherals installation.
  • Optional IO module for Power USB.
Brochure

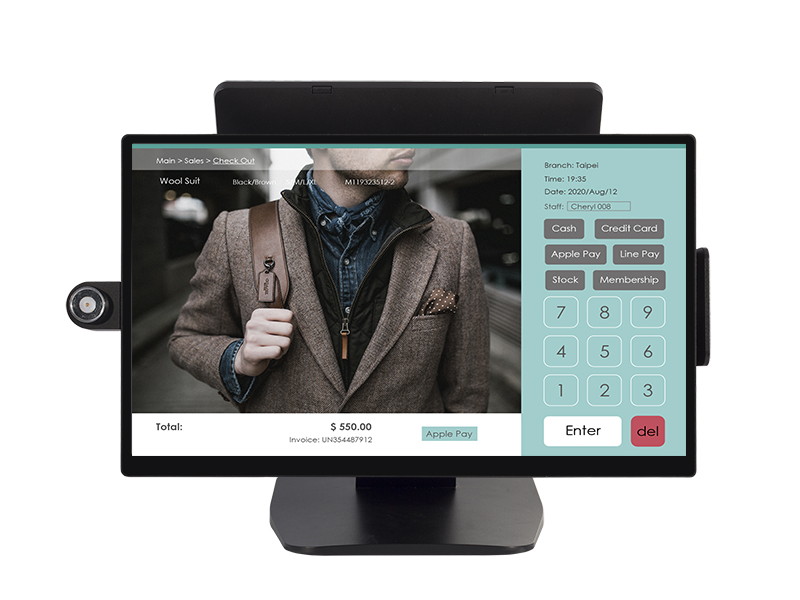

Poindus PT56 Point of Sale Terminal

The Complete POS Solution

 Delivering Stability & Performance

The state-of-the art PT56B presents a stylish and modern POS system with cutting edge of mechanical design and hidden cable management delivering a space saving solution.  The PT56B guarantees stability and high performance to enhance customer experience.  Seamless integration of various peripherals such as MSR, Second Display and Customer Display to meet project requirements.

With a modern slim bezel design widescreen display that seamlessly merges style with practicality. The sleek and contemporary widescreen format allows System Integrators to leverage this intuitive widescreen platform to design menu layouts that are both visually engaging and user-friendly, catering to diverse needs across retail, hospitality, and industrial applications.

Deliver the Power to Perform

Intel
Celeron J6412 to
12th Gen. Core i3/i5

Reliable Intel Processing

IP54 Ingress
Spill Proof

Front Panel IP54 (Ingress Protection) dust and waterproof protection

Robust
Stand

Stand for the perfect tilt adjustment

Multiple Mount
Options

Wall, Pole & Stand Mount Configurations

Power your Retail Devices

Simplify Integration with P-USB

The PT56B supports P-USB Powered equipment eliminating the need for external power supply adapters to power USB peripherals at your retail locations. It makes Point of Sale peripherals more dependable with a single connecting cable providing data and power.  It additionally helps drastically with cable management and keeping a clean workspace and also simplifies engineer visits for scheduled maintenance.

You can connect powered USB devices such as receipt printers, barcode scanners,  and other capture devices to the PT56B POS system, without having to power these devices individually with additional  power adapters.

Poindus PT56 Point of Sale Terminal

Specification

PT56 (PE24)
PT56 (PE26)
  Main Board
  PT56 (PE24) PT56 (PE26)
  Processor Intel® Celeron® J6412   Intel® Alder Lake-P Platform
i5-1235U
i3-1215U
  Chipset CPU Integrated
  System Memory 1 x SO-DIMM DDR4 slot, 4GB RAM as standard.  Max. memory support up to 16GB. 1 x 8GB DDR5 SO-DIMM memory
(Max.support up to 32GB)
  TPM Intel F/W
  Intel AMT N/A i5 CPU Only
  Display & Touch
  LCD Size 15.6″ 16:9 TFT LCD(LED backlight)
  Brightness 350nits
  Resolution 1920 x 1080 (16:9)
  Touch True Flat Projected Capacitive Technology
  Storage
  HDD/SSD 1 x M.2 PCIE Gen 3
  Panel I/O
  LAN Port 1 x Gigabit Ethernet by RJ-45
  USB Port 4 x USB 2.0, 3 x USB 3.1
  COM Port 2 x COM (COM 1/2: RG48 Support DC to 5/12v by BIOS Setting)
Default Setting is 0v
  Cash Drawer 1 x RJ11 (Support DC+12v or +24v (default)) port supports 2 cash drawers
  Type C 1 x Type C
  Speaker HD Audio, 2W Speaker x 2
  Power Switch 1 x power on/off button
  DC Input 1 x Mini Din 4P (DC+19v only)
OS Support
Windows 10 (64bit)  |  Windows 11 (64bit) (Option) | Linux
 Power Adapter (External Adapter)
Voltage:+19VDC, Std. 65 watt Voltage:+19VDC, Std. 90 watt
Compliance
Certifications CE, FCC, LVD, RoHS
Material Main Unit: Plastic
Color Main Unit: Black
Dimension
( W x H x D mm )
359.8 x 261.2 x 178 mm
Environmental Conditions

Operating:  0°C ~ 40°C, 10% ~ 90% RH, non-condensing

Storage:  -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories
MSR   ISO 3-Tracks Slim MSR USB Type
ibutton ibutton  Dallas Key Reader,USB Type
RFID   13.56Mhz USB Type
Fingerprint DigitalPersona U.are.U 4500 Module, USB Type
Scanner   2D scanner, USB Type
2nd Display 10.1″ 10.1 ” Resolution 1280 x 800 (16:10 wide screen) USB Type,  Non Touch
2nd Display 15.6″  15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch
*Project Based
LCM 2×20 LCM, USB Type
Packaging  Carton L395 x 295 x H489 mm
