Panel PC
Panel PC designed to thrive in harsh environments and fit into any scenario.
VariPPC Series 15”/19”
Multi-application Panel PC
- Full range of CPU from Intel® Bay Trail J1900 to high-end computing Skylake i3/i5
- 15” (S series) or 19” True Flat P-Cap Touch Screen
- HDD or optional SSD storage option
- Modular designed Panel PC to satisfy multi-scenario requirements
- 8 colorful IO covers to suit any business environments
- Extensive Peripheral Connectivity – MSR, iButton, SCR, Fingerprint, RFID, 10.4″ 2nd Display Stylish and durable Aluminum chassis with Fanless Heat Elimination
- TSE Adapter for VariPOS (KassenSichV) Compliant
VariPPC Series
All In One Mountable Panel PC
Poindus VariPPC, the world’s first 15” True Flat Panel PC technology for busy environments that demand workspace flexibility, frees up space with multiple mount options (Stand, Pole Wall).8 colorful IO covers to suit any business environments
Full Range of Intel® Processors
Combined with Protected Screen (IP66)
Intel Core i5 with Windows
Full range of CPU from Intel® Bay Trail J1900 to high-end computing Skylake i3/i5
IP66 Spill Proof
Combined with full IP66 (Ingress Protection) dust and waterproof protection,
is perfectly suited for the rigors of hospitality and retail environments.
Outstanding Extendibility with
Companion Peripherals
Poindus VariPPC offers both 15” and 19” counter POS and Panel PC solutions. Providing complete hospitality and retail IO interface to service all scenarios. This system is designed with a modularized structure and is compliant with a full range of peripherals include MSR, I-Button, VFD, RFID, and Fingerprint…etc.
VariPPC 750
VariPPC 850
VariPPC 890
Rich Applications for Digital Transformation
Designs win, details make perfection. VariPPC has a stylish appearance for advanced software requirements and performance-oriented applications. With VESA Mount can be located anywhere required. No matter in F&B or any retail scenario, VariPOS has countless success stories and a proven track record with our partner’s great installations.
Seamless Service with Modular Design
Our robust build can handle the stresses of the workplace whatever the environment ensuring a long lifespan; with reliable modular design reduces the complexity of rollouts and simplifies maintenance and is backed by our network of international distributors, ISVs, SIs, VARs and resellers
Specification
| VariPPC | ||
| Model Name | ||
| VariPPC 750、VariPPC 850、VariPPC890 | ||
| Main Board | ||
| Processor | VariPPC 750： | Intel® Celeron J1900 2.0GHz , Cache 2MB |
| VariPPC 850： |
Intel® Skylake Core i5-6300U 2.4 GHz up to 3.00 GHz, Cache 3MB Intel® Skylake Core i3-6100U 2.3 GHz, Cache 3MB |
|
| VariPPC 890： |
Intel® Skylake Core i5-6300U 2.4 GHz up to 3.00 GHz, Cache 3MB Intel® Skylake Core i3-6100U 2.3 GHz, Cache 3MB Intel® Skylake Celeron 3955U 2.00 GHz, Cache 2MB |
|
| Chipset | VariPPC 750 、VariPPC 850、 VariPPC 890 | CPU Integrated |
| System Memory | VariPPC 750 | 1 x DDR3L SO-DIMM up to 8GB |
| VariPPC 850、VariPPC 890： | 1 x SO-DIMM DDR3L 1600MHz, up to 8GB | |
| Display & Touch | ||
| LCD Size | VariPPC 750、VariPPC 850： | 15″ TFT LCD(LED backlight) |
| VariPPC 890： | 19” TFT LCD(LED backlight) | |
| Brightness | VariPPC 750 、 VariPPC 850、VariPPC 890 : | 350nits |
| Touch Technology | VariPPC 750 、 VariPPC 850、VariPPC 890 : | True Flat Projected Capacitive Technology |
| Resolution | VariPPC 750、VariPPC 850： | 1024 x 768 |
| VariPPC 890 | 1280 x 1024 | |
| Storage | ||
| HDD/SSD | 1 x SATA (2.5”) HDD or SSD | |
| I/O & Expansion | ||
| DC Input | VariPPC 750 、 VariPPC 850、VariPPC 890 : | 1 x Mini Din 4P (DC 19V only) |
| Cash Drawer | VariPPC 750 、 VariPPC 850、VariPPC 890 : |
1 x RJ-11 (Power Pin 12V or 24V(default)) Port Supports 2 Cash Drawer |
| LAN port | 1 x Gigabit Ethernet by RJ-45 (VariPOS 890: 2nd LAN Optional ) | |
| USB port | VariPPC 750 、 VariPPC 850: | 2 x USB 2.0 , 4 x USB 3.0 |
| VariPPC 890 : | 3 x USB 2.0 , 4 x USB 3.0 | |

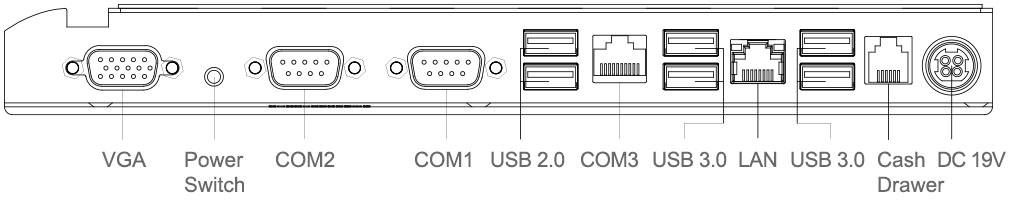

| COM port | VariPPC 750： | 3 x RS-232(COM1/2:DB-9,COM3:RJ48) w/ RI/5V/12V, selectable by BIOS (default is RI) |

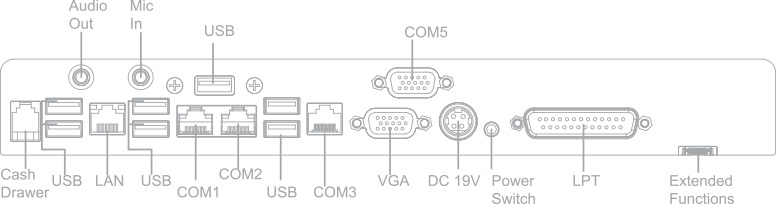

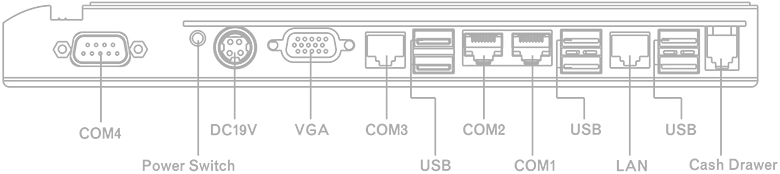

| VariPPC 850、VariPPC 890 ： | 4 x RS-232 (3 x RJ48+1 x D89 Connector), COM 1/2/3 with DC 0V/5V/12V, Selectable by BIOS. Default is DC 0V | |
| Audio port | VariPPC 750、VariPPC 850： | N/A |
| VariPPC 890 | 1 x Line-out ; 1 x Mic-In | |
| PS/2 port | VariPPC 750 、 VariPPC 850、VariPPC 890 : | N/A |
| LPT port | VariPPC 750、VariPPC 850： | N/A |
| VariPPC 890 | 1 x DB-25 Printer port | |
| VGA port | VariPPC 750 、 VariPPC 850、VariPPC 890 : | 1 x DB-15 VGA port Power enable by BIOS setting (default disable) |
| Bus Expansion | 1 x Mini-PCI-E Slot | |
| Power Switch | 1 x power on / off switch button | |
| Speaker | HD Audio, 2W Speaker x 2 | |
| OS Support | ||
| VariPPC 750 |
Win10 IOT 2016, Win8.1, Win7 | |
| VariPPC 850 、VariPPC 890 : | Windows 10 IOT 2016 (64bit) Windows 8.1 (64bit) Windows 7 (32/64bit) |
|
| Power Adapter | ||
| VariPPC 750 | External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax | |
| VariPPC 850 | External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax | |
| VariPPC 890 | External adapter, DC Model:90 Watts, Voltage:+19VDC 4.74 Amax (Optional Medical Adapter) |
|
| Compliance | ||
| Certifications | VariPPC 750 、 VariPPC 850 : | CE, FCC, LVD, RoHS |
| VariPPC 890 | CE, FCC, LVD, RoHS & Medical Certificates (CE: EN60601-1-2, FCC: Part 18, LVD: EN60601-1) | |
| Protection | IP 66 on front panel | |
| VESA Mount | ||
| Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic | ||
| Material | ||
| Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic | ||
| Color | ||
| VariPPC 750、VariPPC 850 : |
Black | |
| VariPPC 890 : | Black / White | |
| Dimension( Wx H x D ) | ||
| VariPPC 750 VariPPC 850 |
370 x 300 x 236mm | |
| VariPPC 890 |
446 x 363 x 276mm (POS) / 446 x 377 x 70.4mm (PPC) | |
| Weight | ||
| VariPPC 750 VariPPC 850 |
7 Kg (POS) /5.7 Kg (PPC) | |
| VariPPC 890 |
9.3 Kg (POS) /7.3 Kg (PPC) | |
| Environmental | ||
| Operating Condition | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing | |
| Storage Condition | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing | |
| Optional Accessories (More Information) / (*Optional Accessories are N/A VariPOS / VariPPC 890) | ||
| TSE Adapter for VariPOS | TSE Adapter for VariPOS (KassenSichV) Compliant | |
| VFD/LCM | VFD: 2 x 20 attached | |
| MSR | Front, 3 tracks USB Type | |
| iButton | USB Type | |
| SCR | USB Type | |
| Finger Print | USB Type | |
| RFID | USB Type, 13.56MHZ | |
| Scanner | 2D Scanner, USB Type | |
| 2nd Display | VariPPC 750、VariPPC 850 | 10.4″ Resolution 800 x 600 |
| VariPPC 890： | N/A | |
