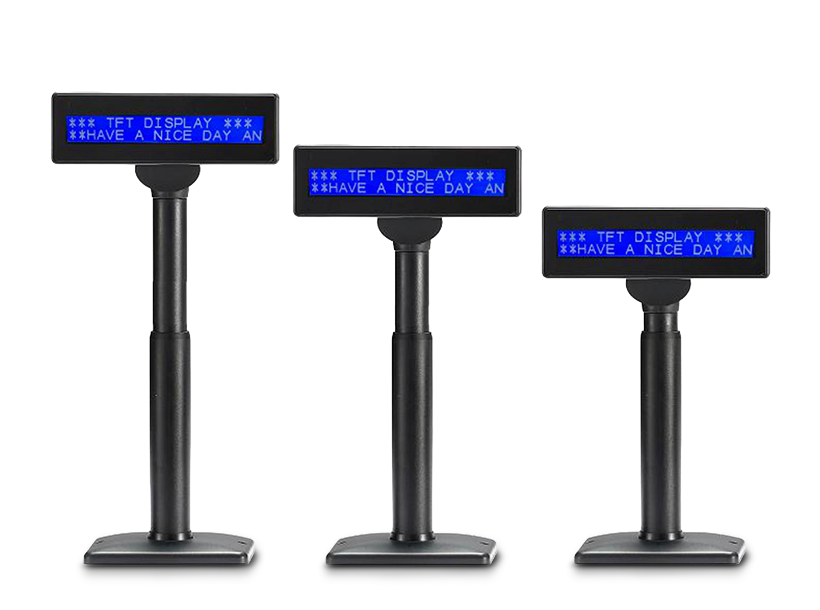

Modular LCM Display
Simple integration to POS & PPC
Features
- Supports 11 command codes including EPSON
- Power Supply 5V to 24V to prevent any improper power input
- OPOS/JPOS driver as standard
- 20 column x 2 line dot matrix in a wide viewing angle
- Easy connectivity to a wide range of POS products
Compact LCM Display with Easy Integration
Clear, Easy-to-read
LED
Blue-White
1200cd/m2
40 Characters
20 Column
x 2 Lines
Dot Matrix
16 * 16
Alphanumeric
95 (32 Intl)
Command Modes
LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL

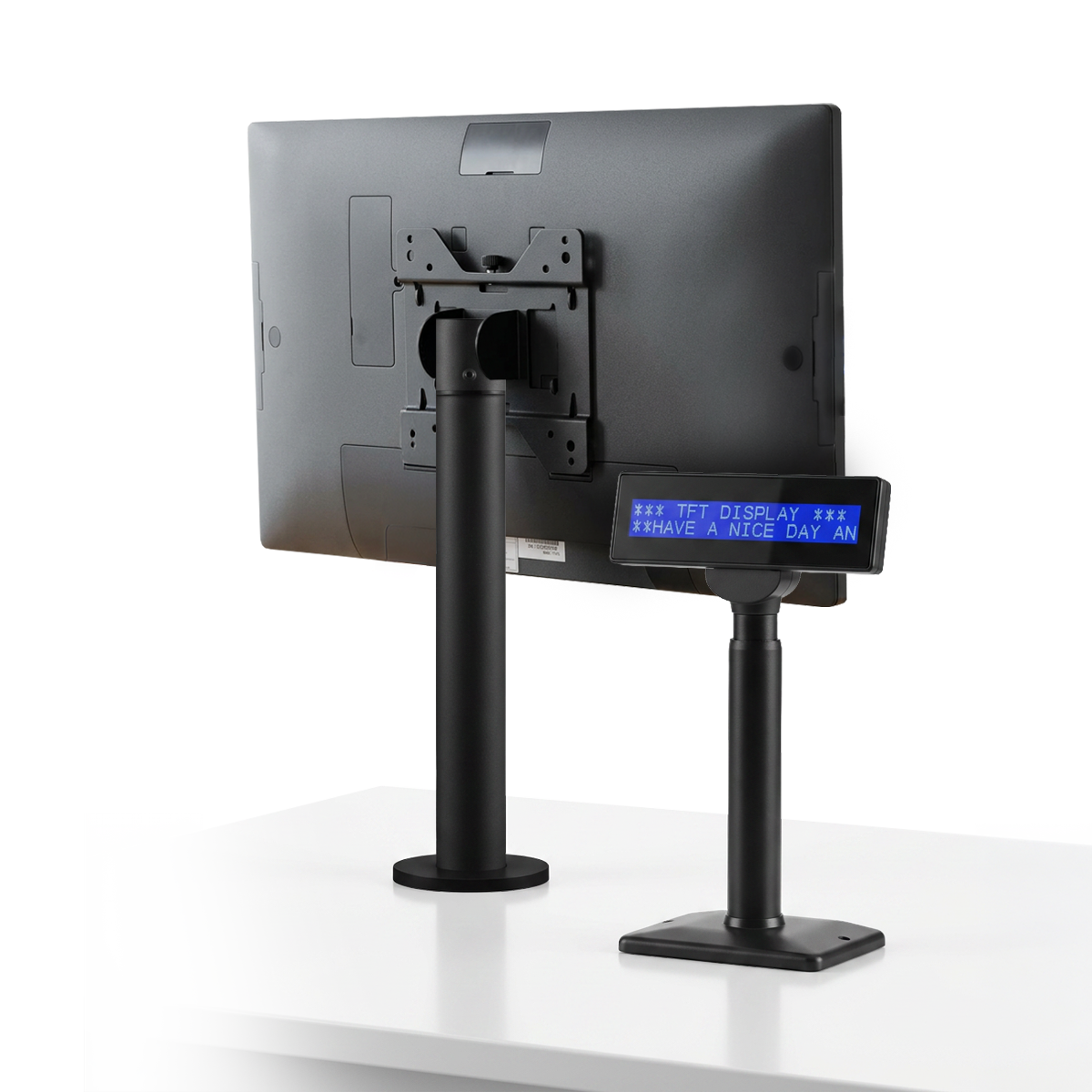

The Poindus M185 adapts seamlessly to diverse retail and hospitality applications—from shelf‑mounted displays and price checkers to rear POS customer‑facing screens. Its rugged design, flexible mounting, and connectivity options make it ideal for enhancing customer engagement and streamlining workflows.
Specification
PD220C-III
PD220C-III
| General | Display Method – LCD (Blue-White) Number of Characters – 40 (20 columns × 2 lines) (Chinese: 20×2) Brightness – 1200cd/m² Character Font – 16×16 dot matrix Character Type – 95 Alphanumeric, 32 international characters Character Size – 9.92 (H) × 7.136 (W) mm Dot Size – 0.426 (H) × 0.6 (W) Download Character – 9 characters Active Area – 142.7 (H) × 19.82 (V) mm Pole Dimension – 140 (L) × 34.5 (Dia) mm Base Dimension – 169.5 (D) × 98.5 (W) × 39 (H) mm Viewing Angle – Max. 60° Horizontal Rotation – Max. 355° Weight – Approx. 700 grams |
|---|---|
| Commands Mode | LD220, EPSON POS D101, AEDEX, UTC/S, UTC/Pi, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL |
| Language Support | France, Germany, U.K., Denmark, Sweden, Italy, Spain, Japan, Norway, Slavonic, Russia, Portuguese, Canadian French, Nordic Turkish, Greek West European Latin, CP858, CP1252, CP857 (Turkish), Polish, WPC1250, WPC1252, WPC1255 (Hebrew), WPC1251 (Cyrillic), CP737, DOSGreek, CP864 (Arabic), Farsi (Iran), CP936-GBK, CP932, CP949, CP950 |
| Interface | RS-232 (serial) / USB |
| Connection | Baud: Direct connection 9600 or 19200 bps |
| Reliability | MTBF: 30000 hours |
| Power | Consumption: 5–24 VDC |
| Safety | EMC Standards – CE, ROHS Safety Standards – FCC, CE, ROHS |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
