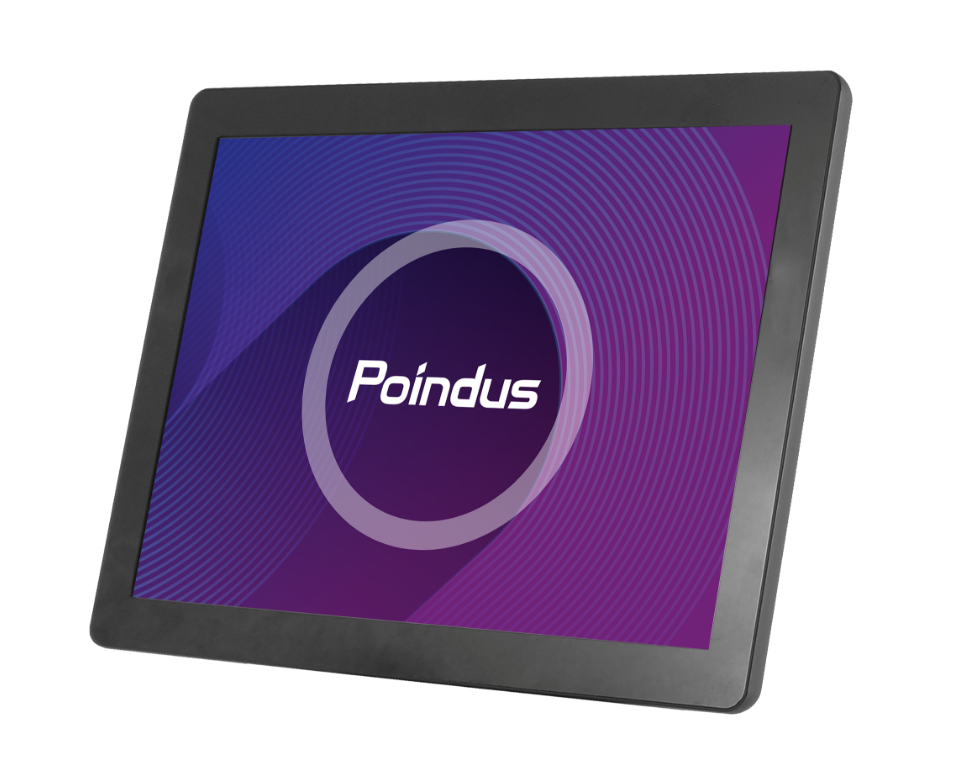

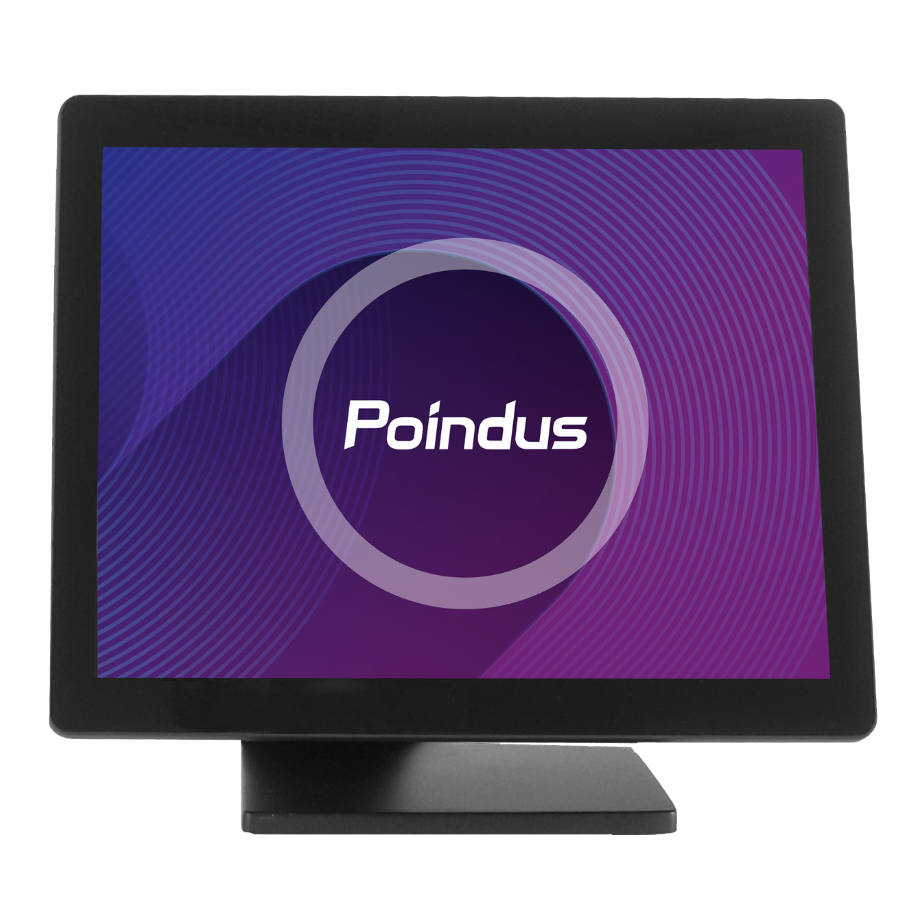

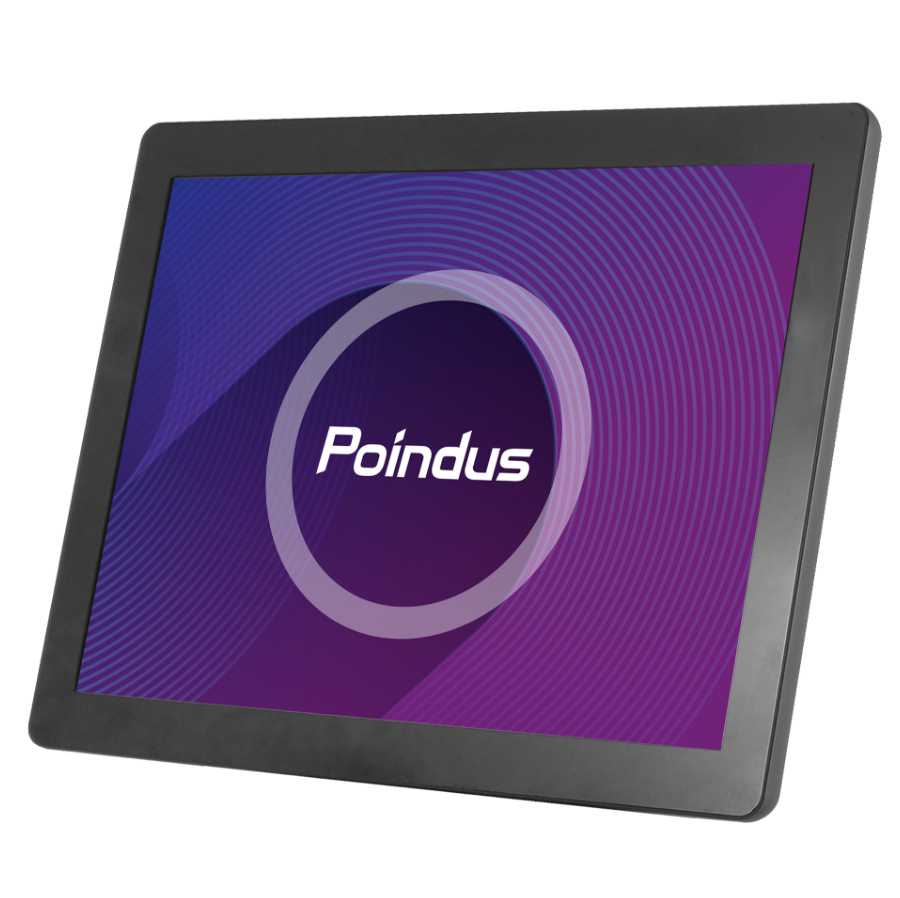

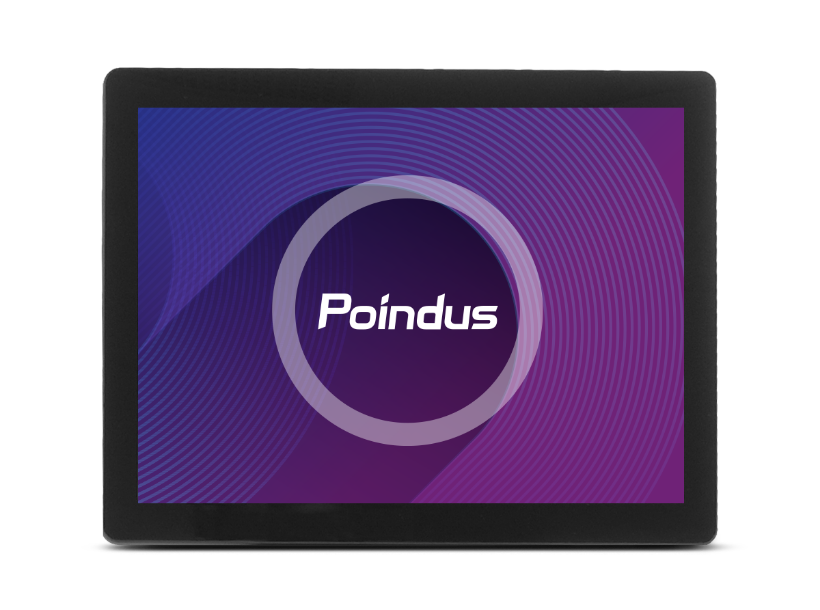

M365 (10.4")
Maximum Power.
Features
- High Strength Glass Overlay.
- USB or VGA Interface Available.
- Durable Die-Cast Aluminum Base.
- Easy Installation – One USB/VGA Cable Required.
- Spill Proof and Anti-Dust.
- Best Choice for Space Limited Retail / Hospitality Environments.
- True Flat Designed to Suit Harsh Environment.
- Refer to M465 with stand.
Product Highlights
10.4" Display
IP54 Protection
High Strength Glass Overlay
VESA
Compliance
75*75
Durable Die-Cast
Aluminum Base
Touch Screen or Non-Touch Available

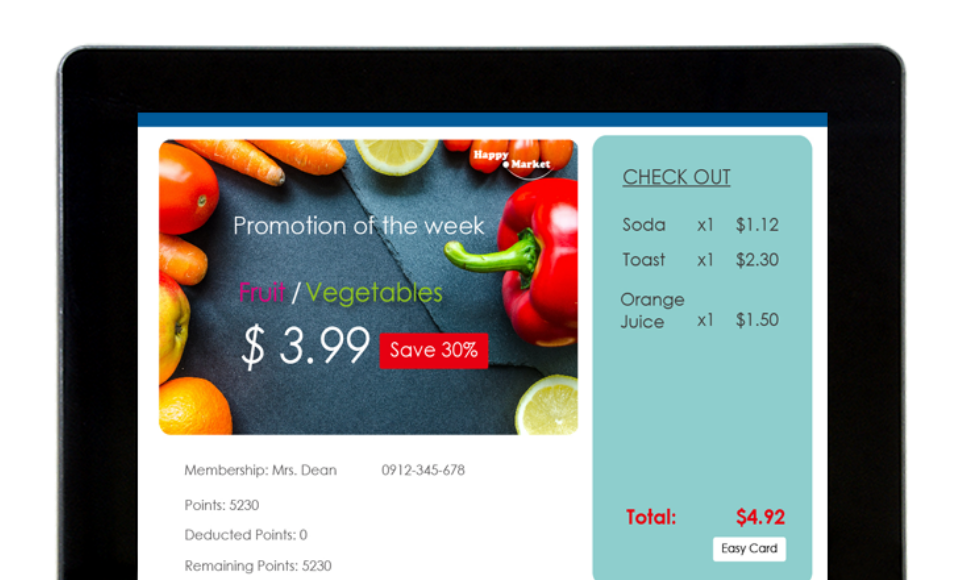

Strong yet Big Screen with Smooth Interaction
Display with High Strength Glass gives a large viewing angle and more accurate color reproduction.
10.4″
4:3
800 x 600
Resolution
10 Points
Projective Capacitive
300
cd/m²
Rugged IP54 True-Flat Display for Retail & Hospitality
Poindus M354 is a compact 8″ display with spill‑proof, dust‑resistant front panel.
Ideal for customer information, price checking, and signage in space‑restricted environments.
Reliable 10.4″ display

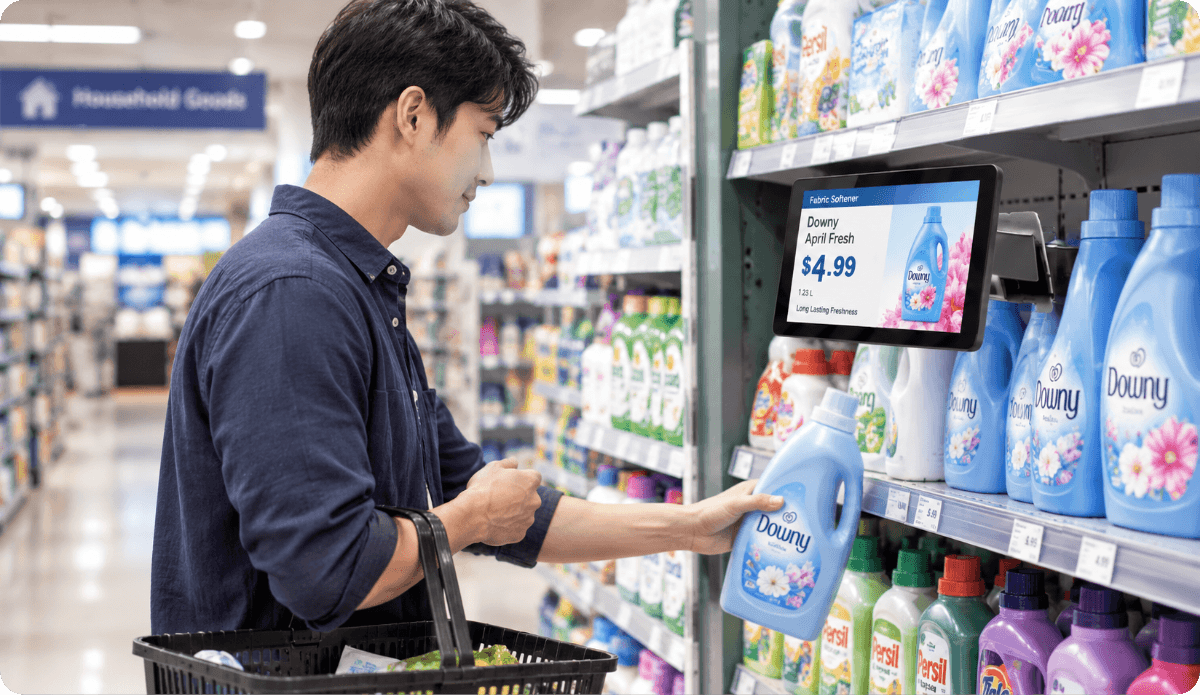

Combines rugged IP54 protection with flexible mounting and connectivity, making it suitable for customer‑facing POS screens, shelf displays, and price verification stations.
Suitable for customer information, CCTV monitoring, shelf‑end marketing, and general signage.

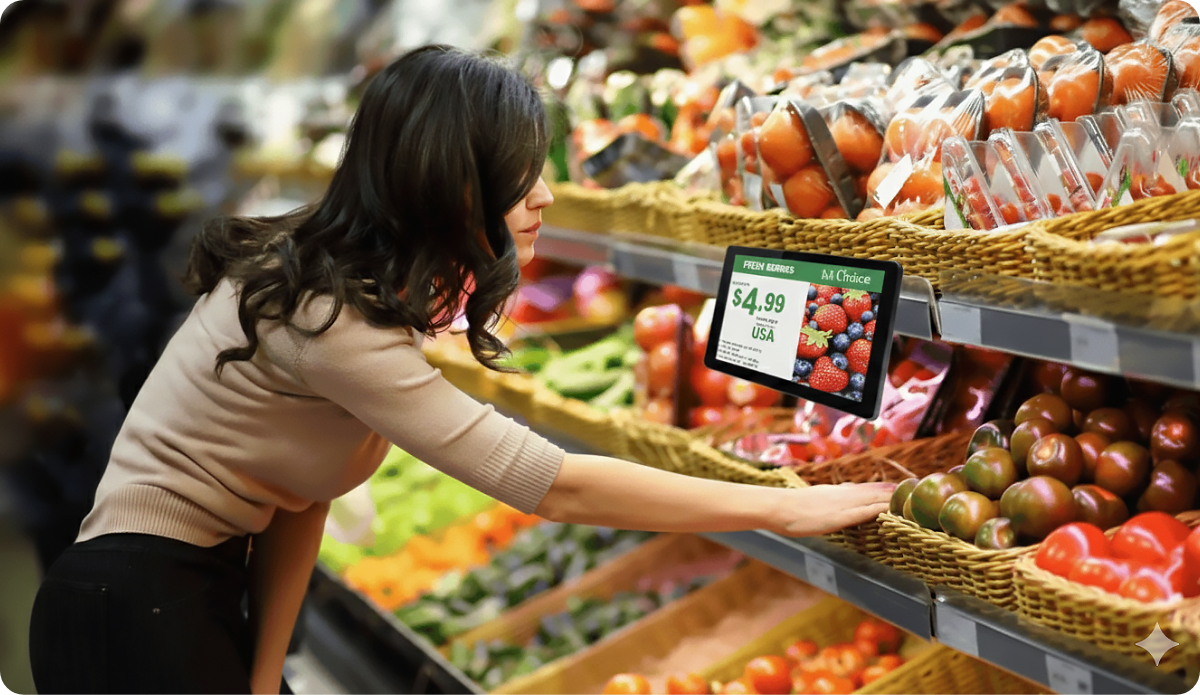

Application scenarios

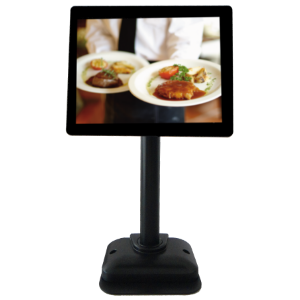

Versatile Mounting Solutions
Rugged True-Flat Display
- IP54 Front Panel Ingress Protection.
- Spill Proof and Anti-Dust.
I/O & Expansion

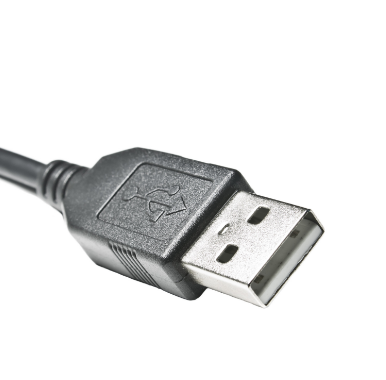

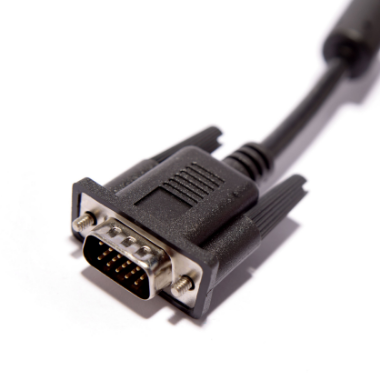

VGA or USB (model dependent)
DC Jack or USB Type‑B
USB Type‑B (touch models only)
VGA or USB (model dependent)
DC Jack or USB Type‑B
USB Type‑B (touch models only)

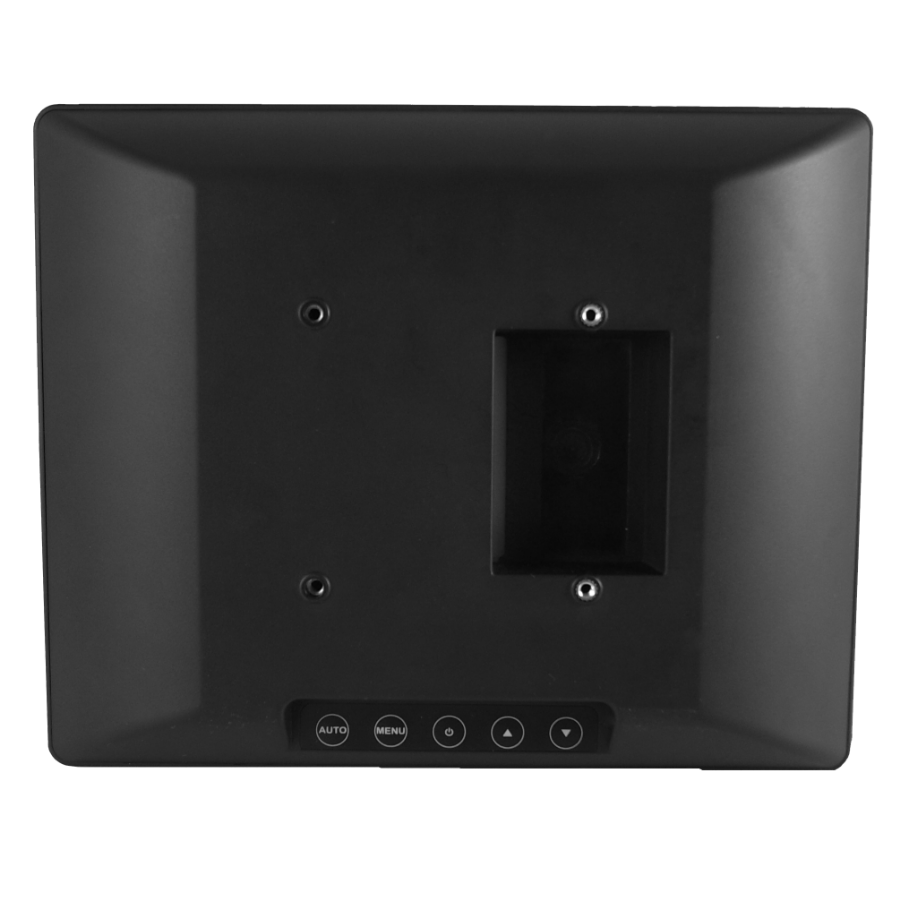

Easy Installation
VESA compliance
75*75
schematic

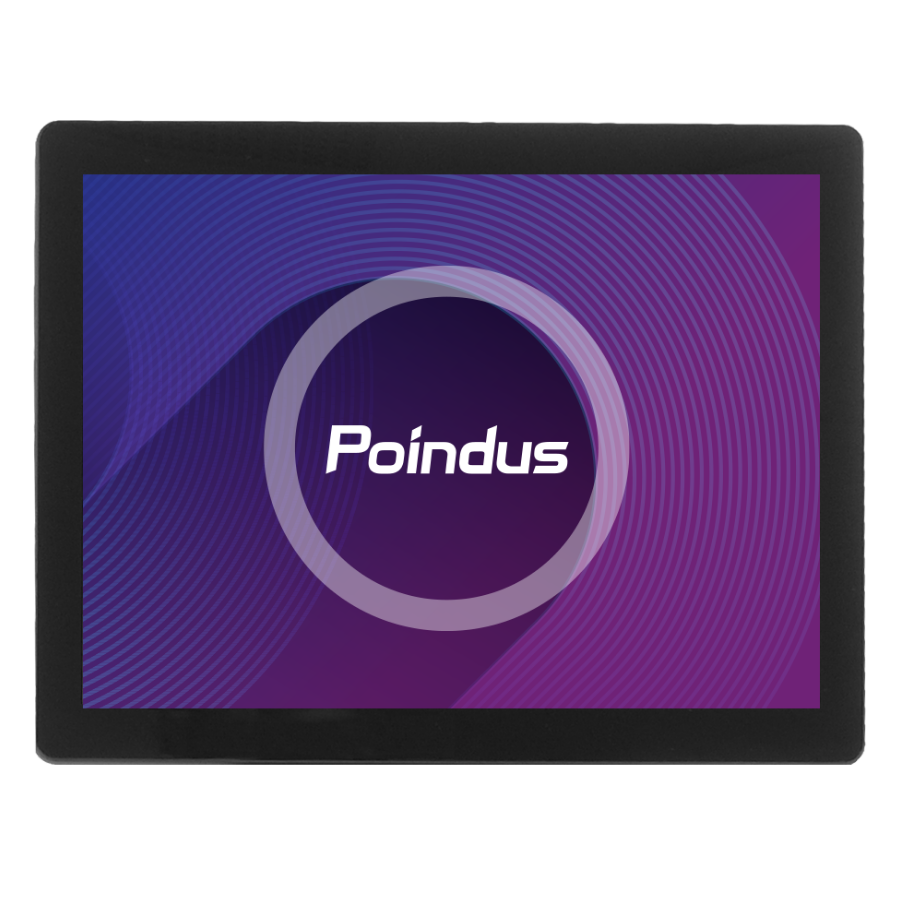

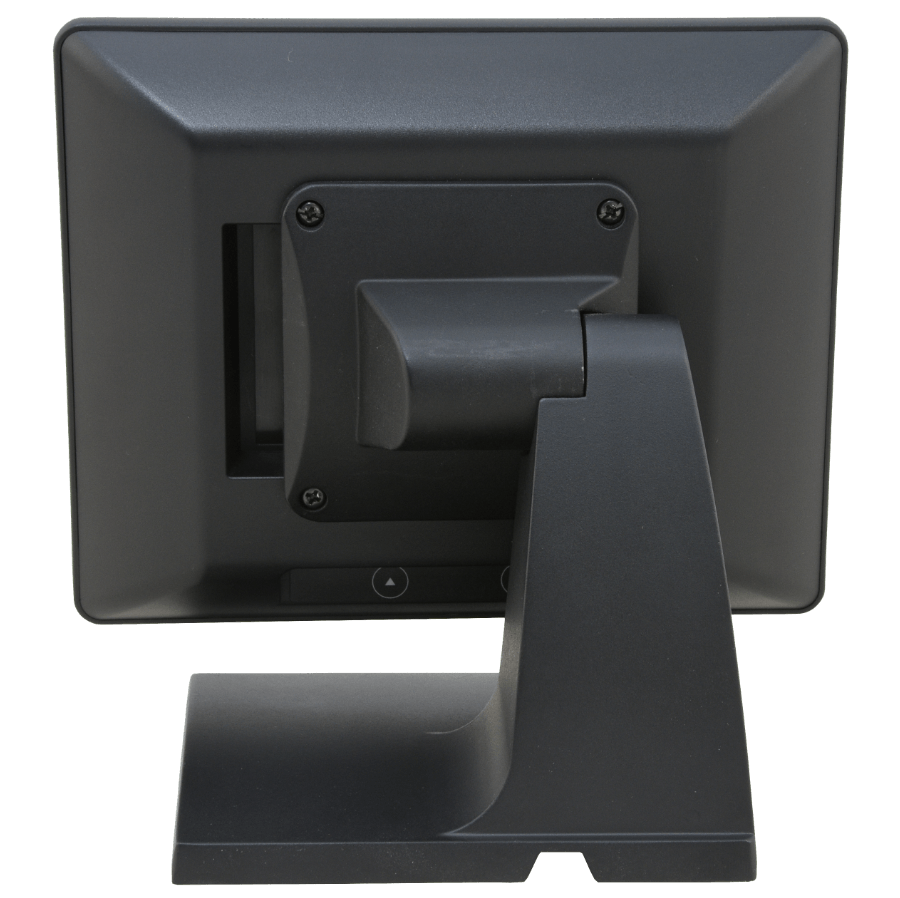

Photo Gallery
Specification
| Description | M365ND： 10.4″ VGA Non-touch (4:3) |
|---|---|
| Display size | 10.4″ (4:3) |
| True-Flat | YES (IP54) |
| Interface | M365ND：VGA M365PD：VGA M365NC：USB M365PC：USB |
| Optimal Resolution | 800 x 600 |
| Viewing angle | 50/60/70/70 degree (U/D/L/R) |
| Brightness (Panel) | 300 |
| Contrast Ratio | 500:1 |
| Response Time (ms) | 20 ms |
| Power supply | M365ND：DC 12V |
| OS Support | M365ND：N/A |
| Touch type | M365ND： Non-Touch M365NC： Non-Touch M365PD：Projected Capacitive (USB) M365PC：Projected Capacitive (USB) |
| Input Terminals | For Video Signal For Power For Touch Signal For Audio |
| Physical Dimension | Dimensions (W x H x D) mm Weight (N. W.) (Kg) |
| Environment | Operating Condition: 0°C ~ 40°C Storage Condition: -10ºC~50ºC Power Consumption: |
| Certifications EMI/Safety | CE, FCC, LVD |
| Options | Wall Mount Kit Base MSR VFD Pole Stand 2nd Display |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
