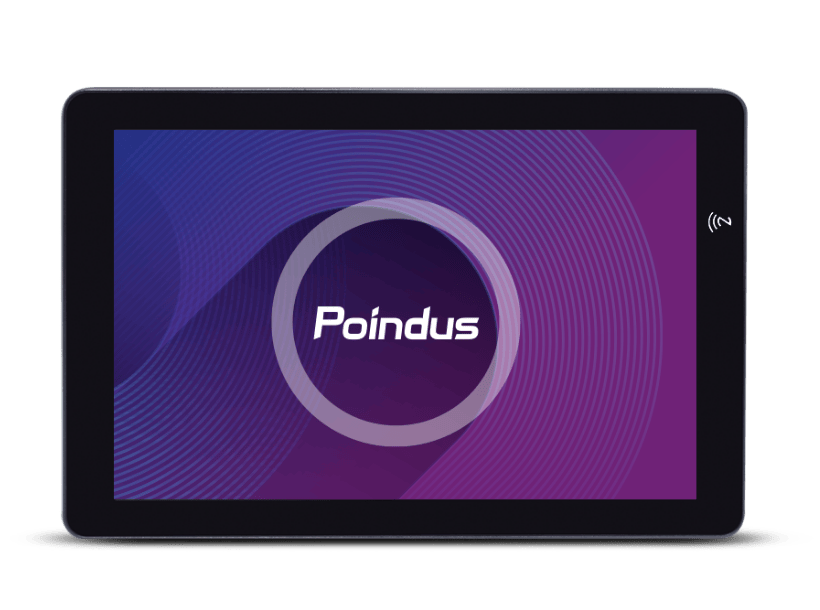

M185
Built for mission-critical operations
Features
- High Strength Glass Overlay
- DP / VGA or USB Interface
- Durable Die-Cast Aluminum Base
- Easy Installation – DP / VGA / USB Cable Required
- Spill Proof and Anti-Dust ( IP54 )
- Best Choice for Space Limited Retail / Hospitality Environments
- True Flat Designed to Suit Harsh Environment
- Touch Screen or Non-Touch Available
- VESA, Pole or Base Stand Available
Product Highlights
10.1″
1280 X 800
IP54
Resistance
Support NFC
VESA
compliance
75*75

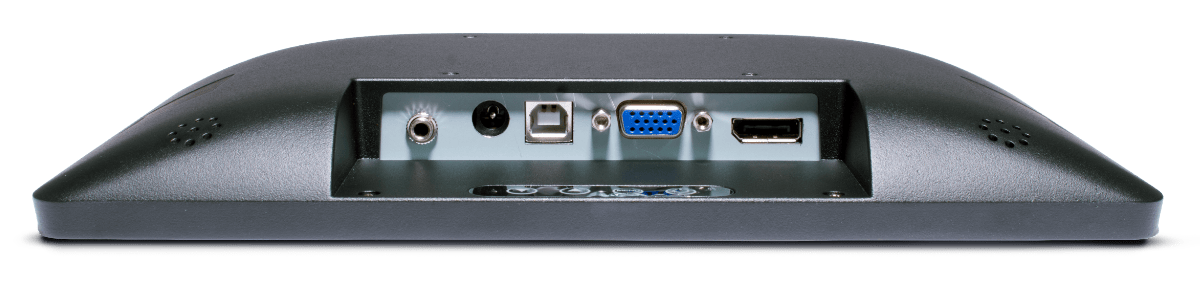

Easy Installation
DP / VGA / USB

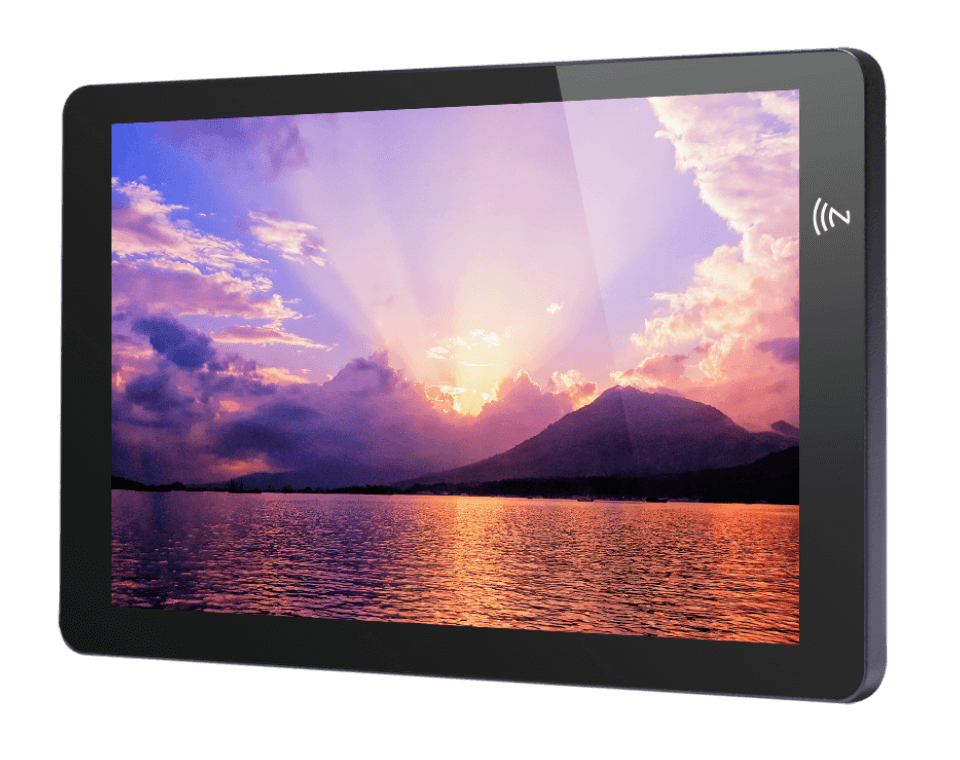

Compact Screen with Smooth Interaction
10.1″
16:10
1280 x 800
Resolution
10 Points
Projective Capacitive
350
cd/m²

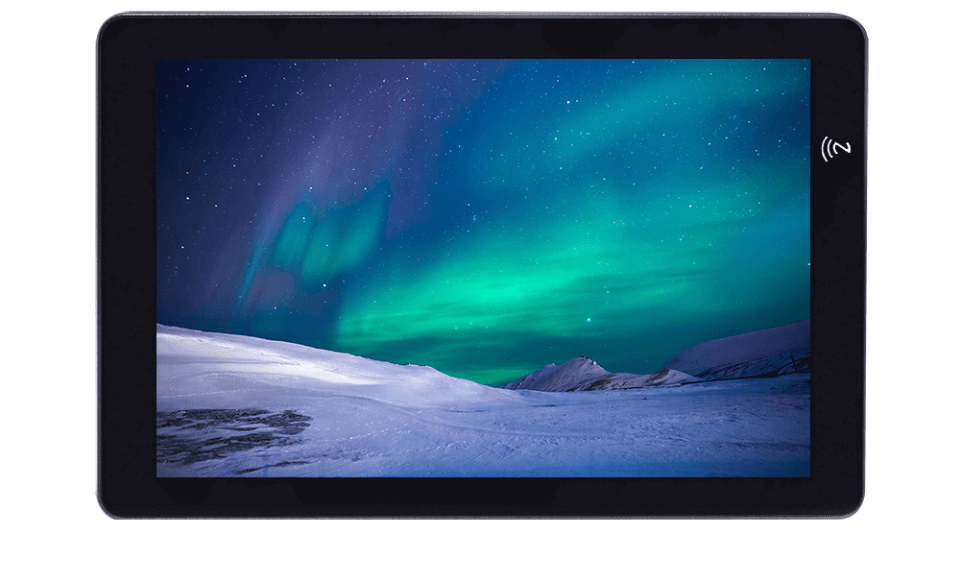

Rugged IP54 True-Flat Display for Retail & Hospitality

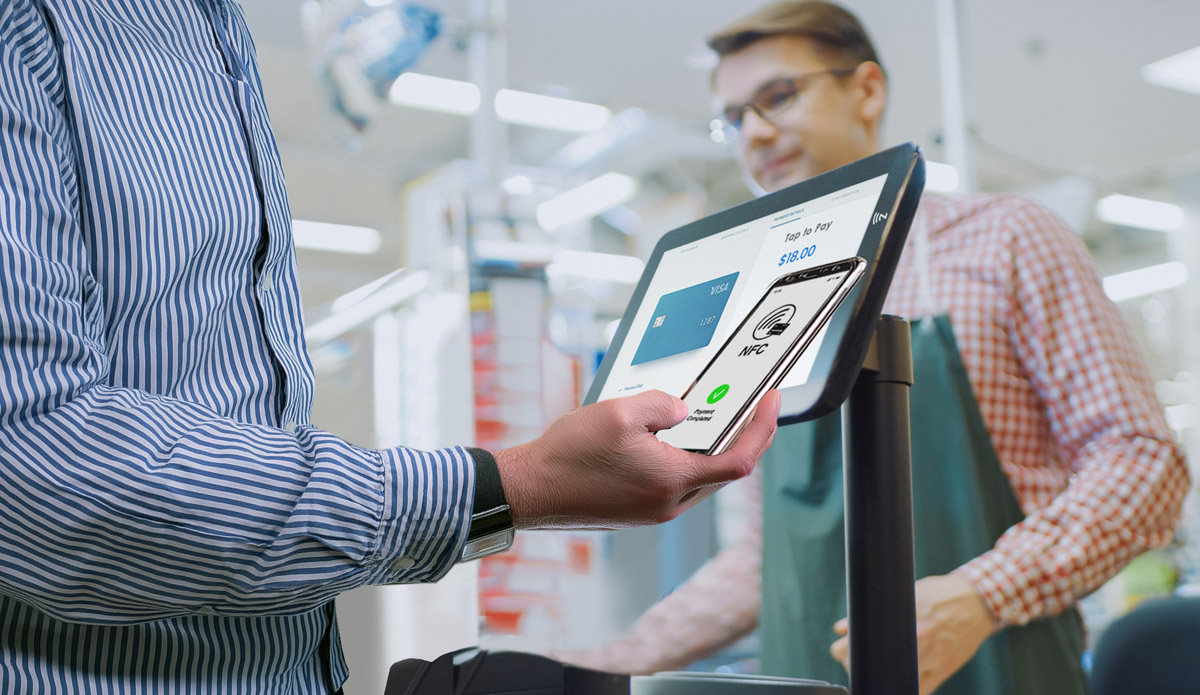

SoftPOS Payment Support
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.

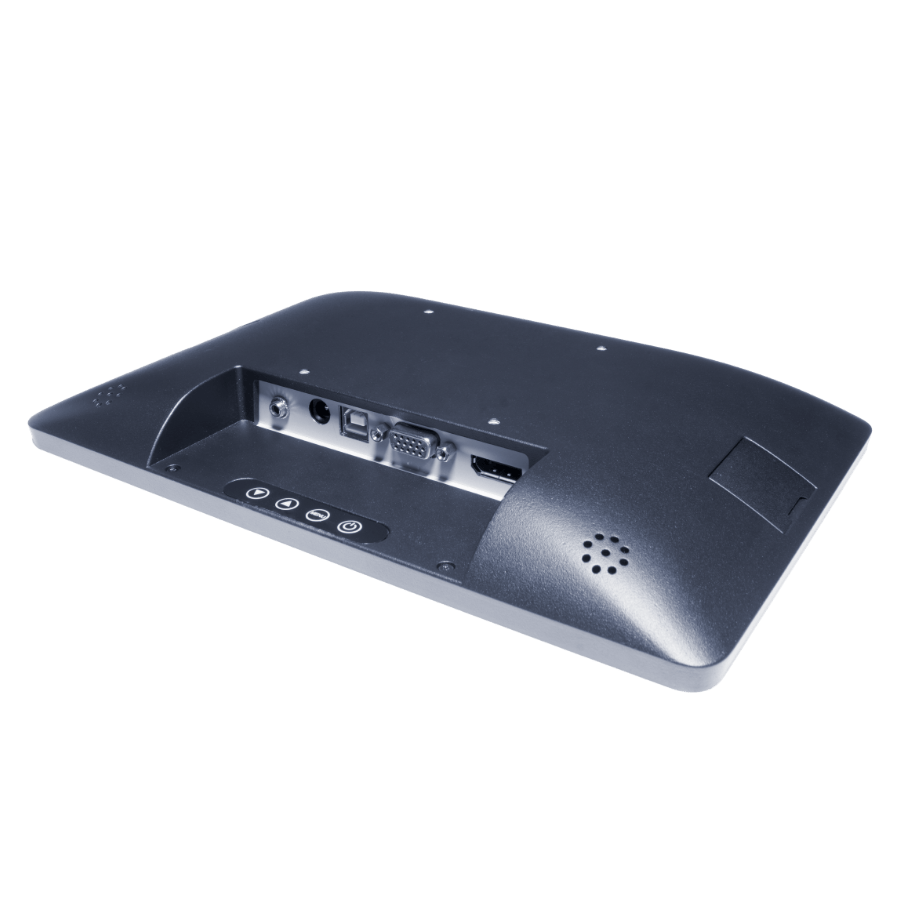

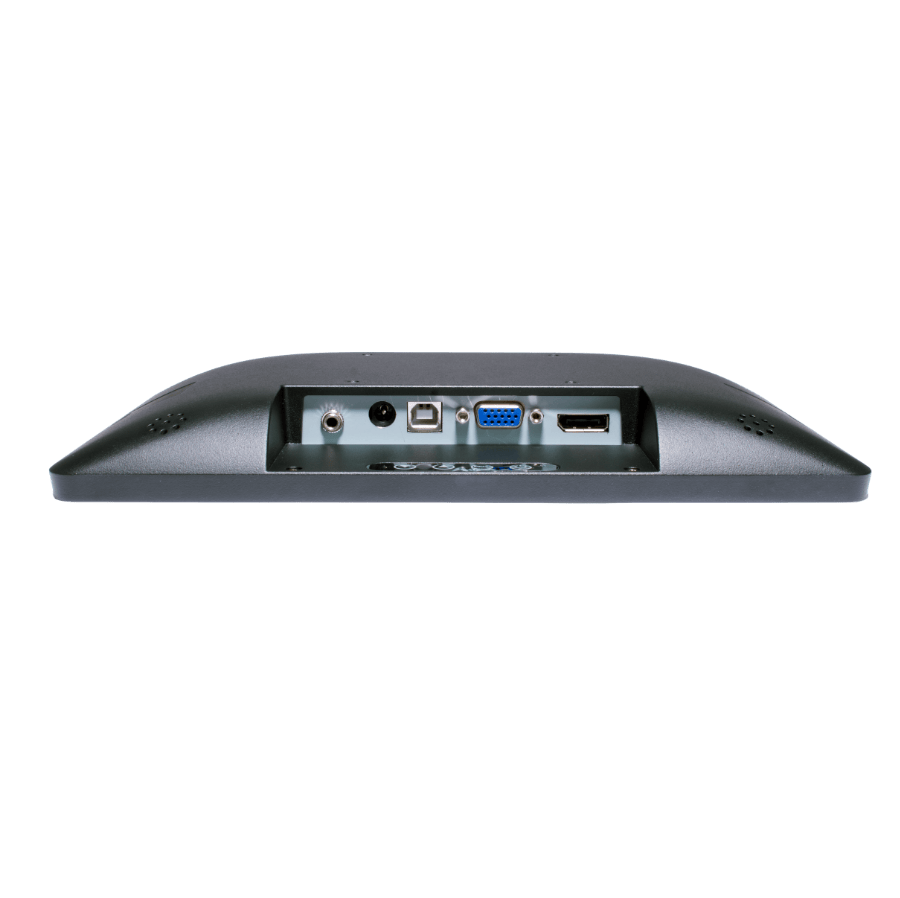

Easy Installation
Application scenarios

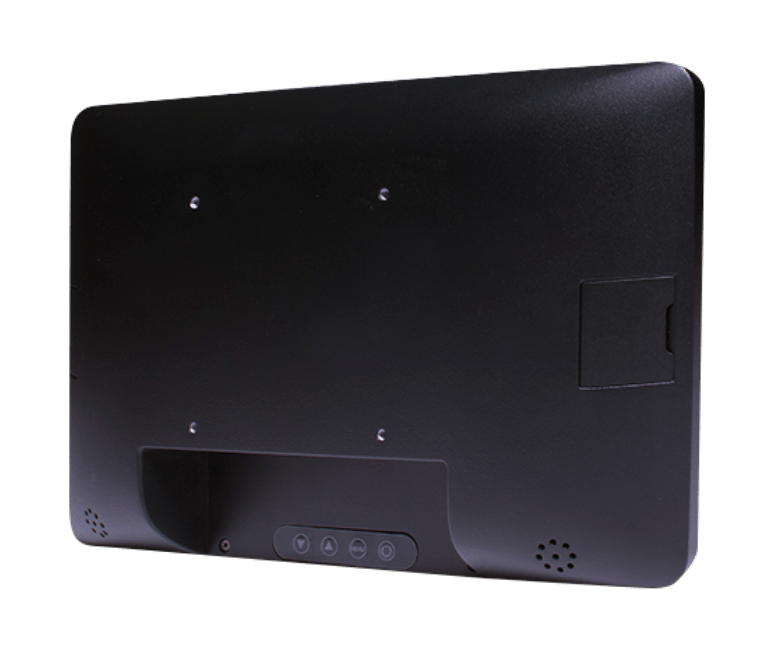

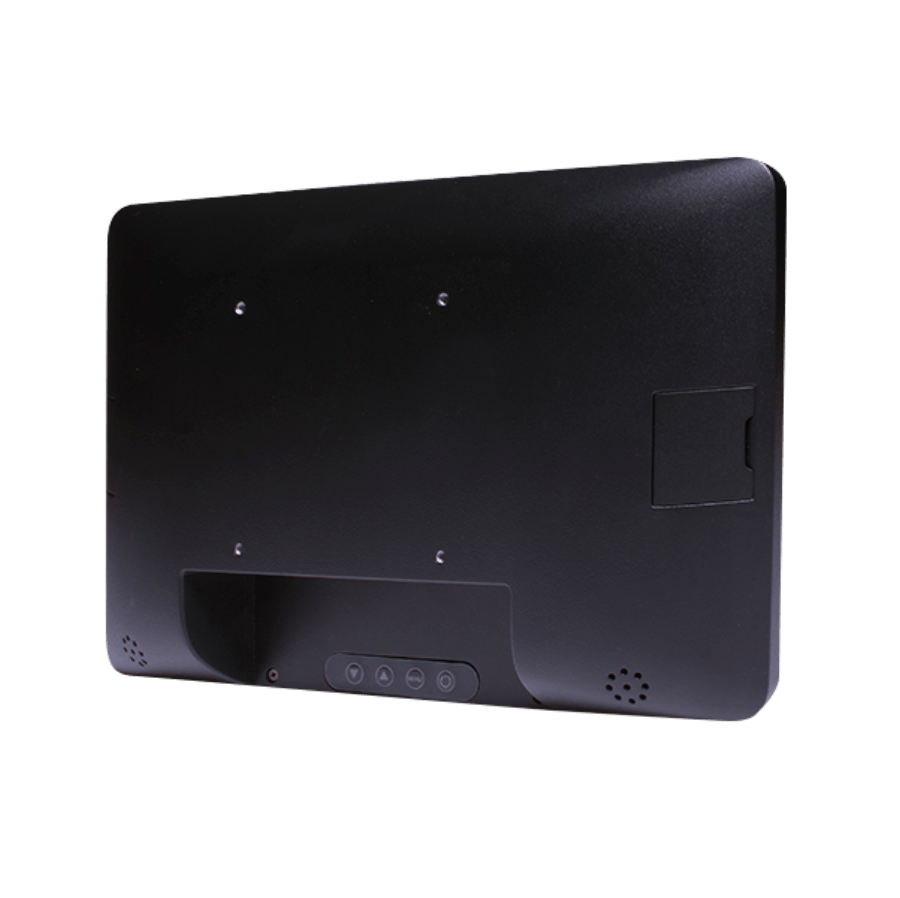

VESA compliance
75*75
schematic

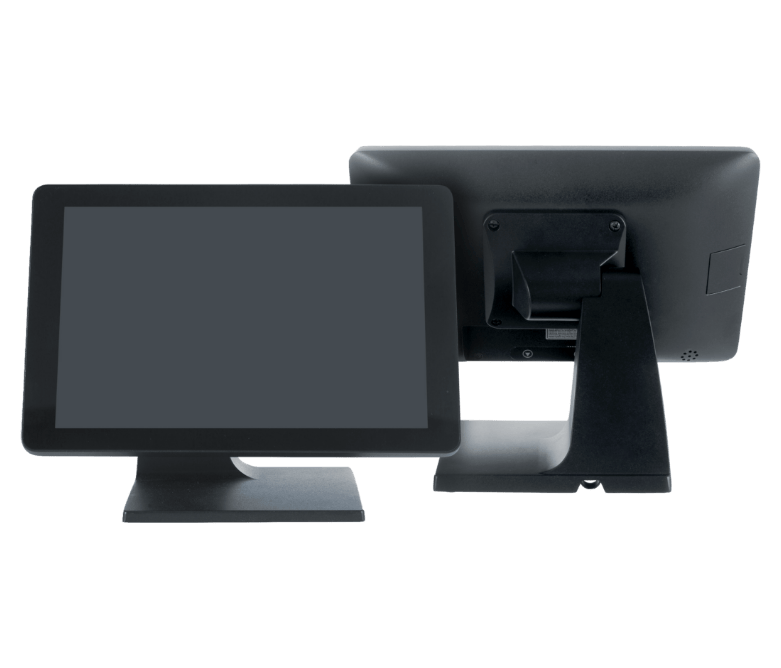

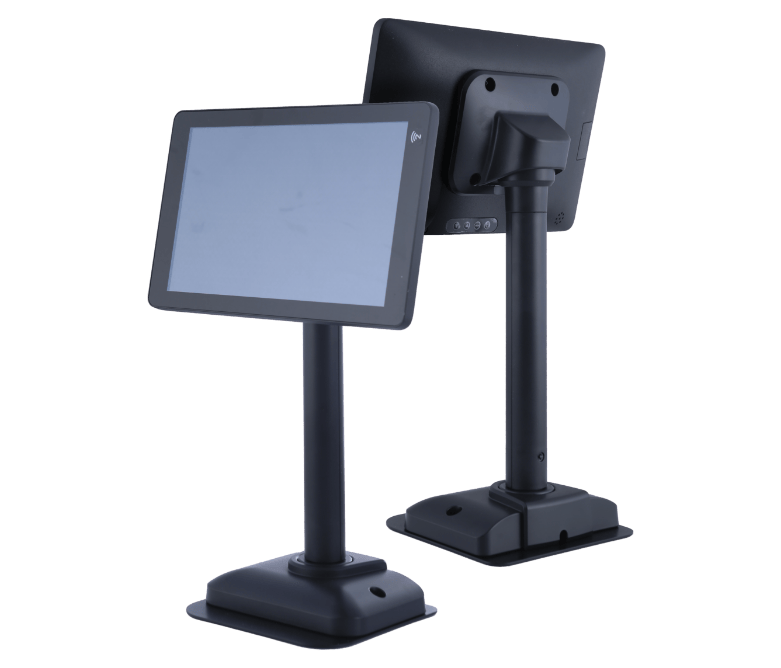

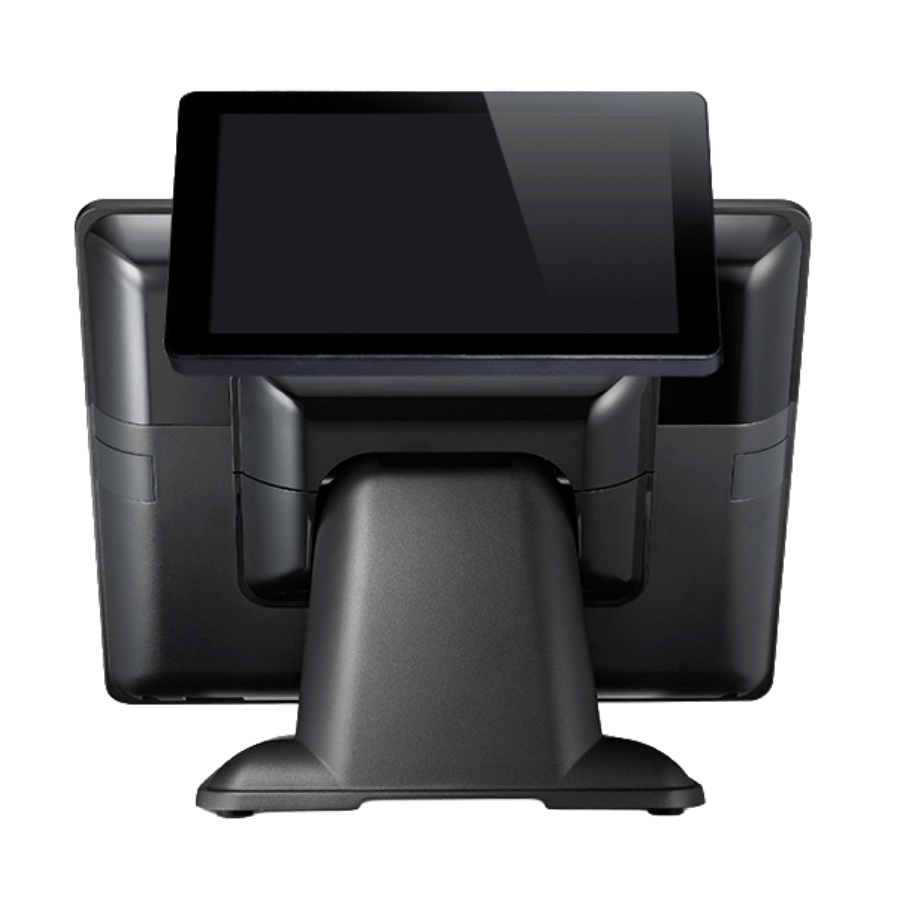

Versatile Mounting Solutions

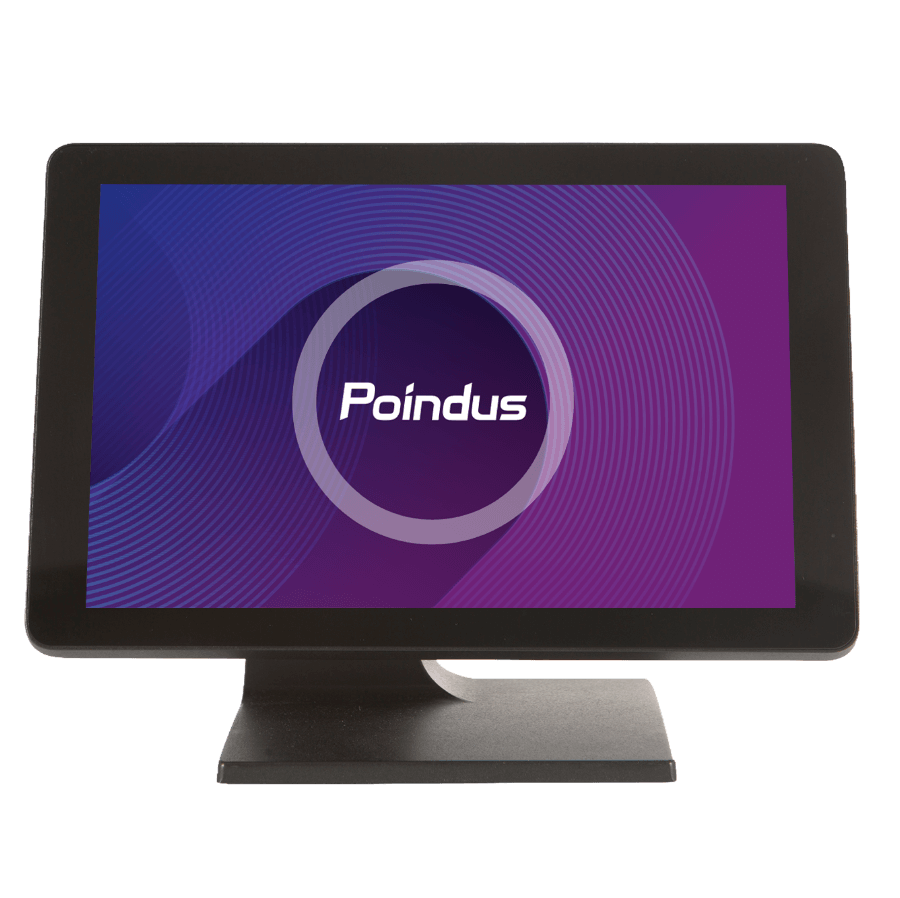

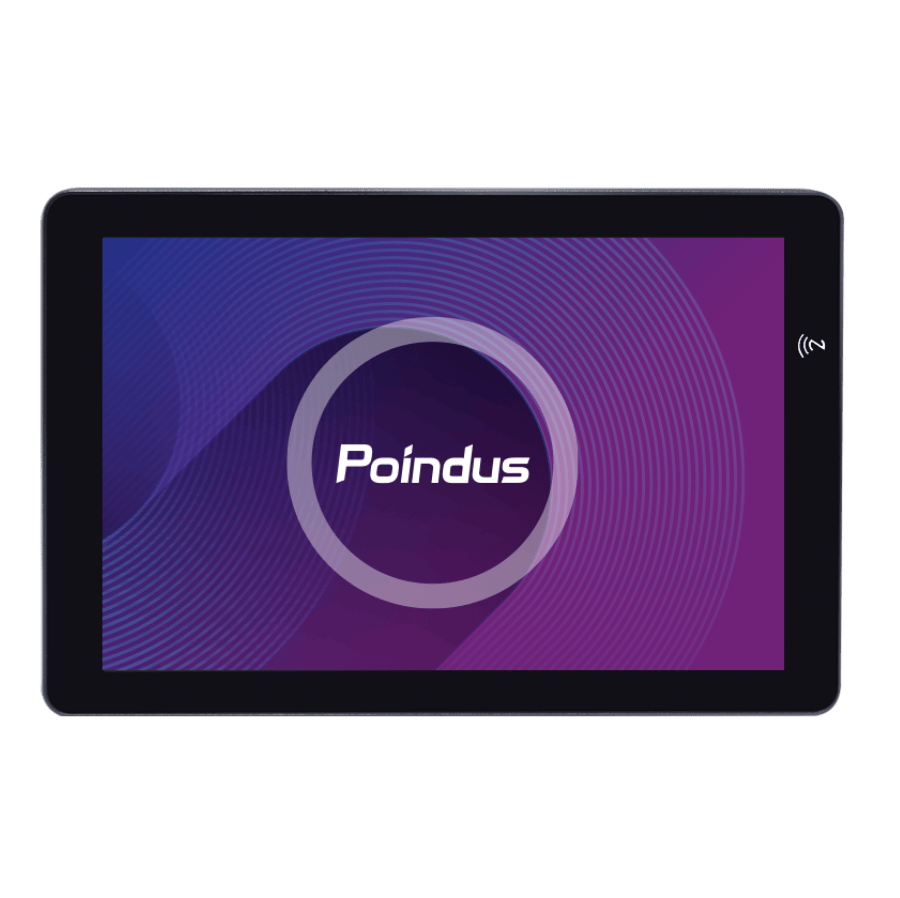

Photo Gallery
Specification
| Description | M185 PC : 10.1″ True Flat P-Cap Display M185 PI : 10.1″ True Flat P-Cap Display M185 PJ : 10.1″ True Flat P-Cap Display M185 GC : Non Touch M185 GI : Non Touch M185 GJ : Non Touch |
|---|---|
| Display size | 10.1″ ( 16:10 ) |
| True-Flat | Y |
| Interface | M185 PC : USB M185 PI : VGA / DP M185 PJ : USB-C/DP M185 GC : USB M185 GI : VGA / DP M185 GJ : USB-C / DP |
| Optimal Resolution | 1280 x 800 |
| Viewing angle | 170 degrees ( H ) ; 170 degrees ( V ) |
| Brightness ( Panel ) | 350 |
| Contrast Ratio | 800:1 |
| Response Time ( ms ) | 25 ms ( typ ) |
| Power supply | M185 PC : DC 5V M185 PI : DC 12V M185 PJ : USB-C 5V / DC 12V M185 GC : DC 5V M185 GI : DC 12V M185 GJ : USB-C 5V / DC 12V |
| Active Area | 216.96 ( H ) x 135.60 ( V ) |
| Color Arrangement | RGB-stripe |
| Touch type | True Flat P-Cap Technology |
| Optional peripherals | 2D scanner, USB Type RFID reader, 13.56MHz, USB Type |
| Physical Dimension ( WxHxD mm ) | 260.2 x 168.3 x 30 mm |
| Operating Condition | Temperature : 0°C ~ 40°C Humidity : 20% ~ 80% RH, non-condensing |
| Storage Condition | Temperature : -10°C~50°C Humidity : 10% ~ 90% RH, non-condensing |
| Certifications EMI / Safety | CE, FCC, LVD |
| Wall Mount kit | VESA 75 x 75 |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
