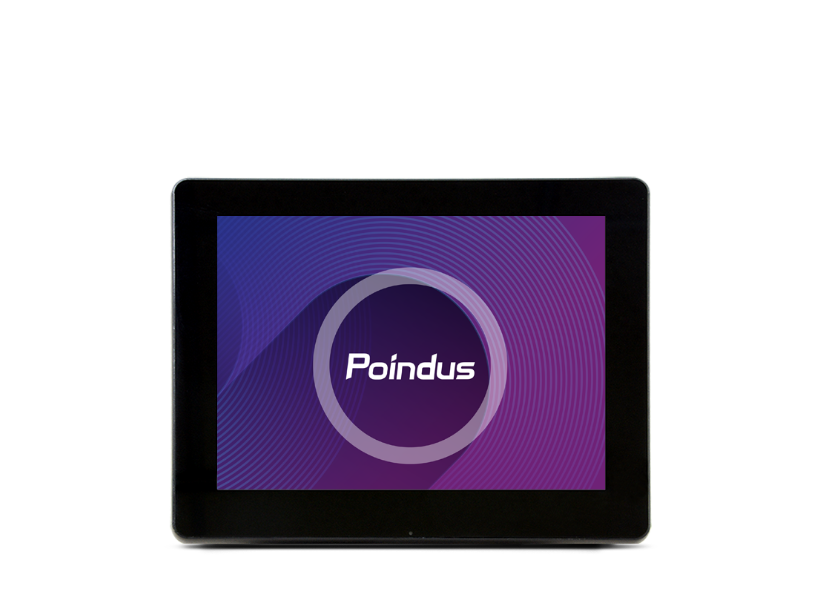

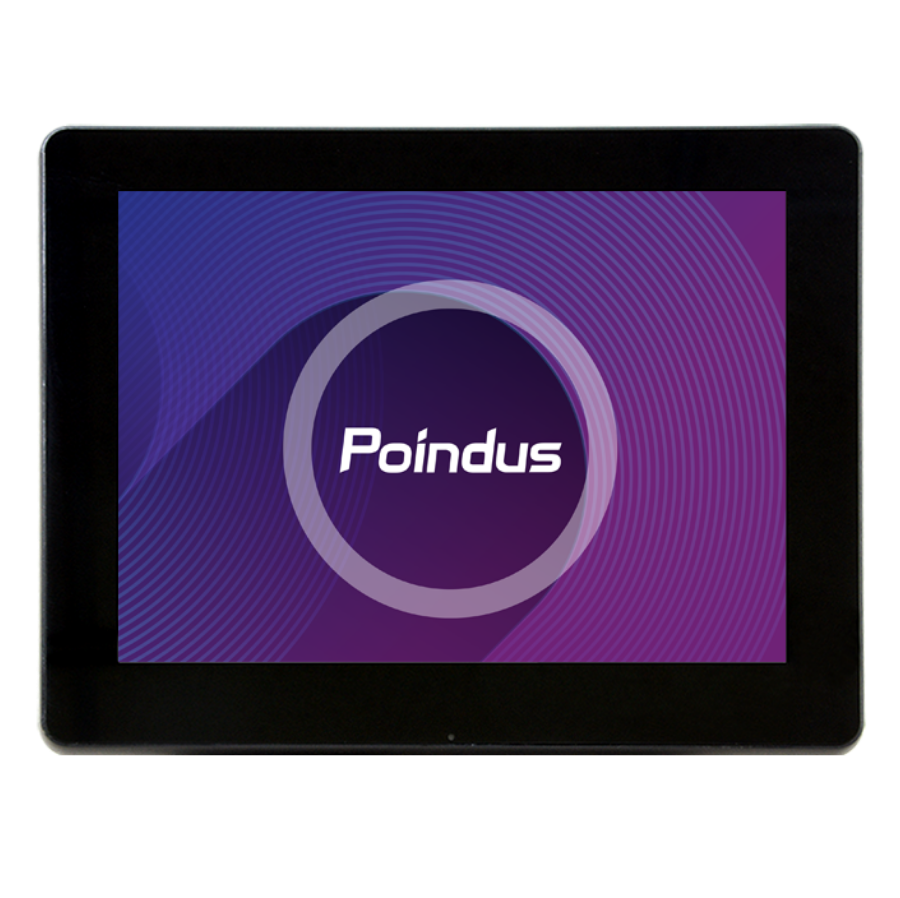

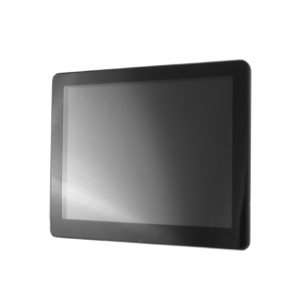

M354 (8")
Built for mission-critical operations
Features
- Low Power Consumption.
- Flexible Design for Versatile Applications.
- Plug and Play.
- Compact Size for Space Restraint.
- Ergonomic Design for Viewing Angles.
- VESA Wall Mountable.
- Provide touch / non-touch monitor.

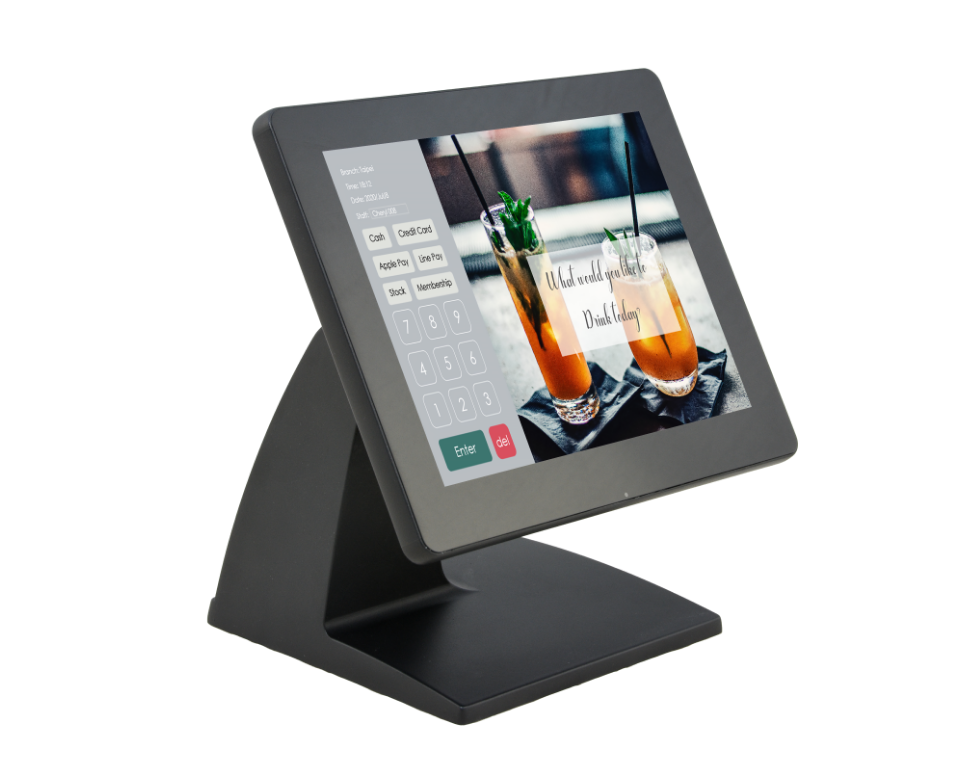

- Refer to M454 with stand.
Product Highlights
8″ Display
800 X 600
Stand
Available
/ VESA
/ Wall
Mountable
Compact Screen with Smooth Interaction
TRUE FLAT
4:3
800 x 600
Resolution
IP54 Rated
Protection
250
cd/m²
Rugged IP54 True-Flat Display for Retail & Hospitality
Poindus M354 is a compact 8″ display with spill‑proof, dust‑resistant front panel.
Ideal for customer information, price checking, and signage in space‑restricted environments.
Small but Works Well
Compact 8″ display with spill‑proof, dust‑resistant front panel.
Ideal for customer information, price checking, and signage in space‑restricted environments.

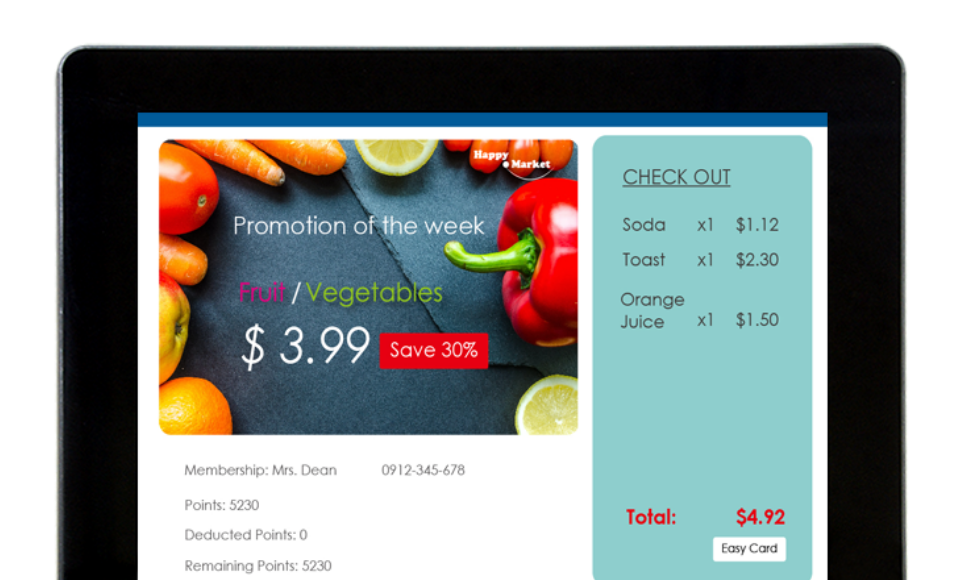

Rugged True-Flat Display
- IP54 Front Panel Ingress Protection.
- Spill Proof and Anti-Dust.

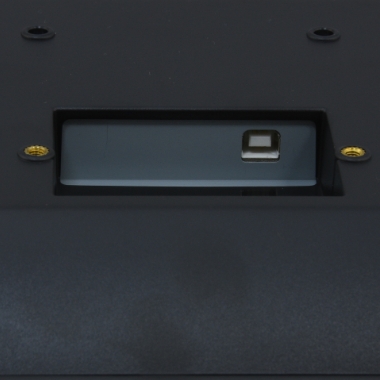

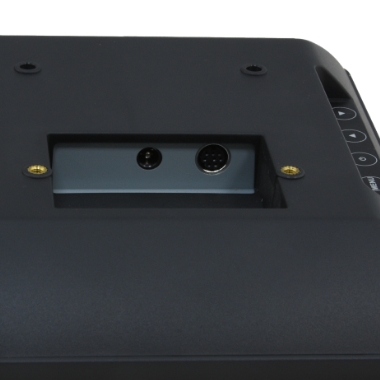

I/O & Expansion
VGA or USB (model dependent)
DC Jack or USB Type‑B
USB Type‑B (touch models only)
VGA or USB (model dependent)
DC Jack or USB Type‑B
USB Type‑B (touch models only)

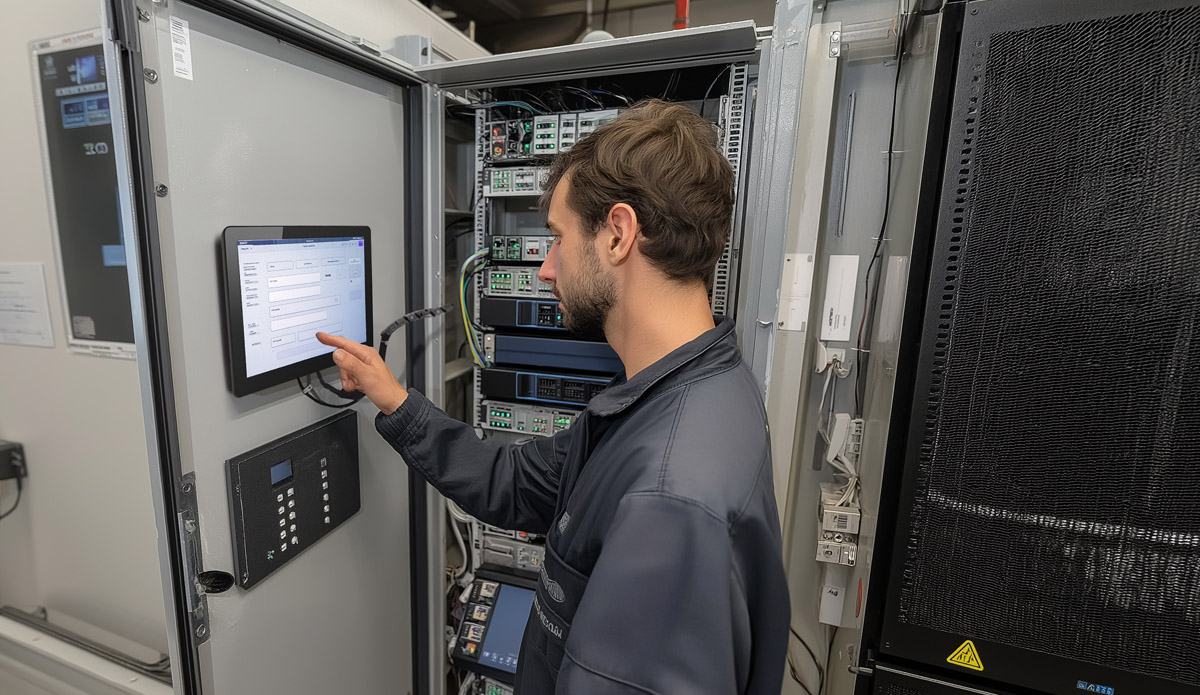

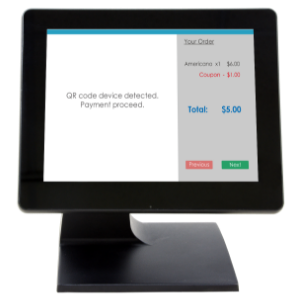

Application scenarios

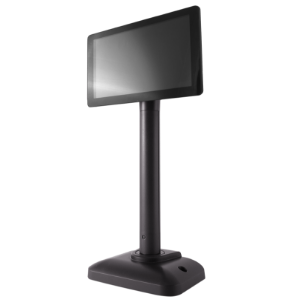

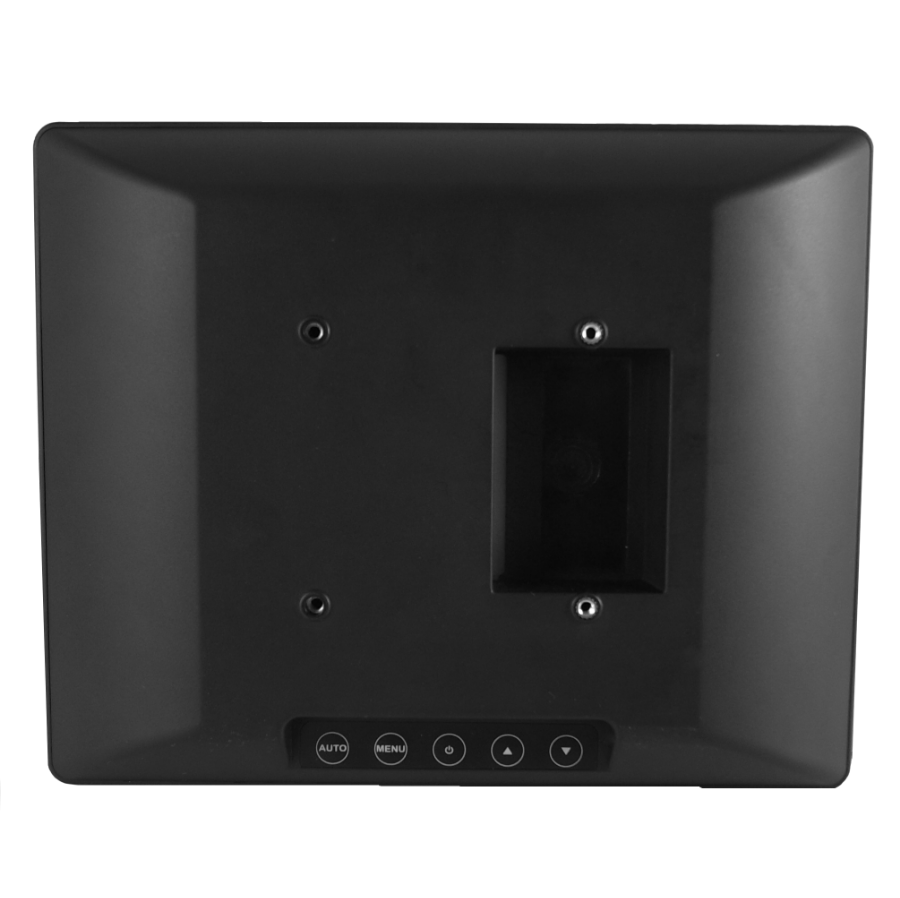

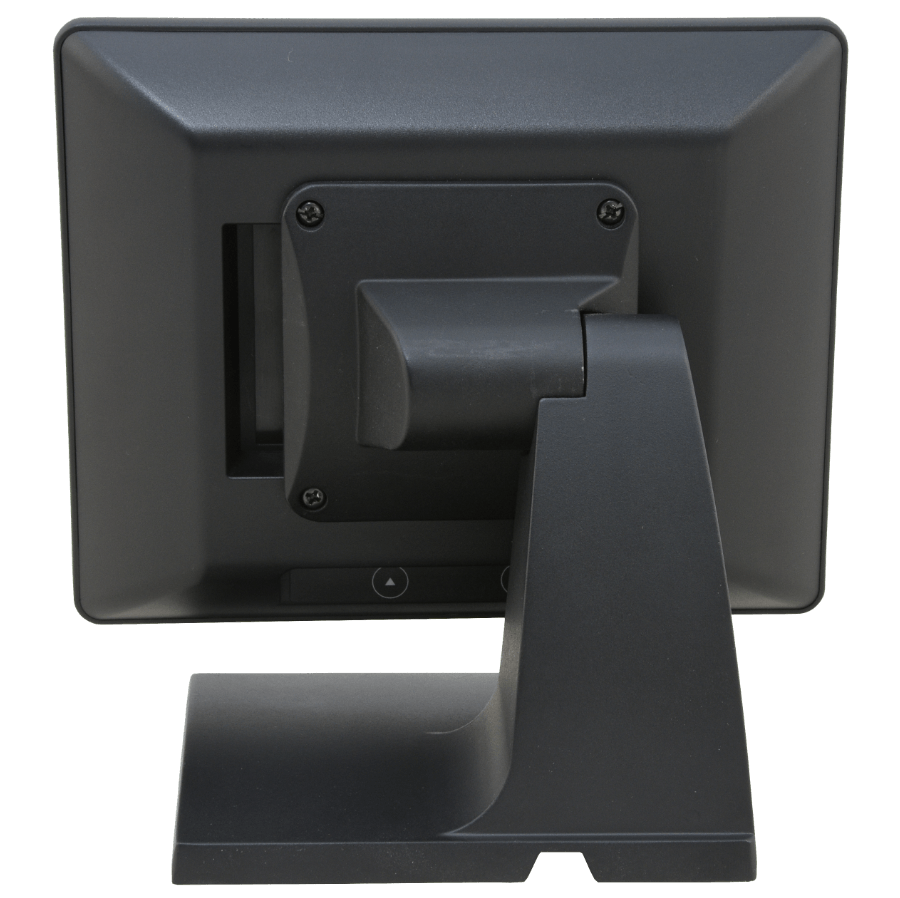

Versatile Mounting Solutions
Easy Installation
VESA compliance
75*75
schematic

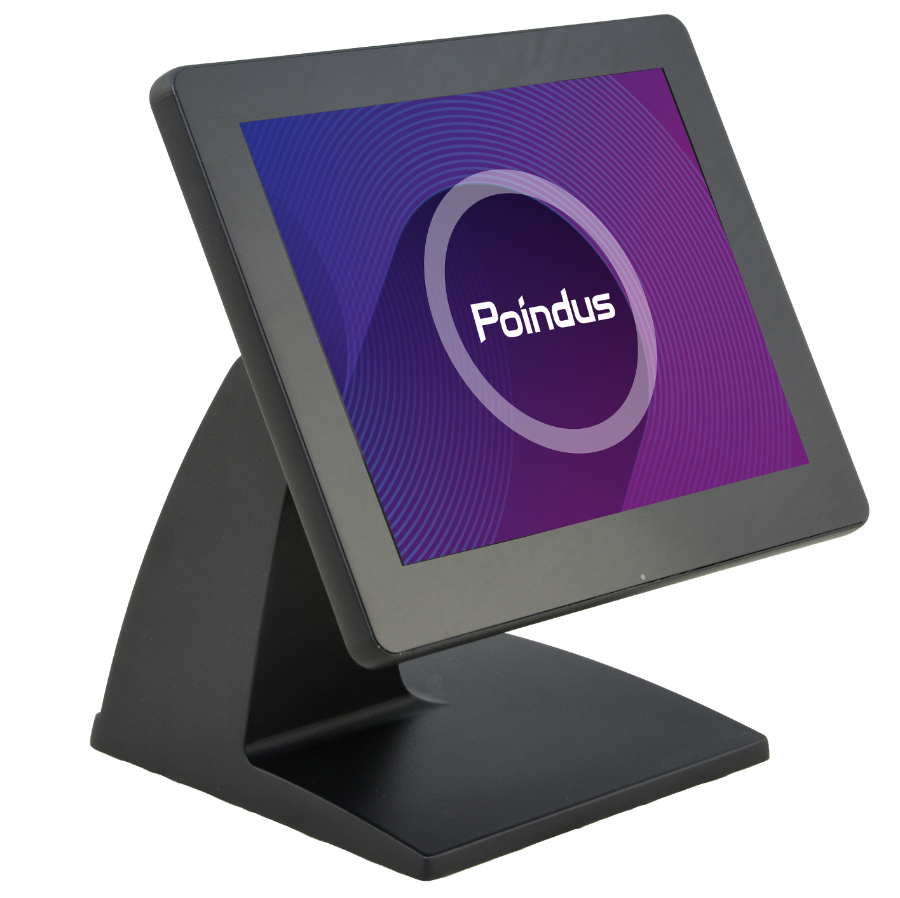

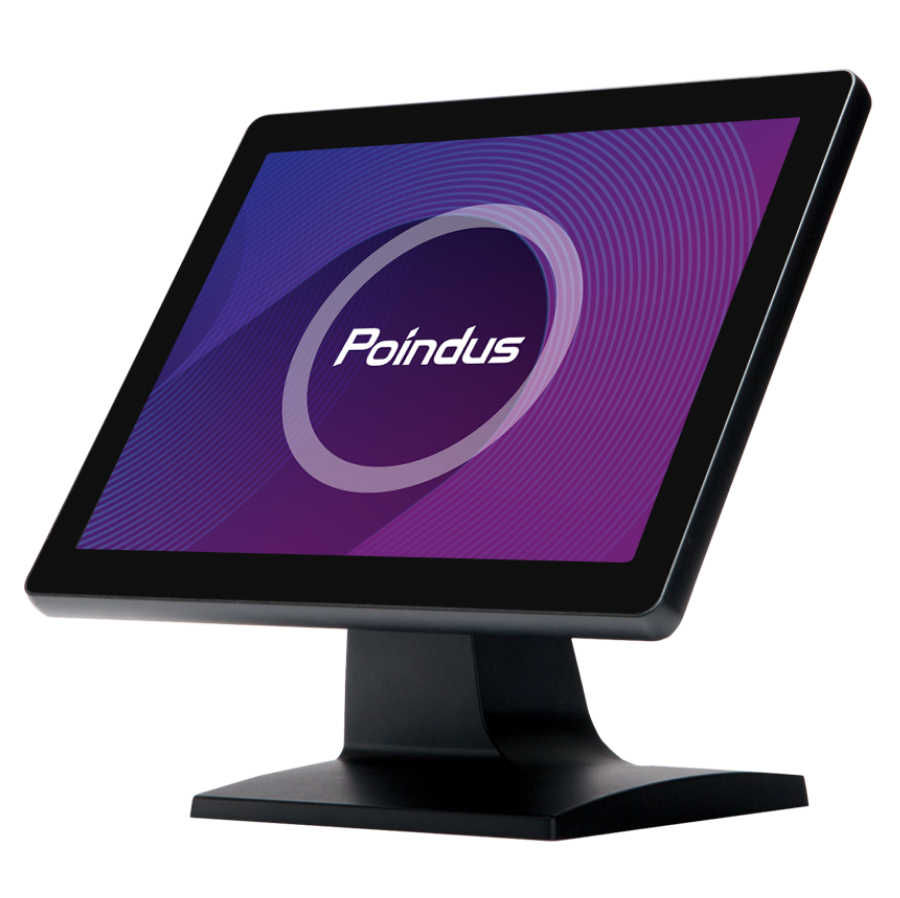

Photo Gallery
Specification
| Description | M354ND： 8″ VGA Non-touch (4:3) M354NC： 8″ USB Non-touch (4:3) M354PD： 8″ VGA PCAP (4:3) M354PC： 8″ USB PCAP (4:3) |
|---|---|
| Display size | 8″ (4:3) |
| True-Flat | Y (IP54) |
| Interface | M354ND： VGA M354NC： USB M354PD： VGA M354PC： USB |
| Optimal Resolution | 800 x 600 |
| Viewing angle | 50/70/70/70 degree (U/D/L/R) |
| Brightness (Panel) | 250 (700 & 1000 nits available for projects.) |
| Contrast Ratio | 500:1 |
| Response Time (ms) | 25 ms (typ) |
| Power supply | M354ND： DC 12V M354NC： DC 5V (USB) M354PD： DC 12V M354PC： DC 5V (USB) |
| OS Support | M354ND： N/A M354NC： Windows 10 、 8.1 、 8 、 7 ，Linux Ubuntu M354PD： Windows 10 、 8.1 、 8 、 7 M354PC： Windows 10 、 8.1 、 8 、 7 |
| Touch type | M354ND： Non-Touch M354NC： Non-Touch M354PD： Projected Capacitive (USB) M354PC： Projected Capacitive (USB) |
| Input Terminals | For Video Signal M354ND： Mini DIN 8-pin M354NC： USB Type B M354PD： Mini DIN 8-pin M354PC： USB Type B For Power For Touch Signal For VFD： N/A For Peripherals： N/A For Audio： N/A |
| Optional peripherals | 2D scanner, USB Type RFID reader, 13.56MHz, USB Type |
| Physical Dimension (WxHxD mm) | M354ND：260.2 x 168.3 x 30 mm, 0.7 kg(N. W.) M354NC：260.2 x 168.3 x 30 mm, 0.7 kg(N. W.) M354PD：260.2 x 168.3 x 30 mm, 0.85 kg(N. W.) M354PC：202 x 163 x 35.5 mm, 0.85 kg(N. W.) |
| Environment | Operating Condition: 0°C ~ 40°C Storage Condition: -10ºC~50ºC Power Consumption: |
| Certifications EMI/Safety | CE, FCC, LVD |
| Options | Wall Mount Kit Option, 75 x 75mm VESA Base MSR VFD Pole Stand 2nd Display |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
