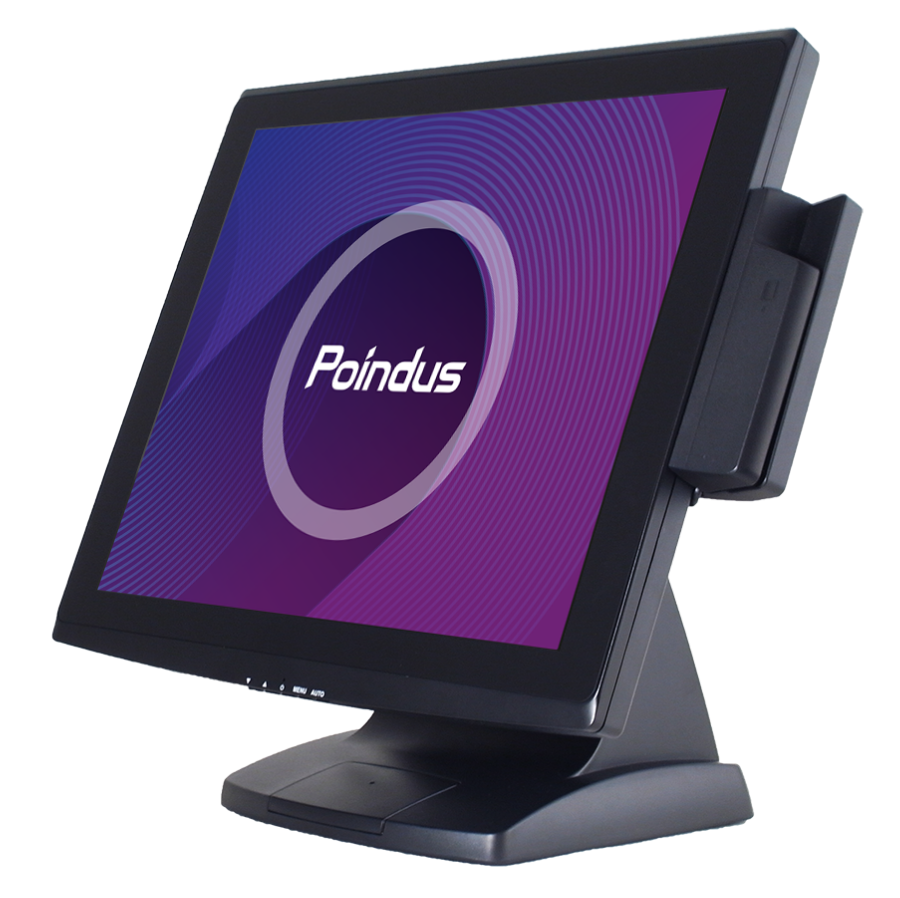

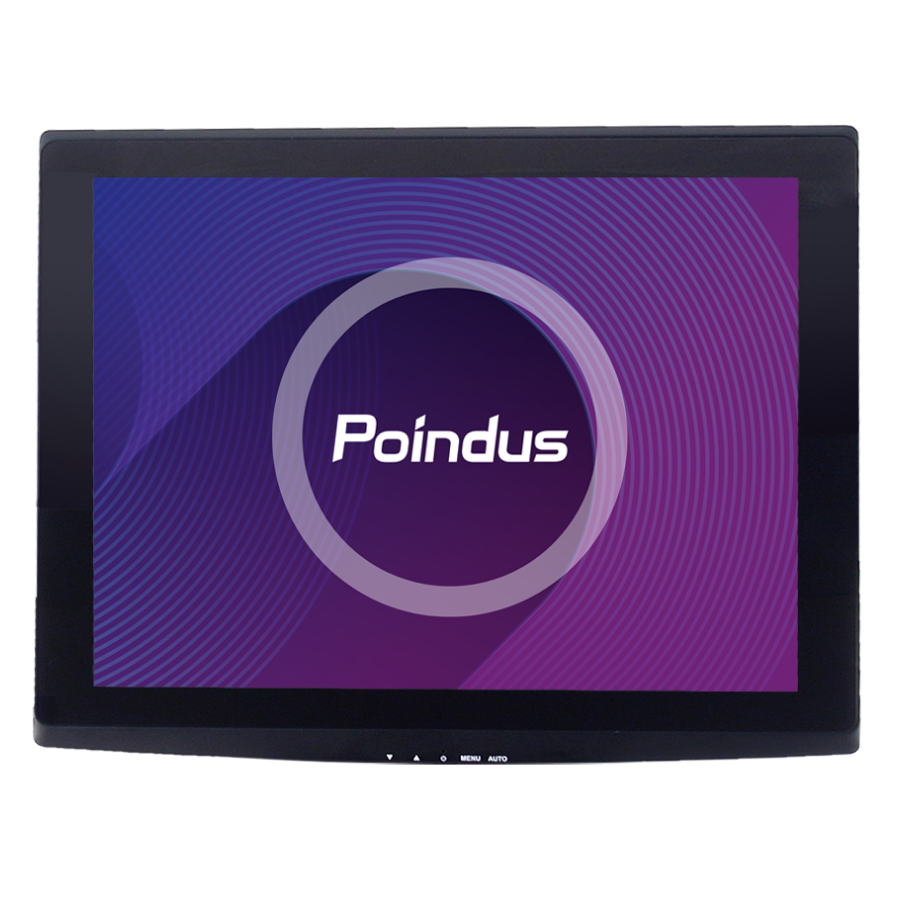

M458 ( 17" )
Maximum Power.
Features
- P-CAP Multi-Touch | Non-Touch.
- Easy Maintenance.
- 6H Scratch Resistance Level.
- Elegant and Modern Design.
- Ingress Protection Rate: IP54

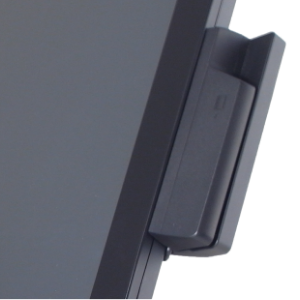

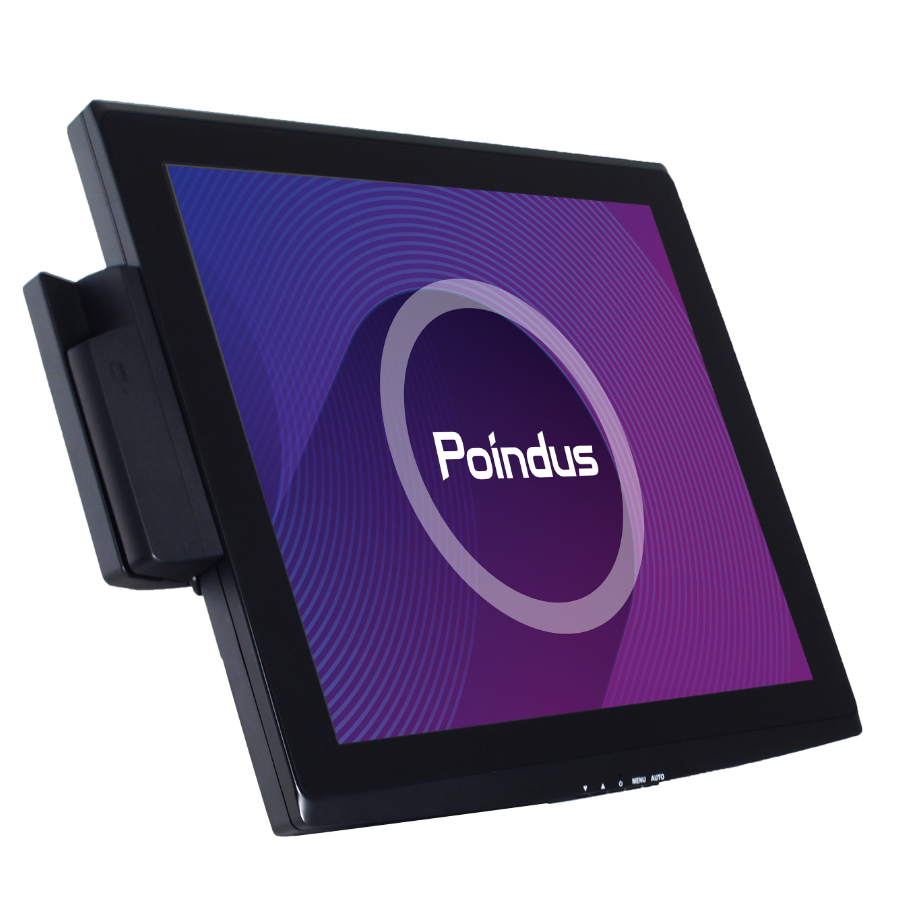

- Optional MSR and 2nd Display.
Product Highlights

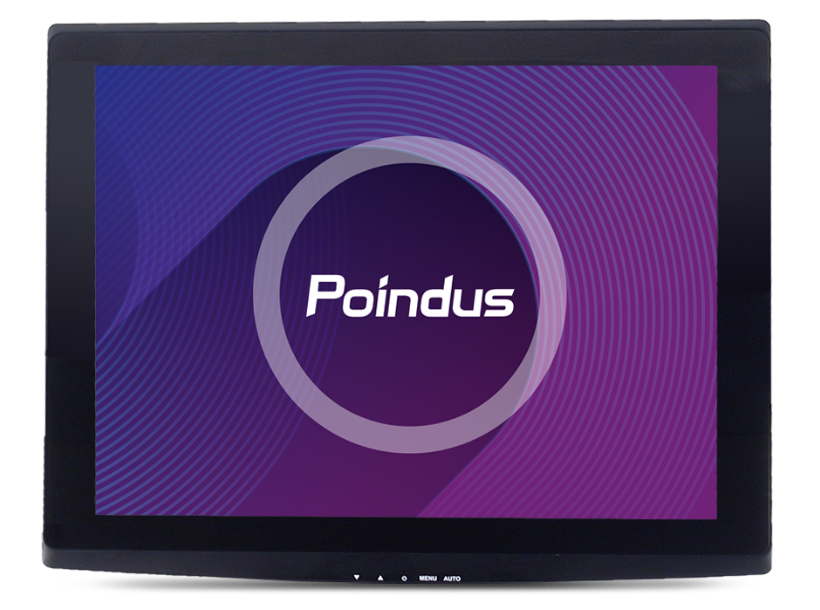

17″ True-Flat Touch Display
IP54 Ingress Protection
VESA
Compliance
75*75
/ P-Cap Touch
or
/ Non-Touch
Touch Screen or Non-Touch Available
Strong yet Big Screen with Smooth Interaction
Display with High Strength Glass gives a large viewing angle and more accurate color reproduction.
17″
5:4
1280 x 1024
Resolution
10 Points
Projective Capacitive
250
cd/m²
Rugged IP54 True-Flat Display for Retail & Hospitality
Poindus M354 is a compact 8″ display with spill‑proof, dust‑resistant front panel.
Ideal for customer information, price checking, and signage in space‑restricted environments.
Rugged 17″ display
Combines IP54 protection with scratch‑resistant glass and flexible mounting, making it suitable for busy retail and hospitality environments.
IP54 Ingress Protection
Spill Proof and Anti-Dust.
Application scenarios

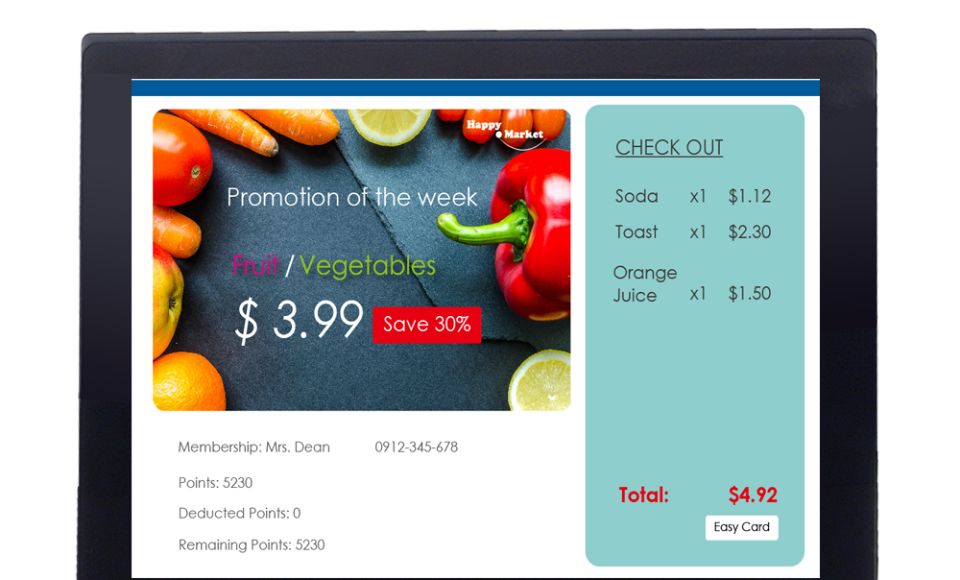

Suitable for customer information, CCTV monitoring, shelf‑end marketing, and general signage.
Versatile Mounting Solutions
Optional Accessories for More
Efficient Operations
Easy Installation
VESA compliance
75*75
schematic

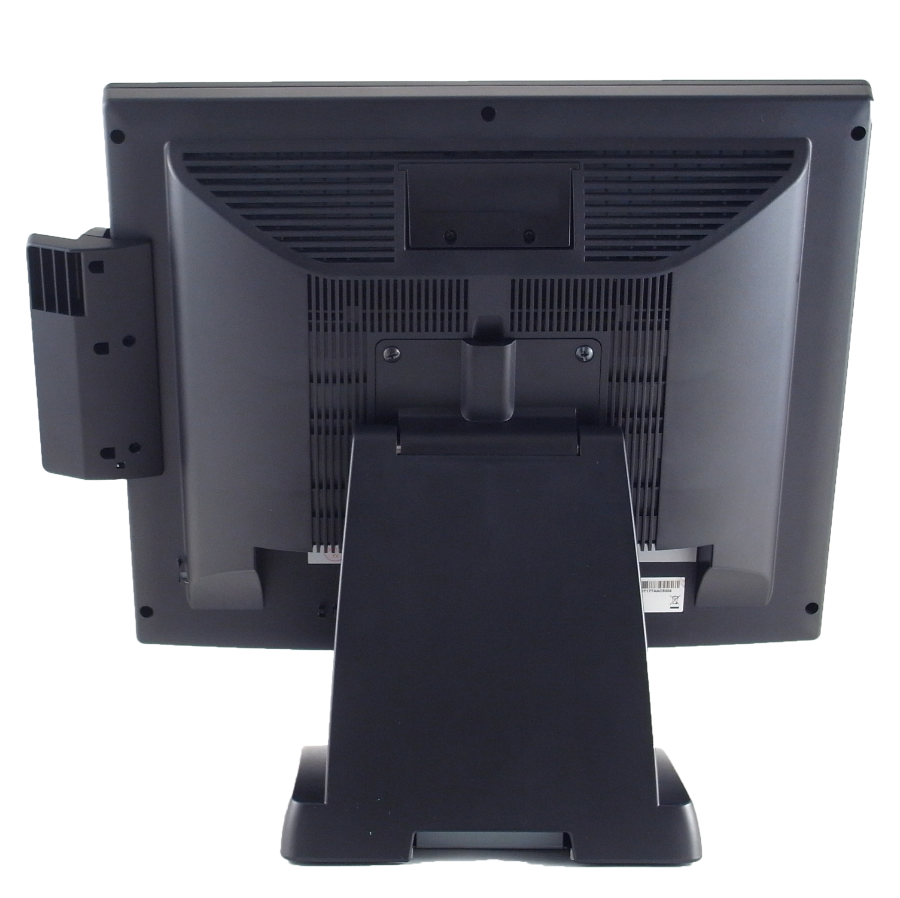

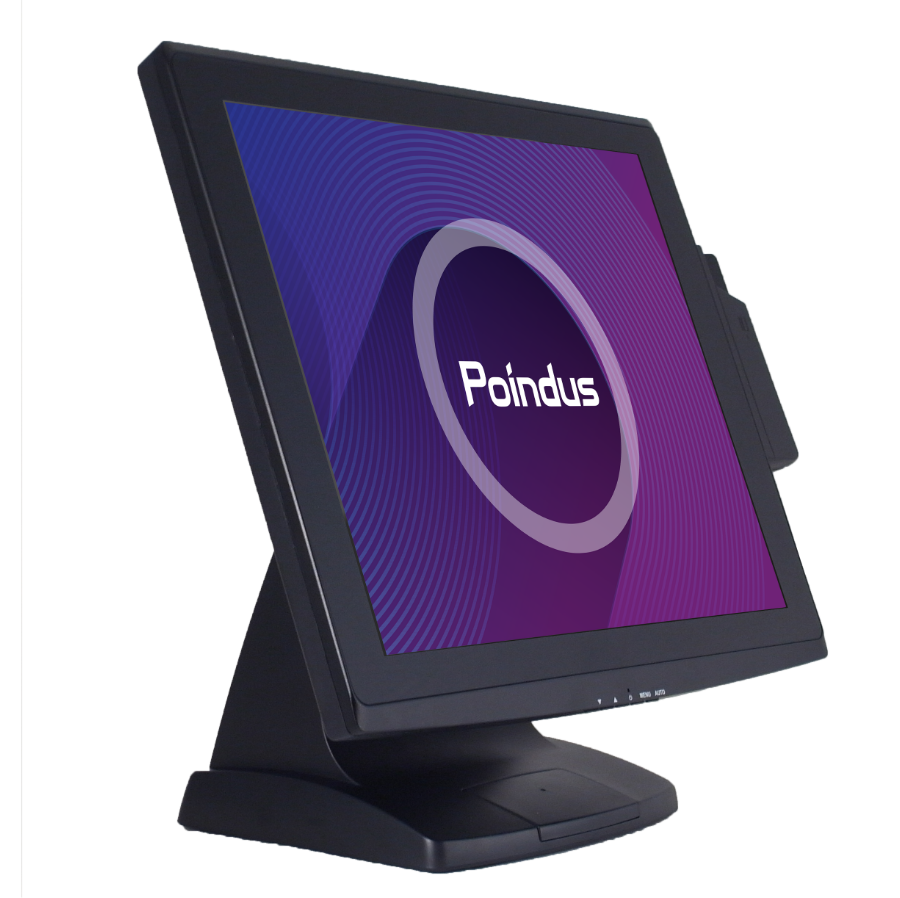

Photo Gallery
Specification
| Description | 17″ VGA/DVI PCAP (4:3) |
|---|---|
| Display size | 17″ (4:3) |
| True-Flat | YES (IP54) |
| Interface | VGA+DVI |
| Optimal Resolution | 1280 x 1024 |
| Viewing angle | 80/80/85/85 degree (U/D/L/R) |
| Brightness (Panel) | 250 |
| Contrast Ratio | 1000:1 |
| Response Time (ms) | 5 ms |
| Power supply | DC 12V |
| OS Support | Windows 10 、 8.1 、 8 、 7 |
| Touch type | M458PB: Projected Capacitive (USB) M458GB: Non-Touch |
| Input Terminals | For Video Signal D-Sub 15-pin, DVI-D For Power For Touch Signal For VFD For Peripherals For Audio |
| Physical Dimension | Dimensions(W x H x D) mm Weight (N. W.) (Kg) 5.86 kg |
| Environment | Operating Condition: 0°C ~ 40°C Storage Condition: -10ºC~50ºC Power Consumption: |
| Certifications EMI/Safety | CE, FCC |

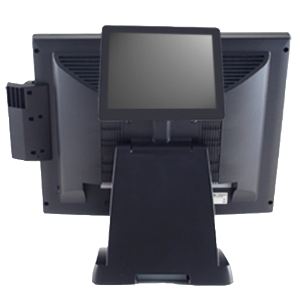

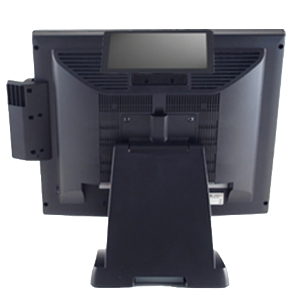

| Options | Wall Mount Kit 75 x 75mm VESA Base MSR VFD Pole Stand 2nd Display |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
