模組化 LCM 顯示器
輕鬆整合至 POS 與 PPC 系統
產品特色
- 支援包含 EPSON 在內的 11 種指令集。
- 支援 5V 至 24V 寬壓供電，防止因電壓輸入錯誤造成損壞。
- 標準配備 OPOS / JPOS 驅動程式。
- 20 行 x 2 列點矩陣顯示，具備廣視角。
- 20 行 x 2 列點矩陣顯示，具備廣視角。

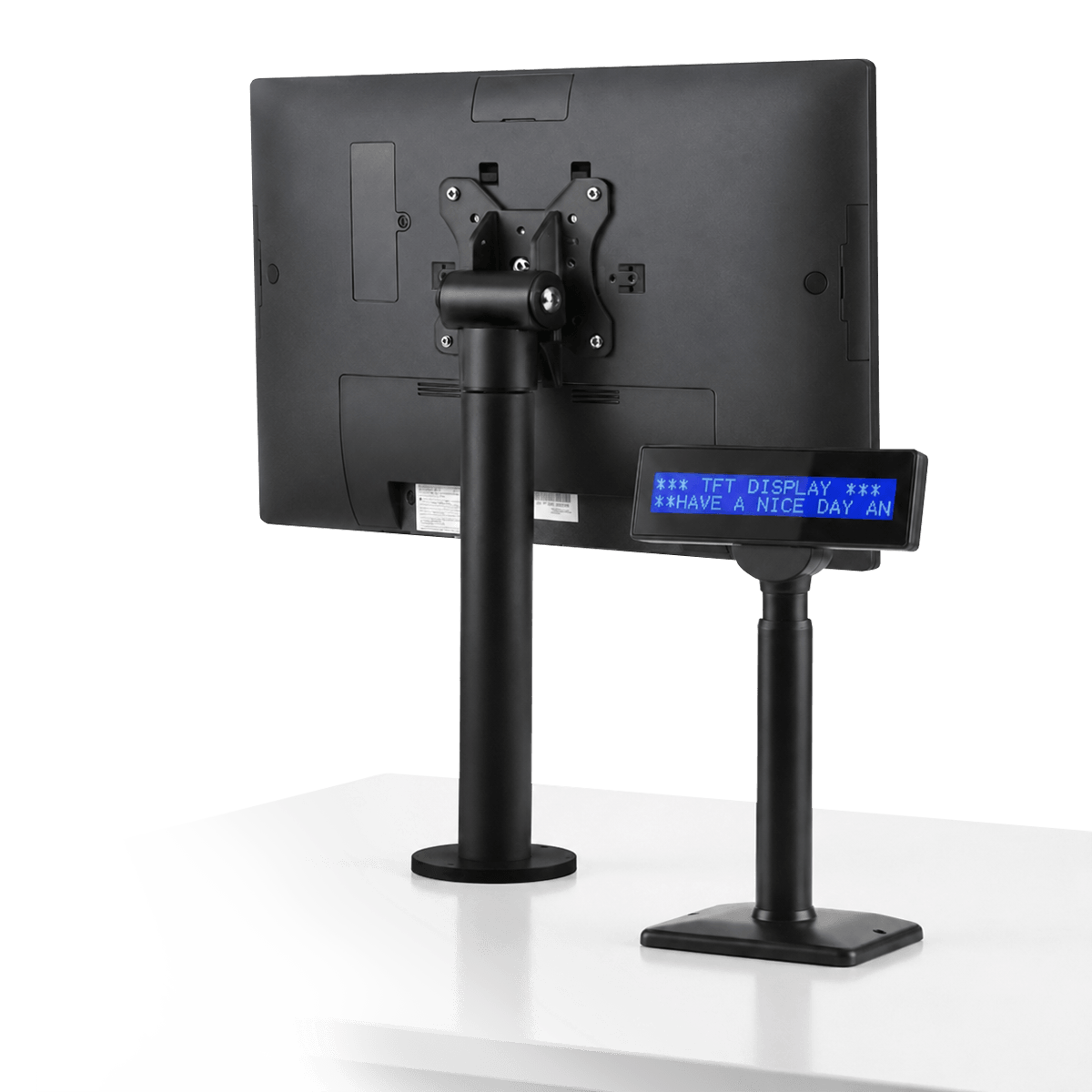

具備簡易整合能力的精巧型 LCM 顯示器
清晰易讀
LED
藍白背光
1200cd/m2
40 字元
20 行
x 2 列
Dot Matrix
16 * 16
Alphanumeric
95 ( 32 Intl )
指令模式
LD220, EPSON POS D101, AEDEX, UTC / S, UTC / P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
The Poindus M185 adapts seamlessly to diverse retail and hospitality applications—from shelf‑mounted displays and price checkers to rear POS customer‑facing screens. Its rugged design, flexible mounting, and connectivity options make it ideal for enhancing customer engagement and streamlining workflows.
產品規格
PD220C-III
PD220C-III
| General | Display Method – LCD (Blue-White) Number of Characters – 40 (20 columns × 2 lines) (Chinese: 20×2) Brightness – 1200cd/m² Character Font – 16×16 dot matrix Character Type – 95 Alphanumeric, 32 international characters Character Size – 9.92 (H) × 7.136 (W) mm Dot Size – 0.426 (H) × 0.6 (W) Download Character – 9 characters Active Area – 142.7 (H) × 19.82 (V) mm Pole Dimension – 140 (L) × 34.5 (Dia) mm Base Dimension – 169.5 (D) × 98.5 (W) × 39 (H) mm Viewing Angle – Max. 60° Horizontal Rotation – Max. 355° Weight – Approx. 700 grams |
|---|---|
| Commands Mode | LD220, EPSON POS D101, AEDEX, UTC/S, UTC/Pi, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL |
| Language Support | France, Germany, U.K., Denmark, Sweden, Italy, Spain, Japan, Norway, Slavonic, Russia, Portuguese, Canadian French, Nordic Turkish, Greek West European Latin, CP858, CP1252, CP857 (Turkish), Polish, WPC1250, WPC1252, WPC1255 (Hebrew), WPC1251 (Cyrillic), CP737, DOSGreek, CP864 (Arabic), Farsi (Iran), CP936-GBK, CP932, CP949, CP950 |
| Interface | RS-232 (serial) / USB |
| Connection | Baud: Direct connection 9600 or 19200 bps |
| Reliability | MTBF: 30000 hours |
| Power | Consumption: 5–24 VDC |
| Safety | EMC Standards – CE, ROHS Safety Standards – FCC, CE, ROHS |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
