PP60
小巧機身，強大功能
產品特色
- 佔地面積小，節省儲存和運輸空間。
- 纖薄時尚，超薄邊框，鋁合金機身，15.6吋觸控螢幕。
- 整合11.6吋第二螢幕，可選配觸控螢幕。
- 適用於多種場景：零售、飯店、專賣店等。
- Windows 系統需使用高效能英特爾 CPU，Android 系統需使用瑞芯微 CPU。
- 用於 EPOS 的 TSE 適配器 – 歐洲稅控就緒（ 可選 ）
（ KassenSichV、RKSV、NF525、Codul Fiscal、eKasa ）。
產品亮點
更強的環境
相容性
支持 SoftPOS
支付
15.6 吋驚艷
顯示器，
窄邊框設計
全套週邊，
隨時可用
纖薄。時尚。驚艷。
15.6"
16:9
16:9
16:9 全高清顯示屏，呈現驚艷清晰度
300
nits
nits
亮度可調，以獲得最佳可視性
IP54
防護等級
防護等級
前面板防護等級
10-point
PCAP
PCAP
響應靈敏的多點觸控螢幕
Smart dual hinged stand design
Ultra-flexible tilt from flat to any viewing angle.
Slim. Sleek. Stunning.
4.8mm ultra-slim bezel design
Single Finger Lift Up, Force Pressure Down
Dual force adjustment with light pressure to raise,
firmer force to lower for easy adjustment and stable positioning.
firmer force to lower for easy adjustment and stable positioning.
Stylish Aluminum Chassis
sleek aesthetics with durable, rugged protection
強大的性能
支援
- Intel® Elkhart Lake Celeron 處理器（ 最高 2.6GHz ）
- Intel® Alder Lake-P 和 U 平台處理器 （ 最高 4.4GHz ）
- Core i5 處理器（最高 4.4GHz）以及 Rockchip RK3568 Cortex 和 Cortex-A55 處理器（ 最高 2.0 及Rockchip ）。
- Intel® Elkhart Lake Celeron 處理器（ 最高 2.6GHz ）
- Intel® Alder Lake-P 和 U 平台處理器 （ 最高 4.4GHz ）
- Core i5 處理器（最高 4.4GHz）以及 Rockchip RK3568 Cortex 和 Cortex-A55 處理器（ 最高 2.0 及Rockchip ）。
作業系統支援
Windows 10 ( 64bit ) | Windows 11 ( 64bit ) | Linux ( e.g. Ubuntu 22.04 ) | Android 11
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
支援 SoftPOS 支付
智慧客戶顯示器，強化交易體驗
- 11.6 吋互動式支付客戶顯示器。
- 支援 Windows 系統，透過 NFC 感應輕鬆進行 SoftPOS 收款。
- 簡化結帳流程並提升顧客體驗。
No more Cable Chaos
Clean, clutter-free setup with Hidden cable
management.
management.
Compact & Clutter-Free
Space Efficiency and No more Cable Chaos
- Compact footprint optimized for tight counter spaces.
- Integrated hidden cable routing for clean installation.
- Clutter-free workspace enhances usability and aesthetics.
Extended connectivity & functionality
VariIO I/O Box Expansion for Scalability
- Extend connectivity, with additional LAN, COM & Powered USB connectivity.
- VariIO I/O Box is customizable to meet project connectivity requirements.
- Connected via a single custom high-speed USB Type C connector to maintain high I/O transfer rates.
- During maintenance VariIO I/O Box and peripherals can remain in place simply by disconnecting a single cable.

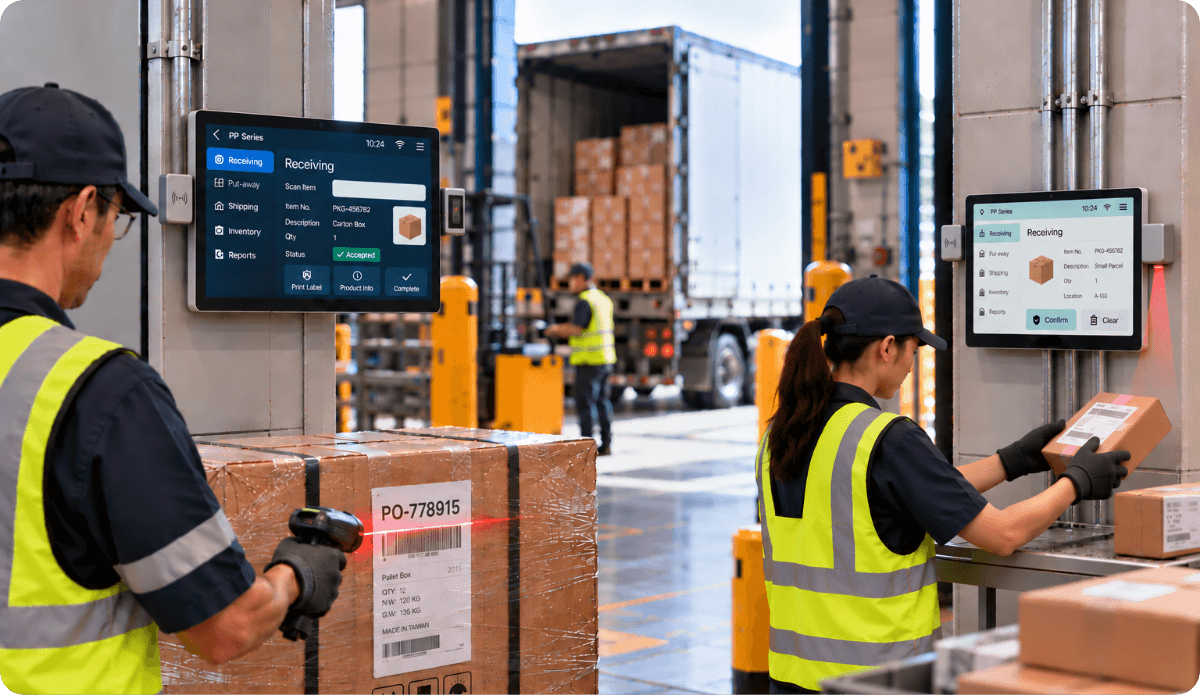

應用場景
針對現代零售和酒店業進行了最佳化
iF & Reddot Design Award Winner
靈活的安裝解決方案
VESA 安裝座提供靈活的壁掛或立柱式安裝。在節省空間的同時，保持設備整潔與耐用
支援財政認證 確保 POS 合規安全
技術安全組件 ( TSE )
德國 / 奧地利 / 法國 / 羅馬尼亞 / 斯洛伐克
適用於客製化部署的全系列外圍設備
客戶顯示器
模組化第二顯示器選項，提供靈活配置。

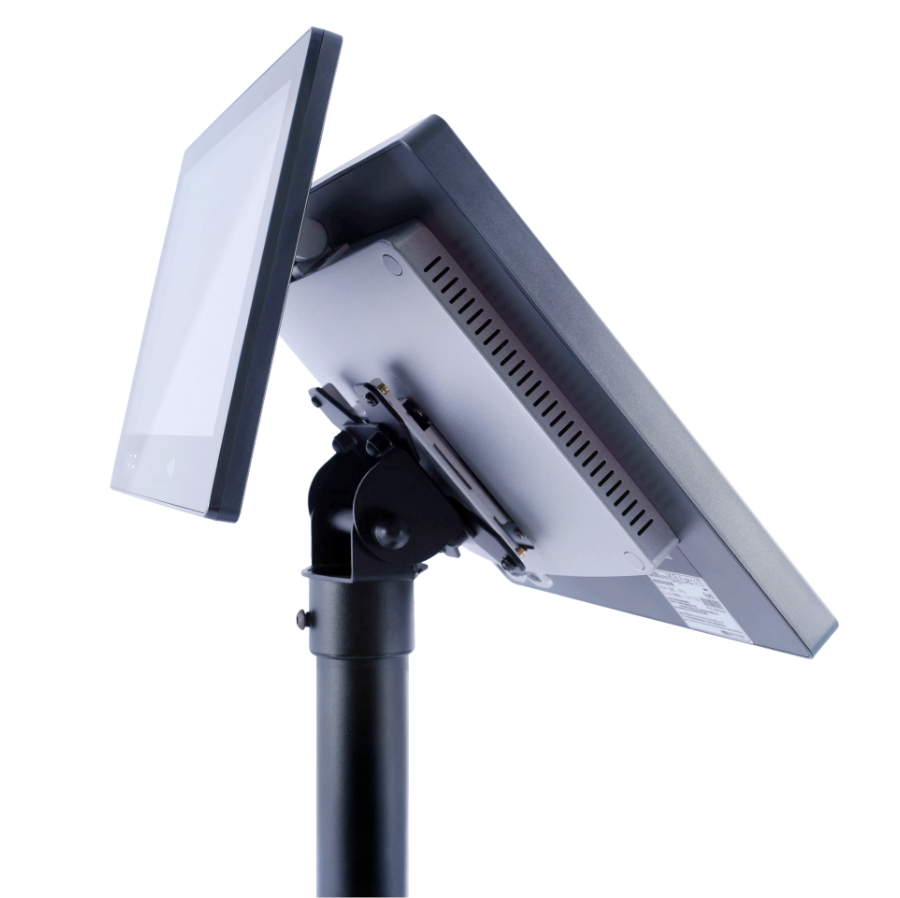

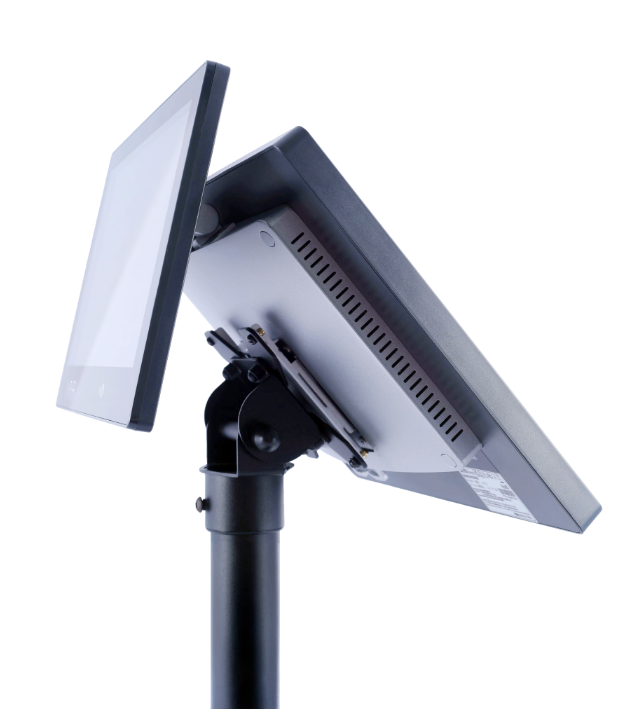

PP60 - 11.6 吋第二顯示器
NFC 閱讀器與條碼閱讀器
2×20 VFD
USB type
全面支援週邊的雙面安裝
三磁道磁條讀卡機 / iButton讀卡機 / 磁條讀卡機+RFID+iButton讀卡機 / 磁條讀卡機+RFID+指紋辨識器 / 二維掃描儀
3軌磁條讀取器
磁條卡讀取 + 射頻辨識 + 指紋讀取
磁條讀卡機 + RFID + iButton 讀卡器
3軌磁條讀取器
iButton reader
RFID reader
二維條碼掃描器
智慧型客戶顯示螢幕
集成式 NFC 和掃描器
PT60 前面板與智慧客戶顯示器皆整合了 NFC 與條碼掃描器
- PP60: 11.6″ 16:9 1366×768 touch/Non-Touch
Integrated NFC & 2D barcode reader. - NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa)
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Comprehensive dual-side mounting support of peripherals
3-Track MSR / iButton reader / MSR + RFID + iButton reader / MSR + RFID + Fingerprint reader
Comprehensive dual-side mounting support of peripherals
MSR/Fingerprint/iButton/RFID/2D scanner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
Optional Accessories for More
Efficient Operations
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner

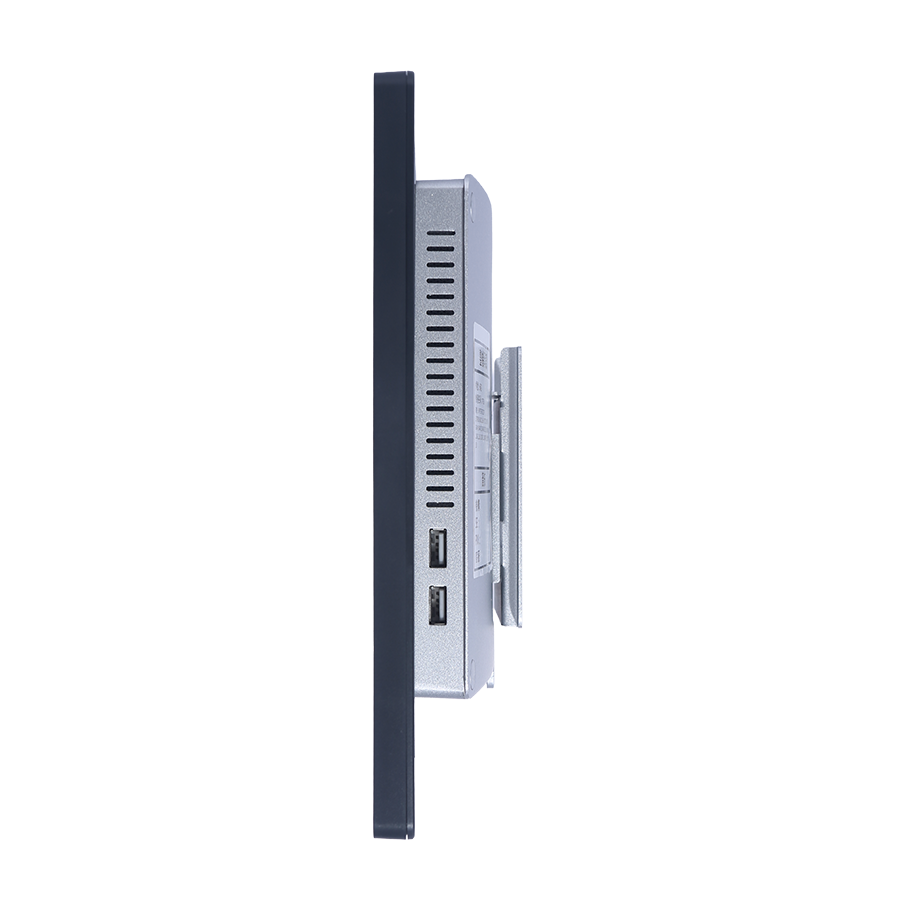

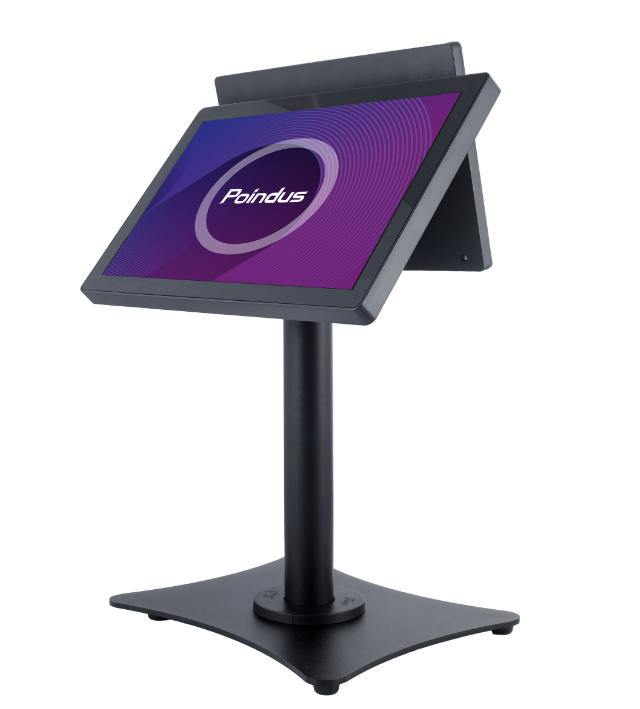

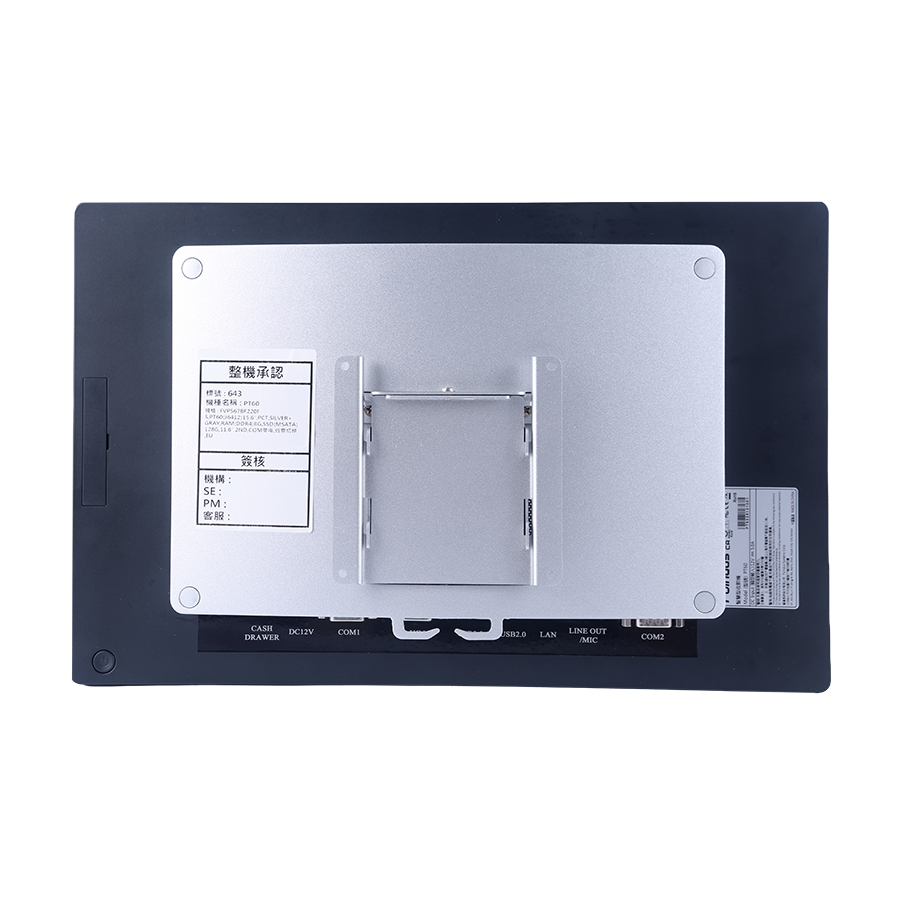

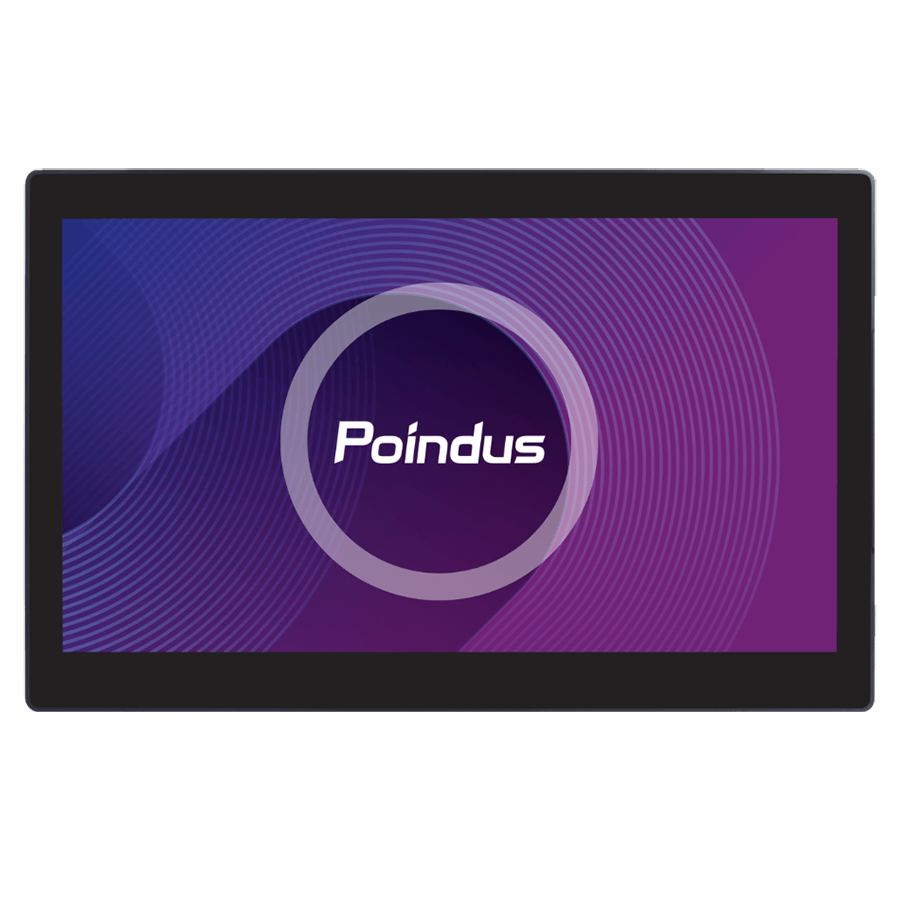

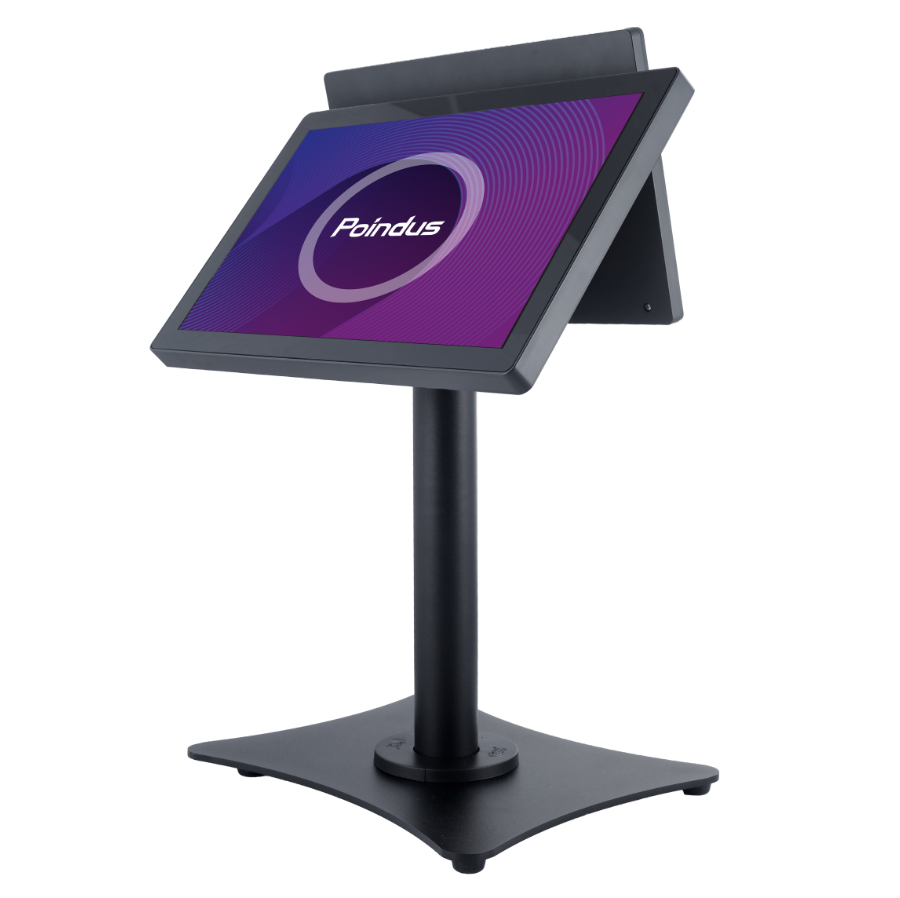

產品圖片
產品規格
PP60 - Windows
PP60 - Android
PP60 - Windows
| System Information | CPU Intel® Alder Lake-P, U-Platform System Memory TPM |
|---|---|
| Display & Touch | – 15.6″ 16:9 Display, resolution 1920×1080 – 300 nits, LED backlight – PCAP multi-touch screen |
| Storage | 1 x 128GB mSATA SSD as standard |
| Expansion | 1 x M.2 Key ( for WiFi/BT project based ) |

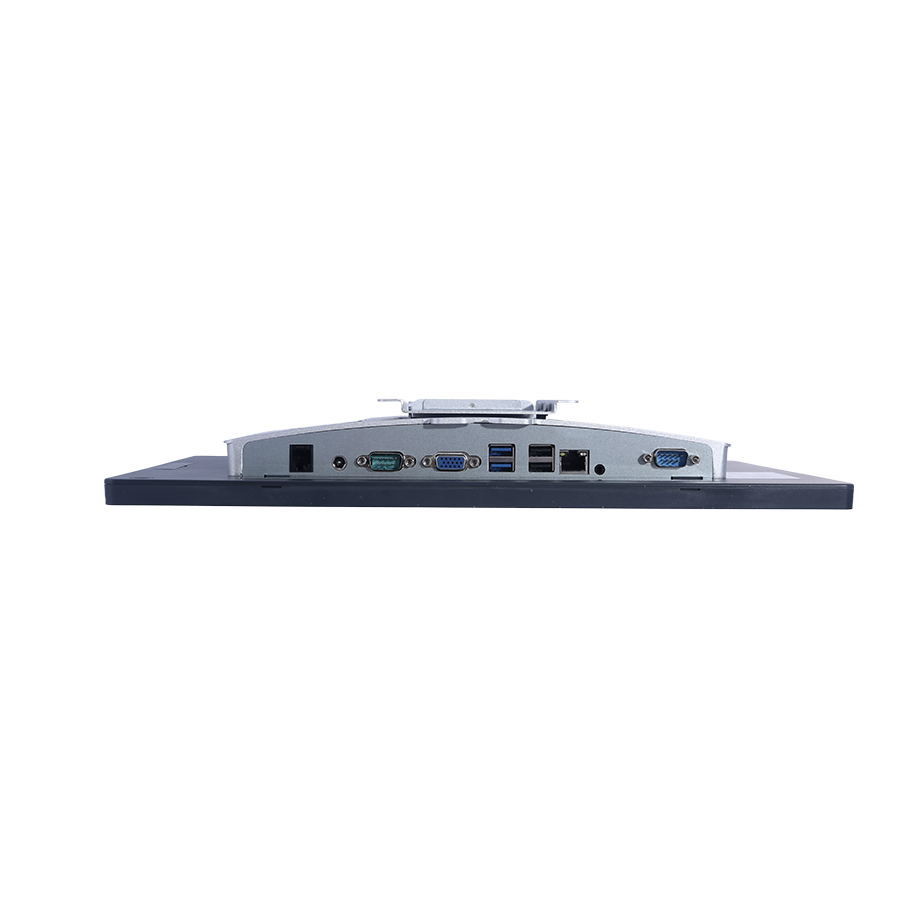

| Connectivity | – 2 x USB 3.0 – 4 x USB 2.0 (2 on the side of housing) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M – 2 x RS-232 COM DB9 Ports – 1 x HP-jack (Mic-IN/Line-OUT) – 1 x RJ11 cash drawer port – 1 x VGA DB15 port – 1 x DC-IN jack |
| Audio | 2 x 2W speaker |
| Power Requirement | DC+12V/5A 60W Adaptor |
| Peripheral | – 3-Track MSR – iButton reader – MSR + RFID + iButton reader – MSR + RFID + Fingerprint reader – 11.6″ 1366×768 2nd display with or without touch By project request: 11.6″ 2nd display with Pcap touch, RFID reader or 2D barcode reader NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa), USB interface – 2x 20 VFD, USB type |
| Mechanical & Construction | – Construction: Aluminum die-casting + plastic housing, color in technology black – System fan: Fanless operation – Weight (2pcs/carton, NW/GW): 7.2 Kgs / 9.6 Kgs – Dimension (WxHxD): 380 x 244 x 44mm |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC |
| OS Support | Windows 10 / 11 ( 64 bit ), Linux |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
PP60 - Android
| System Information | CPU System Memory |
|---|---|
| Display & Touch | – 15.6″ 16:9 Display, resolution 1920×1080 – 300 nits, LED backlight – PCAP multi-touch screen |
| Storage | Onboard 32GB eMMC, max. support up to 64GB |
| Expansion | 1 x mini PCIe |
| Connectivity | – 4 x USB 2.0 – 2 x USB 3.0 – 1 x RJ45 Gigabit Ethernet support 10/100/1000M – 1 x 3.5mm Audio-jack – 1 x DC-IN jack, 12V – 1 x RS-232 COM DB9 Ports – 1 x RJ11 – 1 x microSD (TF) slot |
| Audio | 2 x 2W speaker |
| Power Requirement | DC+12V/5A 60W Adaptor |
| Peripheral | – 3-Track MSR – iButton reader – RFID reader or 2D barcode reader – 2x 20 VFD, USB type |
| Mechanical & Construction | – Construction: Aluminum die-casting + plastic housing, color in technology black – System fan: Fanless operation – Weight (NW/GW): 7.2 Kgs / 9.6 Kgs – Dimension (WxHxD): 380 x 244 x 44mm |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC |
| OS Support | Android 11 |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
