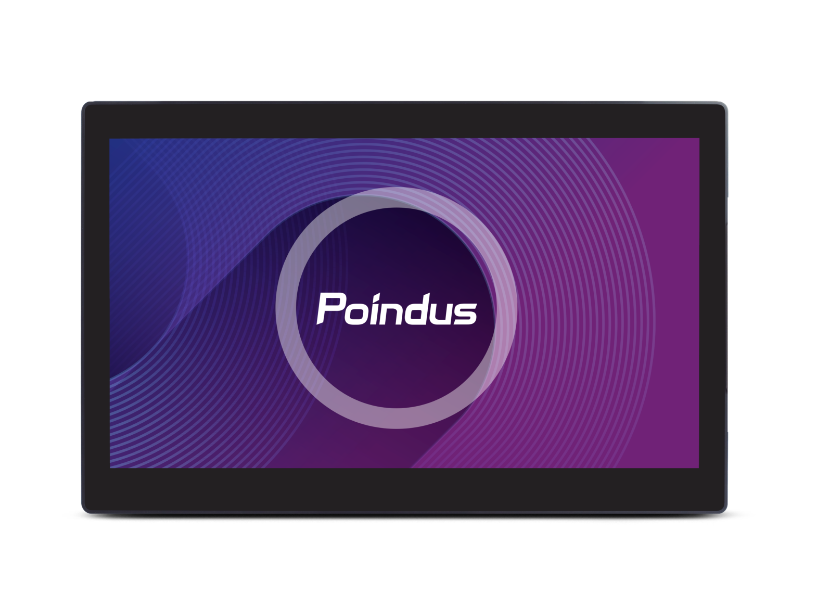

PP60
Small Footprint,
Big Functionality.
Features
- Compact footprint, space-saving in storage and in delivery.
- Slim and stylish, ultra-thin bezel, aluminum body 15.6” touch screen.
- Integrated 11.6″ 2nd screen with optional touch screen.
- Suitable for multiple scenarios: retail, hospitality, speciality and more.
- High performance Intel CPU for Windows or Rockchip CPU for Android.
- TSE Adapter for EPOS – European Fiscalization Ready (Optional)
(KassenSichV, RKSV, NF525, Codul Fiscal, eKasa).
Product Highlights
Greater Environment
Compatibility
SoftPOS
Payment
Support
15.6" Stunning
Display
Narrow
Bezel Design
Full Peripherals
Ready to Go

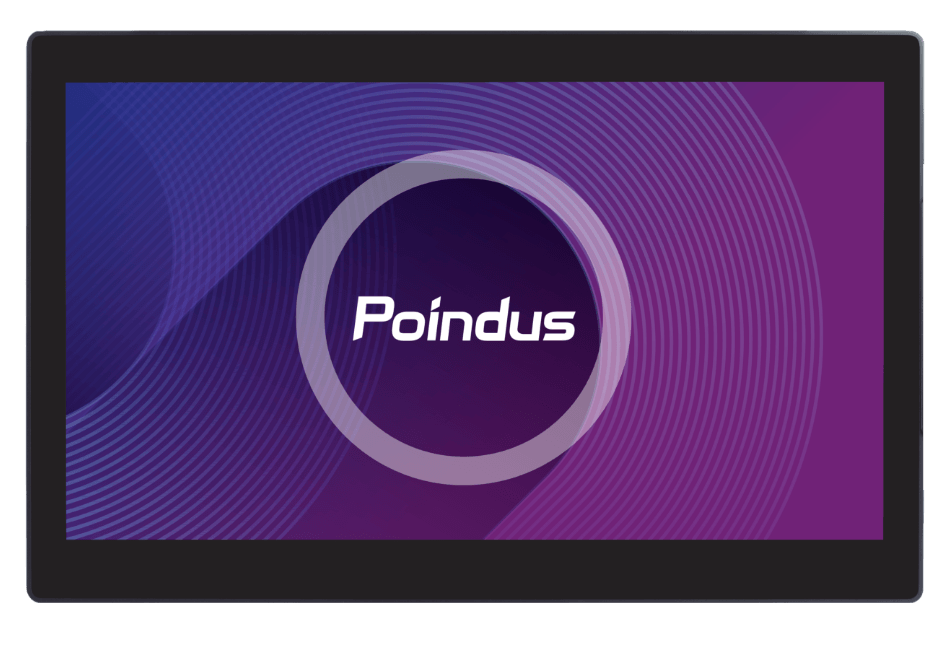

Slim. Sleek. Stunning.
15.6"
16:9
16:9
16:9 Full HD display for stunning clarity
300
nits
nits
brightness for optimal visibility
IP54
Proof
Proof
Front panel ingress protection
10-point
PCAP
PCAP
Responsive multi-touch screen
Smart dual hinged stand design
Ultra-flexible tilt from flat to any viewing angle.
Slim. Sleek. Stunning.
4.8mm ultra-slim bezel design
Single Finger Lift Up, Force Pressure Down
Dual force adjustment with light pressure to raise,
firmer force to lower for easy adjustment and stable positioning.
firmer force to lower for easy adjustment and stable positioning.
Stylish Aluminum Chassis
sleek aesthetics with durable, rugged protection
Powerful Performance
Support
Intel® Elkhart Lake Celeron up to 2.6GHz
'Intel® Alder Lake-P, U-Platform
- Core i5 up to 4.4 GHz
- Core i3 up to 4.4GHz
Rockchip RK3568 Cortex Cortex-A55 up to 2.0GHz
Intel® Elkhart Lake Celeron up to 2.6GHz
'Intel® Alder Lake-P, U-Platform
- Core i5 up to 4.4 GHz
- Core i3 up to 4.4GHz
Rockchip RK3568 Cortex Cortex-A55 up to 2.0GHz
Easy Integration
Windows 10 (64bit) | Windows 11 (64bit) | Linux(e.g. Ubuntu 22.04) | Android 11
Small in size with rich IO port

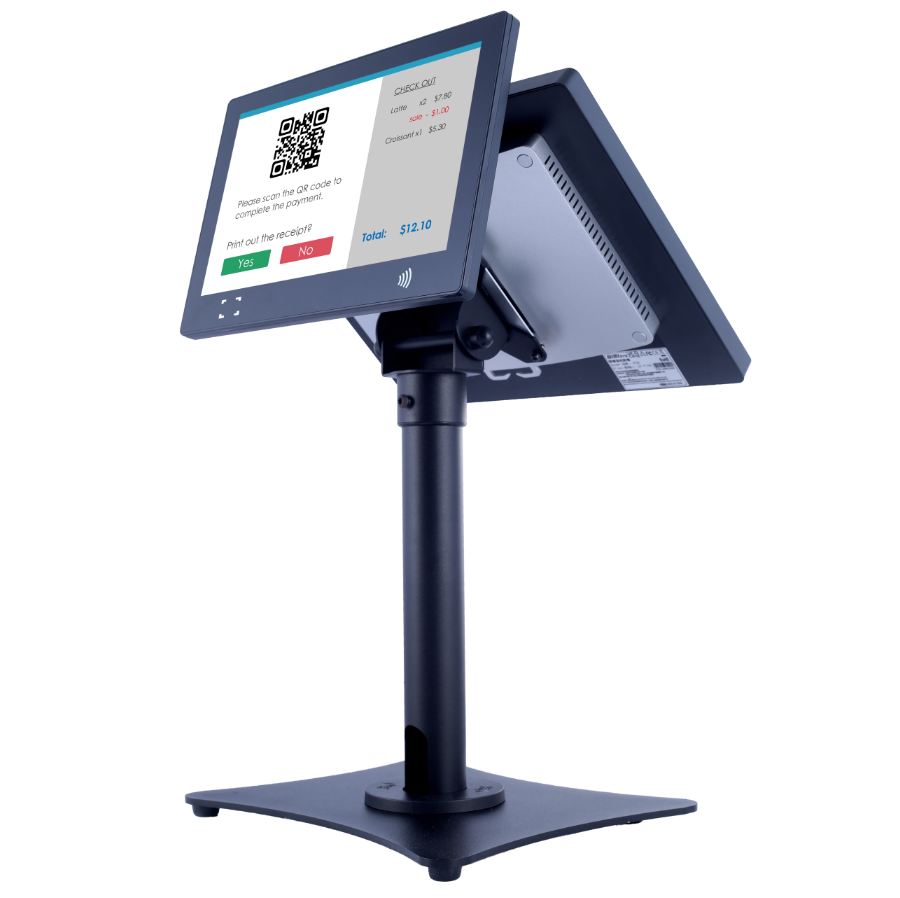

Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.

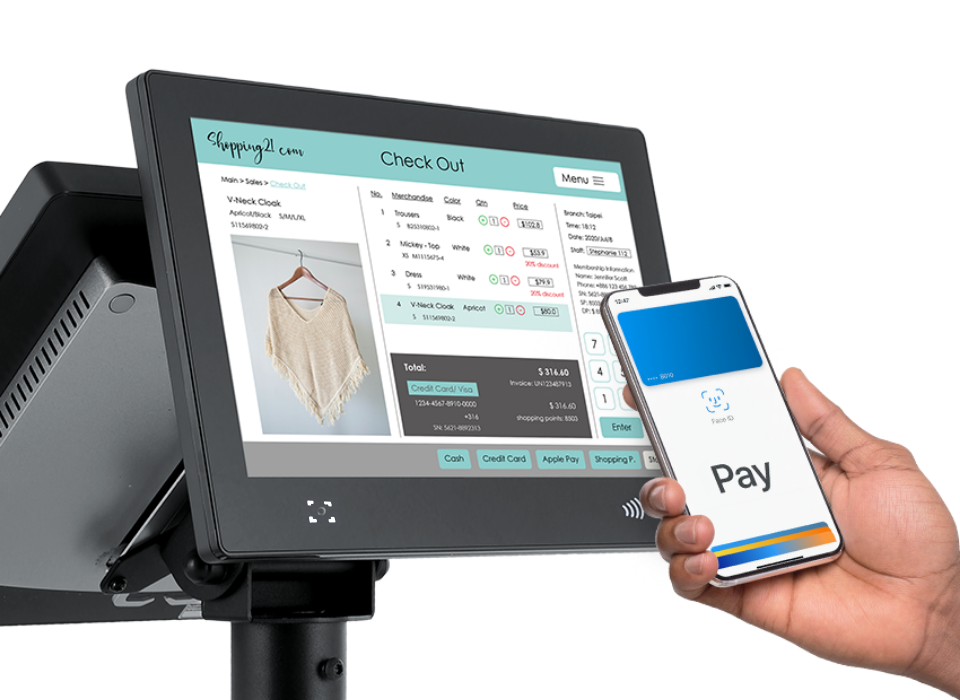

SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 11.6” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
No more Cable Chaos
Clean, clutter-free setup with Hidden cable
management.
management.
Compact & Clutter-Free
Space Efficiency and No more Cable Chaos
- Compact footprint optimized for tight counter spaces.
- Integrated hidden cable routing for clean installation.
- Clutter-free workspace enhances usability and aesthetics.
Extended connectivity & functionality
VariIO I/O Box Expansion for Scalability
- Extend connectivity, with additional LAN, COM & Powered USB connectivity.
- VariIO I/O Box is customizable to meet project connectivity requirements.
- Connected via a single custom high-speed USB Type C connector to maintain high I/O transfer rates.
- During maintenance VariIO I/O Box and peripherals can remain in place simply by disconnecting a single cable.

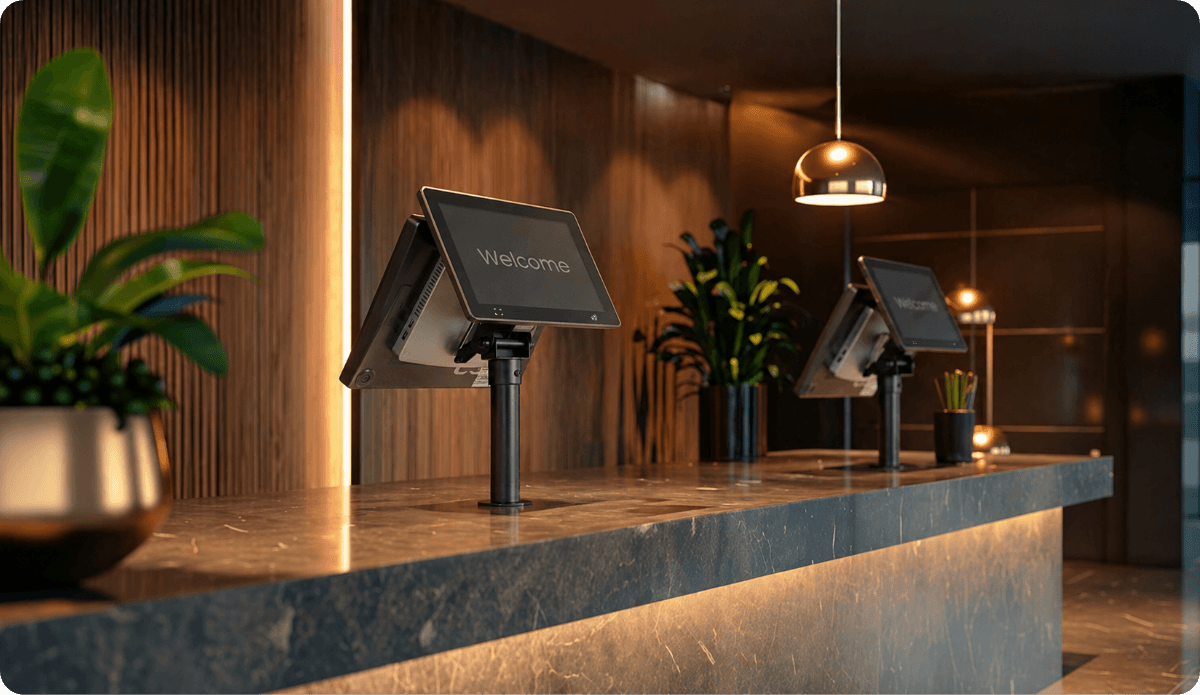

Application scenarios
Optimized for Modern Retail and Hospitality
iF & Reddot Design Award Winner
Flexible Mounting Solution
VESA POS mounts provide flexible wall or pole installation. They save space while keeping setups clean and durable.
Certified Fiscal Solutions for Secure POS Compliance
Technical Security Element (TSE)
- Deutschland (KassenSichV)
- Österreich (RKSV)
- France (NF525)
- România (Codul Fiscal)
- Slovensko (eKasa)
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration. Plus a range of Full Size Customer Displays.
PP60 - 11.6" 2nd Display
NFC reader & Barcode reader
2×20 VFD
USB type
Comprehensive dual-side mounting support of peripherals
3-Track MSR / iButton reader / MSR + RFID + iButton reader / MSR + RFID + Fingerprint reader / 2D Scanner
3-Track MSR
MSR + RFID + Fingerprint read
MSR + RFID + iButton reader
3-Track MSR
iButton reader
RFID reader
2D barcode reader

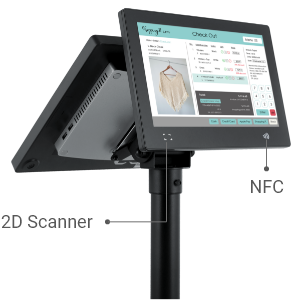

Smart Customer Displays
Integrated NFC & Scanner
The PT60 have optional smart customer displays with integrated NFC and barcode scanner.
- PP60: 11.6″ 16:9 1366×768 touch/Non-Touch
Integrated NFC & 2D barcode reader. - NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa)
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Comprehensive dual-side mounting support of peripherals
3-Track MSR / iButton reader / MSR + RFID + iButton reader / MSR + RFID + Fingerprint reader
Comprehensive dual-side mounting support of peripherals
MSR/Fingerprint/iButton/RFID/2D scanner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
Optional Accessories for More
Efficient Operations
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
Photo Gallery
Specification
PP60 - Windows
PP60 - Android
PP60 - Windows
| System Information | CPU Intel® Alder Lake-P, U-Platform System Memory TPM |
|---|---|
| Display & Touch | – 15.6″ 16:9 Display, resolution 1920×1080 – 300 nits, LED backlight – PCAP multi-touch screen |
| Storage | 1 x 128GB mSATA SSD as standard |
| Expansion | 1 x M.2 Key ( for WiFi/BT project based ) |
| Connectivity | – 2 x USB 3.0 – 4 x USB 2.0 (2 on the side of housing) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M – 2 x RS-232 COM DB9 Ports – 1 x HP-jack (Mic-IN/Line-OUT) – 1 x RJ11 cash drawer port – 1 x VGA DB15 port – 1 x DC-IN jack |
| Audio | 2 x 2W speaker |
| Power Requirement | DC+12V/5A 60W Adaptor |
| Peripheral | – 3-Track MSR – iButton reader – MSR + RFID + iButton reader – MSR + RFID + Fingerprint reader – 11.6″ 1366×768 2nd display with or without touch By project request: 11.6″ 2nd display with Pcap touch, RFID reader or 2D barcode reader NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa), USB interface – 2x 20 VFD, USB type |
| Mechanical & Construction | – Construction: Aluminum die-casting + plastic housing, color in technology black – System fan: Fanless operation – Weight (2pcs/carton, NW/GW): 7.2 Kgs / 9.6 Kgs – Dimension (WxHxD): 380 x 244 x 44mm |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC |
| OS Support | Windows 10 / 11 ( 64 bit ), Linux |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
PP60 - Android
| System Information | CPU System Memory |
|---|---|
| Display & Touch | – 15.6″ 16:9 Display, resolution 1920×1080 – 300 nits, LED backlight – PCAP multi-touch screen |
| Storage | Onboard 32GB eMMC, max. support up to 64GB |
| Expansion | 1 x mini PCIe |
| Connectivity | – 4 x USB 2.0 – 2 x USB 3.0 – 1 x RJ45 Gigabit Ethernet support 10/100/1000M – 1 x 3.5mm Audio-jack – 1 x DC-IN jack, 12V – 1 x RS-232 COM DB9 Ports – 1 x RJ11 – 1 x microSD (TF) slot |
| Audio | 2 x 2W speaker |
| Power Requirement | DC+12V/5A 60W Adaptor |
| Peripheral | – 3-Track MSR – iButton reader – RFID reader or 2D barcode reader – 2x 20 VFD, USB type |
| Mechanical & Construction | – Construction: Aluminum die-casting + plastic housing, color in technology black – System fan: Fanless operation – Weight (NW/GW): 7.2 Kgs / 9.6 Kgs – Dimension (WxHxD): 380 x 244 x 44mm |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC |
| OS Support | Android 11 |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
