cost-effective computing performance.
Support Intel® 12th Generation Alder Lake i3/i5 CPU
VariBOX T Series
Features
- Intel® 12th Generation Alder Lake i3/i5 CPU.
- Exceptional Thermal performance (Full CPU performance without thermal throttling).
- Custom Expansion Options PUSB/RAID/WiFi (Project Based).
- OS Support: Windows 10/11 / Linux
- Robust Aluminum Enclosure
- Support VESA 75×75 / 100×100 mounting
Product Highlights
Compact and Flexible
Robust Aluminum / Copper Enclosure
Strong Performance
Advanced Cooling Design
VESA compliance
75*75 / 100*100
OS Support
Win 10 / Win 11 / Linux
Custom Expansion
Options PUSB/RAID/WiFi / COMM

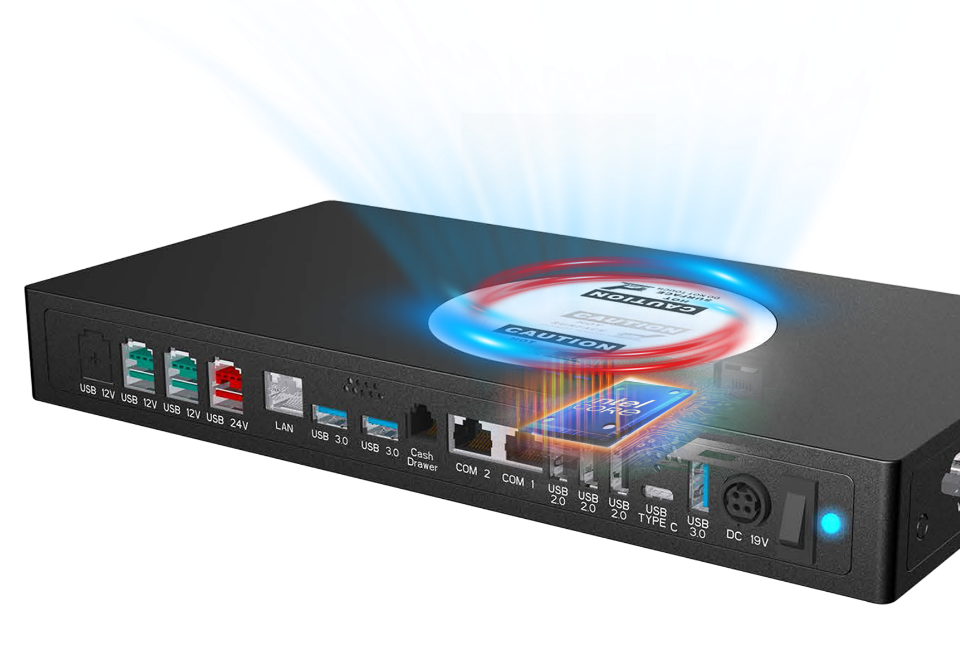

Advanced Cooling Design
for Enhanced Performance
- Innovative copper heat sink (401 W/m·K) for rapid cooling.
- Designed to support 21W higher CPU TDP
- for enhanced stability and operational potential.
- Efficient cooling prolongs product lifespan.

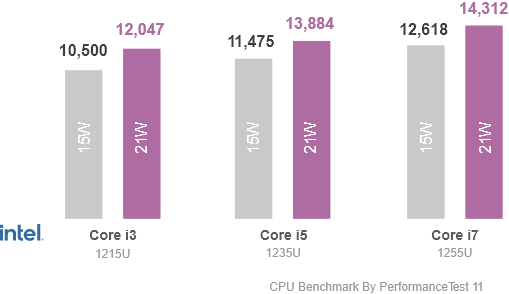

Maximized Benchmark
Performance
- Fine-tuned TDP parameters for optimized efficiency.
- At 21W, i3 performance rivals i5 at 15W.
- Customized power level & CPU overclock by request
Designed for High Performance Box PC Applications
The VariBOX T Series delivers power and performance for advance retail and hospitality scenarios. Applications that demand high performance for complex retail and hospitality scenarios require a powerful processor and extensive connectivity for retail peripherals. The VariBOX T Series has the flexibility for mixed implementations in any scenario meeting the demands of any project requirements.
Point Of Sale (POS) Applications
- Box PC solutions for every budget and performance requirement.
- Frees up valuable counter space with its compact design
- Provides retailers of all sizes with reliability and features that maximize operating cost efficiency.
Compact and Flexible
- Robust, extended lifecycle industrial platform specifically designed for Advanced Point of Sale (POS) Applications.
- Modular platforms with enhanced security providing retailers and hospitality operators the flexibility to deploy the solution in a variety of scenarios to handle even the most demanding environments.

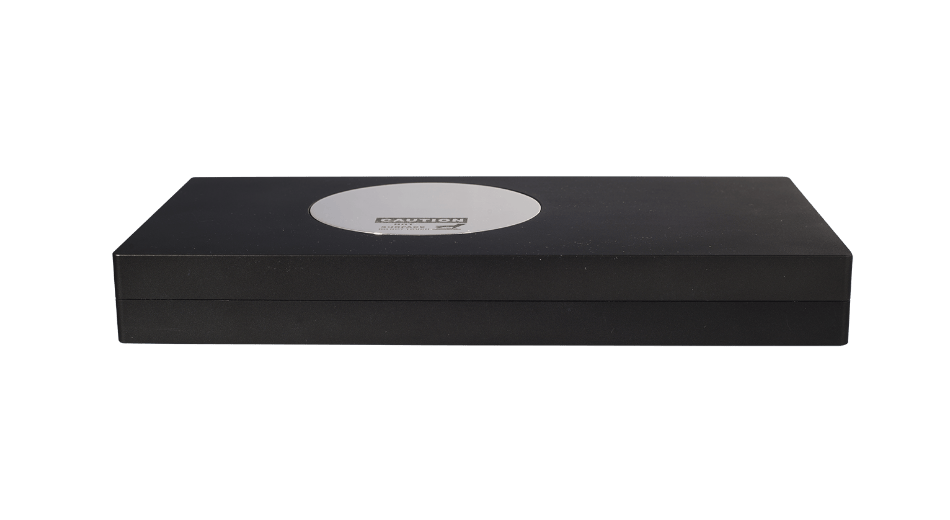

Robust Aluminum/Copper Enclosure

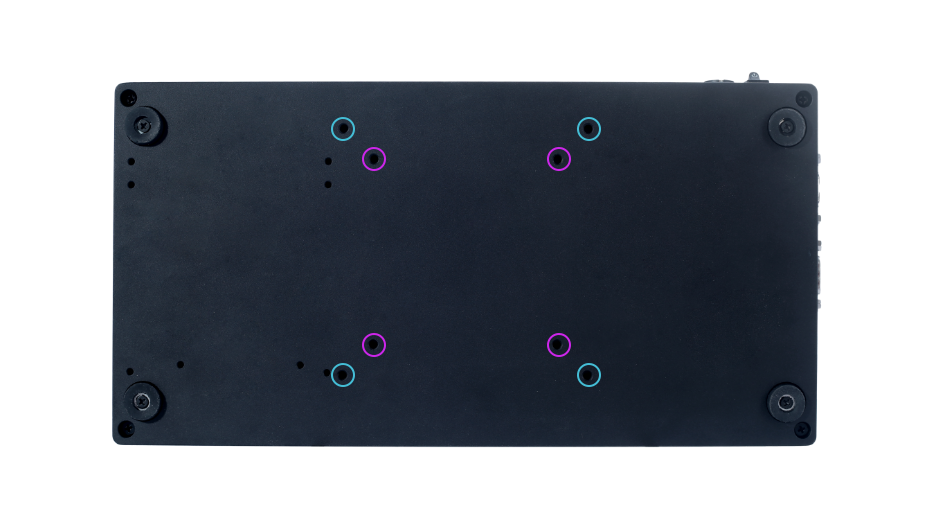

VESA compliance
75*75 / 100*100
75*75 / 100*100
System Size
W296 x D148 x H38 (mm).
W296 x D148 x H38 (mm).
Easy Integration
Windows 10 (64 bit) | 11 (64 bit) | Linux (e.g. Ubuntu 22.04)
Custom Expansion Options
The VariBox T Series is aimed at markets that demand cost-effective computing performance.
They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
COM Ports
2x DC+12v & 1x DC+24v PUSB
Or RAID 0/1 with Dual 2.5" storage (PE26)
Or RAID 0/1 with Dual 2.5" storage (PE26)
WiFi / BT
COM Ports
2x DC+12v & 1x DC+24v PUSB
Or RAID 0/1 with Dual 2.5" storage (PE26)
Or RAID 0/1 with Dual 2.5" storage (PE26)
WiFi / BT
Custom Expansion Options
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
PUSB / RAID / WiFi / COMM
COMM
WiFi
PUSB / RAID
MSR
COMM
WiFi
PUSB / RAID
MSR

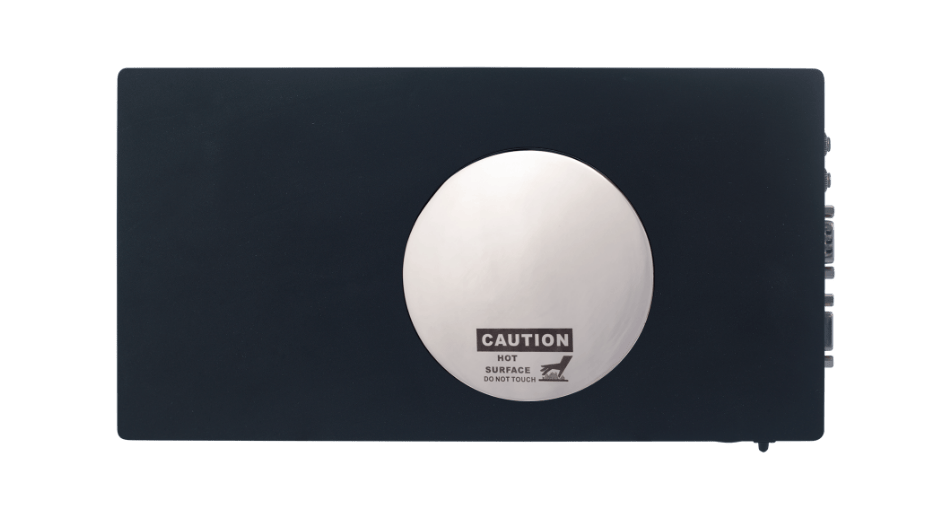

Ultra-Compact Design
Cost Effective Computing Performance
Our Box PCs feature ultra-compact design and are powered by Intel® processors with low-power consumption in a fanless architecture.
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.

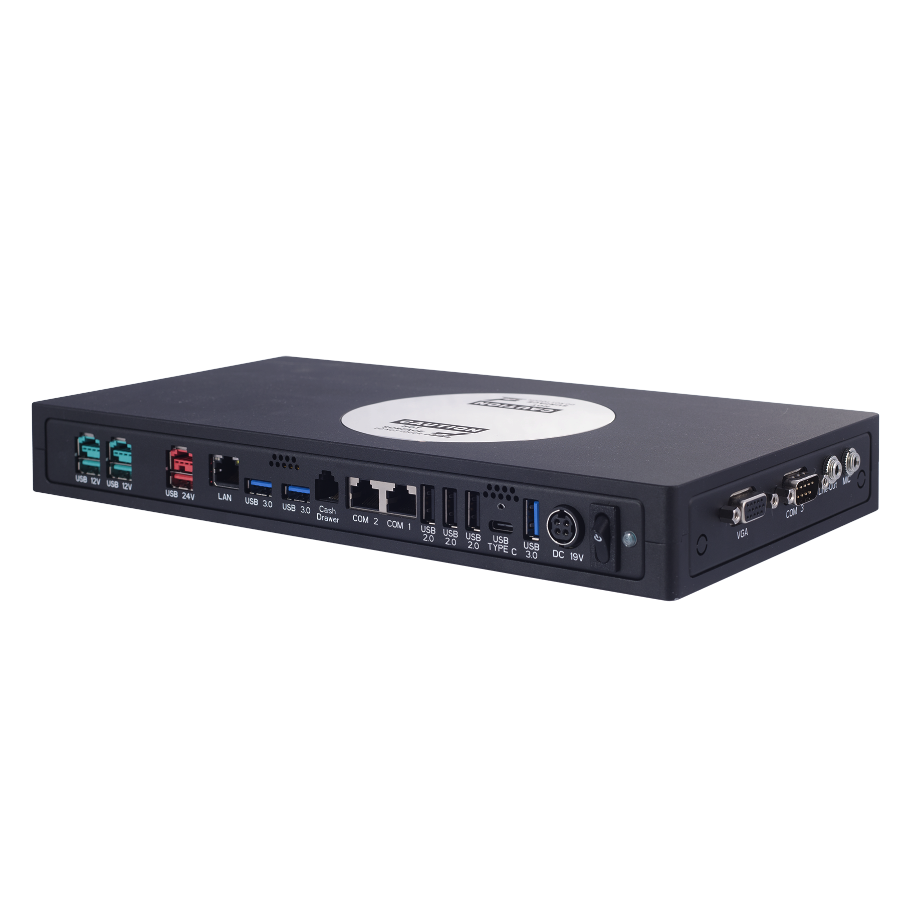

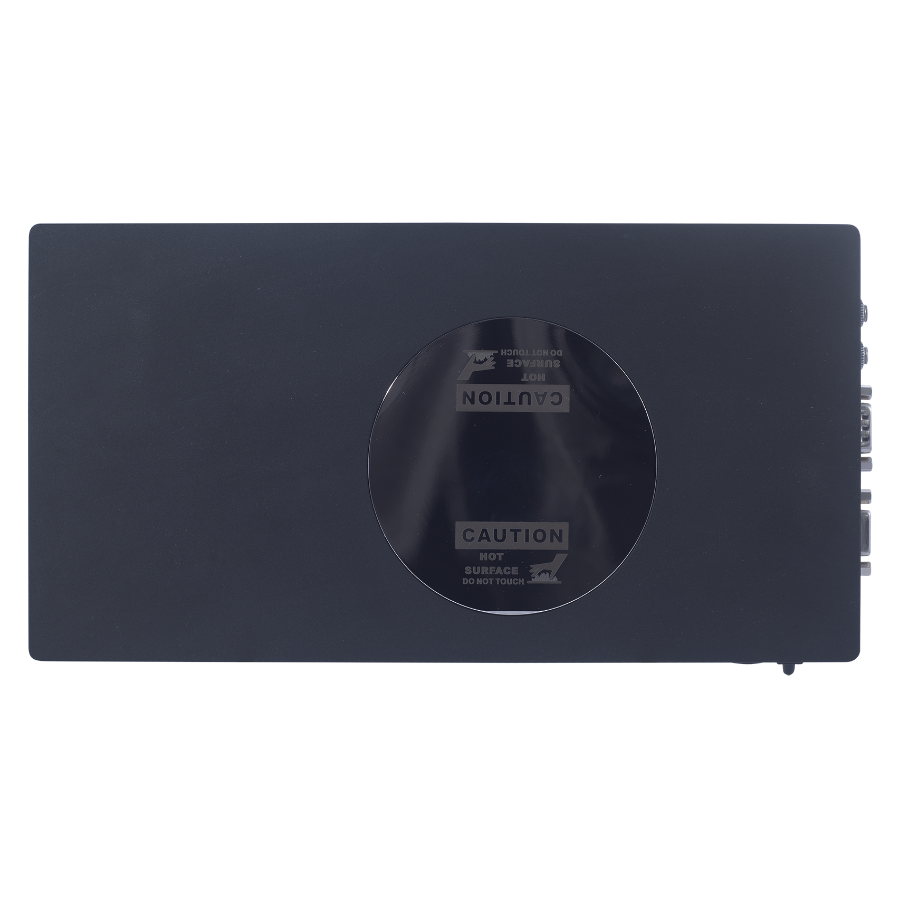

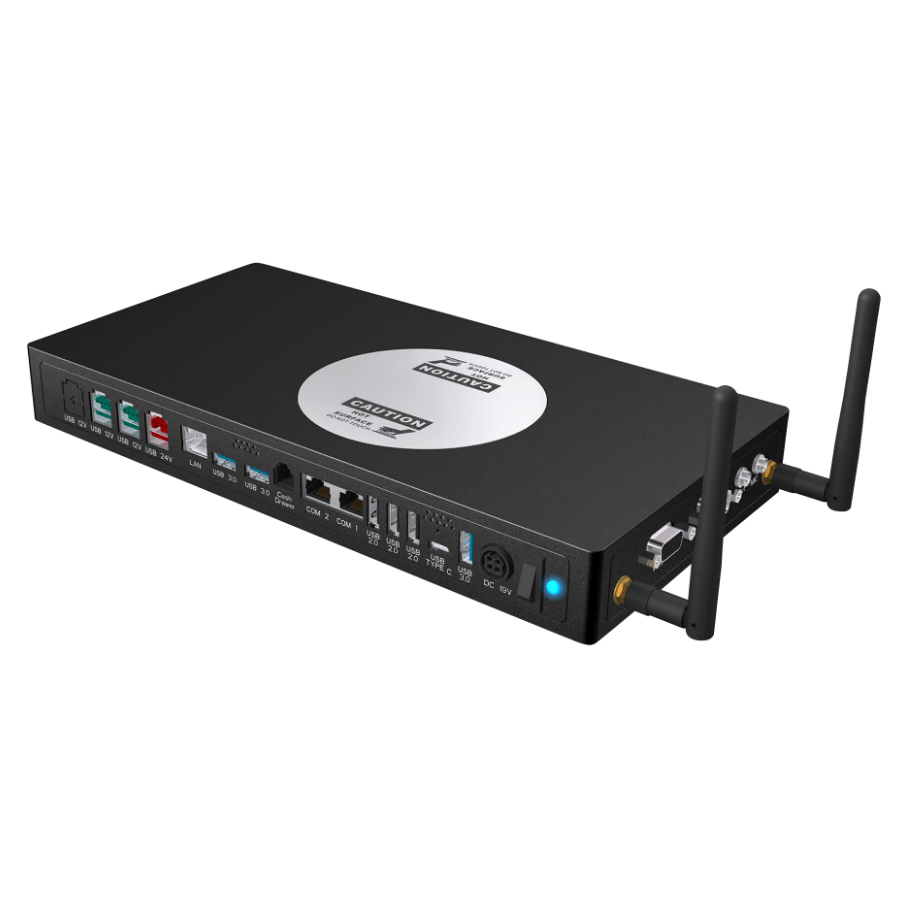

Photo Gallery

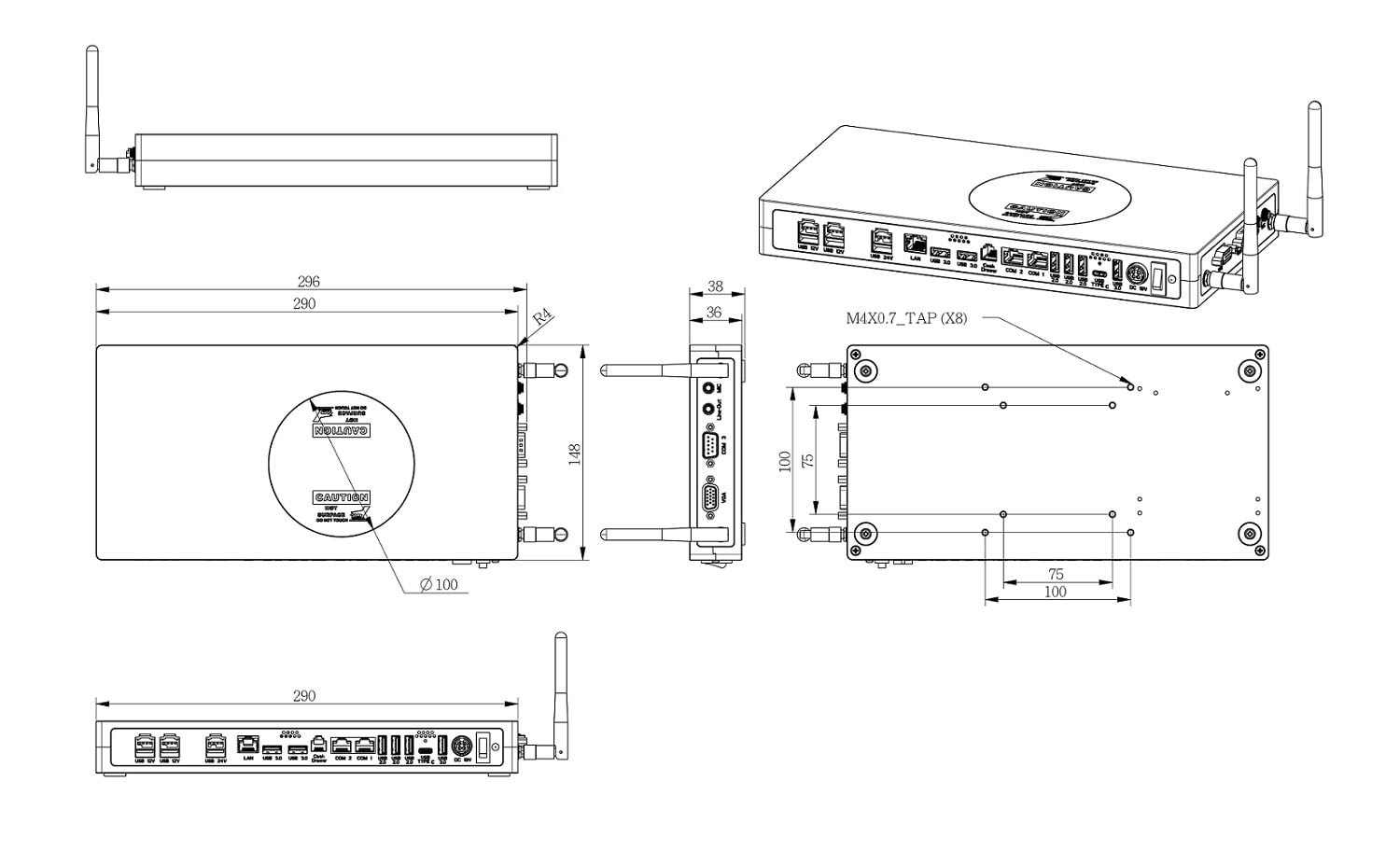

Schematic
Specification
VariBOX T Series
VariBOX T Series
| CPU | Intel® Alder Lake-P, U-Platform – Core i7 up to 4.7 GHz (Project Based) – Core i5 up to 4.4 GHz – Core i3 up to 4.4 GHz |
|---|---|
| Memory | 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB |
| Intel® AMT | i5/i7 CPU |
| TPM | Intel® F/W TPM 2.0 |
| Graphic | Integrated Graphics Processor – Intel® UHD Graphics for 12th Gen Intel® Processor |
| Expansion slot | 1 x 2280 M.2 M-Key (PCIe Gen 3×4 for storage) 1 x 2230 M.2 E-Key (WIFI/BT) |
| Storage | 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based) |

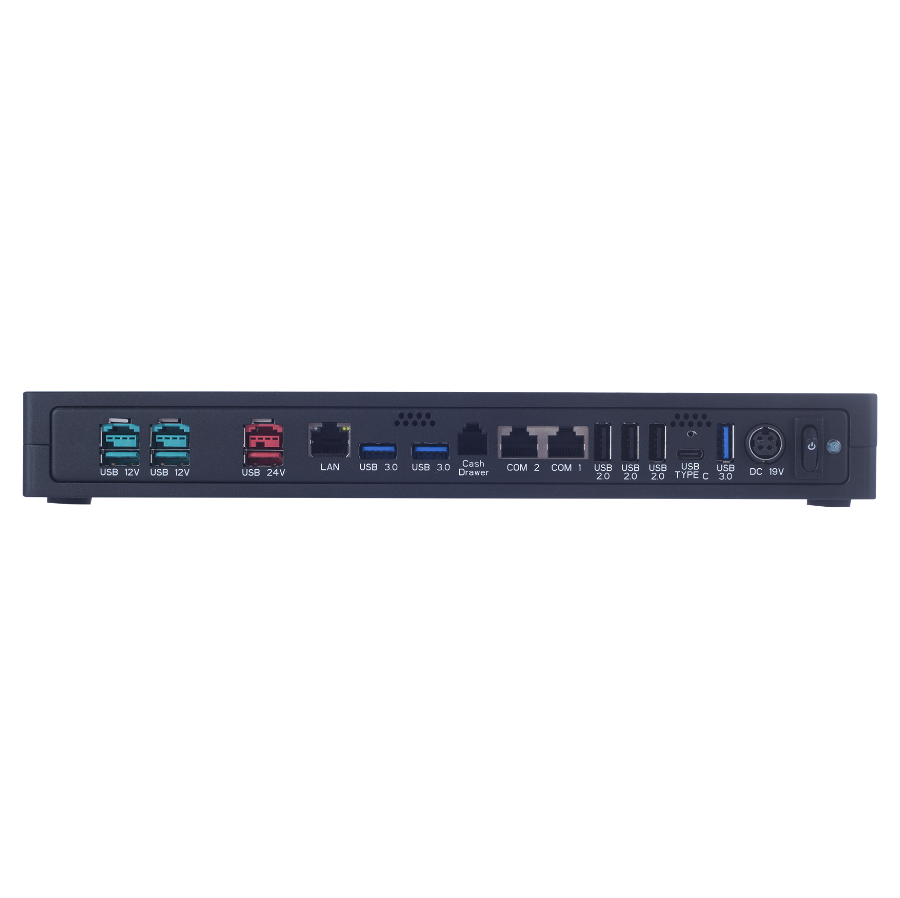

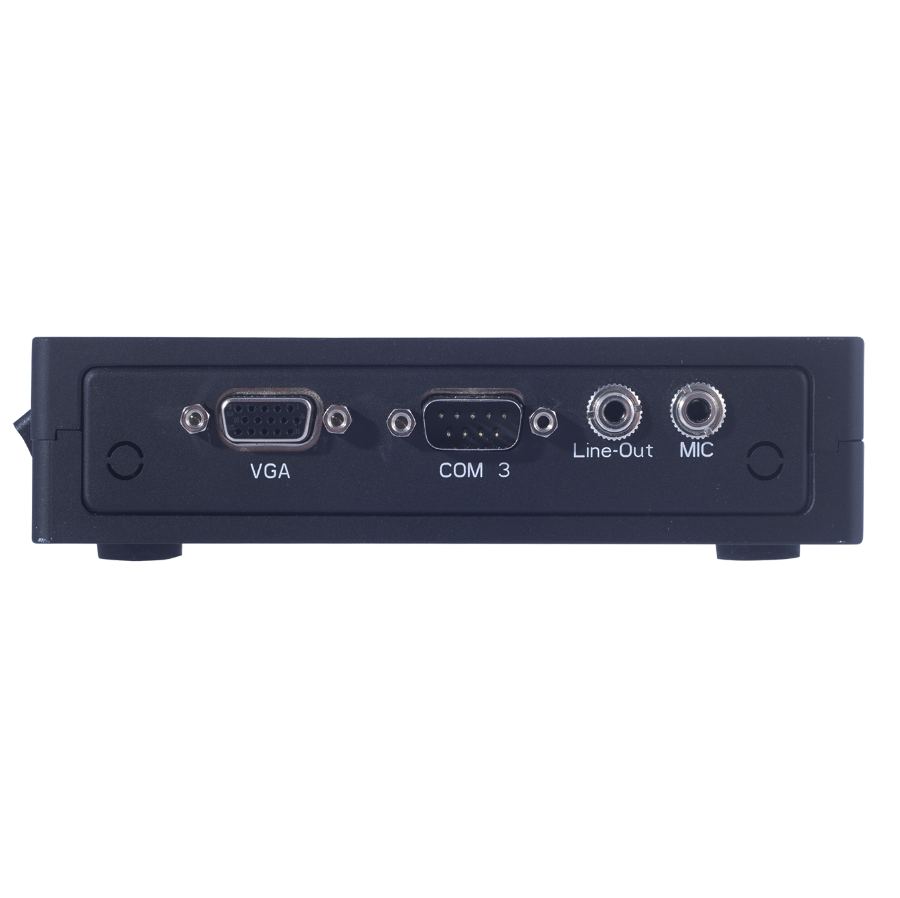

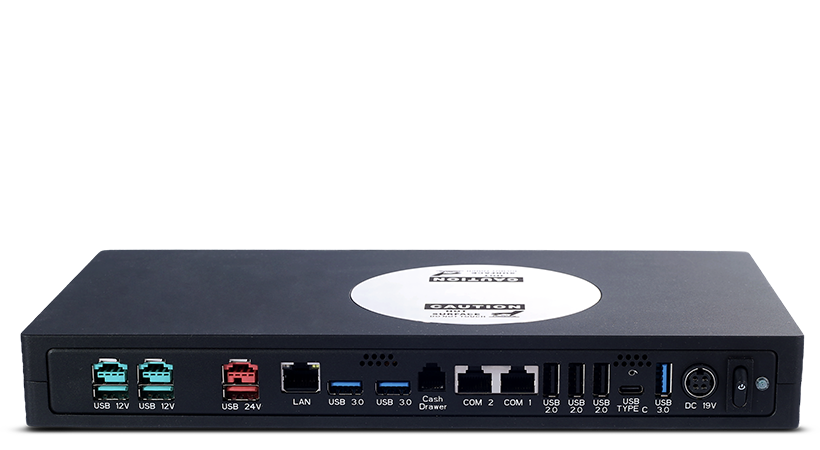

| I/O Ports | – 3 x USB 2.0 – 3 x USB 3.1 – 3 x COM (COM1/2: RJ48 support DC+0/5/12V by BIOS setting, default setting is 0V, COM3: DB-9) – 1 x RJ45 LAN Port supports Wake On LAN, PXE, AMT – 1 x Type C (Support DP+PD) – 1 x VGA – 1 x Cash Drawer (RJ11, support DC+12V or +24V (default) by jumper setting, support 2 cash drawers) – 1 x Line-Out – 1 x MIC |
| Optional function (Project based) | a. Powered USB (DC+12V x 2, DC+24V x 1) b. RAID 0/1 (Dual 2.5″ SSD) c. WIFI/BT (with 2x External Antenna) d. Customization upon request *The above options can only be chosen individually. |
| Power | – Input: 100 ~ 240Vac / 50 ~ 60Hz – Output: DC+19V, 90W AC to DC Adapter *PUSB will use 180W adapter |
| Mechanical & Construction | – System fan: Fanless operation – Dimension (WxHxD): 296 x 148 x 38 mm – Mounting: Wall / Pole / VESA 75×75 / 100×100 – Construction: Aluminum housing with copper heatsink |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE/FCC/LVD |
| OS Support | Windows 10/11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
