卓越效能展現
支援 Intel® Alder Lake-N 處理器
VariBOX C Series
輕巧且多功能的嵌入式電腦
產品特色
- Intel® Alder Lake-N 處理器
- 卓越的散熱效能（ CPU 全速運轉不降頻 ）
- 作業系統支援：Windows 10 / 11 / Linux
- HDMI x 2 ( 支援雙顯示輸出 )
- Com Ports ( 串列埠 ) x 6
- 堅固的鈑金外殼搭配銅製散熱片
- 支援 VESA 100×100 掛載規格
產品亮點
輕巧靈活且堅固的
鋁 / 銅外殼
表現優異
Com Port 連接性
符合 VESA
100 x 100 標準
先進設計與效能
- 創新銅製散熱片 (401 W/m· K) 實現快速冷卻。
- 旨在支援更高 CPU TDP，增強穩定性與運作潛力。
- 高效散熱可延長產品壽命。
高效能嵌入式盒式電腦
- 重負荷處理能力：專為複雜的零售與餐飲旅宿應用量身打造。
- 豐富的 I/O 整合：簡化與多樣化週邊設備的連接。
- 靈活配置：輕鬆擴展以滿足不同的部署需求。
輕巧、靈活且具成本效益
- 專為先進銷售時點 ( POS ) 應用設計的堅固、長生命週期工業平台。
- 模組化平台具備增強的安全性，為零售與餐飲營運商提供部署彈性，可應對各種嚴苛環境的需求。
堅固的鋁 / 銅外殼
VESA compliance
75*75 / 100*100
75*75 / 100*100
System Size
W296 x D148 x H38 (mm).
W296 x D148 x H38 (mm).
作業系統支援
Windows 10 ( 64 bit ) | 11 ( 64 bit ) | Linux ( e.g. Ubuntu 22.04 )
Custom Expansion Options
The VariBox T Series is aimed at markets that demand cost-effective computing performance.
They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
COM Ports
2x DC+12v & 1x DC+24v PUSB
Or RAID 0/1 with Dual 2.5" storage (PE26)
Or RAID 0/1 with Dual 2.5" storage (PE26)
WiFi / BT
COM Ports
2x DC+12v & 1x DC+24v PUSB
Or RAID 0/1 with Dual 2.5" storage (PE26)
Or RAID 0/1 with Dual 2.5" storage (PE26)
WiFi / BT
Custom Expansion Options
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
PUSB / RAID / WiFi / COMM
COMM
WiFi
PUSB / RAID
MSR
COMM
WiFi
PUSB / RAID
MSR
Ultra-Compact Design
Cost Effective Computing Performance
Our Box PCs feature ultra-compact design and are powered by Intel® processors with low-power consumption in a fanless architecture.
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.

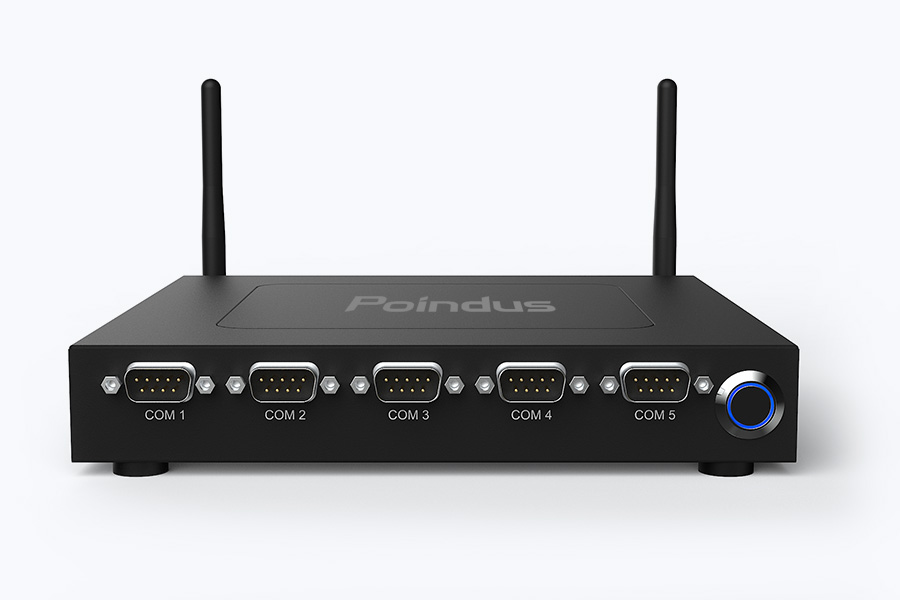

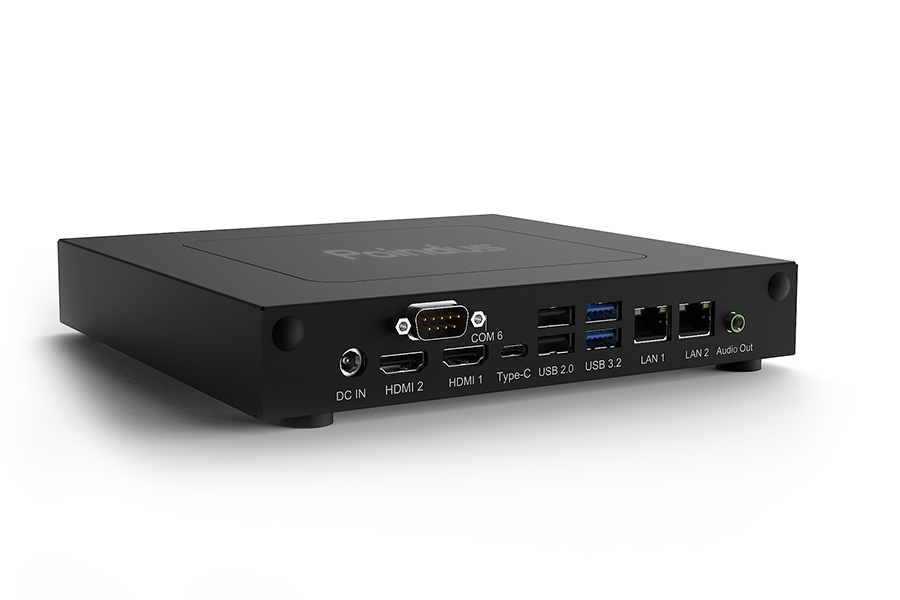

產品圖片
Schematic
產品規格
VariBOX C Series
VariBOX C Series
| System Information | CPU System Memory TPM |
|---|---|
| Storage | – 1 x M.2 M Key 2242/2280 support PCIe 3.0 x1 / SATA for NVMe / SATA storage |
| Connectivity | – 1 x DC-Jack supports DC-IN 9 ~ 24V – 2 x HDMI® connector – 1 x USB-C connector ( supports DP Alt mode, USB-C PD sink 20V / 5A ) – 2 x USB 2.0 Type-A connector – 2 x USB 3.2 Gen1 Type-A connector – 2 x RJ45 connector, support 1G – 1 x Line-out connector – 6 x DB-9 COM port supports DC+0V / 5V / 12V, default is 0V by jumper setting |
| Expansion | – 1 x M.2 B Key 3042 / 3052 support PCIe 3.0 x1 + USB 3.2 with SIM slot for 4G / 5G module – 1 x M.2 E Key 2230 support PCIe 3.0 x1 + USB 2.0 for WiFi / Bluetooth module |
| Power Requirement | – Input: 100 ~ 240Vac / 50 ~ 60Hz – Output: DC+12V, 60W AC to DC Adapter |
| Mechanical & Construction | – Default color: Black – System fan: Fanless – Weight ( NW/GW ): 1.9 Kgs / 2.9 Kgs – Dimension ( W x H x D ): 195 x 36 x 190.7 mm – Construction: Sheet metal construction with copper heatsink |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| OS Support | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
