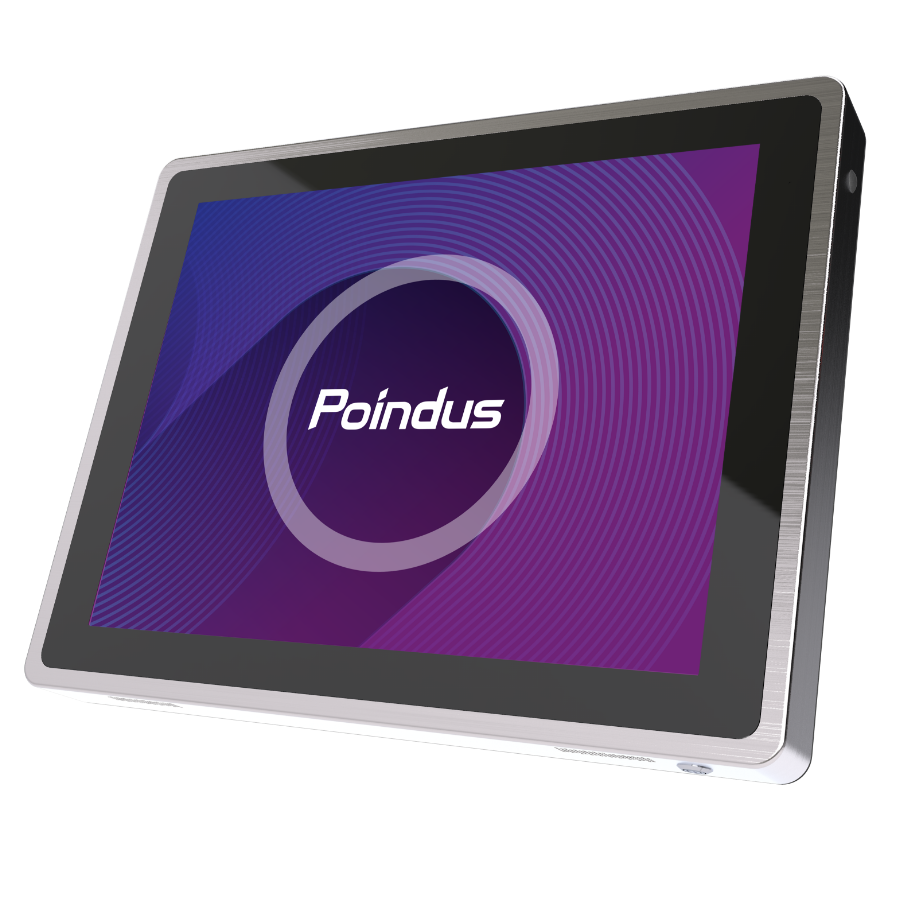

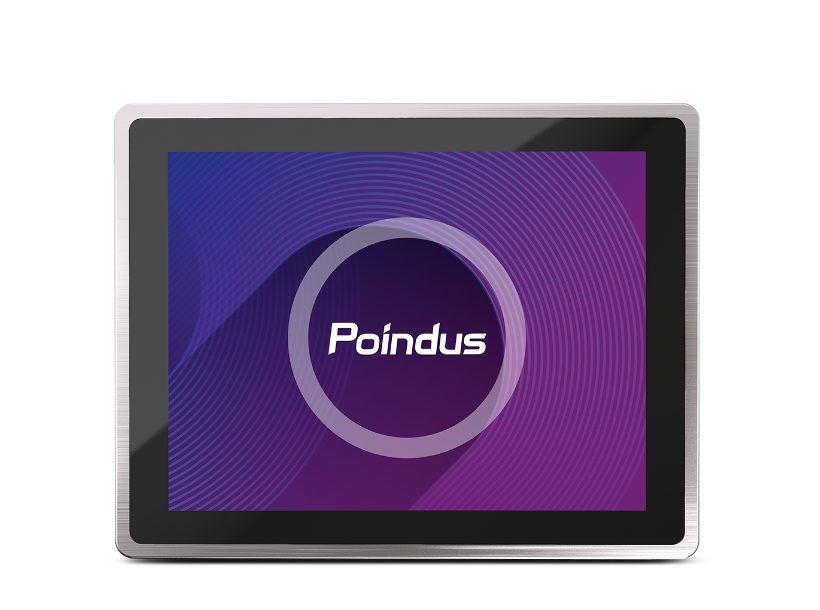

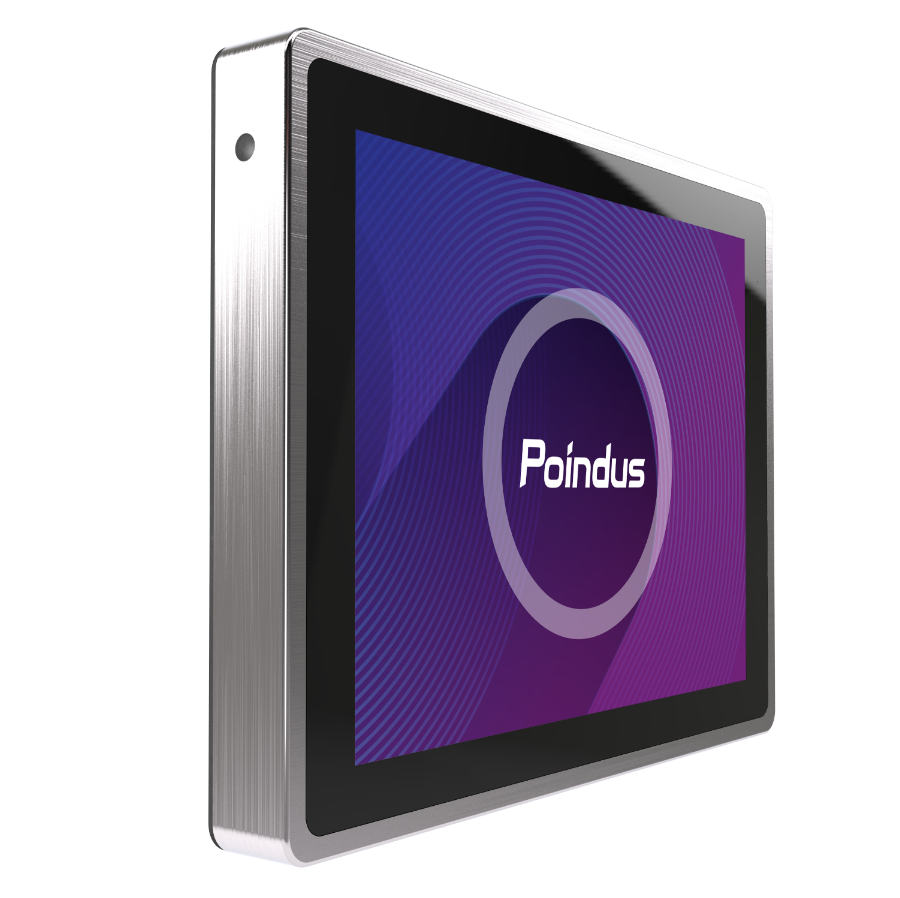

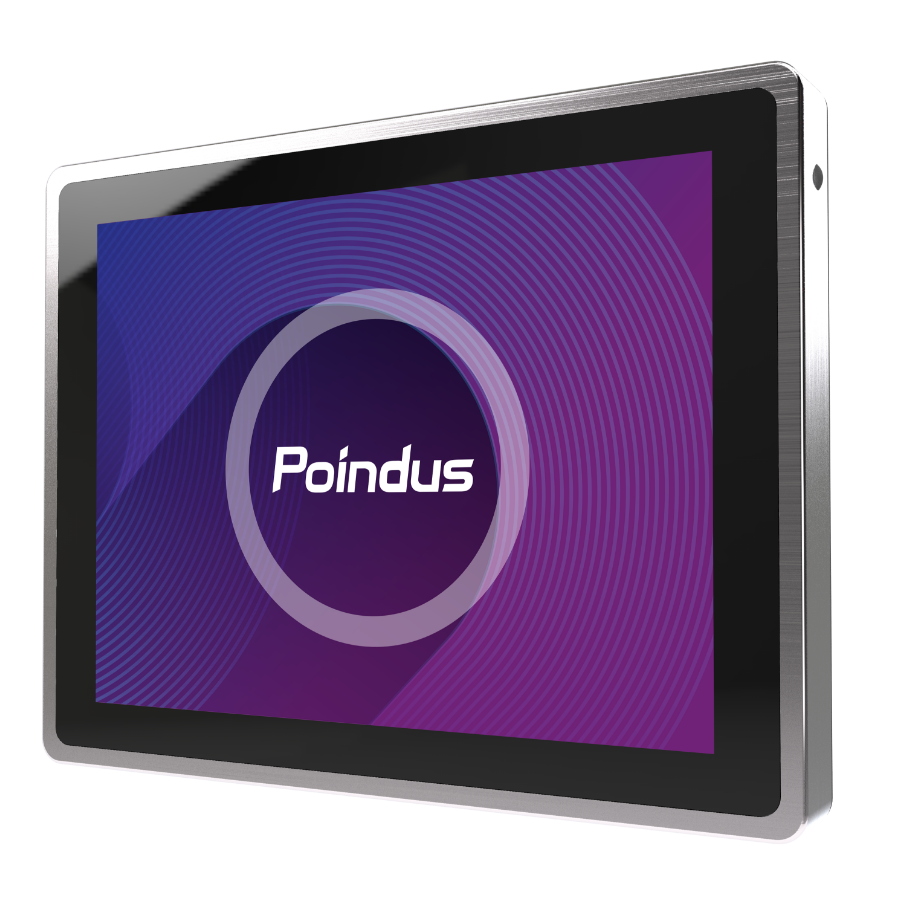

SPPC 150

Build to Endure.
Design to Impress.

Features

SUS 304 stainless steel enclosure.
Full System IP65 Ingress Protection.
Smooth user interaction: 15″ 4:3 touchscreen for intuitive operation.
Scalable performance: Intel processors from entry to high-performance use cases.

Silent, low-maintenance operation: Fanless design reduces noise and downtime.
OS versatility: Supports Windows and Linux, easing software integration.
Rich I/O Interface with cable management & Ingress Protection.

Product Highlights

Strong Performance

Stainless Steel Robust
Chassis

WiFi/BT
Connectivity

IP65 Proof

Advanced Heatsink
Maximize Performance

Display Flexibility
custom display sizes
on demand

VESA-compliant
for versatile mounting

View the Product Video

The SPPC Series is built for continuous operations in industrial and harsh commercial settings.

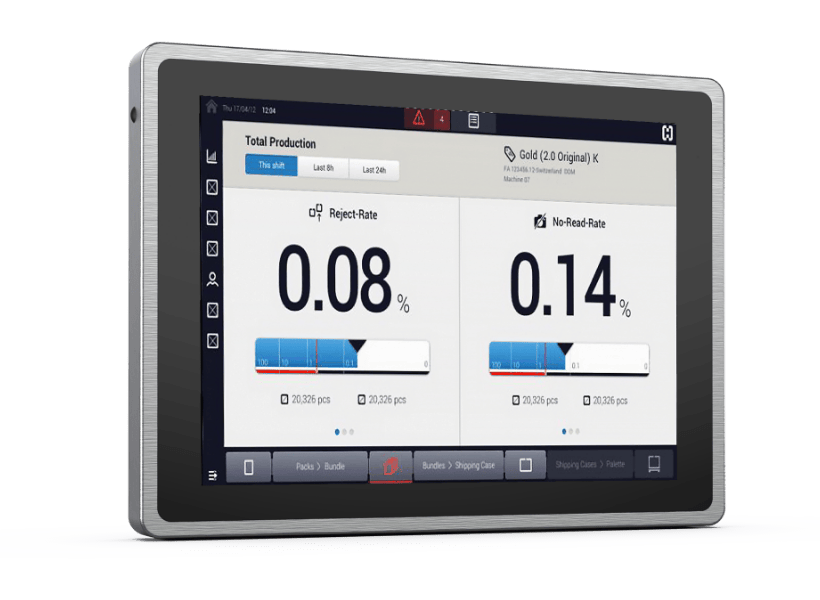

Industrial Control Made Clear

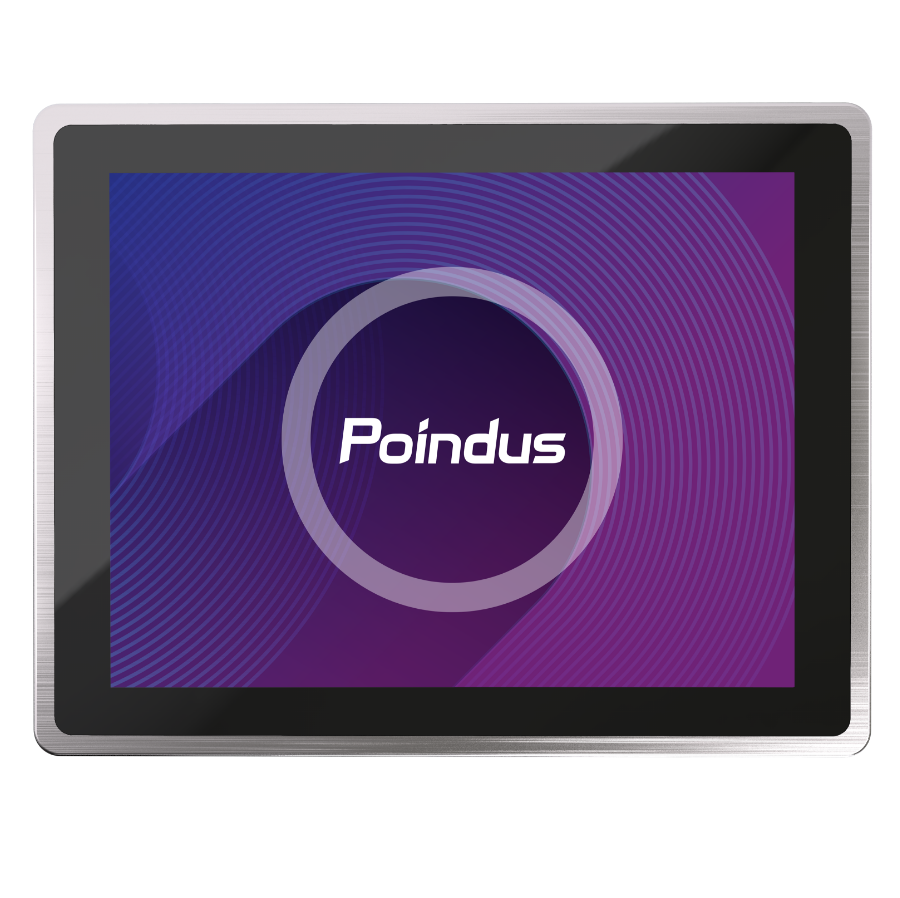

15″ Touch Interface for Data-Driven Workflows

Deliver the right data, at the right time—where it matters most.

The SPPC-150 features a 15″ (4:3) display, providing operators with clear, real-time data visibility in production zones, cleanrooms, or control areas. Its responsive multi-touch interface and durable stainless steel construction make it ideal for process monitoring, machine control, and workflow coordination in demanding industrial settings.

Display Flexibility

Meet Any Project Requirement

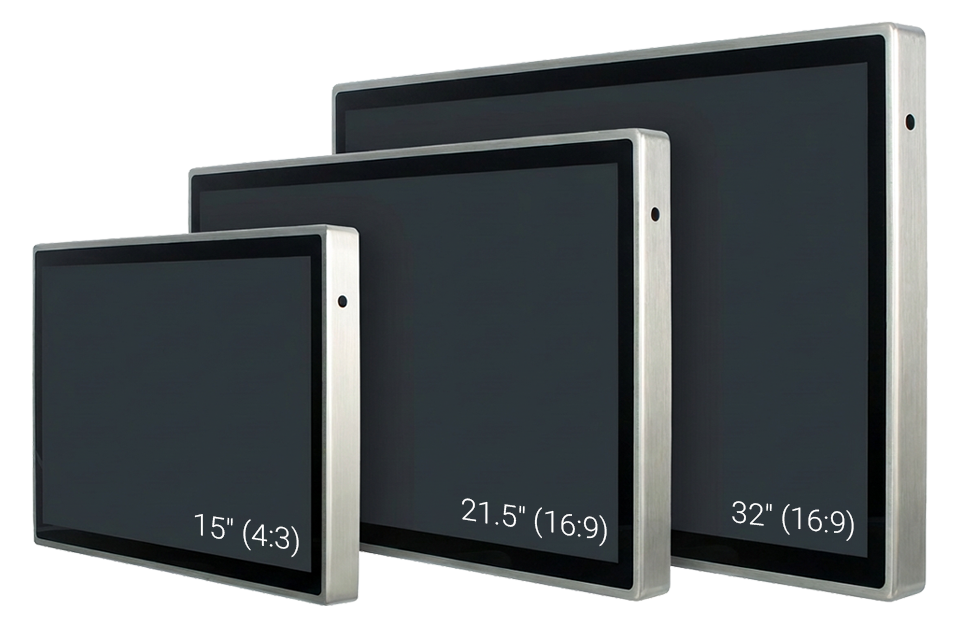

The SPPC series is designed to meet a wide range of project requirements with standard display sizes including:

15″ (4:3) / 21.5″ (16:9) / 32″ (16:9)

Beyond these options, we also offer custom display sizes on demand, ensuring that your unique specifications and project needs are fully supported.

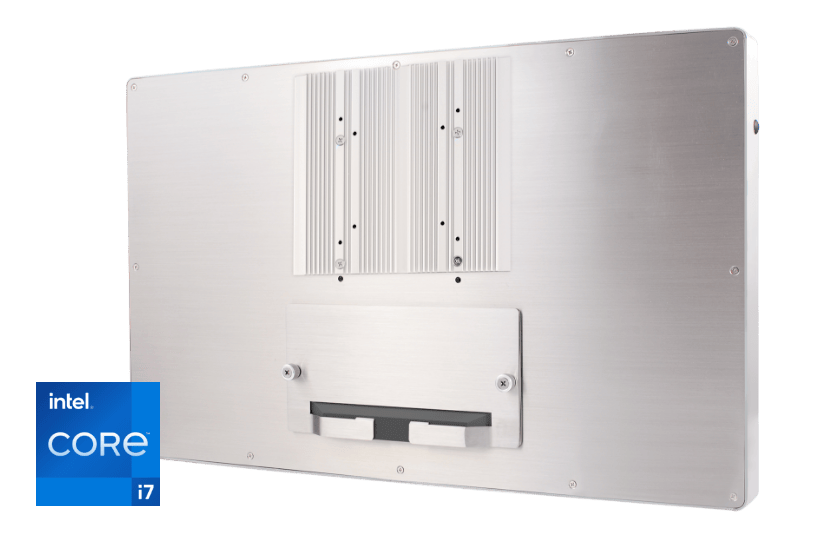

Maximize Performance

with Intel® Core i7

Meet your project performance requirements
Our Panel PCs with Intel® Core™ i7 processors deliver strong performance and reliability to handle demanding project tasks. They support multitasking, fast data processing, and flexible connectivity, making them a solid choice for industrial and commercial applications.

Processor & SUPPORTED OS

Precision Touch for Industrial Control

Responsive 10 points PCAP multi-touch built for accuracy and reliability.

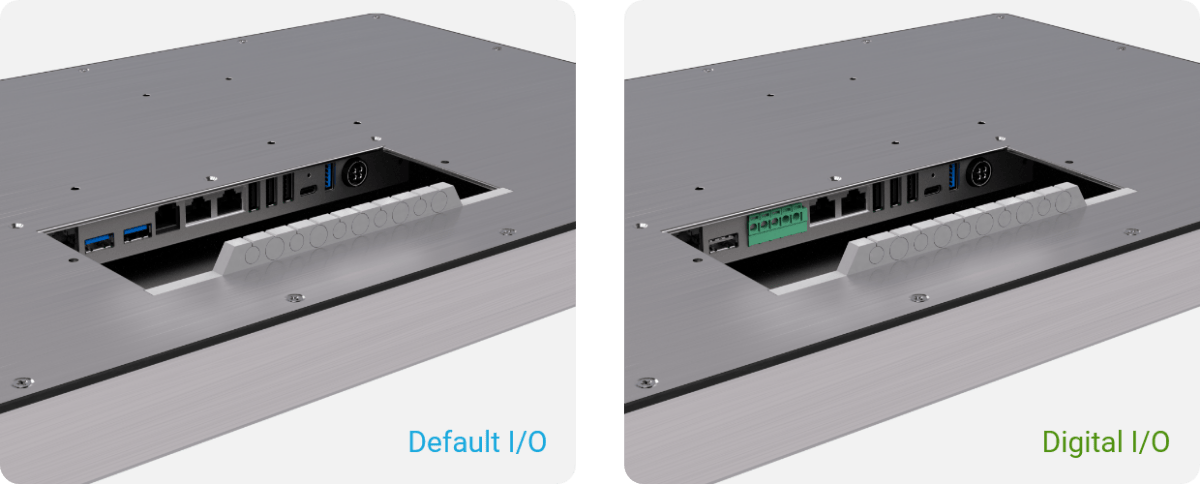

Customizable I/O interface

Standard I/O or Digital I/O available

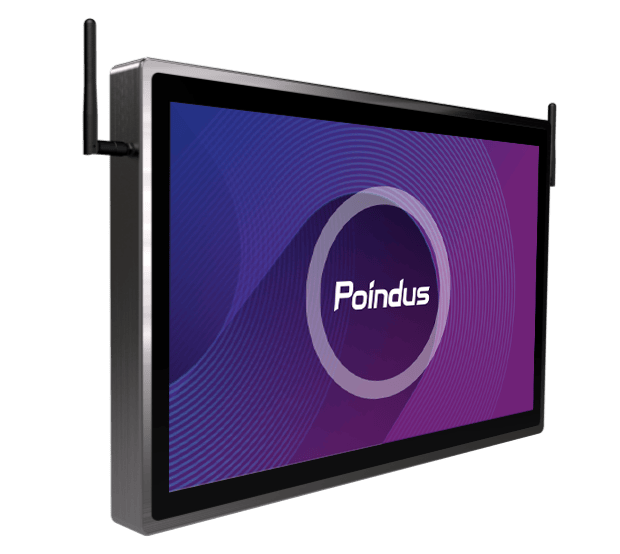

WiFi/BT Connectivity

The SPPC series has flexible and reliable wireless connectivity options.

The system is equipped with external antennas to ensure optimal signal strength and coverage in industrial settings.

For tailored network requirements, it features a dedicated M.2 A,E Key expansion slot, allowing for project-based integration of specific Wi-Fi and Bluetooth modules to meet diverse application needs, from industrial automation to food processing and pharmaceuticals.

This design ensures both durability and modern connectivity expandability.

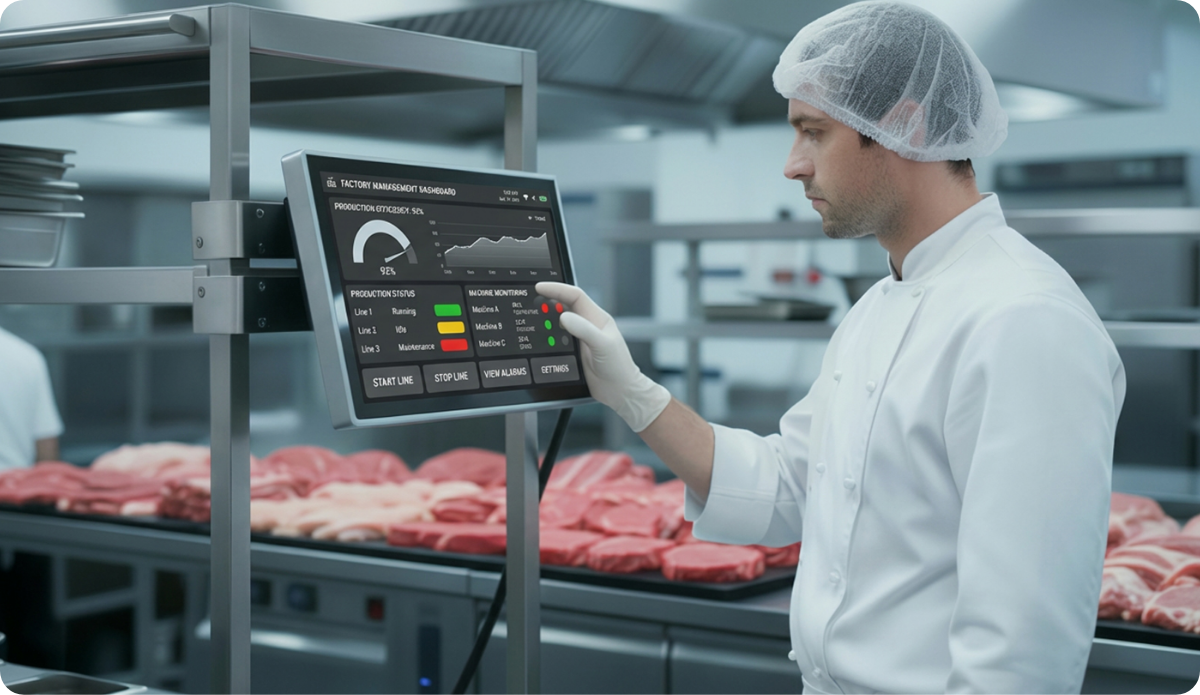

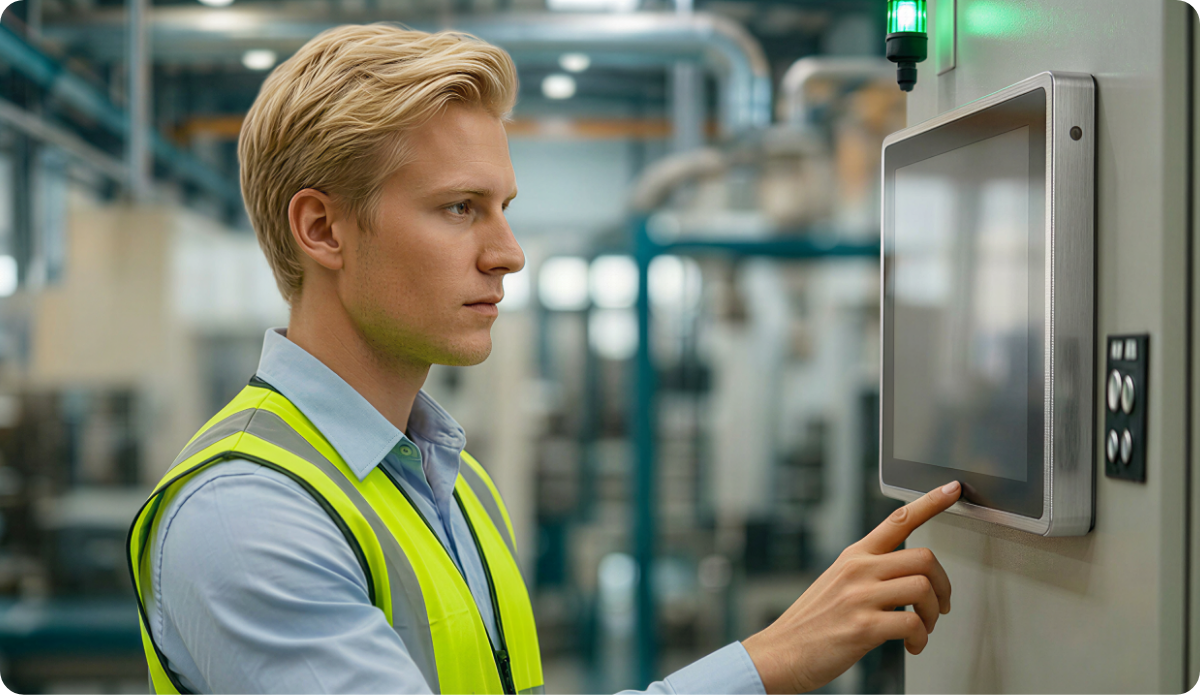

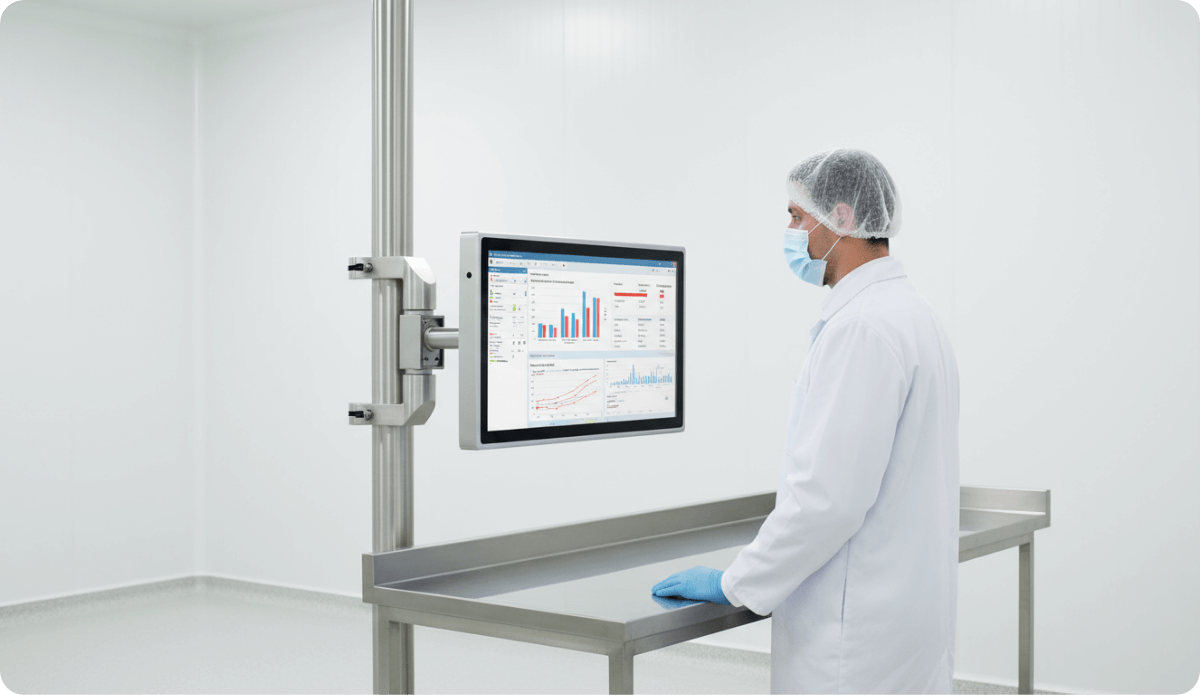

Application scenarios

Built for Mission-Critical Operations

SUS 304 Stainless Steel

Crafted with SUS 304 stainless steel, this enclosure delivers exceptional strength and corrosion resistance. With advanced Ingress Protection, it ensures reliable performance even in the harshest environments.

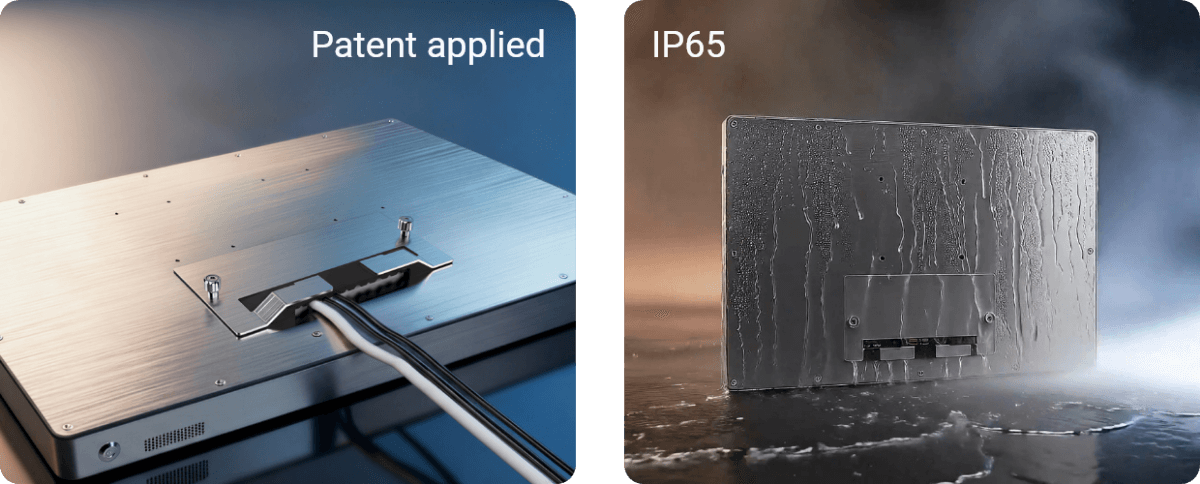

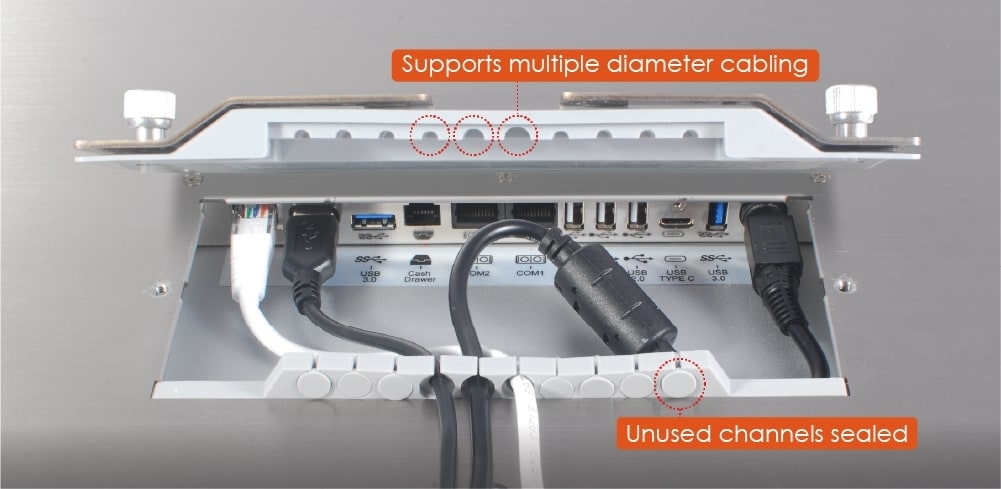

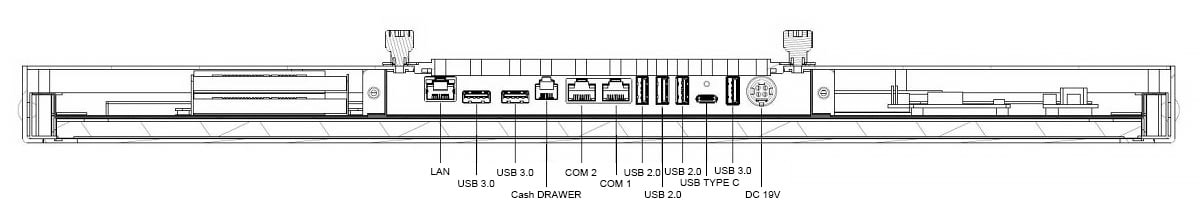

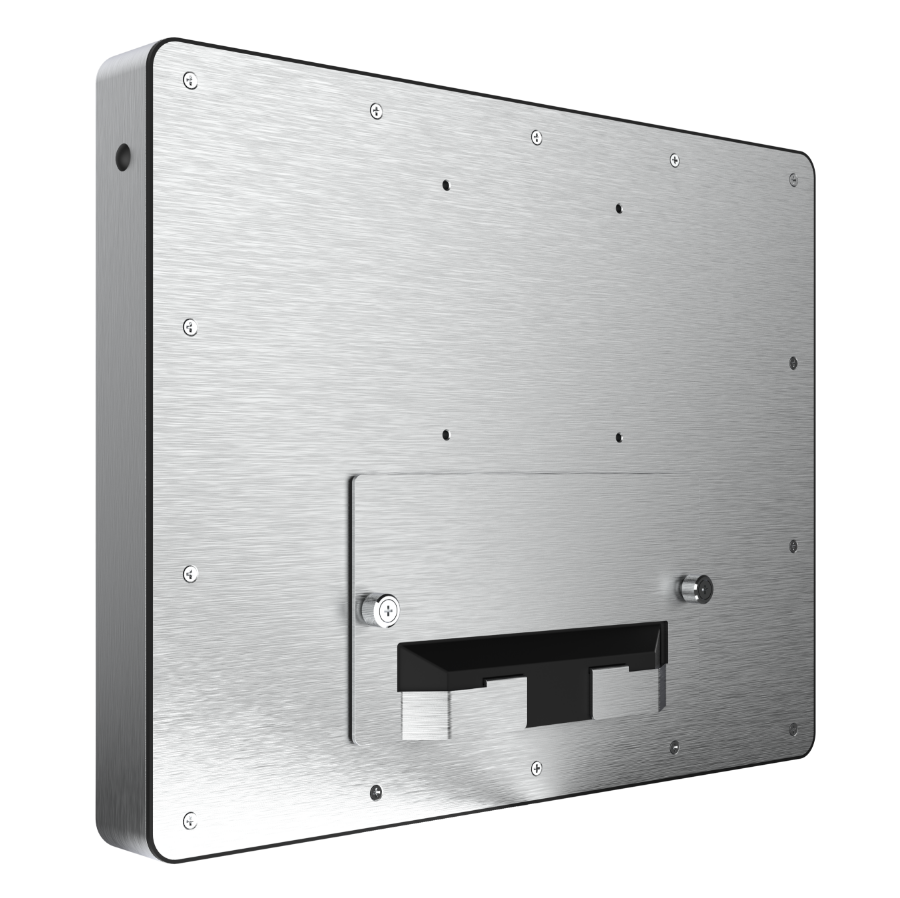

Ingress Protected I/O Interface

with Smart Cable Management

Our Ingress Protected I/O and cable management deliver a protection from water and dust in the most extreme scenarios.

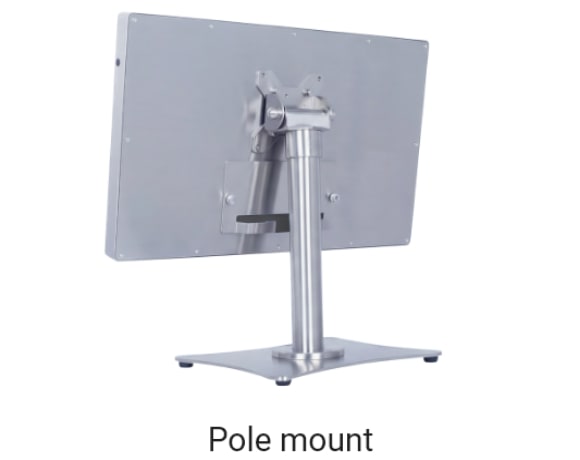

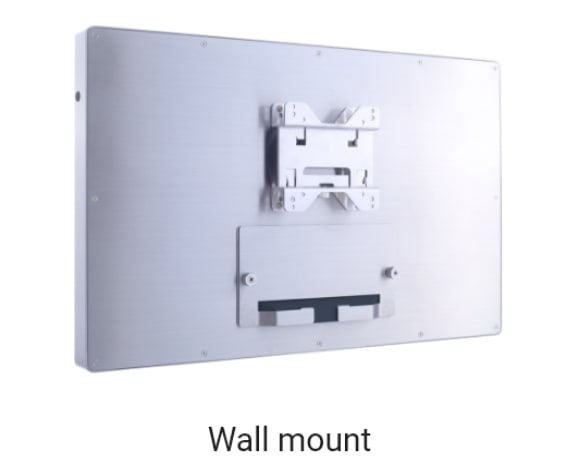

Versatile Mounting Solutions

and heatsink for stable performance

Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario.
The SPPC series offers system reliability with heat dissipation to meet any demanding scenario

Photo Gallery

Specification

SPPC-150

SPPC-215

SPPC-320

SPPC-150

System Information	PE24 Intel® Elkhart Lake Celeron PE26 Intel® Alder Lake-P, U-Platform – Core i7 up to 4.7 GHz (Project Based) – Core i5 up to 4.4 GHz – Core i3 up to 4.4GHz System Memory – PE24: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB – PE26: 1 x SO-DIMM DDR5 slot, 16GB RAM as standard. Max. memory support up to 32GB Intel® AMT – i5 / i7 CPU TPM – Intel® F/W TPM 2.0
Display & Touch	– 15″4:3 Display, resolution 1024×768 – 400cd/m², LED backlight – 10-point PCAP multi-touch screen
Storage	– 1 x M.2 PCIe SSD
Expansion	1 x M.2 E Key (for WiFi/BT Communication Module, project based)
Connectivity	– 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN
Audio	2 x 2W speaker
Power Requirement	– Input: 100~240Vac/50~60Hz – Output: DC+19V, 90W AC to DC Adapter
Mechanical & Construction	– Full system IP65 – System fan: Fanless operation – Weight (NW/GW): 6.5 Kgs / 8.0 Kgs – Dimension (WxHxD): 376.4 x 293.4 x 52.8 mm – Mounting: Wall / Pole / VESA 100×100 mm – Construction: Stainless Steel
Environmental	– Operating temperature: 0°C~40°C, 10%~90% Relative Humidity, Non-condensing – Storage Temperature: -20°C~60°C, 10%~90% Relative Humidity, Non-condensing
Certification	CE/FCC/LVD
OS Support	Windows 10/11 (64 bit), Linux (Ubuntu 22.04)

Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.

SPPC-215

System Information	PE24 Intel® Elkhart Lake Celeron PE26 Intel® Alder Lake-P, U-Platform – Core i7 up to 4.7 GHz (Project Based) – Core i5 up to 4.4 GHz – Core i3 up to 4.4GHz System Memory – PE24: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB – PE26: 1 x SO-DIMM DDR5 slot, 16GB RAM as standard. Max. memory support up to 32GB Intel® AMT – i5 / i7 CPU TPM – Intel® F/W TPM 2.0
Display & Touch	– 21.5″ Full HD Display, resolution 1920×1080 – 250cd/m², LED backlight – 10-point PCAP multi-touch screen
Storage	PE24 1 x M.2 PCIe SSD PE26 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based)
Expansion	1 x M.2 A,E Key (for WiFi/BT project based)
Connectivity	– 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN
Audio	2 x 2W speaker
Power Requirement	– Input: 100~240Vac/50~60Hz – Output: DC+19V, 90W AC to DC Adapter
Mechanical & Construction	– Full system IP65 – System fan: Fanless operation – Weight (NW/GW): 8.0 Kgs / 10.1 Kgs – Dimension (WxHxD): 526.6 x 323.2 x 52.9 mm – Mounting: Wall / Pole / VESA 100×100 mm – Construction: Stainless Steel
Environmental	– Operating temperature: 0°C~40°C, 10%~90% Relative Humidity, Non-condensing – Storage Temperature: -20°C~60°C, 10%~90% Relative Humidity, Non-condensing
Certification	CE/FCC/LVD
OS Support	Windows 10/11 (64 bit), Linux (Ubuntu 22.04)

Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.

SPPC-320

System Information	PE24 Intel® Elkhart Lake Celeron PE26 Intel® Alder Lake-P, U-Platform – Core i7 up to 4.7 GHz (Project Based) – Core i5 up to 4.4 GHz – Core i3 up to 4.4GHz System Memory – PE24: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB – PE26: 1 x SO-DIMM DDR5 slot, 16GB RAM as standard. Max. memory support up to 32GB Intel® AMT – i5 / i7 CPU TPM – Intel® F/W TPM 2.0
Display & Touch	– 32″ Full HD Display, resolution 1920×1080 – 300cd/m², LED backlight – 10-point PCAP multi-touch screen
Storage	PE24 1 x M.2 PCIe SSD PE26 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based)
Expansion	1 x M.2 A,E Key (for WiFi/BT project based)
Connectivity	– 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN
Audio	2 x 2W speaker
Power Requirement	– Input: 100~240Vac/50~60Hz – Output: DC+19V, 90W AC to DC Adapter
Mechanical & Construction	– Full system IP65 – System fan: Fanless operation – Weight (NW/GW): 23 Kgs / 25 Kgs – Dimension (WxHxD): 765.6 x 460.6 x 62.3 mm – Mounting: Wall / Pole / VESA 400×200 & 200×150 – Construction: Stainless Steel
Environmental	– Operating temperature: 0°C~40°C, 10%~90% Relative Humidity, Non-condensing – Storage Temperature: -20°C~60°C, 10%~90% Relative Humidity, Non-condensing
Certification	CE/FCC/LVD
OS Support	Windows 10/11 (64 bit), Linux (Ubuntu 22.04)

Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
