Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3 and i5 CPU.

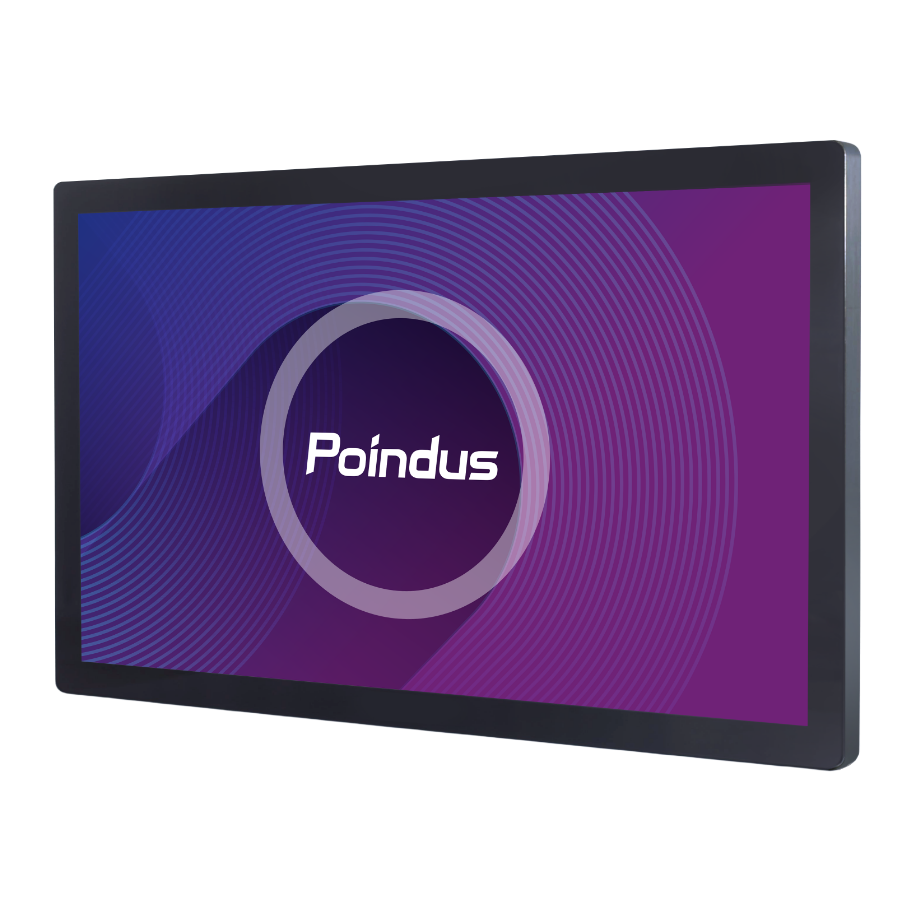

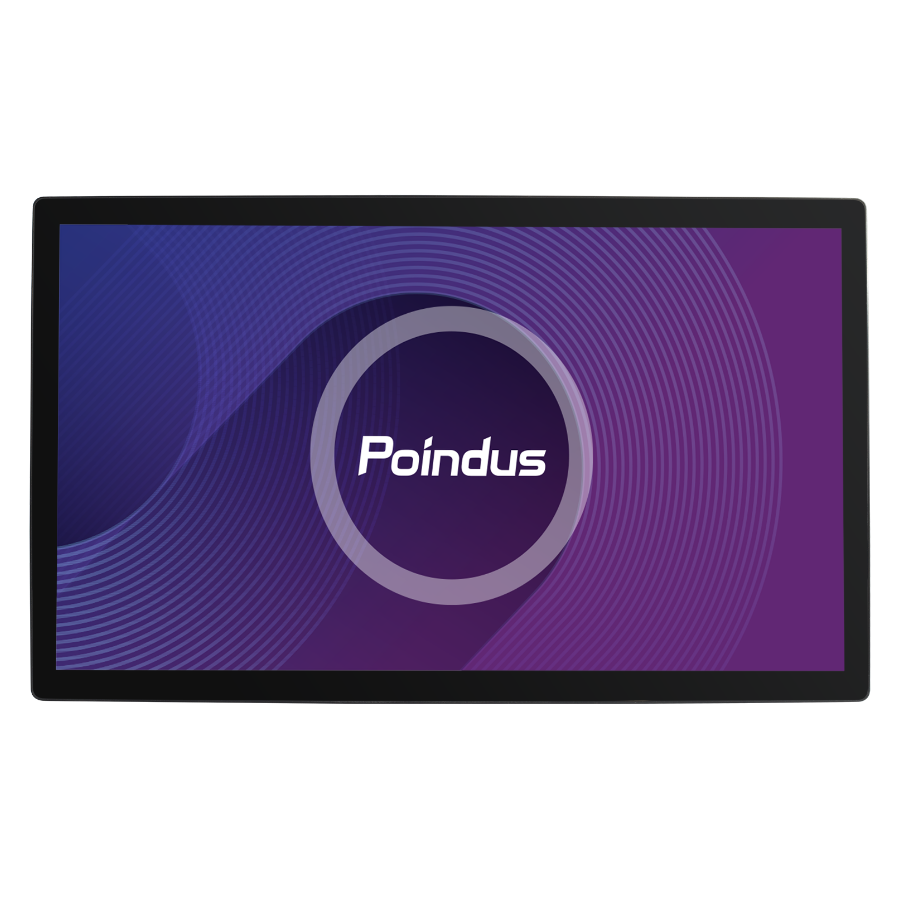

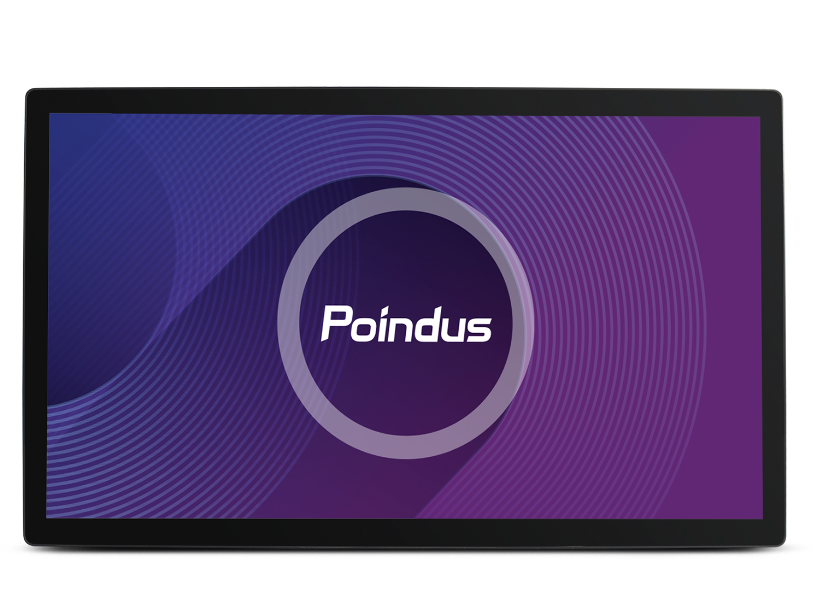

PPC-320
One Panel,
Endless Possibilities
Features
- Onboard Intel® Elkhart Lake Celeron, Alder Lake-P, U-series i3 & i5 CPU.
- 10 points PCAP multi-touch support.
Intel F/W TPM 2.0. - Front panel IP65 ingress protection.
- Fanless system for silent, reliable operation.
- VESA Compliance for flexible installation.
- WiFi/BT module. (Project based)
- Extension Module design. (Project based)
Product Highlights

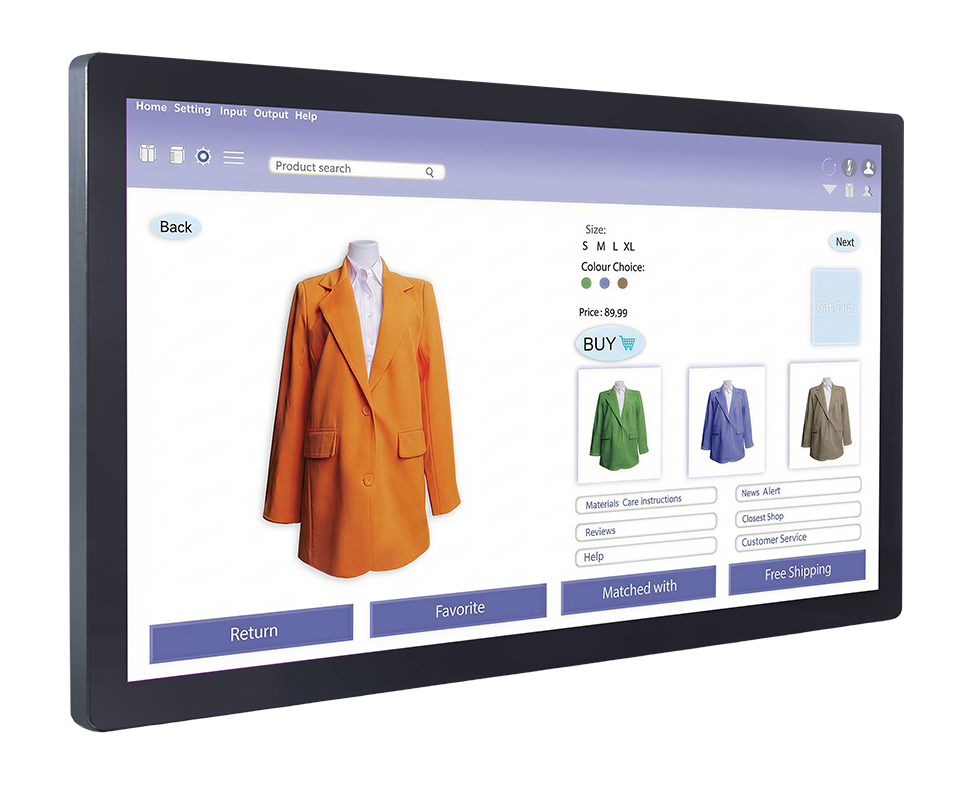

320" Full HD Display
1920x1080
Front IP65
Ingress Protection
Strong Performance
Advanced Heatsink
Maximize Performance
VESA-compliant
for Versatile Mounting
Versatile Panel PC Solution
The PPC-320 is an efficient and cost effective panel PC solution designed for retail & hospitality applications.
Display Flexibility
Meet Any Project Requirement
The PPC series is designed to meet a wide range of project requirements with standard display sizes:
21.5″ (16:9), 23.8″ (16:9) and 32″ (16:9)
Beyond these options, we also offer custom display sizes on demand, ensuring that your unique specifications and project needs are fully supported.

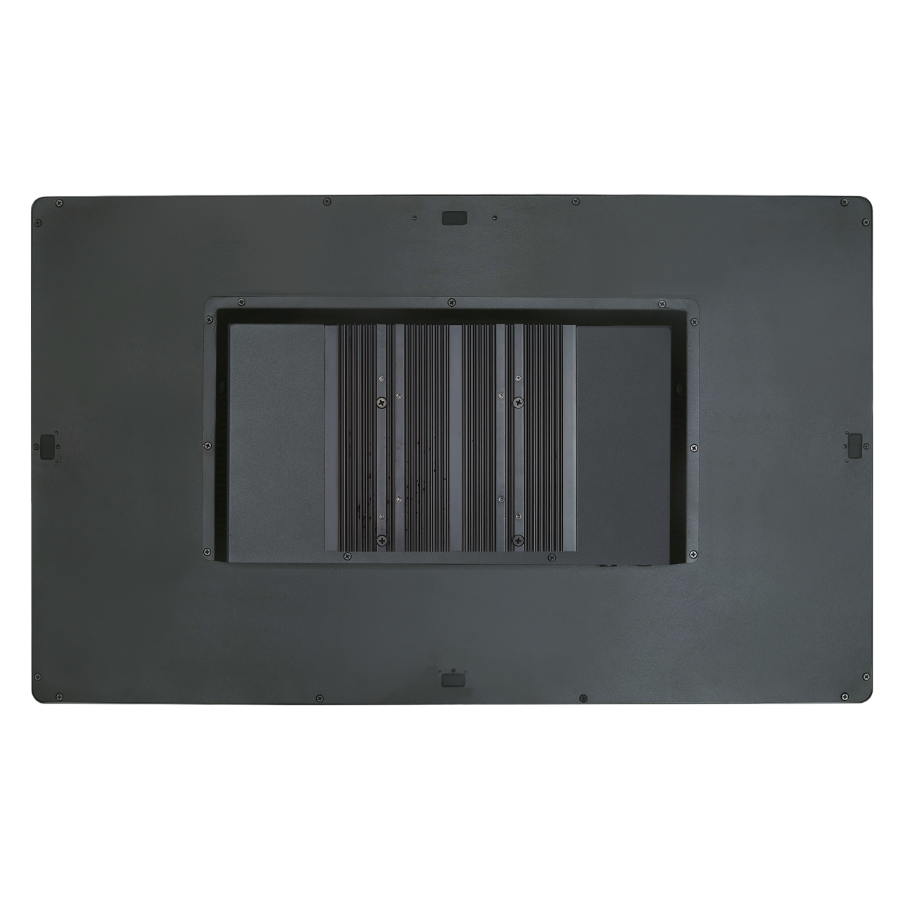

Advanced Heatsink Maximize Performance
with Intel® Core i7
Meet your project performance requirements
Our Panel PCs with Intel® Core™ i7 processors deliver strong performance and reliability to handle demanding project tasks.
They support multitasking, fast data processing, and flexible connectivity, making them a solid choice for industrial and commercial applications.
Easy Integration
Windows 10 (64 bit) | 11 (64 bit) | Linux (e.g. Ubuntu 22.04)

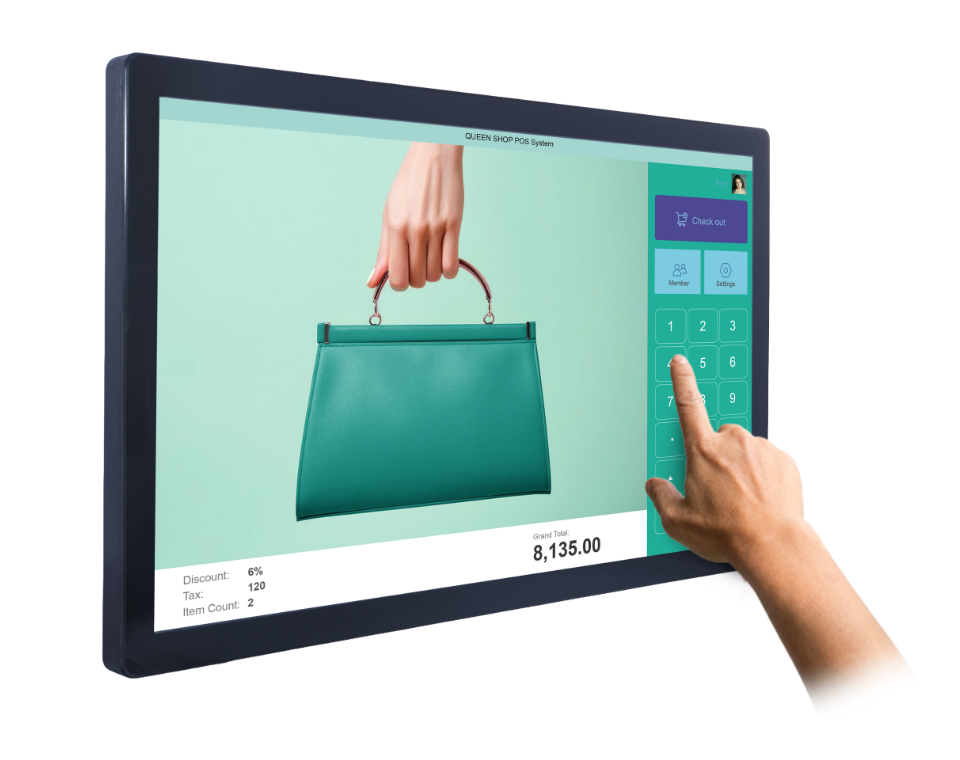

Designed for Precise, Confident Touch
Responsive 10 points PCAP multi-touch built for accuracy and reliability.
WiFi/BT Connectivity
The PPC-320 offers reliable wireless connectivity options with external antennas for stable signal performance in business use.
A dedicated M.2 A/E Key slot enables project-based integration of Wi-Fi and Bluetooth modules, providing flexible and expandable connectivity options.
Application scenarios
Optimized for Modern Retail and Hospitality

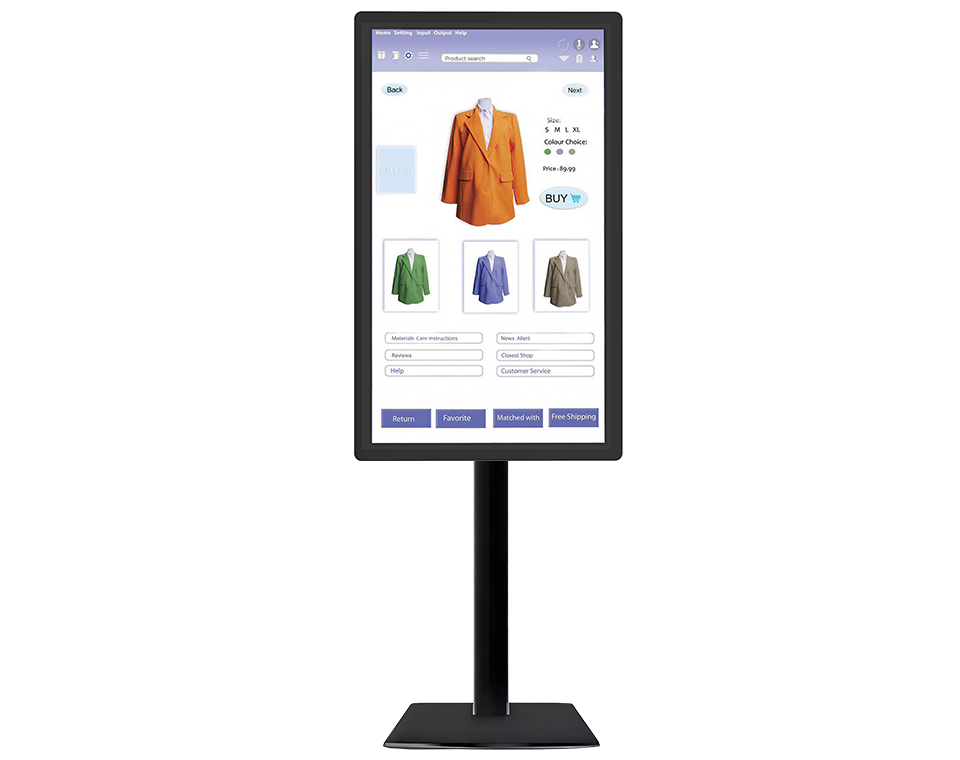

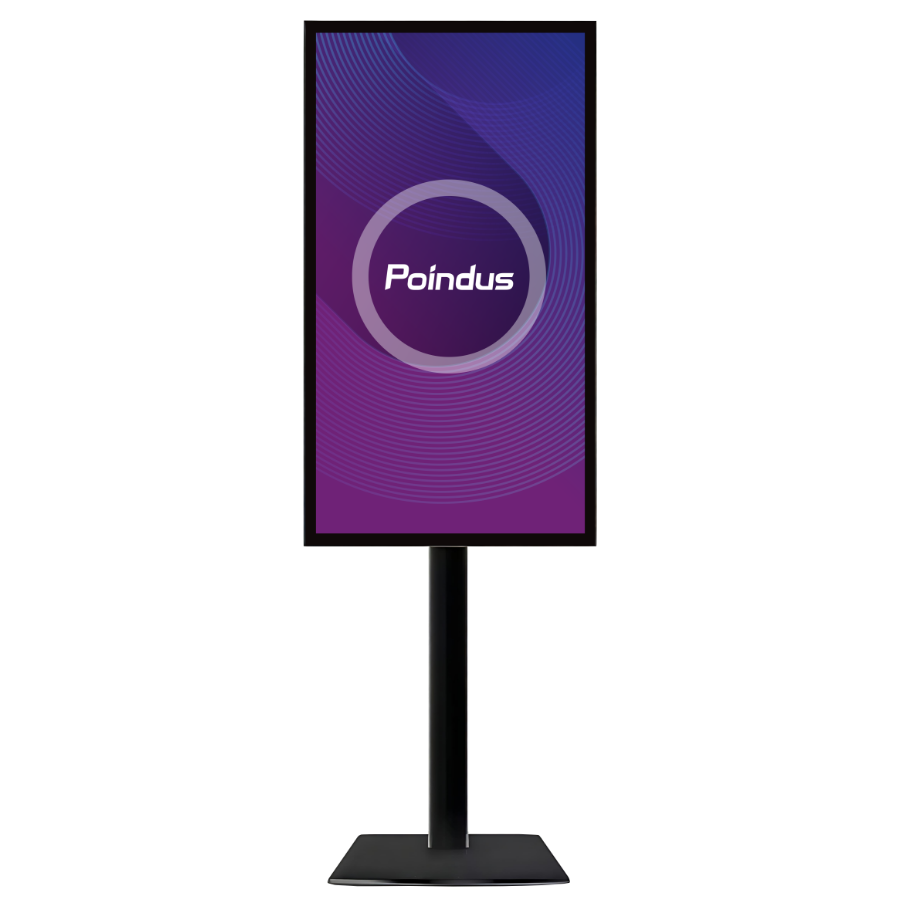

Versatile Mounting Solutions
The Greatest Flexibility for In-Store Layout
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario.
Our versatile mounting options deliver a modern attractive environment for any business.
Kitchen Bump Bar
Peripherals for Demanding Kitchens
Our bump bar solution can be used in conjunction with our Panel PC series for Kitchen Display Systems (KDS).
The K9100 Bump Bar is designed for durability and can be customizable to match specific kitchens, further enhancing the effectiveness and speed of order management in a busy kitchen environment.
Colorful I/O Cover Option
8 colorful IO covers to suit any business environments.
(for 15” only)
Photo Gallery
Specification
PPC-320
PPC-320
| System Information | PE24 PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 32″ Full HD Display, resolution 1920×1080 – 300 cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | – PE24: 1 x M.2 PCIe SSD – PE26: 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based) |
| Expansion | – 1 x M.2 E Key (for WiFi/BT project based) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 |
| Audio | – 2 x 2W speaker |
| Power Requirement | – Input: 100 – 240Vac/ 50 – 60Hz – Output: DC+19V, 90W AC to DC Adapter |
| Mechanical & Construction | – Front panel IP65 – System fan: Fanless operation – Weight (NW/GW): 8.2 Kgs / 10 Kgs – Dimension (WxHxD): 749.5 x 451.9 x 64.56mm – Mounting: Wall / Pole / VESA 100×100 & 200×100 – Construction: Aluminum frame with sheet metal chassis |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | – CE/FCC/LVD |
| OS Support | – Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
