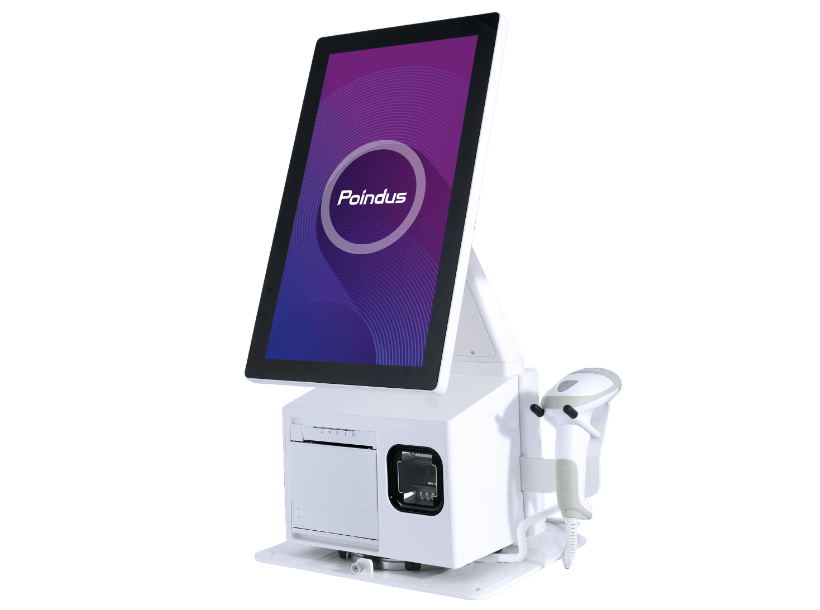

VariKIOSK 217
Dual Functionality.
Single Compact Design.
Features
- Support Intel® 12th Generation Core i3 & i5 CPU.
- True flat 17.3″ 9:16 LCD, 300 nits brightness with front screen IP54.
- Rotatable Display (Horizontal or Vertical) (optional)
- Turntable Base to allow cahier or customer facing interactions (Optional)
- Swivelable Payment Terminal Brackets simple payment integration (Optional)
- Design flexibility of front bay to accommodate various printers and scanners
- Multiple Rear Display Options (optional)
- Integrated AI Camera (optional)
- RAID 0/1 function with dual SSD/HDD support (optional).
- Durable die-cast aluminum chassis; built to last.
- TSE Adapter for EPOS – European Fiscalization Ready (Optional)
(KassenSichV, RKSV, NF525, Codul Fiscal, eKasa).
Product Highlights
17.3"
Full HD
Screen
IP54
Resistance.
Multifunction

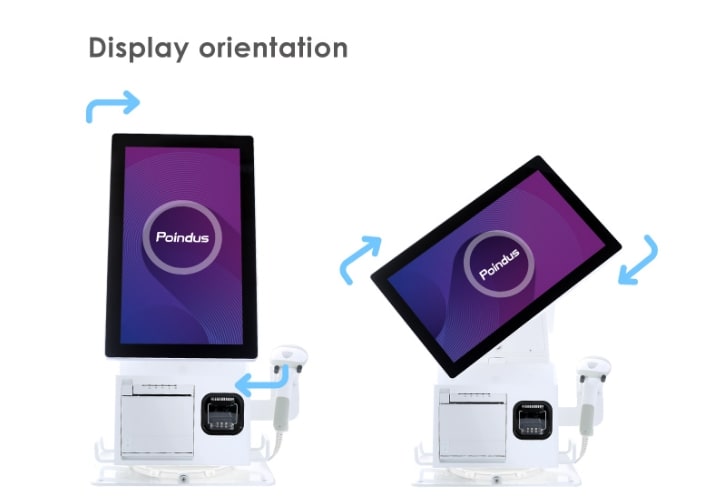

Display orientation
Rotatable base
Tough Design
with Aluminum
Chassis
Strong
Performance
Customizable
Front Bay
Optional Al
Camera
Payment
Terminals
Mounting
Support

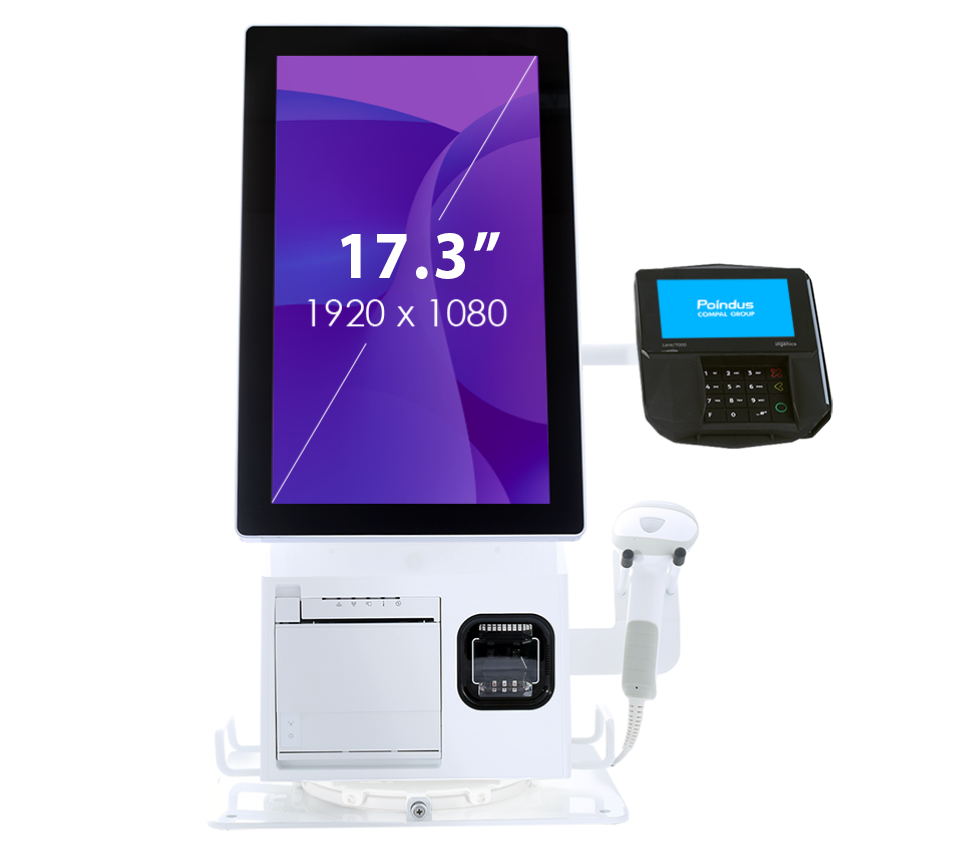

Where Sharp Visuals Meet Smooth Interaction
- 17.3″ 16:9 Full HD display for stunning clarity.
- Bright 300 nits LED backlight.
- True Flat Projected Capacitive Technology

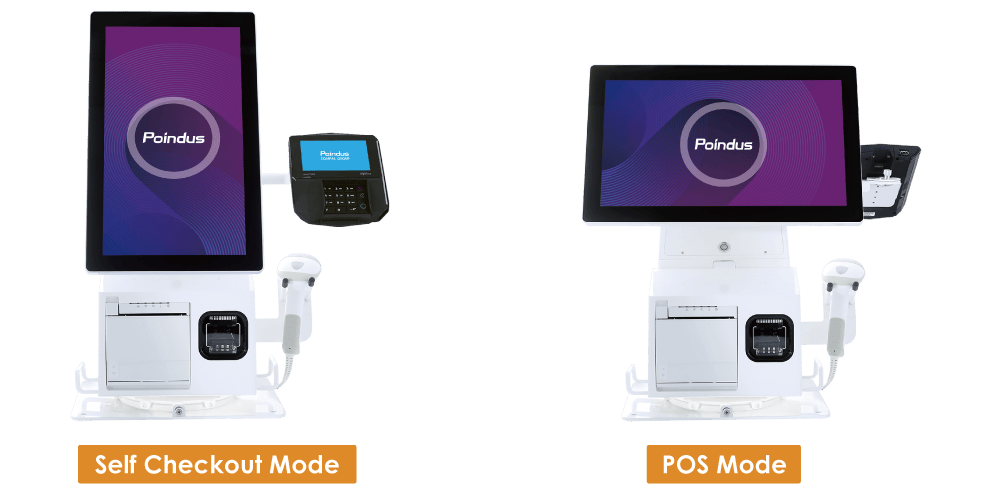

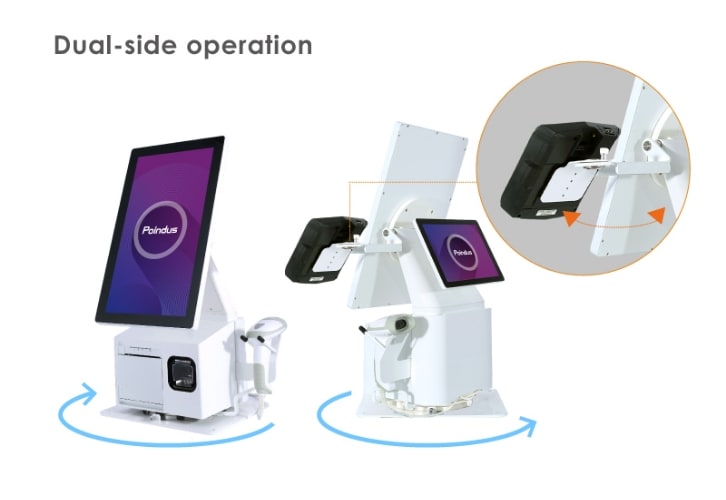

Multifunctional Kiosk
POS Mode & Self Checkout Mode
VariKIOSK 217R offers true multifunctionality by supporting both POS and Self-Checkout kiosk use in a single compact unit, featuringan optional turntable base that allows the entire unit to rotate, facing the operator during assisted transactions or turning toward the customer for self-service. The main display can be rotated between horizontal (landscape) orientation for POS mode and vertical (portrait) orientation for kiosk mode, adapting easily to different usage scenarios. The payment terminal bracket is also rotatable, enabling the device to be positioned correctly for either operator or customer interaction.

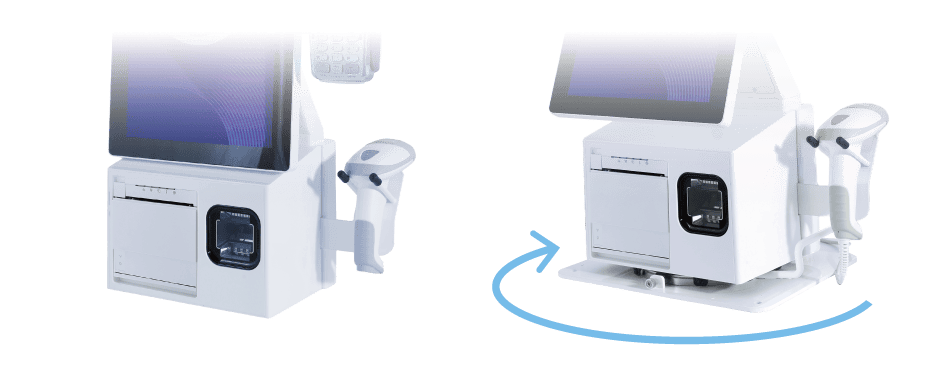

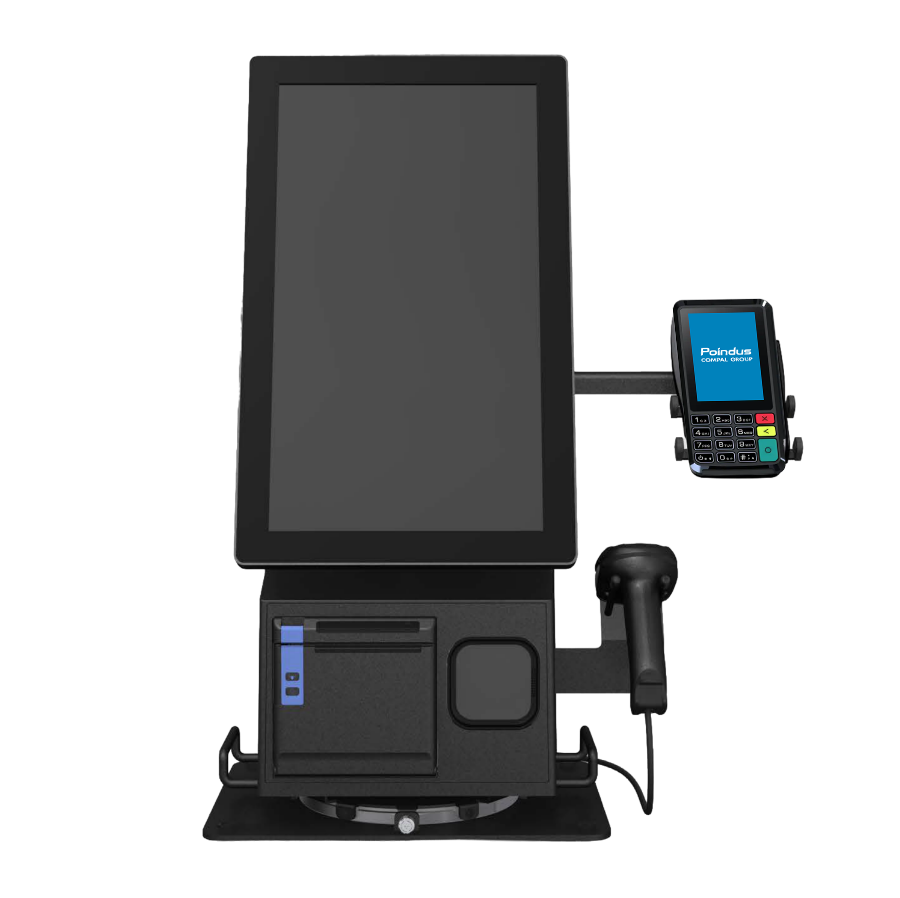

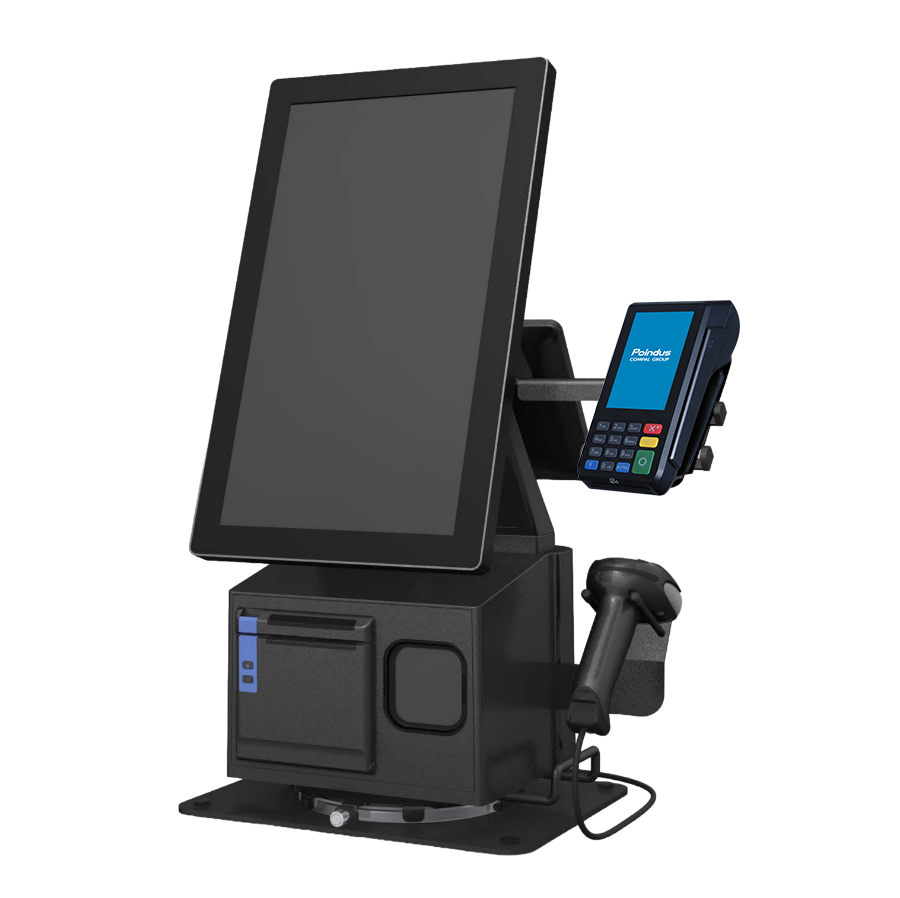

VariKIOSK 217 Variants.
variKIOSK is available in two configurations, rotatable & fixed screen.

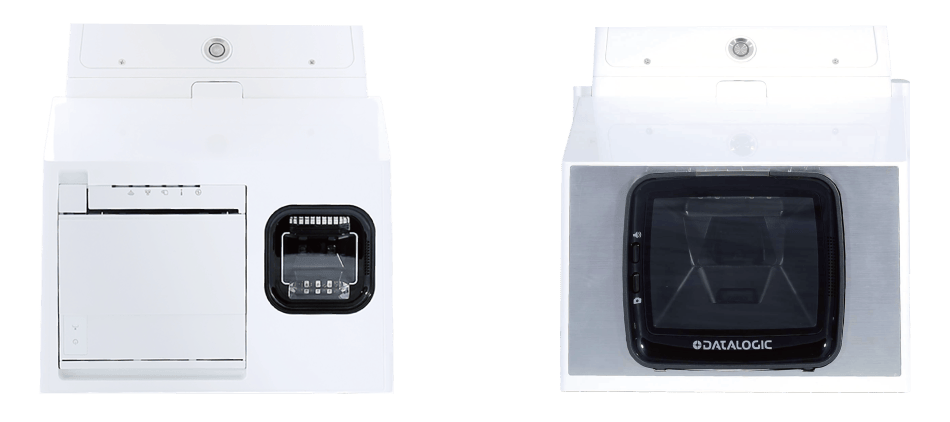

Fully customizable front bay
- Custom cut-outs available on request
- Supports bespoke Printer / Scanner integrations
- Enables complete configuration freedom
Modules Works Together Effortlessly
Hand hold
scanner
Payment terminals
mounting support
scanner
Payment terminals
mounting support
POS Bracket
Installation
Installation

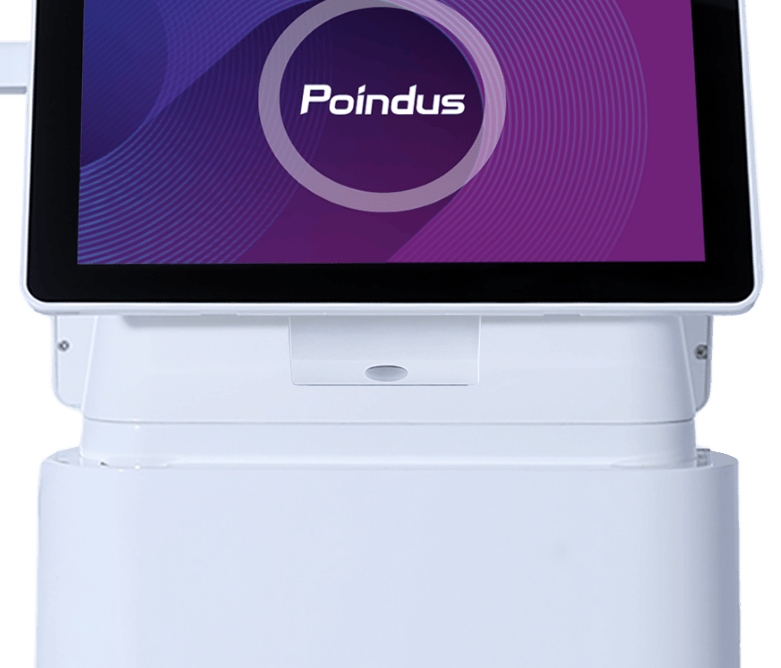

AI Camera
Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3 and i5 CPU.
Seamless Integration
With Windows 11, integration is seamless into existing infrastructure.

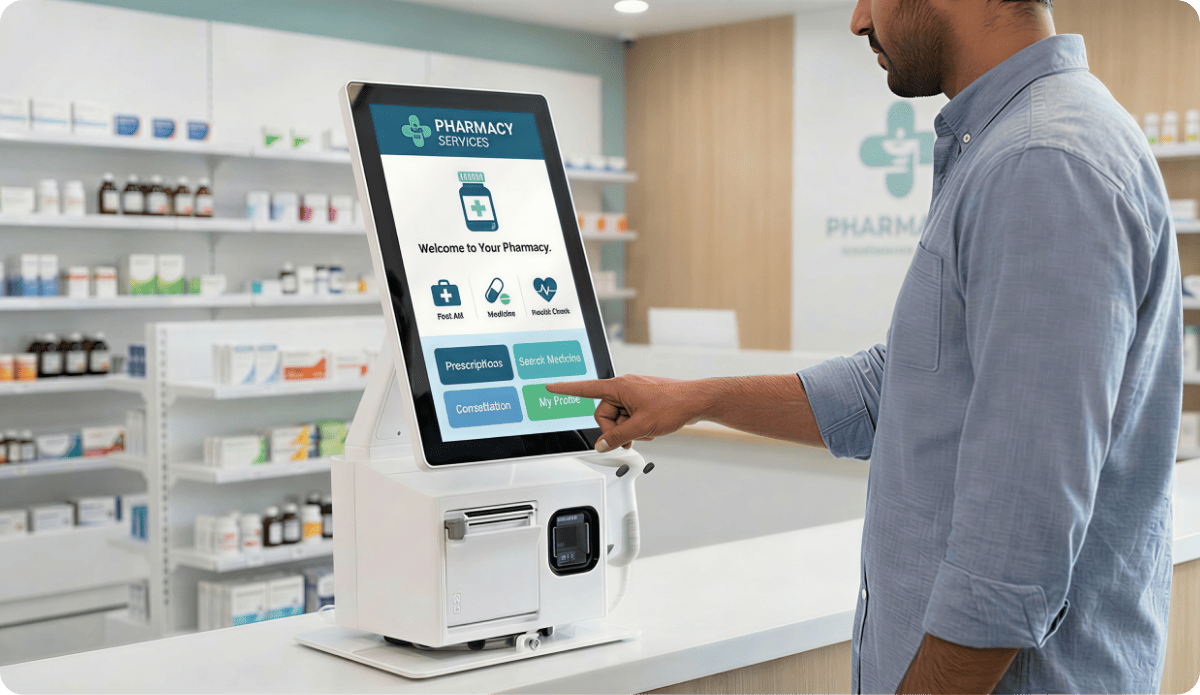

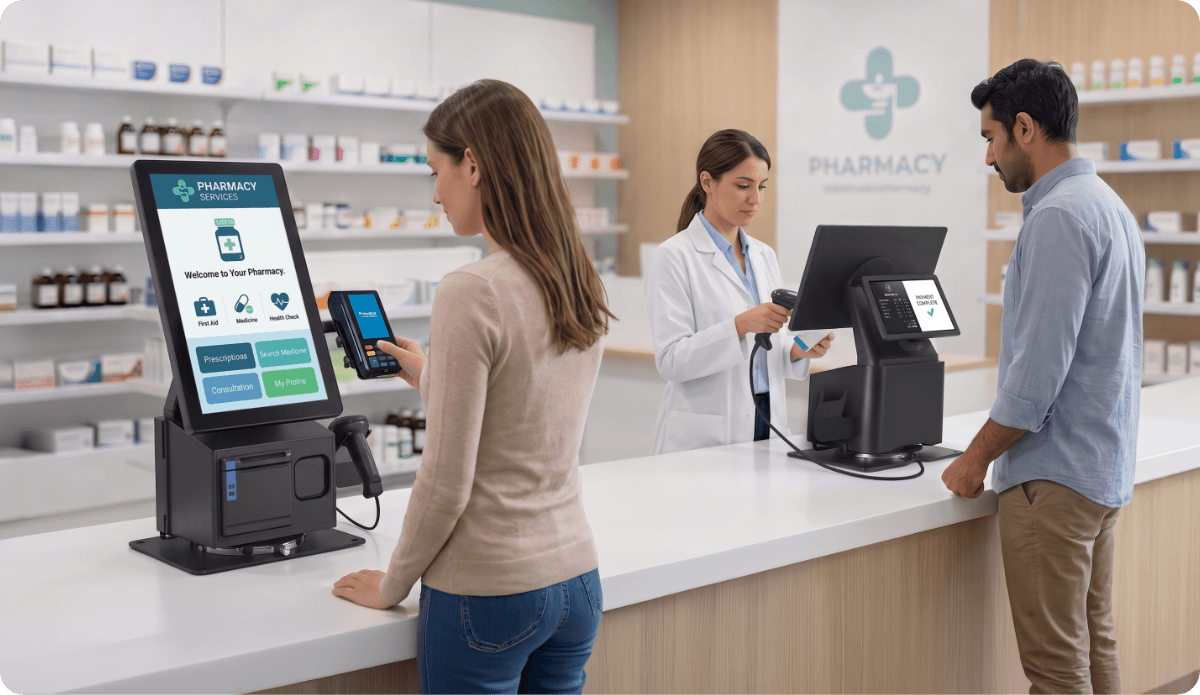

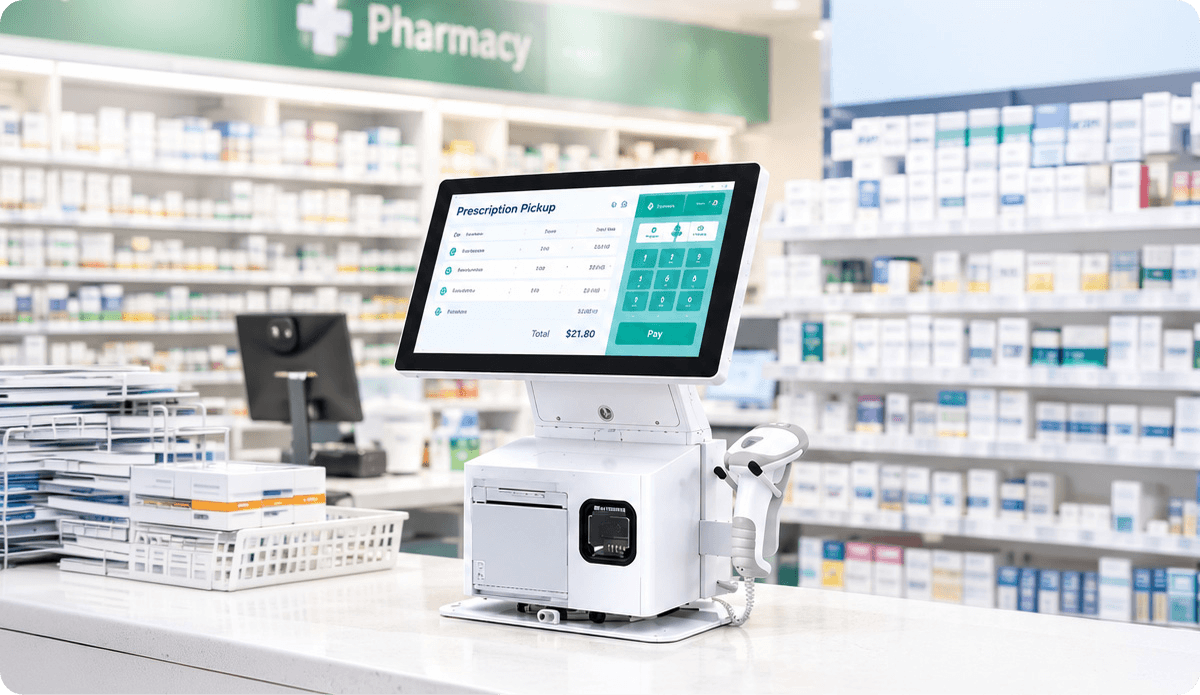

Application scenarios
Optimized for Modern Retail and Hospitality
Flexible Desktop Kiosks for Seamless Store Integration
A complete solution for faster service, reduced queues, and improved engagement.
Our kiosk solutions are designed for the rigors of retail and hospitality scenarios, serving as compact, efficient solutions for enhancing customer experience and streamlining store operations. These interactive devices can facilitate self-service checkouts, or as queue busting backup checkout terminals, provide product information, and assist in wayfinding within the store. With their ability to operate independently, desktop kiosks can effectively reduce wait times and free up staff to focus on more complex customer service tasks.
An complete solution for enhanced customer service.
OPTIONS
Available in Black or White to fit the scenario aesthetic.
The chassis is a solid Die-Cast Aluminum with heavy duty plastic I/O & Peripheral covers.
Weighing in at only 12KG, this Desktop Kiosk fits seamlessly into any scenario
Optional Accessories for More
Efficient Operations

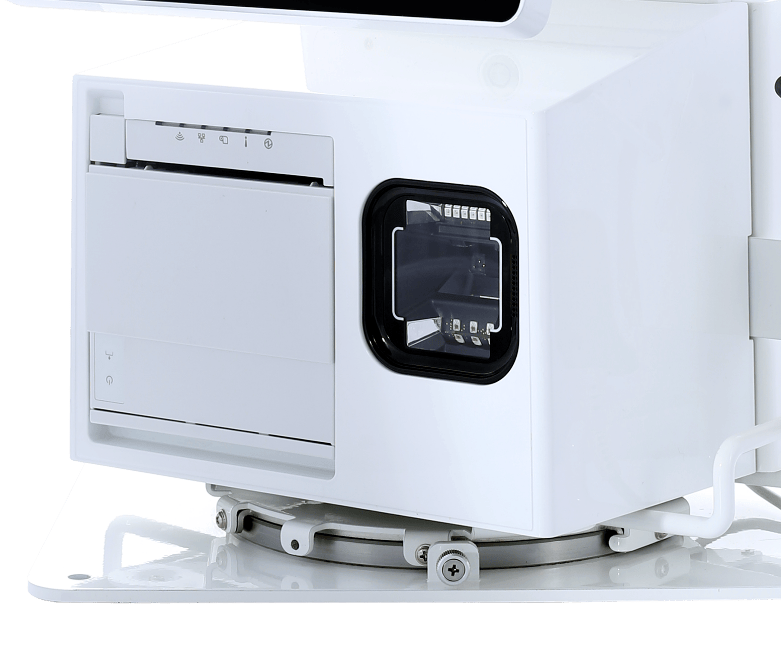

Turntable Base

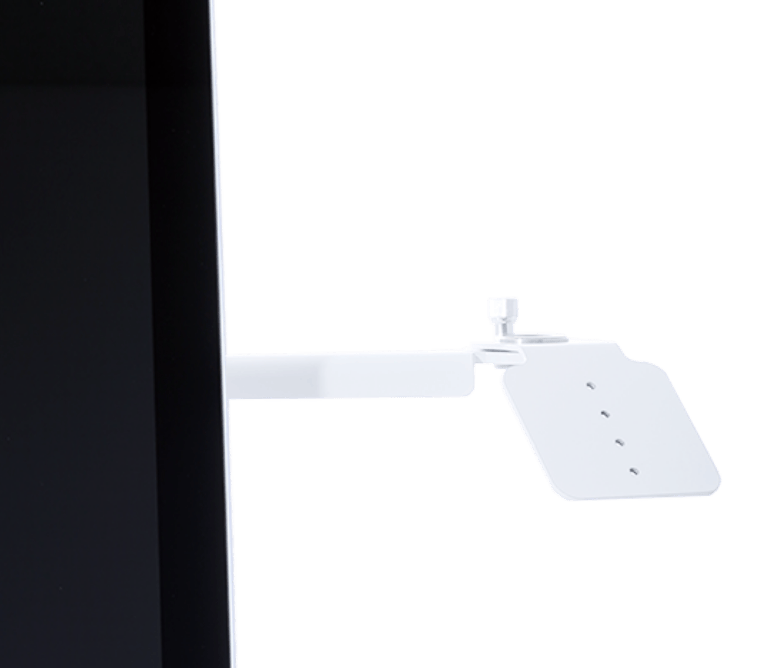

Swivelable Payment Terminal Brackets

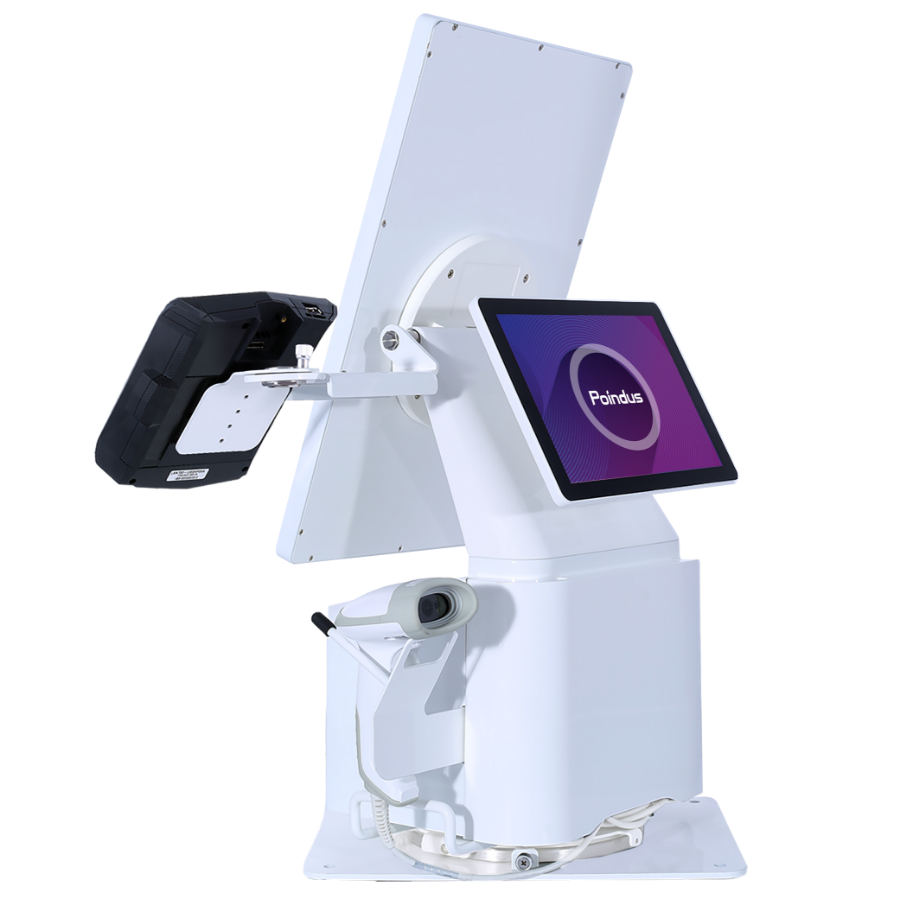

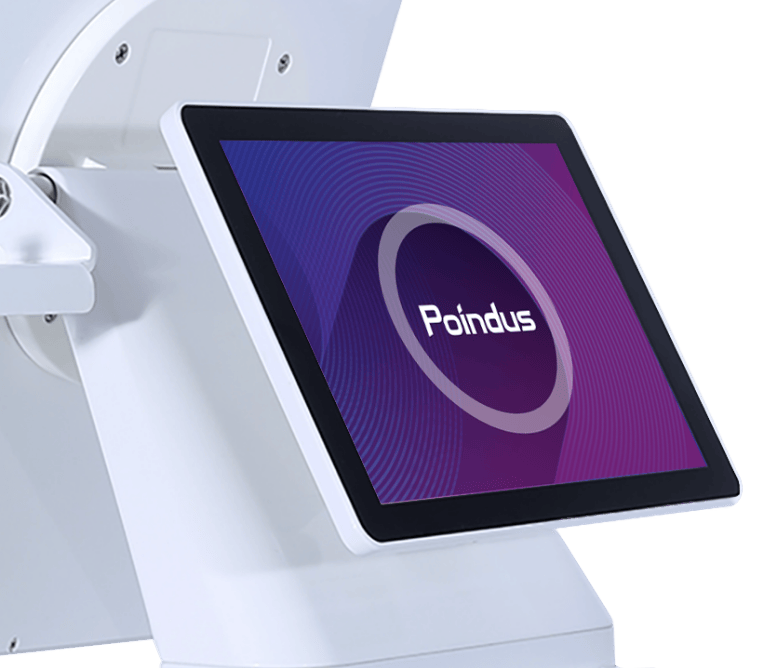

Multiple Rear Display Options
AI Camera
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Certified Fiscal Solutions for Secure POS Compliance
Technical Security Element (TSE)
- Deutschland (KassenSichV)
- Österreich (RKSV)
- France (NF525)
- România (Codul Fiscal)
- Slovensko (eKasa)

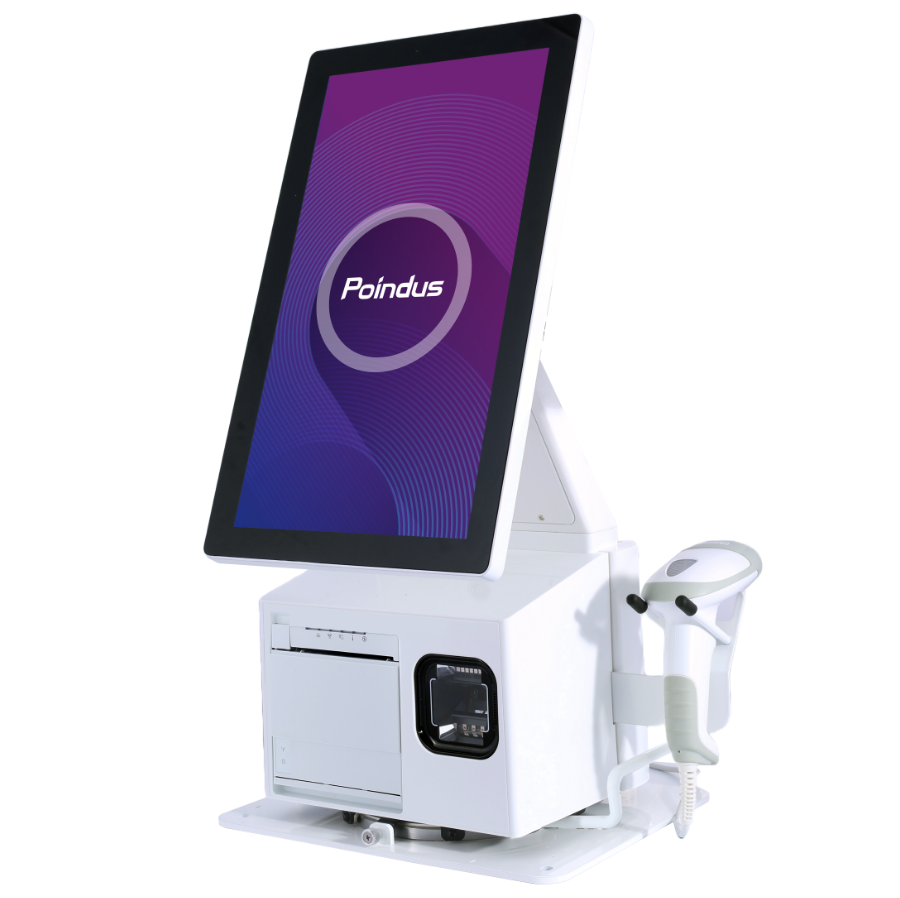

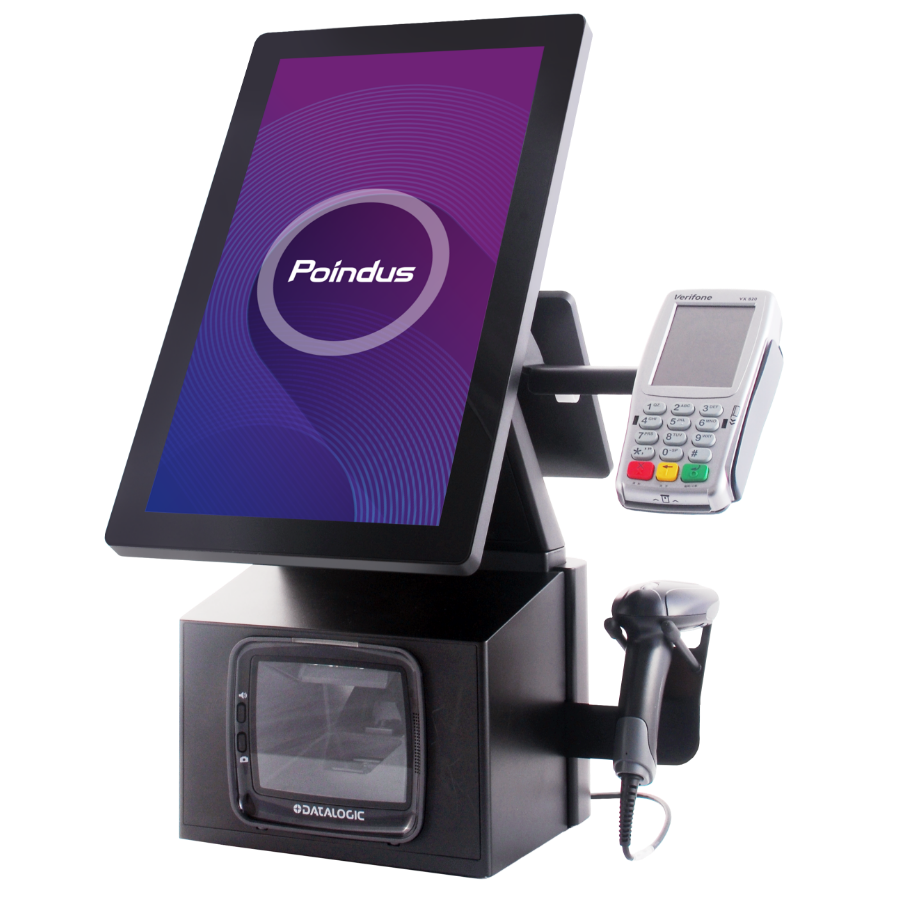

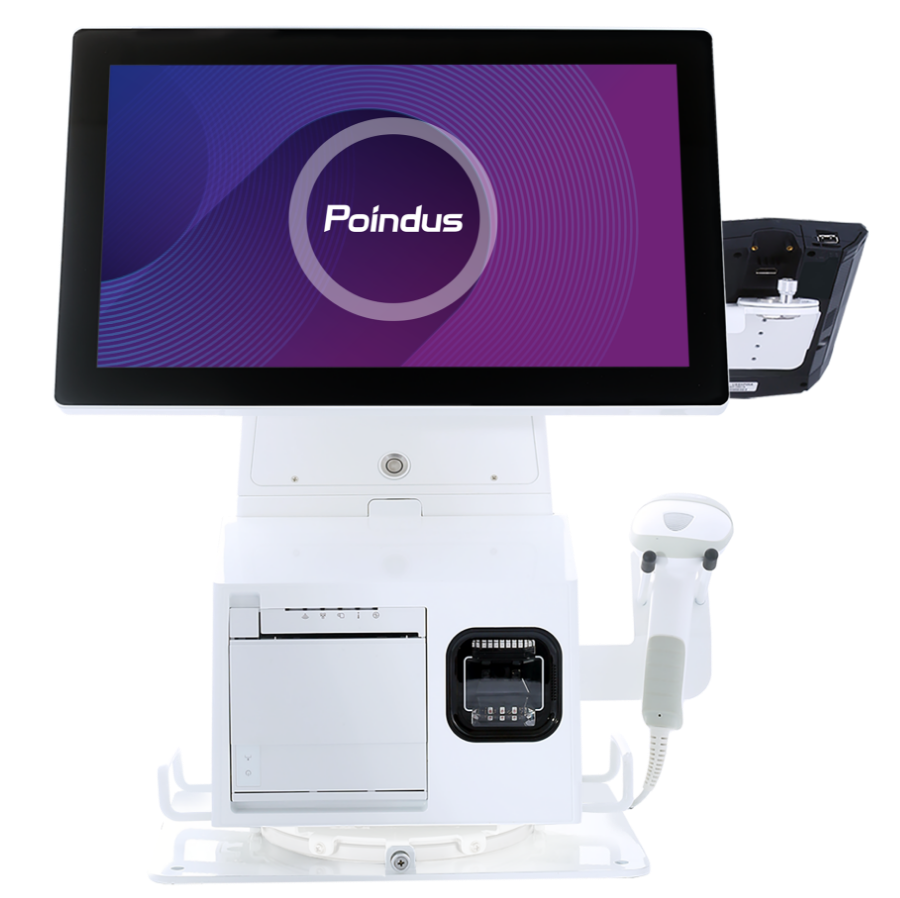

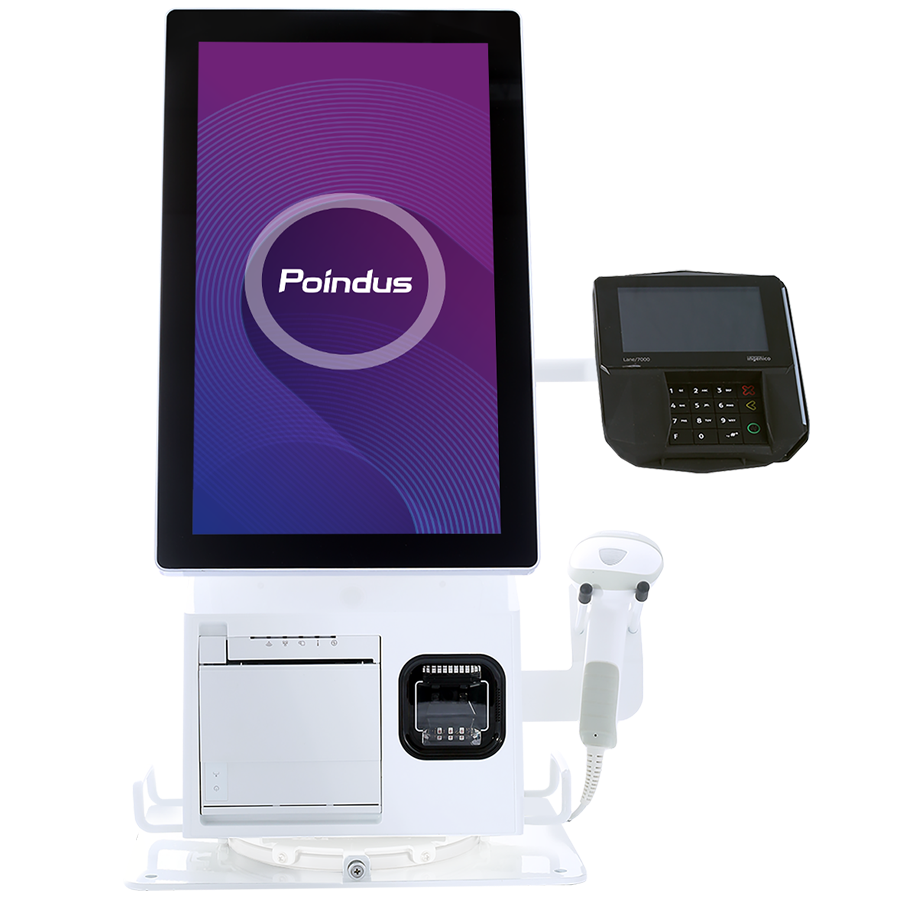

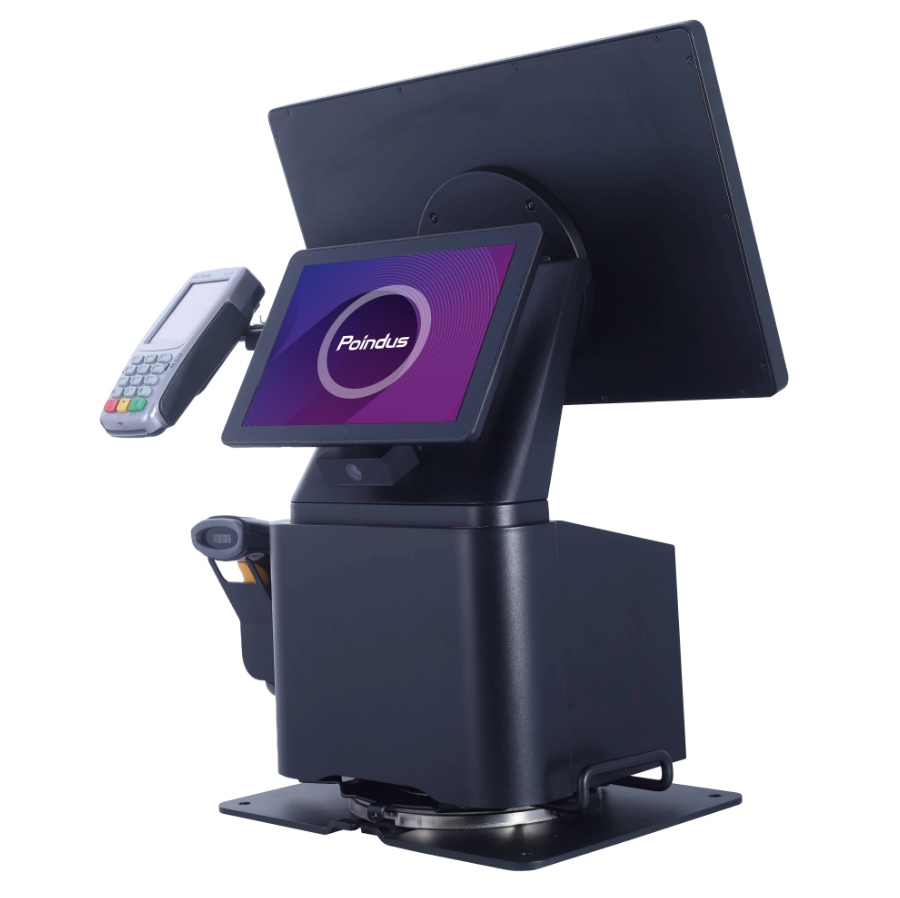

Photo Gallery
Specification
VariKIOSK 217
VariKIOSK 217
| System Information | PE24 Intel® Elkhart Lake Celeron PE26 Intel® Alder Lake-P, U-Platform – Core i5 up to 4.4 GHz – Core i3 up to 4.4GHz System Memory – PE24: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB – PE26: 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB Intel® AMT – i5 CPU TPM – Intel® F/W TPM 2.0 |
|---|---|
| Display & Touch | – 17.3″ 16:9 Full HD Display, resolution 1920×1080 – 300cd/m², LED backlight – 10-point PCAP multi-touch screen – Rotatable screen (Landscape or Portrait display, Optional) |
| Storage | – 1 x M.2 PCIe SSD or 1 x 2.5″ SATA III SSD (PE24) – 1 x M.2 PCIe SSD or Optional 2 x 2.5″ SATA III SSD for RAID 0/1 (PE26) |
| Expansion | 1 x M.2 E Key |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 3 x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default setting is 0V. COM3: DB-9) – 1 x DB-15 w/DC +12V. Power enables by BIOS setting (default is Disable) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN – 2 x DC12V Powered USB + 1 x DC 24V Powered USB (Project based) |
| Audio | 2 x 2W speaker |
| Power Requirement | – Input: 100~240Vac / 50~60Hz – Output: DC+19V, 65W AC to DC Adapter (PE24) – Output: DC+19V, 90W AC to DC Adapter (PE26) * PUSB will use 180W adaptor |
| Mechanical & Construction | – Front panel IP54 – Default color: White, Black – System fan: with CPU fan – Weight (NW/GW, without any peripherals): 16 Kgs / 20 Kgs – Dimension (WxHxDmm, with turntable base): 437 x 566.2 x 258.2 mm (Landscape mode) – Dimension (WxHxDmm, with turntable base): 330 x 646.9 x 258.2 mm (Portrait mode) – Construction: Die-casting aluminum with plastic covers |
| Environmental | – Operating temperature: 0°C~40°C, 10%~90% Relative Humidity, Non-condensing – Storage Temperature: -20°C~60°C, 10%~90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| OS Support | Windows 10 / 11 (64 bit), Linux (Ubuntu 22.04) |
| Optional Accessories | – Handheld scanner – Newland NLS-HR3280 – 2D scanner – Datalogic Magellan 1500i – Omnidirectional scanner – Datalogic Magellan M3450 – Printer – Epson TM-M30 III – 10.1″ 16:10 2nd display, resolution 1280×800 – PinPad Bracket for Verifone VX820 – Customizable front base panel for different printer/scanner or peripherals (Project based) – Turntable Base (Option) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
