Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3 and i5 CPU.
VariPOS 250 / 270
Simplify Operation, Level up Business
Features
- Full range of CPUs from Celeron to Intel 12th Gen. Core i3 / i5.
- True flat 15” 4:3 / 17″ 5:4 LCD ( LED backlight ), 400 nits with IP66.
- RAID 0/1 function with dual SSD / HDD support. ( PE26 Option )
- Patented swivel arm with flexible height / tilt adjustment for 2nd display and dual ( left / Right ) base mounting points.
- Dual Base Mounting Points for connecting 2nd Display, LCM or mPOS.
- Supports 2x12v, 1x24v Powered USB. ( Option )
- Ultra slim front panel Durable die-cast aluminum chassis; built to last.
- Redefines serviceability from design with easy access & quick swap modular design for SSD / HDD & MB box.
- Peripherals compatibility across the whole VariPOS 2 Series: LCM, 10.1” 2nd display with patented double hinge, MSR, iButton, Fingerprint, RFID, PinPad Bracket.
- TSE Adapter for EPOS – European Fiscalization Ready ( Optional )
( KassenSichV, RKSV, NF525, Codul Fiscal, eKasa ).
Product Highlights
Dual Expansion Capability
with filxible adjustment
SoftPOS payment support
15″ / 17"
Display
IP66
Front panel
protection
Dual HDD Support
Quick Service Design
Bright, Precise, Impactful.
15" 4:3
17" 16:9
17" 16:9
Sleek display
Unmatched Clarity
350
nits
nits
brightness for optimal visibility
IP66
Proof
Proof
Front panel ingress protection
10-point
PCAP
PCAP
Responsive multi-touch screen
Slim. Sleek. Stunning.
4.8mm ultra-slim bezel design
Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3, i5 and i7 CPU.
One System, Dual Expansion Capability
- Dual base mounting points enable two peripherals on one terminal.
- Patented swivel arm supports flexible height and tilt adjustment.
- Supports flexible 2nd display, LCM, or mPOS combinations.
- Maximizes functionality with a minimal footprint
Dual HDD Support
for RAID Redundancy
- Real-time disk mirroring for data protection.
- Improved performance and redundancy for high fault tolerance.
- Built for uptime and operational continuity.
( *PE26 option )
Powered USB Connection
POS-ready connectivity with Powered USB support
( *Project Based )
Easy Service, Less Downtime
Modular quick-swap components
enable faster maintenance, higher system uptime, and an extended product lifespan
enable faster maintenance, higher system uptime, and an extended product lifespan
Easy access to motherboard and storage simplifies routine maintenance
Tool-less display removal with thumb-screw design for rapid swap
Easy Integration
Windows 10 ( 64 bit ) | 11 ( 64 bit ) | Linux ( e.g. Ubuntu 22.04 )
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Adaptive Viewing design
Height/tilt-adjustable swivel arm on dual mounting points
for greater environment compatibility

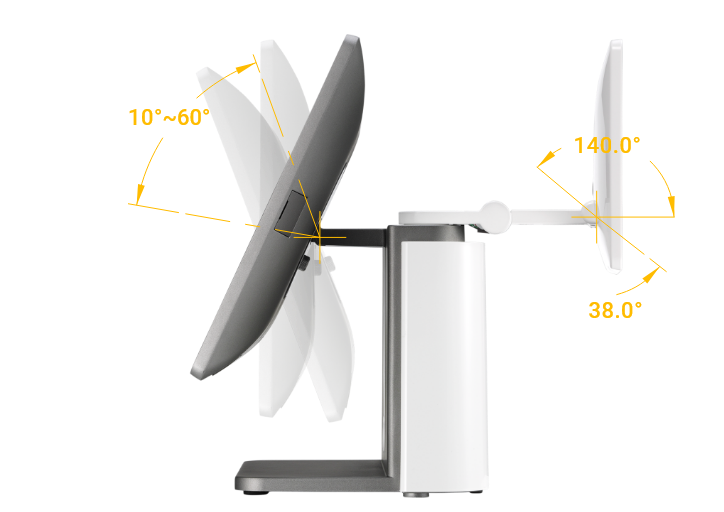

Main Display Adjustment for
Improved Usability
for Improved Usability

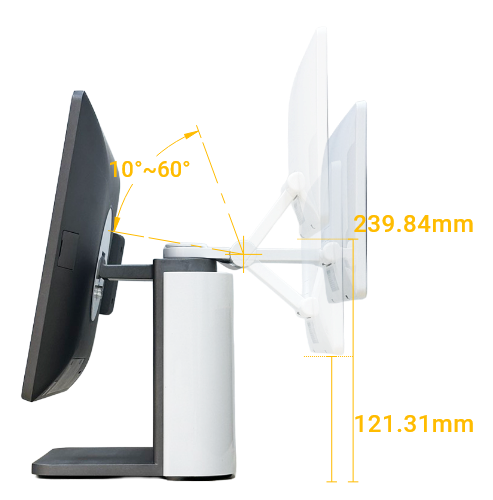

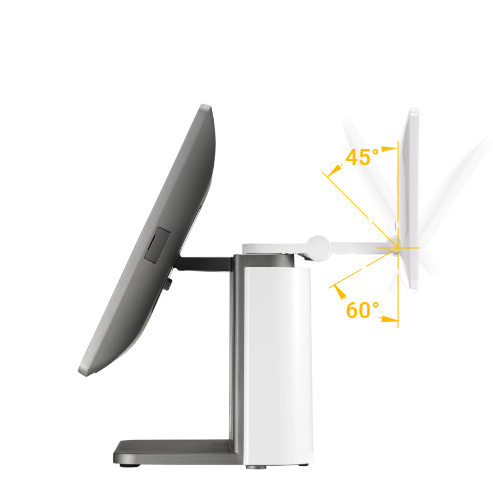

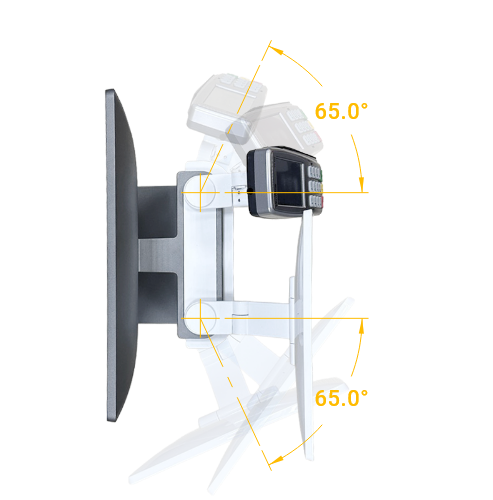

Versatile 2nd Display Adjustment to enhance customer interaction
and engagement
and engagement
Triple-hinge 10.1” 2nd display for versatile angle adjustment.
*Shown with the secondary display of M135
SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Certified Fiscal Solutions for Secure POS Compliance
Technical Security Element ( TSE )
- Deutschland ( KassenSichV )
- Österreich ( RKSV )
- France ( NF525 )
- România ( Codul Fiscal )
- Slovensko ( eKasa )
Application scenarios
Optimized for Modern Retail and Hospitality
iF DESIGN Award Winner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
Photo Gallery
Specification
VariPOS 250/270
VariPOS 250/270
| System Information | PE24 PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 15″ 4:3 LCD, resolution 1024 x 768 ( VariPOS 250 ) – 17″ 5:4 LCD, resolution 1280 x 1024 ( VariPOS 270 ) – 400cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | – 1 x M.2 PCIe SSD or 1 x 2.5″ SATA III SSD ( PE24 ) – 1 x M.2 PCIe SSD or Optional 2 x 2.5″ SATA III SSD for RAID 0/1 ( PE26 ) |
| Expansion | – 1 x M.2 E Key |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 3 x COM ( COM1/2 : RJ48 support DC+0 / 5 / 12V by BIOS setting, default setting is 0V. COM3 : DB-9 ) – 1 x DB-15 w/DC +12V. Power enables by BIOS setting ( default is Disable ) – 1 x Type C ( DP + PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC + 12V or 24V ( default ) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN – 2x DC12V Powered USB + 1x DC 24V Powered USB ( Project based ) |
| Audio | – 2 x 2W speaker |
| Power Requirement | – Input : 100~240Vac / 50~60Hz – Output : DC + 19V, 65W AC to DC Adapter ( PE24 ) – Output : DC + 19V, 90W AC to DC Adapter ( PE26 ) *PUSB will use 180W adaptor |
| Mechanical & Construction | – Front panel IP66 – Default color : Space Gray / Black, Space Gray / White – System fan : with CPU fan – Weight ( NW / GW ) : 5.0 Kgs / 7.0 Kgs ( VariPOS 250 ) – Weight ( NW / GW ) : 8.1 Kgs / 10.4 Kgs ( VariPOS 270 ) – Dimension ( W x H x D ) : 365.89 x 354.48 x 196.55mm ( VariPOS 250 ) – Dimension ( W x H x D ) : 396.93 x 381.85 x 203.06mm ( VariPOS 270 ) – Construction : Die-casting aluminum with plastic covers |
| Environmental | – Operating temperature : 0°C~40°C, 10%~90% Relative Humidity, Non-condensing – Storage Temperature : -20°C~60°C, 10%~90% Relative Humidity, Non-condensing |
| Certification | – CE / FCC / LVD |
| OS Support | – Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
| Optional Accessories | – 3-Track MSR, USB type |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
