Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3 and i5 CPU.

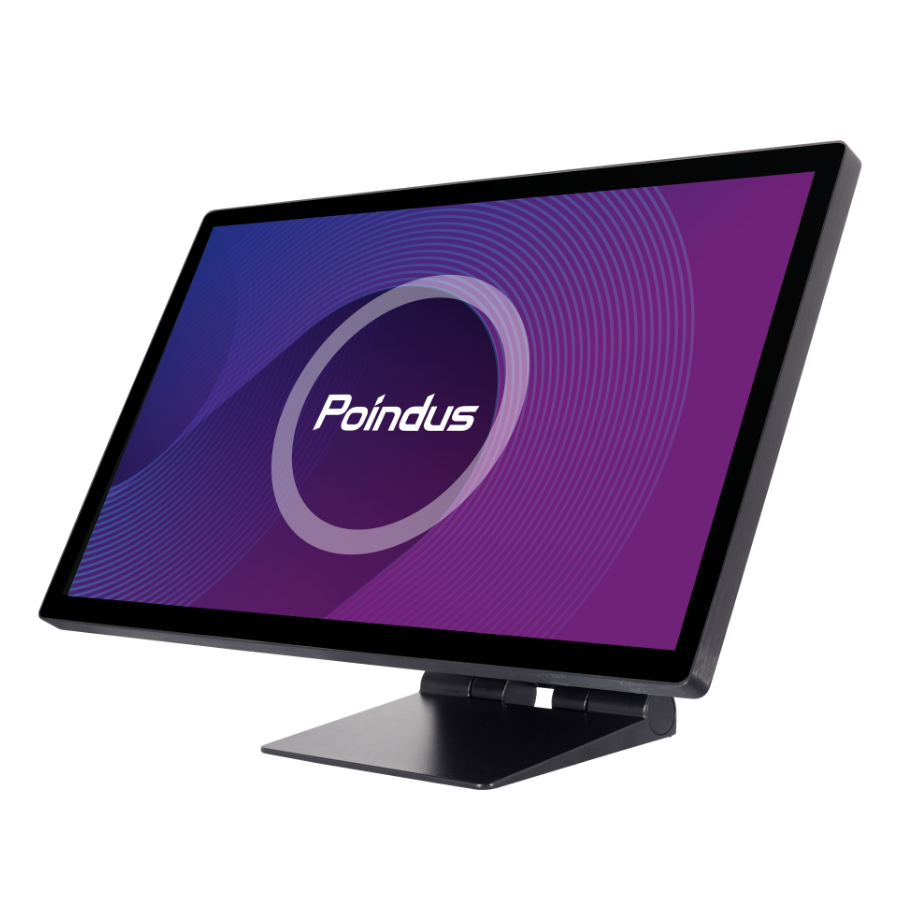

PPC-238
One Panel,
Endless Possibilities
Features
- Onboard Intel® Elkhart Lake Celeron, Alder Lake-P, U-series i3 & i5 CPU.
- 10 points PCAP multi-touch support.
Intel F/W TPM 2.0. - Front panel IP65 ingress protection.
- Fanless system for silent, reliable operation.
- VESA Compliance for flexible installation.
- WiFi/BT module. (Project based)
- Extension Module design. (Project based)
Product Highlights
23.8" Full HD Display
1920x1080
Front IP65
Ingress Protection
Strong Performance
Advanced Heatsink
Maximize Performance
VESA-compliant
for Versatile Mounting

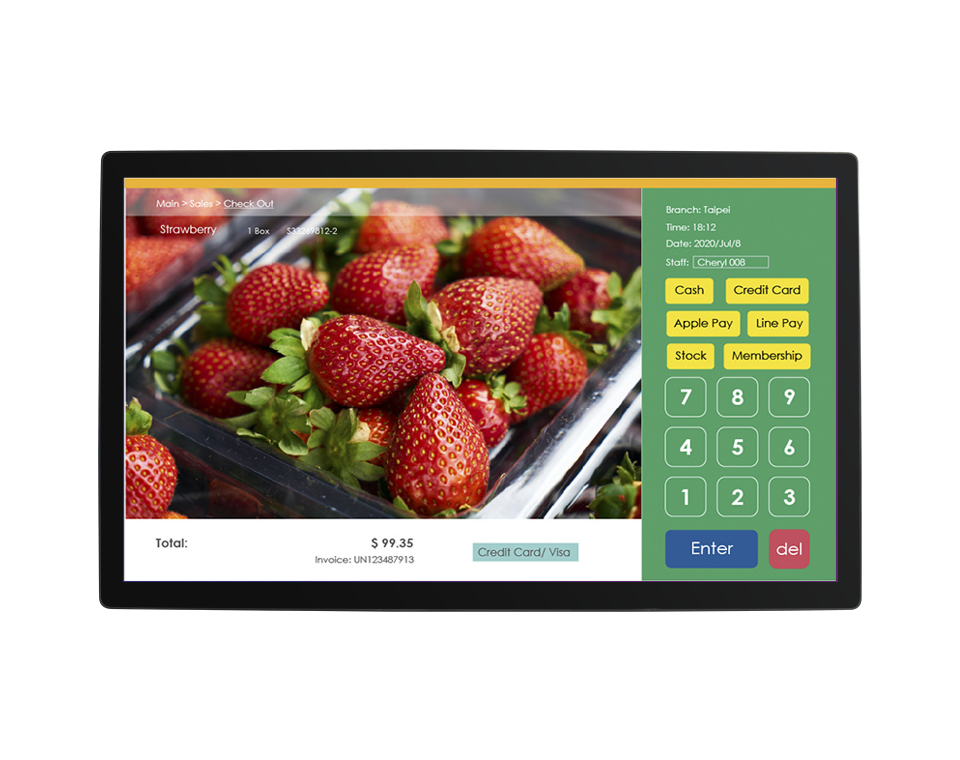

Versatile Panel PC Solution
The PPC-238 is an efficient and cost effective panel PC solution designed for retail & hospitality applications.
Display Flexibility
Meet Any Project Requirement
The PPC series is designed to meet a wide range of project requirements with standard display sizes:
21.5″ (16:9), 23.8″ (16:9) and 32″ (16:9)
Beyond these options, we also offer custom display sizes on demand, ensuring that your unique specifications and project needs are fully supported.
Advanced Heatsink Maximize Performance
with Intel® Core i7
Meet your project performance requirements
Our Panel PCs with Intel® Core™ i7 processors deliver strong performance and reliability to handle demanding project tasks.
They support multitasking, fast data processing, and flexible connectivity, making them a solid choice for industrial and commercial applications.
Easy Integration
Windows 10 (64 bit) | 11 (64 bit) | Linux (e.g. Ubuntu 22.04)

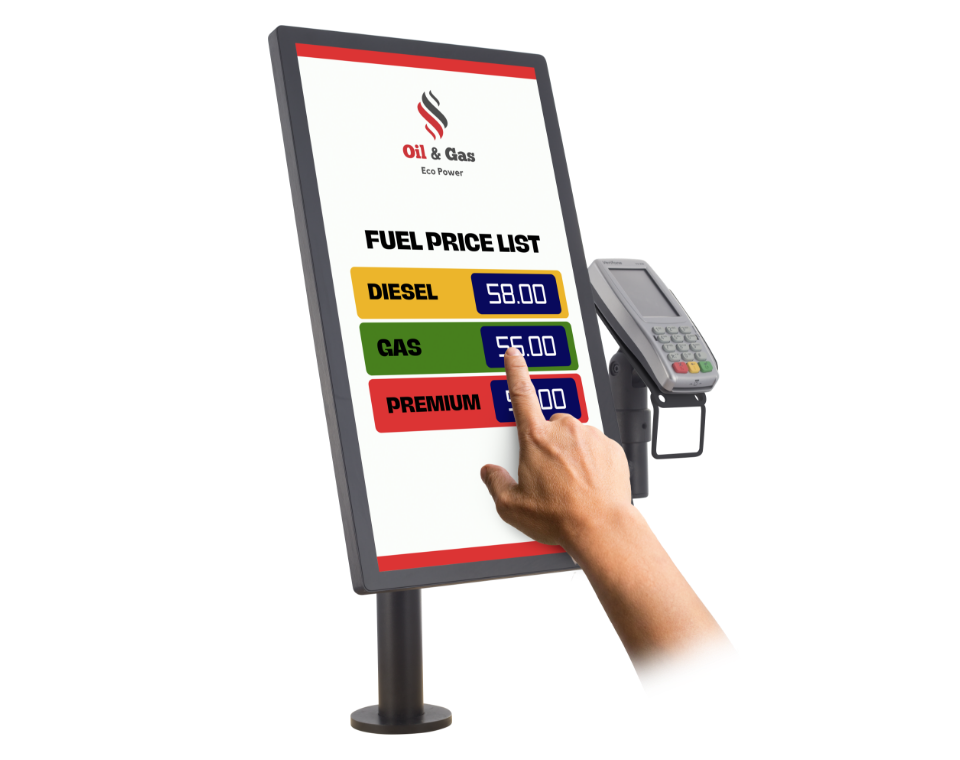

Designed for Precise, Confident Touch
Responsive 10 points PCAP multi-touch built for accuracy and reliability.
WiFi/BT Connectivity
The PPC-238 offers reliable wireless connectivity options with external antennas for stable signal performance in business use.
A dedicated M.2 A/E Key slot enables project-based integration of Wi-Fi and Bluetooth modules, providing flexible and expandable connectivity options.

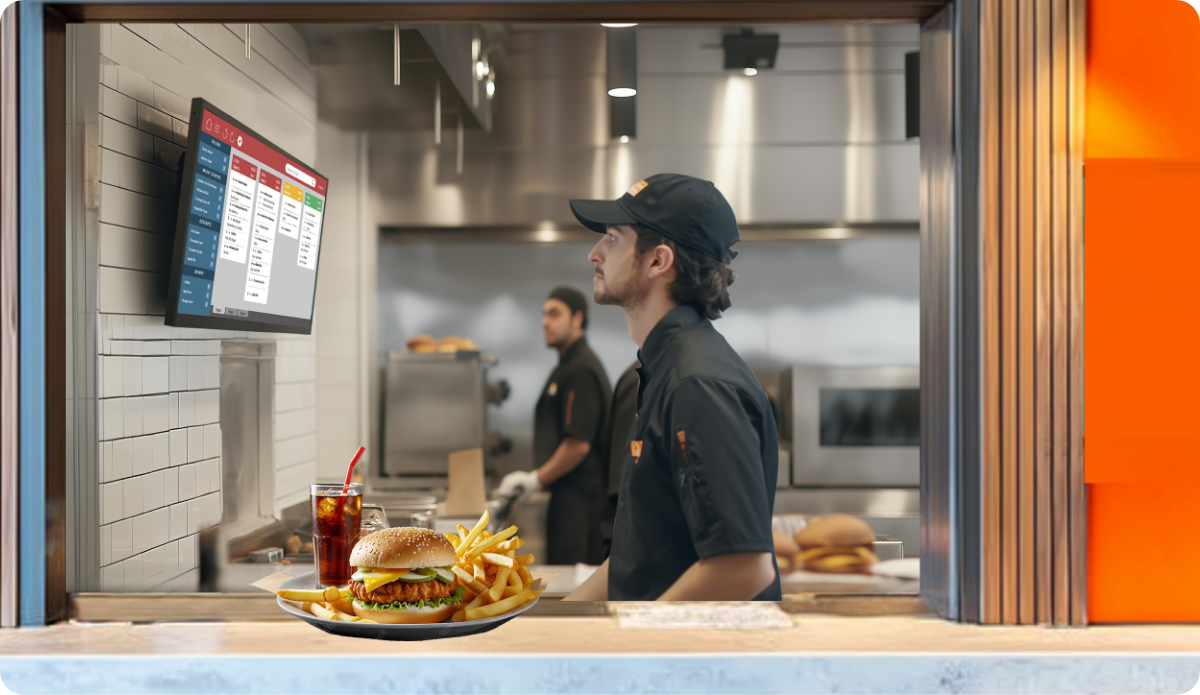

Application scenarios
Optimized for Modern Retail and Hospitality

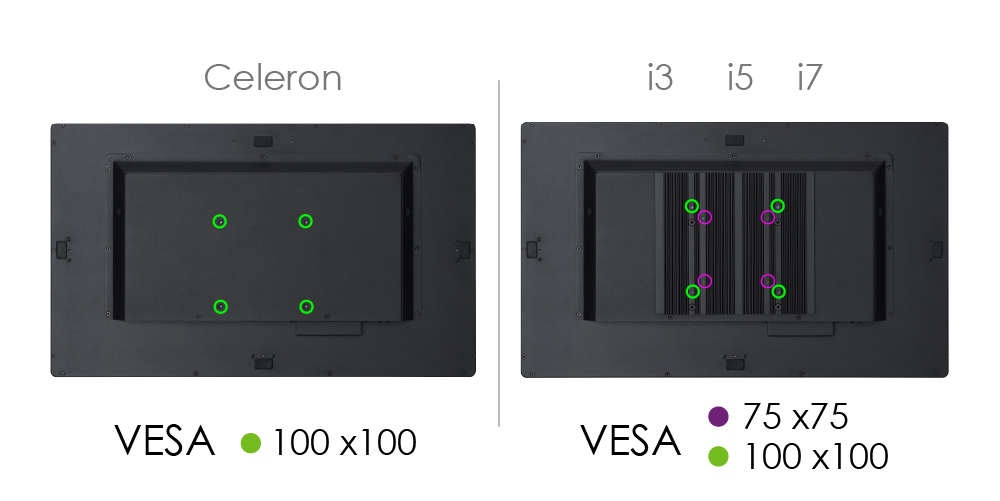

Versatile Mounting Solutions
The Greatest Flexibility for In-Store Layout
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario.
Our versatile mounting options deliver a modern attractive environment for any business.
Colorful I/O Cover Option
8 colorful IO covers to suit any business environments.
(for 15” only)
Photo Gallery
Specification
PPC-238
PPC-238
| System Information | PE24 PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ Full HD Display, resolution 1920×1080 – 250cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | – PE24: 1 x M.2 PCIe SSD – PE26: 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based) |
| Expansion | – 1 x M.2 E Key (for WiFi/BT project based) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 |
| Audio | – 2 x 2W speaker |
| Power Requirement | – Input: 100 – 240Vac/ 50 – 60Hz – Output: DC+19V, 90W AC to DC Adapter |
| Mechanical & Construction | – Front panel IP65 – System fan: Fanless operation – Weight (NW/GW): 7 Kgs / 9 Kgs – Dimension (WxHxD): 573.36 x 342.59 x 56.89 mm – Mounting: Wall / Pole / VESA 100×100 – Construction: Aluminum frame with sheet metal chassis |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | – CE/FCC/LVD |
| OS Support | – Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
