Powerful Performance
Support Intel® Alder Lake P Platform Core i3 and i5 CPU.

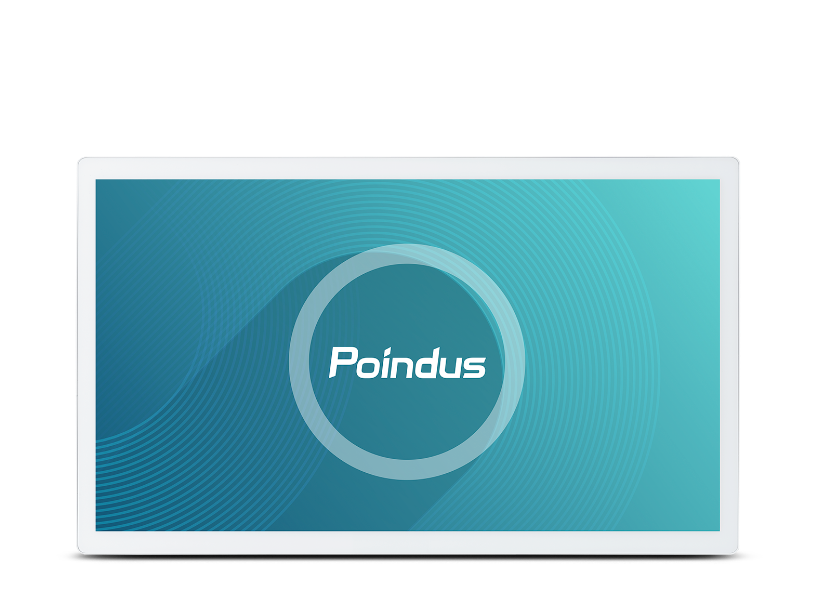

PPC-215 Medical
One Panel,
Endless Possibilities
Features
- Onboard Intel® Elkhart Lake Celeron, Alder Lake-P, U-series i3 & i5 CPU.
- Comply with EN 60601-1 / EN 60601-1-2.
- Intel F/W TPM 2.0.
- 10 points PCAP multi-touch support.
- Front panel IP65 ingress protection.
- Fanless system for silent, reliable operation.
- VESA(100 x 100) Compliance for flexible installation.
- WiFi/BT module. (Project based)
Product Highlights
21.5" Full HD Display
1920x1080
Front IP65
Ingress Protection
Strong Performance
Advanced Heatsink Maximize Performance
VESA-Compliant
(100 x 100)
for Versatile Mounting
Comply with
EN 60601-1 / EN 60601-1-2
Versatile Panel PC Solution
Our Health Information Technology (HIT) hardware solutions enable easy integration into existing healthcare infrastructures.
The PPC-215 Medical delivers reliable performance for accurate data input, transmission, and analysis, providing real-time information to frontline healthcare users and supporting improved quality of care and patient safety.
Display Flexibility
Meet Any Project Requirement
The PPC Medical is designed to meet a wide range of project requirements with standard display sizes:
21.5″ (16:9) and 23.8″ (16:9)
Beyond these options, we also offer custom display sizes on demand, ensuring that your unique specifications and project needs are fully supported.
Maximize Performance
with Intel® Core i5
Our Panel PCs with Intel® Core™ processors deliver strong performance and reliability to handle demanding project tasks.
They support multitasking, fast data processing, and flexible connectivity, making them a solid choice for medical applications.
Easy Integration
Windows 10 (64 bit) | 11 (64 bit) | Linux (e.g. Ubuntu 22.04)
Designed for Precise, Confident Touch
Responsive 10 points PCAP multi-touch built for accuracy and reliability.
WiFi/BT Connectivity
The PPC-215 offers reliable wireless connectivity options with external antennas for stable signal performance in business use.
A dedicated M.2 A/E Key slot enables project-based integration of Wi-Fi and Bluetooth modules, providing flexible and expandable connectivity options.
Application scenarios
Streamline Healthcare
Versatile Mounting Solutions
Flexibile Healthcare Layouts
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options deliver a modern efficient environment for any healthcare scenario.
Colorful I/O Cover Option
8 colorful IO covers to suit any business environments.
(for 15” only)
Photo Gallery
Specification
PPC-215 Medical
PPC-215 Medical
| System Information | PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ Full HD Display, resolution 1920×1080 – 250cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | – 1 x M.2 PCIe SSD or 2 x 2.5″ SSD for RAID 0/1 (Project based) |
| Expansion | – 1 x M.2 E Key (for WiFi/BT project based) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | – 2 x 2W speaker |
| Power Requirement | – Input: 100 ~ 240Vac/ 50 ~ 60Hz – Output: DC+19V, 90W AC to DC Adapter |
| Mechanical & Construction | – Front panel IP65 – System fan: Fanless operation – Weight (NW/GW): 5.7 Kgs / 7.5 Kgs – Dimension (WxHxD): 510.6 x 307.2 x 64.79mm – Mounting: Wall / Pole / VESA 100×100 – Construction: Aluminum frame with sheet metal chassis |
| Environmental | – Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | – CE/FCC/LVD – Comply with EN 60601-1 / EN 60601-1-2 |
| OS Support | – Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
