VariPOS 256A
Pushing Limits,
Ever Ahead.
Features
- The World’s Slimmest Edge Bezel Design. ( 4.8mm )
- Intel 12th Generation CPU Core i3, i5 & Celeron in a fanless architecture.
- Supports USB-C for function expansion. ( VariIO I / O Box )
- Extendable IO capability meets any project specification. ( VariIO I / O Box )
- Dual Hinged Stand for Extreme Flexibility.
- VESA 75 / 100 bracket for PPC / Wall-Mounting Applications.
- Peripheral compatibility across the whole VariPOS 2 Series : 2D Scanner, RFID, MSR, iButton, Fingerprint , LCM & 10′′ 2nd Display.
- TSE Adapter for VariPOS ( KassenSichV ) Compliant.
Product Highlights
Foldable Design
for Greater Environment Compatibility
SoftPOS Payment Support

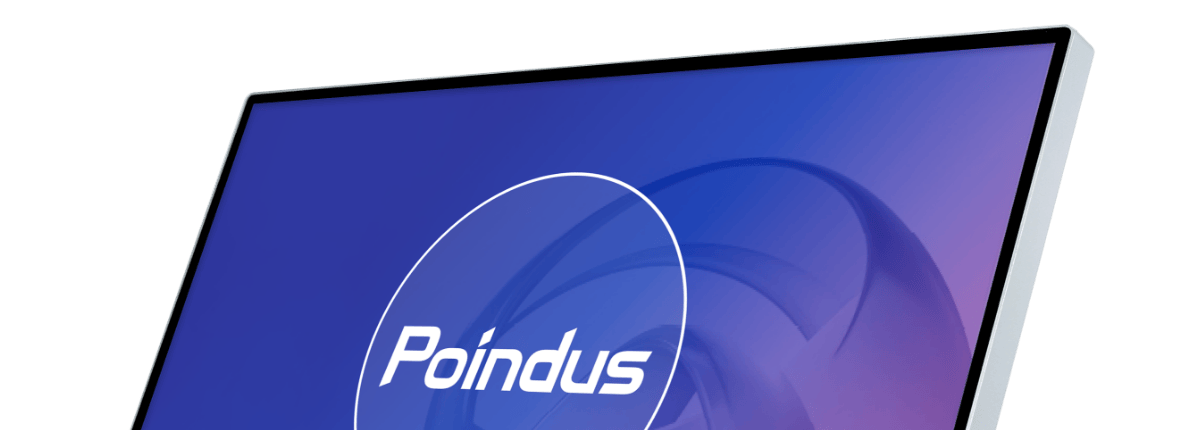

15.6" Stunning Display Narrow Bezel Design
Hidden Cable Management
Full Peripherals
Ready to Go
Slim. Sleek. Stunning.
15.6"
16:9
16:9
16:9 Full HD display for stunning clarity.
350
nits
nits
brightness for optimal visibility.
4.8 mm
Bezel
Bezel
ultra-slim bezel design.
10-point
PCAP
PCAP
Responsive multi-touch screen.
Easier to Operate, Better to Serve
- Space-saving design with clean, modern aesthetics.
- Stable, secure base for confident daily operation.
Smart dual hinged stand design
Ultra-flexible tilt from flat to any viewing angle.
Slim. Sleek. Stunning.
4.8mm ultra-slim bezel design
Smart dual hinged stand design
Ultra-flexible tilt from flat to any viewing angle
Single Finger Lift Up, Force Pressure Down
Dual force adjustment with light pressure to raise,
firmer force to lower for easy adjustment and stable positioning.
firmer force to lower for easy adjustment and stable positioning.
Stylish Aluminum Chassis
sleek aesthetics with durable, rugged protection
Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3 and i5 CPU.
Easy Integration
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux(e.g. Ubuntu 22.04)
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Adaptive Viewing design
Foldable design
for greater environment compatibility

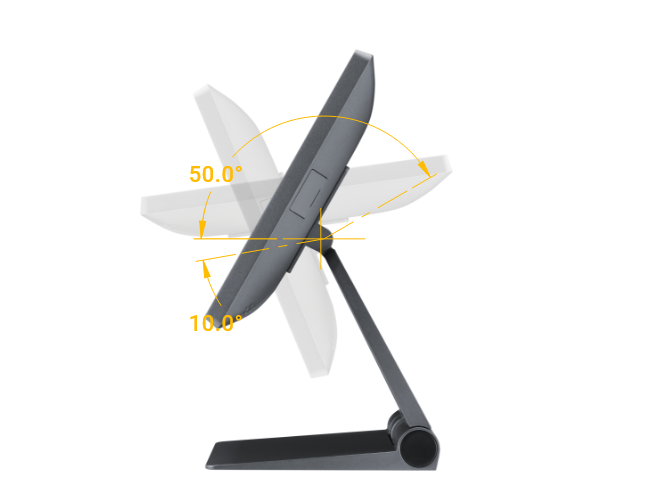

Main Display Adjustment
for Improved Usability

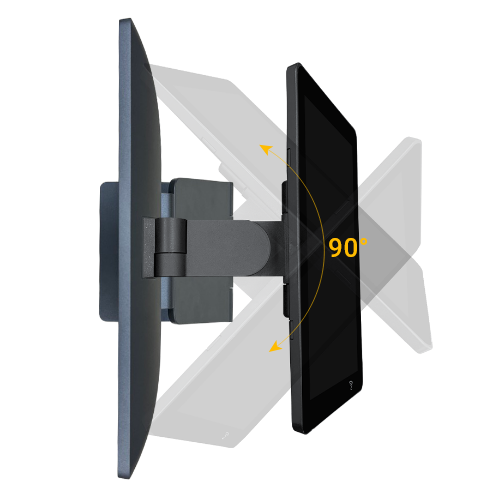

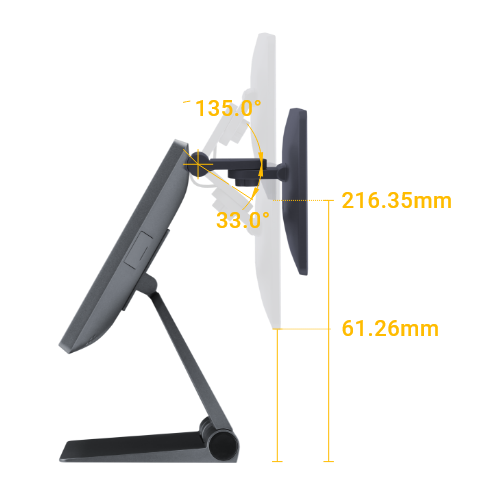

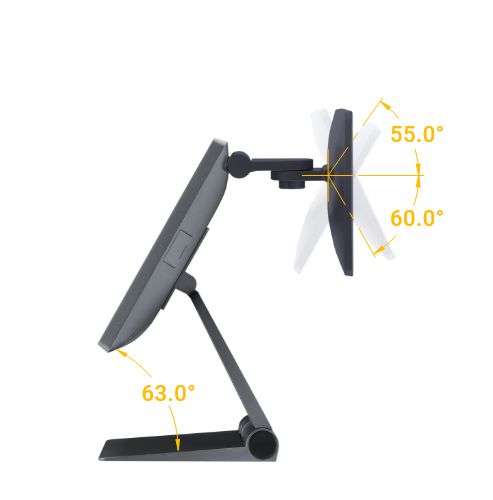

Versatile 2nd Display Adjustment to enhance customer interaction
and engagement
and engagement
Triple-hinge 10.1” 2nd display for versatile angle adjustment.
*Shown with the secondary display of M135
SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
No more Cable Chaos
Clean, clutter-free setup with Hidden cable
management.
management.
Compact & Clutter-Free
Space Efficiency and No more Cable Chaos
- Compact footprint optimized for tight counter spaces.
- Integrated hidden cable routing for clean installation.
- Clutter-free workspace enhances usability and aesthetics.
Extended connectivity & functionality
VariIO I/O Box Expansion for Scalability
- Extend connectivity, with additional LAN, COM & Powered USB connectivity.
- VariIO I/O Box is customizable to meet project connectivity requirements.
- Connected via a single custom high-speed USB Type C connector to maintain high I/O transfer rates.
- During maintenance VariIO I/O Box and peripherals can remain in place simply by disconnecting a single cable.
Application scenarios
Optimized for Modern Retail
iF & Reddot Design Award Winner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Comprehensive dual-side mounting support of peripherals
MSR/Fingerprint/iButton/RFID/2D scanner
Comprehensive dual-side mounting support of peripherals
MSR/Fingerprint/iButton/RFID/2D scanner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
Optional Accessories for More
Efficient Operations
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera

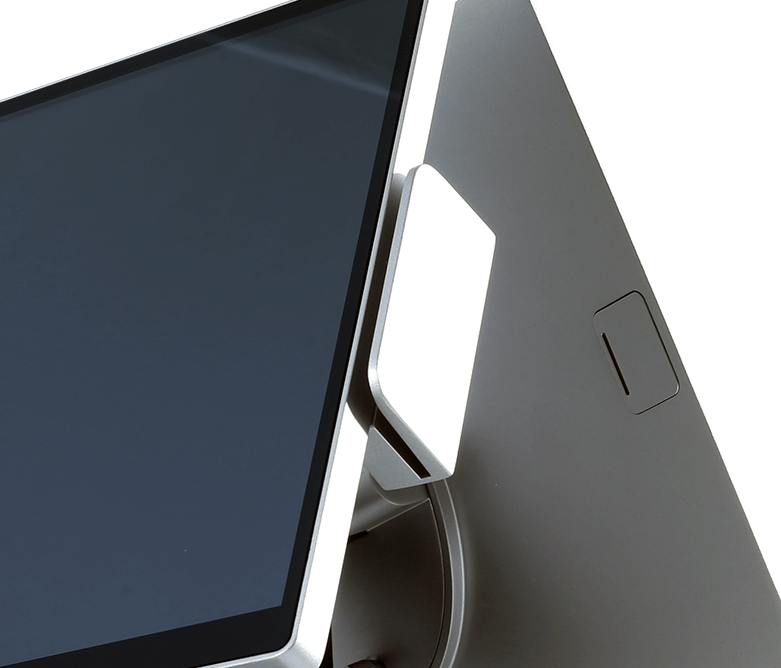

Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
Photo Gallery
Specification
VariPOS 256A
VariPOS 256A
| System Information | PE24 PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 15.6″ Full HD Display, resolution 1920×1080 – 350cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | 1 x M.2 PCIe SSD or 1 x 2.5″ SATA III SSD |
| Expansion | 1 x M.2 E Key |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| VarilO I/O Box (Project Based) | – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x RJ45 Gigabit Ethernet – 2 x USB 3.0, 4 x USB 2.0 – 4 x RS-232 (Jumper setting, support DC+0/5/12V, default setting is 0V) – 2 x DC+12V Powered USB – 1 x DC+24V Powered USB – 1 x Type C |
| Audio | 2 x 2W speaker |
| Power Requirement | – Input: 100-240Vac/50-60Hz – Output: DC+19V, 65W AC to DC Adapter (PE24) – Output DC+19V, 90W AC to DC Adapter (PE26) *PUSB will use 180W adaptor |
| Mechanical & Construction | – Front panel IP56 – Default color Space Gray – System fan: Fanless operation – Weight (NW/GW): 4.3 Kgs/6.4 Kgs – Dimension (WxHxD): 362.82 x 300.31 x 175.28mm – Mounting: Wall/Pole/VESA 75×75 – Construction: Die-casting aluminum with plastic covers |
| Environmental | – Operating temperature: 0°C-40°C, 10%-90% Relative Humidity, Non-condensing – Storage temperature: -20°C-60°C, 10%-90% Relative Humidity, Non-condensing |
| Certification | CE/FCC/LVD |
| OS Support | Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
| Optional Accessories | – 3-Track MSR, USB type – iButton reader, USB type – RFID reader, 13.56MHz, USB type – Fingerprint reader, USB type – 2D scanner, USB type – 2×20 character LCM – 10.1″ Resolution 1280 x 800 (16:10 wide screen) USB Type: Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa with or without True-flat P-cap 10 point Multi-touch |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
