Heavy Industrial
Panel PC Solution
Panel PC designed to thrive in harsh environments
Rugged 21.5″ Panel PC
Stainless Steel Design
Intel® 12th Gen Inside
Stainless Steel Design
- Intel® Elkhart Lake Celeron.
Intel® Alder Lake i3
Intel® Alder Lake i5 - 10 points PCAP multi-touch support.
- 3 x USB3.1, 3 x USB 2.0, 2 x COM, 1 x DP (by USB-C), 1 x LAN, 1 x CD
- Intel F/W TPM.
- Front IP65, Fanless System & VESA Compliance.
- WIFI / BT module / Peripherals (Project based).
- Stainless Steel Robust Chassis

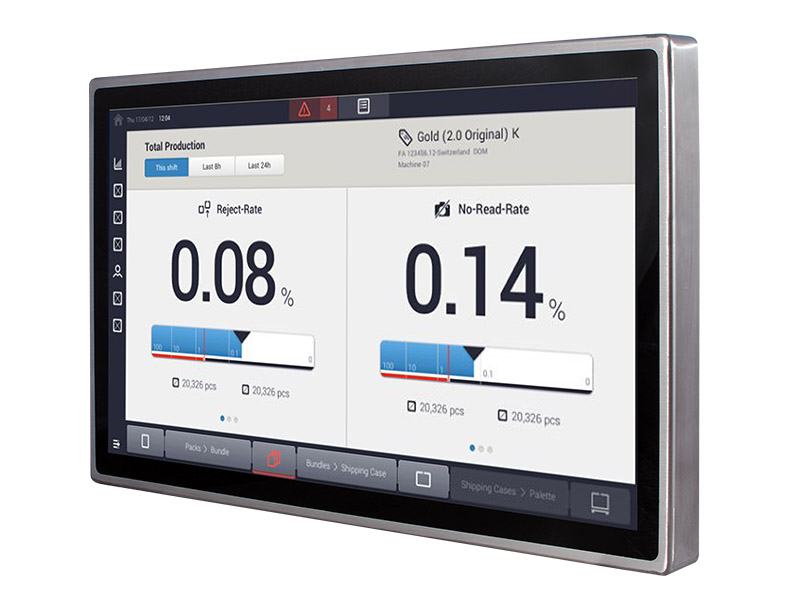

WP-T21S – Stainless Steel PPC
Robust Touch Solution for Industrial Applications
The WP-T21S is a robust and reliable stainless steel panel PC designed for demanding industrial or food Processing environments where durability, hygiene, and performance are critical. With its sealed full stainless steel chassis, front IP65 protection, and covered I/O interface with splash-resistant cable passthrough, the WP-T21S is ideal for applications such as food processing, cleanroom control, pharmaceutical production, and other hygiene-sensitive or harsh industrial settings.
Built for continuous operation, this solution supports real-time monitoring, data input, and machine control with a responsive 21.5″ multi-touch display and powerful Intel® processing options.

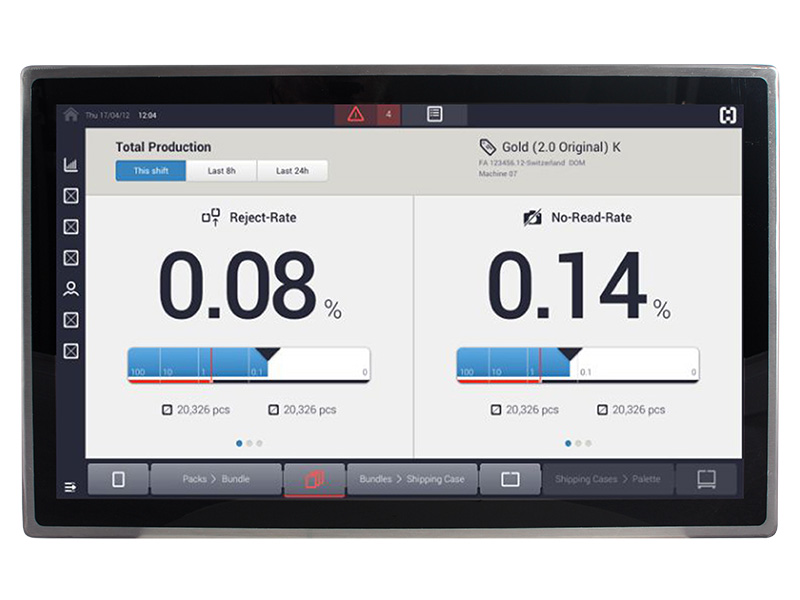

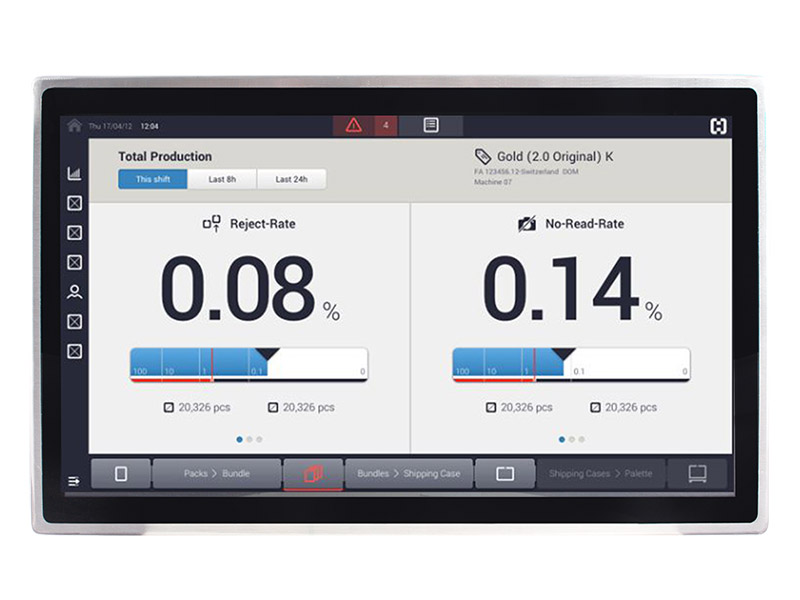

Industrial Control Made Clear
21.5″ Touch Interface for Data-Driven Workflows
The WP-T21S features a 21.5″ Full HD display, providing operators with clear, real-time data visibility in production zones, cleanrooms, or control areas. Its responsive multi-touch interface and durable stainless steel construction make it ideal for process monitoring, machine control, and workflow coordination in demanding industrial settings.
Deliver the right data, at the right time—where it matters most.
Deliver the Power to Perform
Intel® Core™
12th Gen
Intel CPU
Fan-less
Architecture
Silent running &
prolonged lifespan
Stainless Steel
IP65 Front
Rugged Steel Chassis
with Ingress Protection
Multiple Mount
Options
Wall, Pole & Stand
Mount Configurations

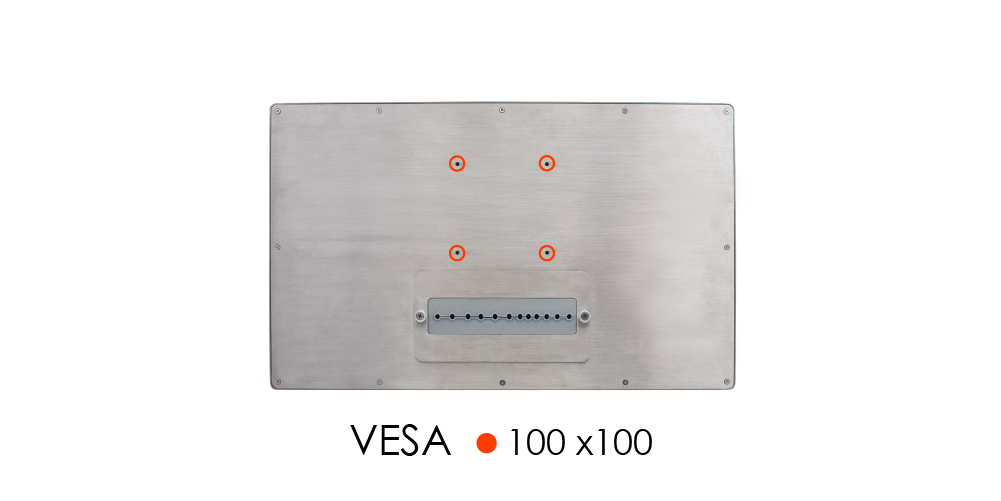

Versatile Mounting Solutions

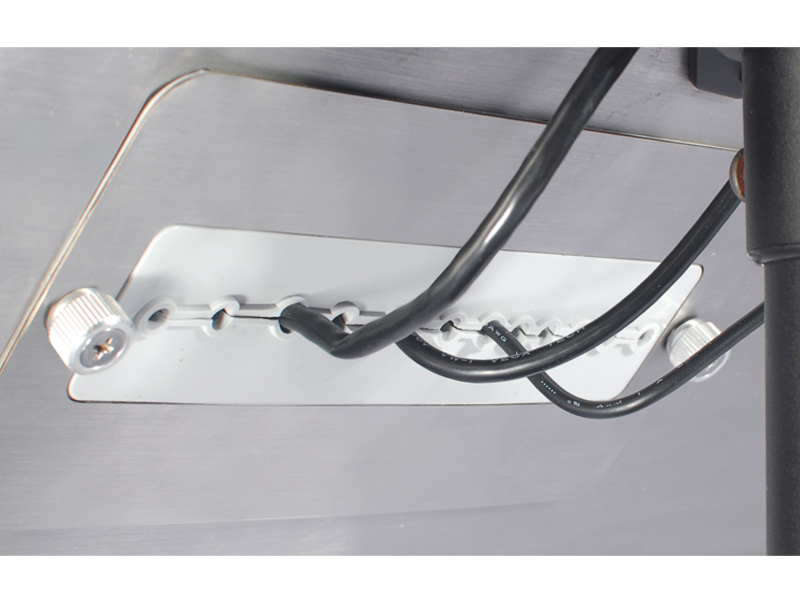

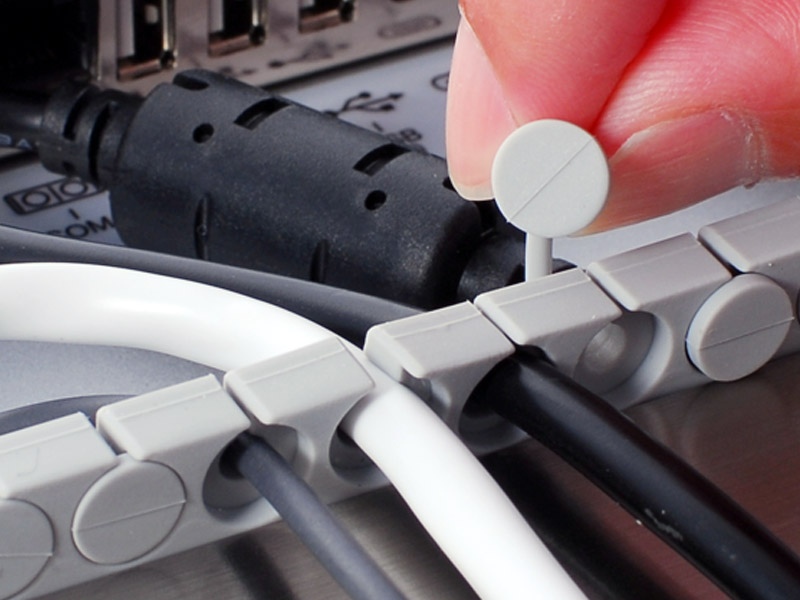

and Smart Cable Management
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options and cable management deliver a modern attractive environment for any scenario

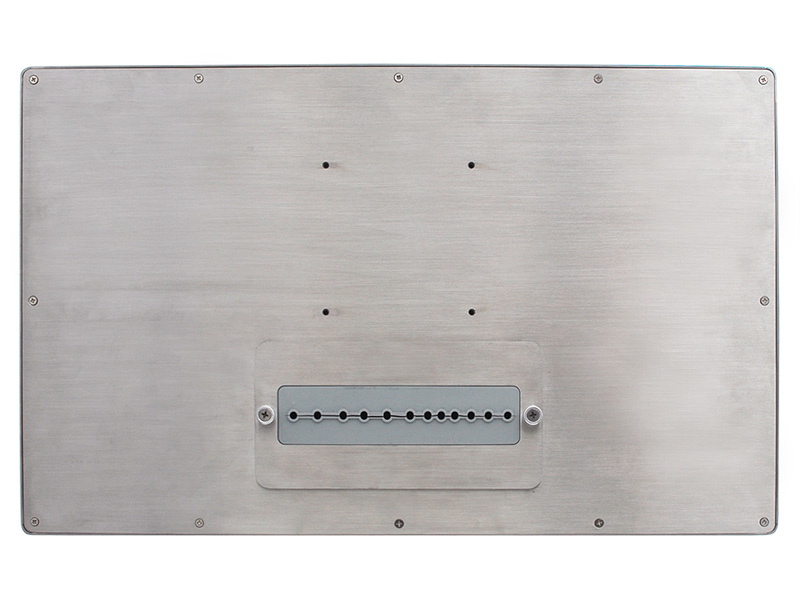

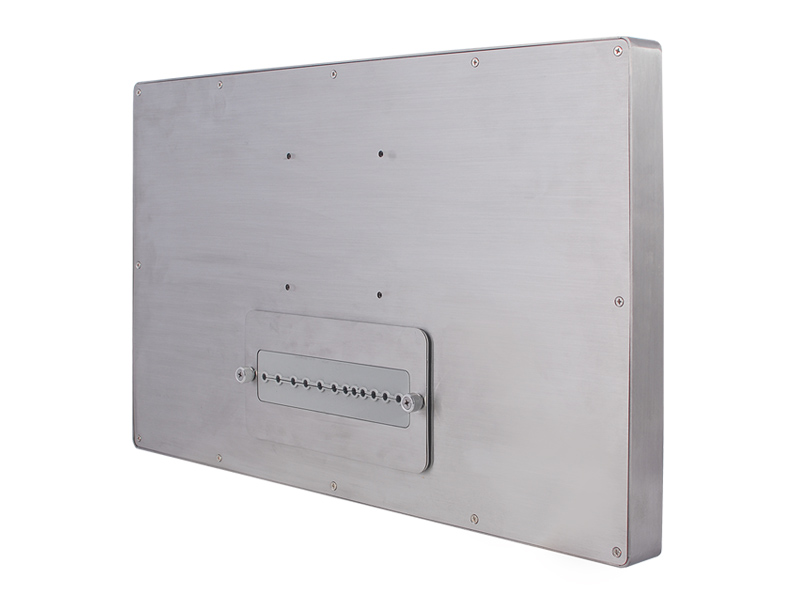

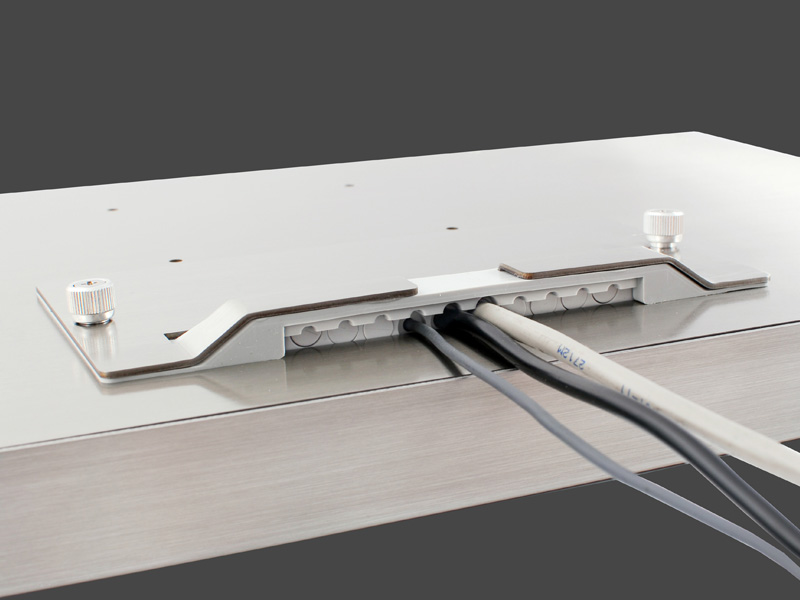

Ingress Protected I/O

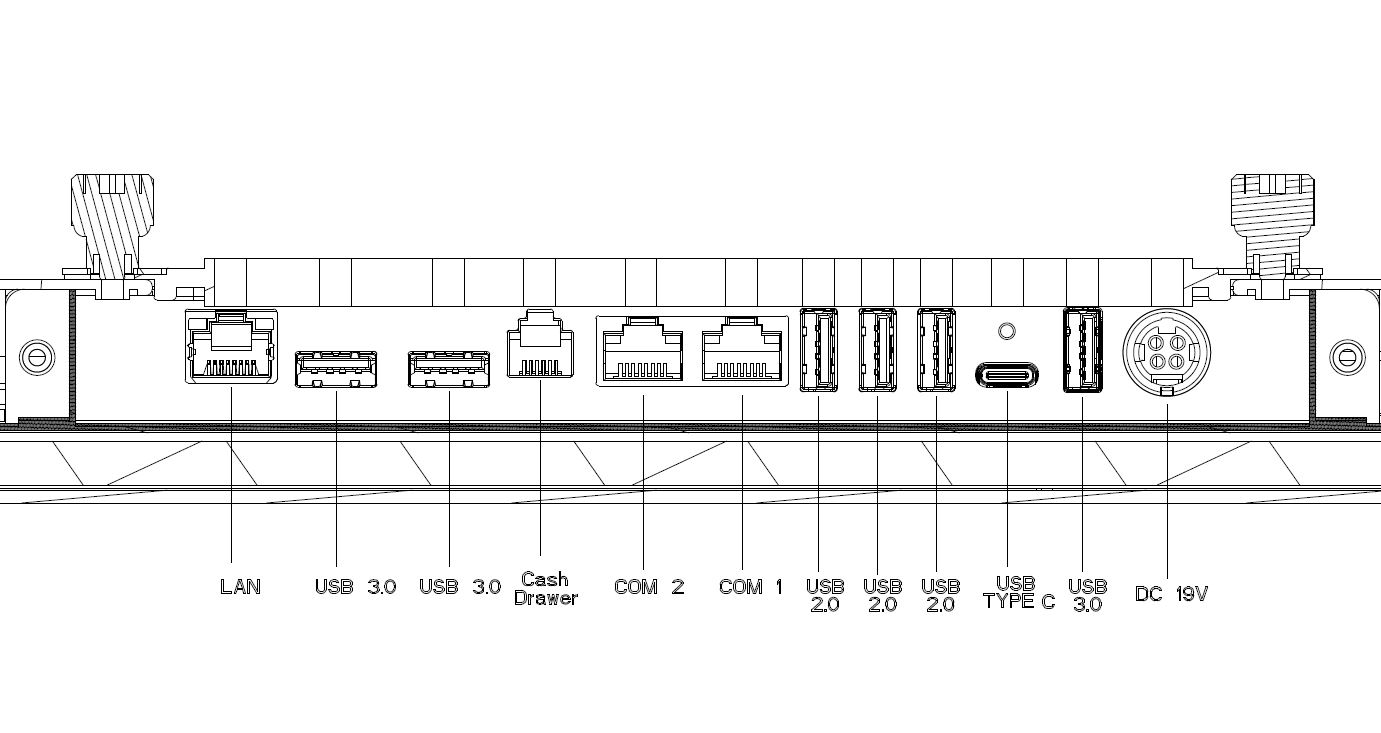

Available I/O
Click to Englarge
PE24 | PE26
Click to Englarge
Specification
PE24 / PE26
| WP-T21S |
||
| Main Board | PE24 | PE26 |
| Processor | Intel® Celeron |
Core i5 Core i3 |
| System Memory | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB. | 1 x 8GB DDR5 SO-DIMM memory Max. support up to 32GB |
| TPM | Intel F/W | |
| Display & Touch | ||
| LCD Size | 21.5″ Full HD 1920 x 1080 16:9 | |
| Resolution | 1920 x 1080 (16:9), Full HD | |
| Brightness | 250cd/m² | |
| Touch | Projected Capacitive Technology 10 point Multi-touch |
|
| Storage & Expansion | ||
|
Storage Expansion |
1 x M.2 M Key 1 x M.2 A,E Key (for WiFi/BT project based) |
|
| Panel I/O | ||
| LAN Port | 1 x Gigabit Ethernet by RJ-45 | |
| USB Port | 3 x USB 3.1 3 x USB 2.0 |
|
| Com Port | 2 x RJ-48 (Support DC+0/5/12V by BIOS default is 0V) | |
| Cash Drawer | 1 x RJ11 (Support DC+12V or 24V(default)port, support 2 cash drawers | |
| Type C | 1 x Type C | |
| Power Switch | 1 x power on/off button | |
| DC Input | 1 x MiniDin 4P (DC +19v only) | |
| OS Support | ||
| Win 10, Linux | ||
| Power Adapter | ||
| Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 65W Adapter (19V Adapter) AC-DC Adapter | Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter | |
| Compliance | ||
| Certifications | CE / FCC Class B | |
| Protection | Front IP65 | |
| Mounting | ||

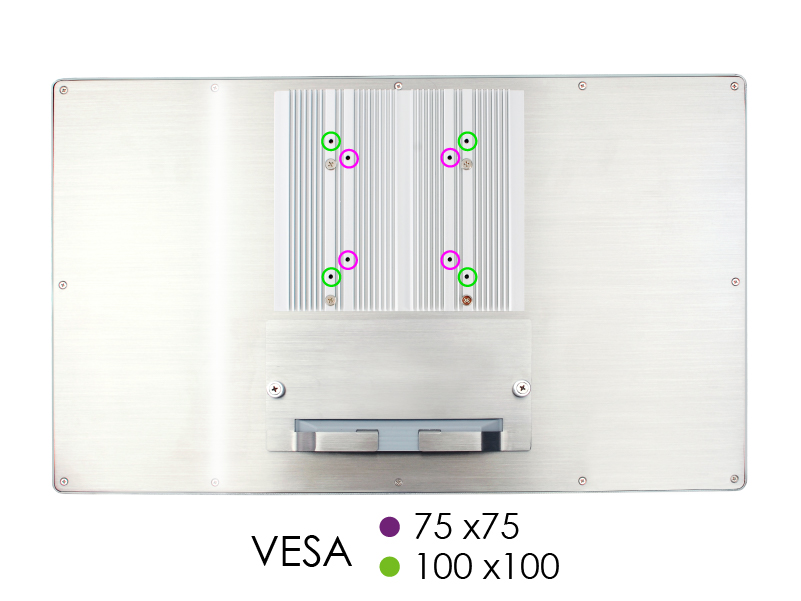

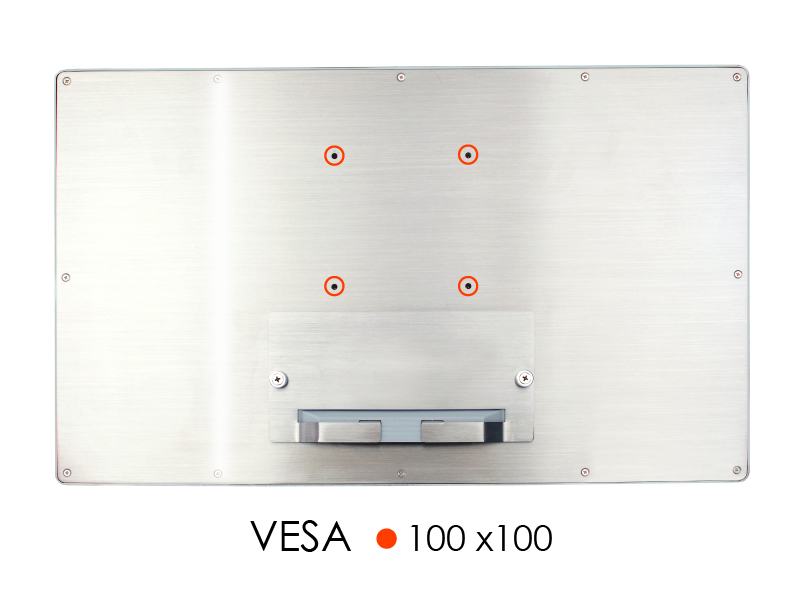

| Options | Desktop Stand , Wall, Pole (VESA 100 x 100) | |
| Environmental Condition | ||
| Operating | 0°C ~ 40°C (32°F ~ 104°F) | |
| Storage | -10°C ~ 60°C (14°F ~ 140°F | |
| Operating Humidity | 0% ~ 90% Relative Humidity, Noncondensing | |
| Weight | 5.8 Kgs | |
| Dimensions | 509 x 305 x 48mm | |
| e-Brochure and Datasheet↓ | ||
Specification
PE17 / PE22
| WP-T21S – PE17/PE22 |
||
| Main Board | PE17 | PE22 |
| Processor | Intel® Kaby Lake i5 Intel® Sky Lake i3 Intel® Sky Lake Celeron® |
Intel® Core™ i5 Processor Intel® Core™ i3 Processor Intel® Celeron® Processor |
| System Memory | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. support up to 16GB.. | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB |
| TPM | Intel F/W | |
| Display & Touch | ||
| LCD Size | 21.5″ Full HD 1920 x 1080 16:9 | |
| Resolution | 1920 x 1080 (16:9), Full HD | |
| Brightness | 250cd/m² | |
| Touch | Projected Capacitive Technology 10 point Multi-touch |
|
| Storage & Expansion | ||
|
Storage Expansion |
1 x SATA III (2.5″) mini-pcie |
1 x M.2 M Key 1 x M.2 A,E Key (for WiFi/BT project based) |
| Panel I/O | ||
| LAN Port | 1 x Gigabit Ethernet by RJ-45 | |
| USB Port | 2 x USB 3.0 | 4 x USB 3.1 2 x USB 2.0 |
| Com Port | 2 | |
| Cash Drawer | 1 | |
| Type C | 1 x Type C | |
| Power Switch | 1 x power on/off button | |
| DC Input | 1 x MiniDin 4P (DC +19v only) | |
| OS Support | ||
| Win 10, Linux | ||
| Power Adapter | ||
| Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter |
||
| Compliance | ||
| Certifications | CE / FCC / LVD | |
| Protection | Front IP65 | |
| Mounting | ||
| Optons | Desktop Stand , Wall, Pole (VESA 100 x 100) | |
| Environmental Condition | ||
| Operating | 0°C ~ 40°C (32°F ~ 104°F) | |
| Storage | -10°C ~ 60°C (14°F ~ 140°F | |
| Operating Humidity | 0% ~ 90% Relative Humidity, Noncondensing | |
| Weight | 5.8 Kgs | |
| Dimensions | 509 x 305 x 48mm | |
