Panel PC – Kitchen Display System

Panel PC designed to thrive in harsh environments and fit into any scenario.

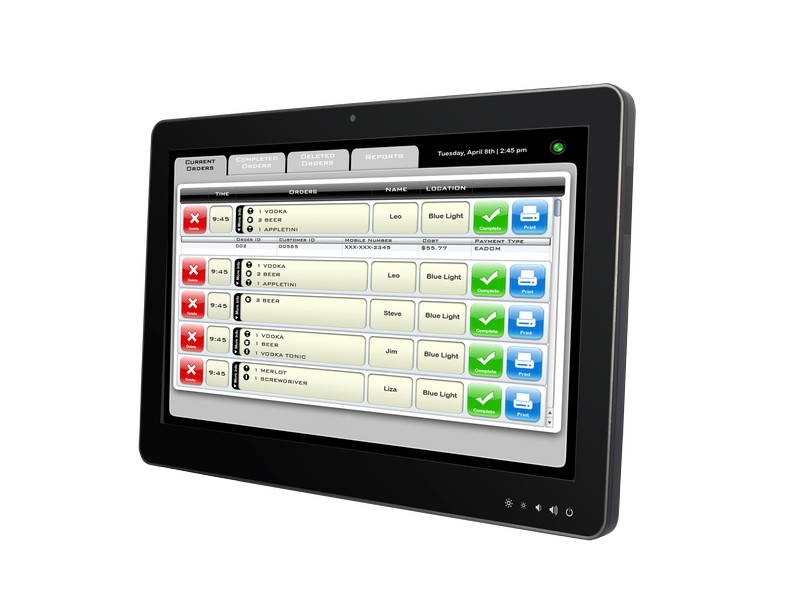

WP-A21 KDS

21.5″ 16:9 Kitchen Display System

  •  Onboard Intel® Core™ i5/i3 (11th Gen TigerLake).
  • 10 points PCAP multi-touch support.
  • 4 USB3.0, 2 USB 2.0, 1 COM, 2 DP, 2 GLAN.
  • Nuvo Ton TPM2.0.
  • Front IP65, Fanless System & VESA Compliance.
  • WIFI/BT module (Project based)
Download Brochure
Send Inquiry
WP-A21 KDS Kitchen Display System 21.5

21.5″ Light Industrial
Panel PC

11th Gen Intel® Core™ Processor

The WP-A21 KDS is an efficient and cost effective  kitchen display system you can rely on. Our Kitchen Display System (KDS) solution is used in many restaurants to manage orders and streamline kitchen operations. It replaces paper tickets with real-time digital displays, improving order accuracy, efficiency, and communication between front-of-house and back-of-house, with features like real-time updates, analytics, and reduced waste, a KDS enhances the overall customer experience and optimizes kitchen workflows.

WP-A21 KDS Kitchen Display System 21.5

Streamline Kitchen Operations

21.5″ of Information Clarity

Our Kitchen Display System delivers 21.5″ Full HD display ensures clear information is available in any area of the kitchen helping restaurants streamline their kitchen operations, increase efficiency, and leading to better customer experiences.

Deliver the right information to the kitchen every time

Deliver the Power to Perform

Intel® Core™
i5/i3

11th Gen
TigerLake

Fan-less
Architecture

Silent running &
prolonged lifespan

IP65
Protection

Protection against condensation
and water spray

Multiple Mount
Options

Wall, Pole & Stand
Mount Configurations

Peripherals

Peripherals for Demanding Kitchens

Peripherals like a bump bar solution can be used in conjunction with the Kitchen Display System (KDS).  The specialized keypad/touchpad allows kitchen staff to interact with the KDS system by “bumping" or marking orders as they are completed. The bump bar provides a tactile interface, enabling kitchen staff to easily navigate through the orders displayed on the KDS screens and mark them as prepared or ready for serving.

This streamlines communication between the kitchen and the serving staff, ensuring efficient order flow and minimizing delays. Our bump bar is designed for durability and can be customizable to match specific kitchen workflows, further enhancing the effectiveness and speed of order management in a busy kitchen environment.

KB5000-KDS- Bump-Bar Kitchen Display System

Versatile Mounting Solutions

The Greatest Flexibility for In-kitchen Layout

Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options deliver a modern attractive environment for any restaurant.

WP-A21 KDS Kitchen Display System 21.5

Specification

WP-A21 KDS
  Main Board WP-A21 KDS
  Processor Intel® Core™ i5/ i3 Processor
  Platform Hub Controller Intel® TigerLake SoC integrated
  System Memory 1 x 260-Pin DDR4 2133MHz SO-DIMM
  Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
  H/W Status Monitor CPU temperature monitoring
Voltages monitoring
CPU fan speed control
  TPM Infineon TPM 2.0 (SLB 9665 TT2.0)
  Display & Touch
  LCD Size 21.5″ Full HD 1920 x 1080 16:9
  Resolution 1920 x 1080 (16:9), Full HD
  Brightness 250cd/m²
  Contrast Ratio 3000
  Viewing angle 89 (U), 89 (D), 89 (L), 89
  Touch Projected Capacitive Technology
10 point Multi-touch
  Storage & Expansion
  Storage 1 x 2.5″ Drive Bay
1 x mSATA (by mini PCIe
  Expansion 1 x M.2 Type B
1 x M.2 Key E

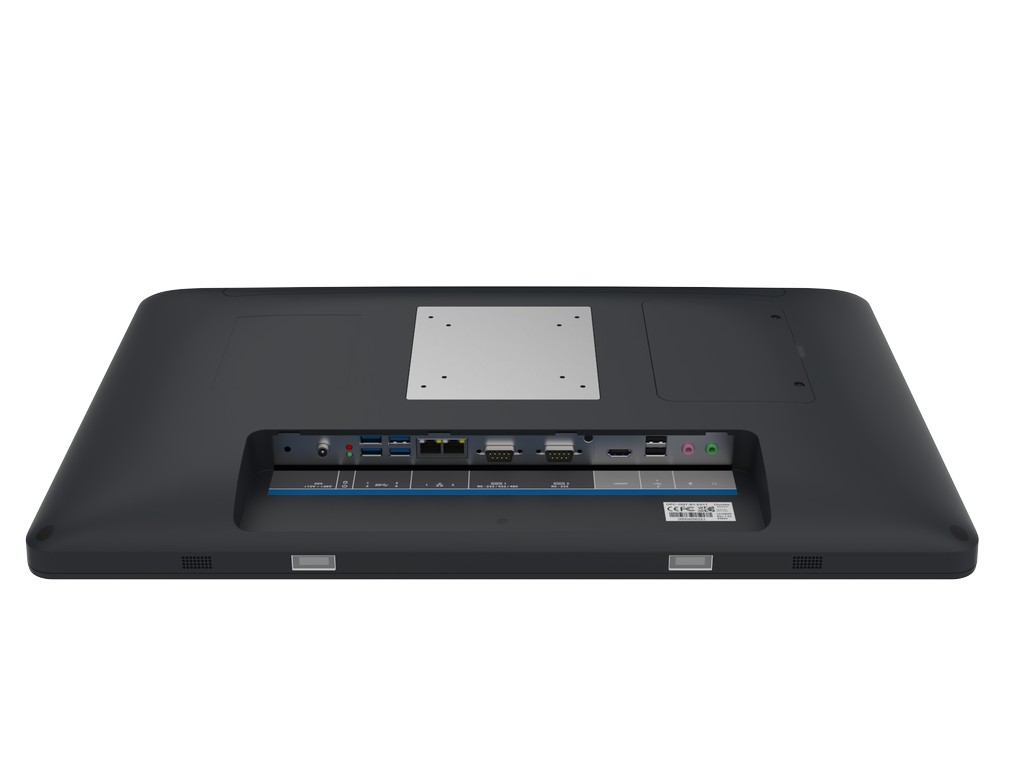

  Panel I/O
  LAN Port 2 x Gigabit Ethernet by RJ-45
  USB Port 4 x USB 3.0
2 x USB 2.0
  Com Port 1 x RS-232
  Audio

HD Audio, 2W Speaker x 2

1 x Line out 1 x Mic in

  Power Switch 1 x power on/off button
  DC Input 1 x MiniDin 4P (DC +19v only)
  OS Support
  Win 10, Linux
  Power Adapter
  4 pin DIN –  Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (24V @ 3.75A Adapter) AC-DC Adapter
  Compliance
  Certifications CE / FCC Class B
  Protection Front IP65
  Environmental Condition
  Operating 0°C ~ 40°C (32°F ~ 104°F)
  Storage  -10°C ~ 60°C (14°F ~ 140°F
Operating Humidity 0% ~ 90% Relative Humidity, Noncondensing
Weight 6.3 Kgs
e-Brochure and Datasheet
