Display

Display solutions that allow touchpoint deployment in multiple situations.

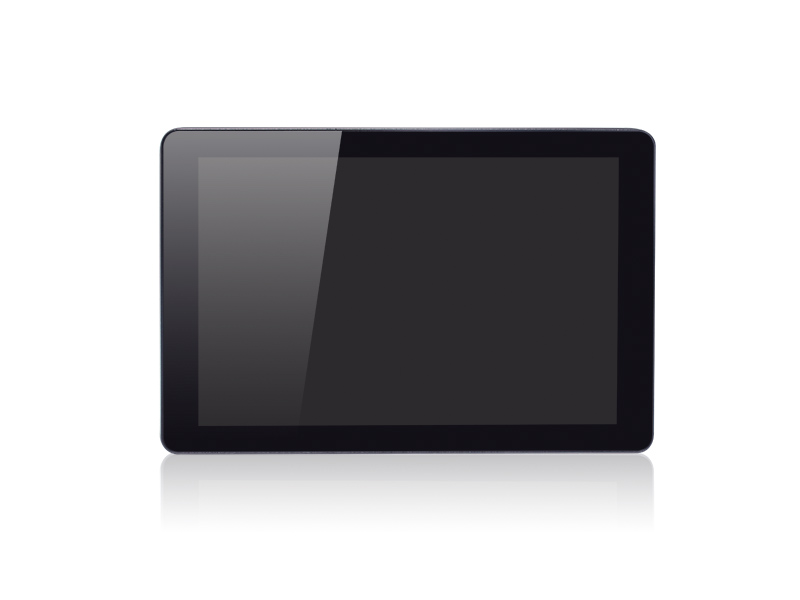

10.1″  16:10 True Flat Display

Model No. : M185GI, M185GC, M185PI, M185PC

  • High Strength Glass Overlay
  • DP / VGA or USB Interface
  • Durable Die-Cast Aluminum Base
  • Easy Installation – DP/VGA/USB Cable Required
  • Spill Proof and Anti-Dust (IP54)
  • Best Choice for Space Limited Retail / Hospitality Environments
  • True Flat Designed to Suit Harsh Environment
  • Touch Screen or Non-Touch Available
  • VESA, Pole or Base Stand Available

Product Detail

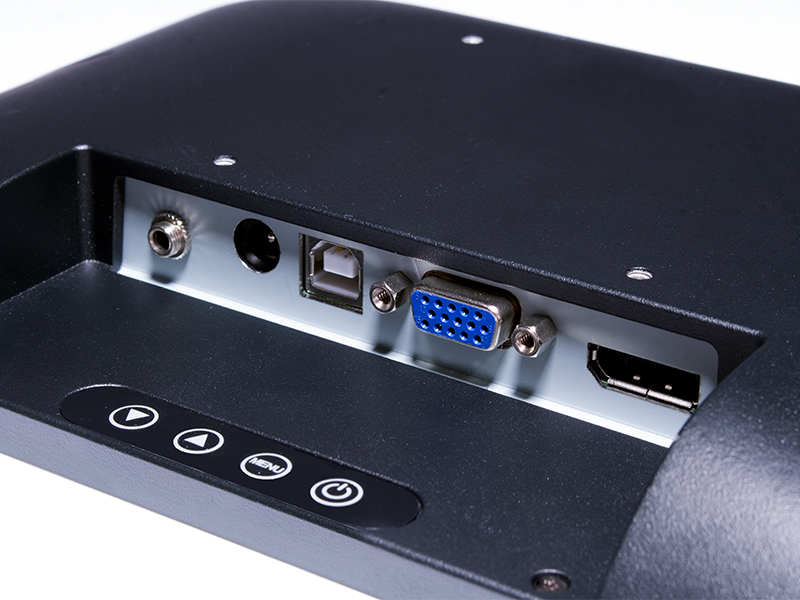

Display Port
VGA Interface
USB Interface

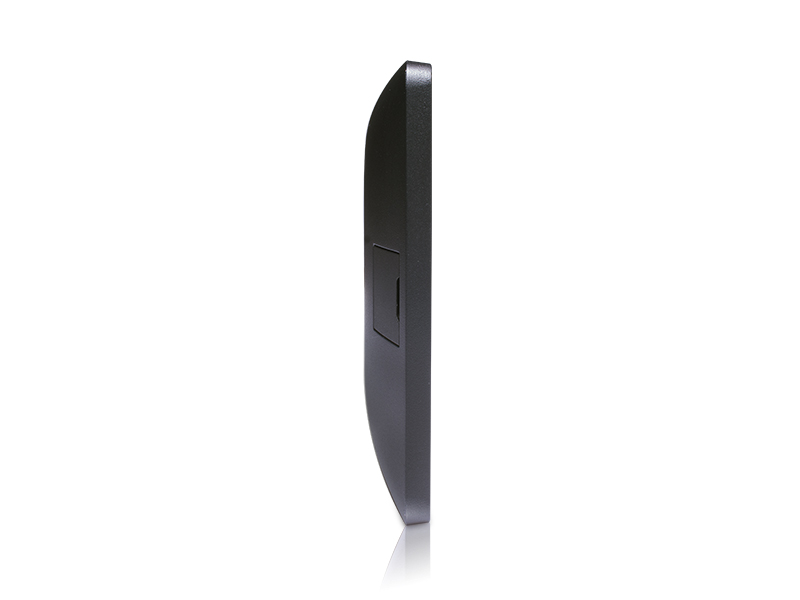

True Flat Design
Wall Mount Available
Die-Casting
Base for Option
Pole Mount
Option

Specification

  M185
  Description
  M185GI: 10.1″ VGA/Display Port Non-Touch (16:10)
  M185GC: 10.1″ USB Non-Touch (16:10)
  M185PI: 10.1″ VGA/Display Port PCAP (16:10)
  M185PC: 10.1″ USB PCAP (16:10)
  Display
  Display Size 10.1″
  True-Flat YES (IP54)
  Interface M185GI, M185PI VGA /DP (Display Port)
M185GC, M185PC USB
  Resolution 1280 x 800
  Viewing Angle 85 / 85 / 85 / 85 degree
  Brightness (nits) 350
  Contrast Ratio 800 : 1
  Response Time (ms) 25
  Power Supply M185GI, M185PI DC 12V
M185GC, M185PC USB 5V
  OS Support M185GI, M185PI, M185GC, M185PC Windows 10 、 8.1 、 8 、 7 ,Linux Ubuntu
  Touch Type
  Touch Type M185PI, M185PC Projected Capacitive (USB)
  Input Terminals
  For Video Signal M185GI, M185PI DP Display Port / VGA Mini DIN 8-pin
M185GC, M185PC USB
  For Power M185GI, M185PI DC Jack
M185GC, M185PC USB
  For Touch Signal M185PC, M185PI USB Type B
  For VFD N/A
  For Peripherals N/A
  For Audio N/A
  Physical Dimension
  Dimensions
(W x H x D) mm
260.2 x 168.3 x 30
  Weight (N. W.) (Kg) M185GI, M185PI, M185GC, M185PC 0.9
  Environment
  Operating Condition 0ºC~40ºC
  Storage Condition -10ºC~50ºC
  Power Consumption M185GI, M185PI 10W
M185GC, M185PC 3.5W
Certifications
  EMI / Safety  CE, FCC, LVD
Option
  Wall Mount Kit Option, 75 x 75mm VESA
  Base Option
  MSR Option
  VFD N/A
  Pole Stand Option
  2nd Display N/A
 e-Brochure and Datasheet↓
