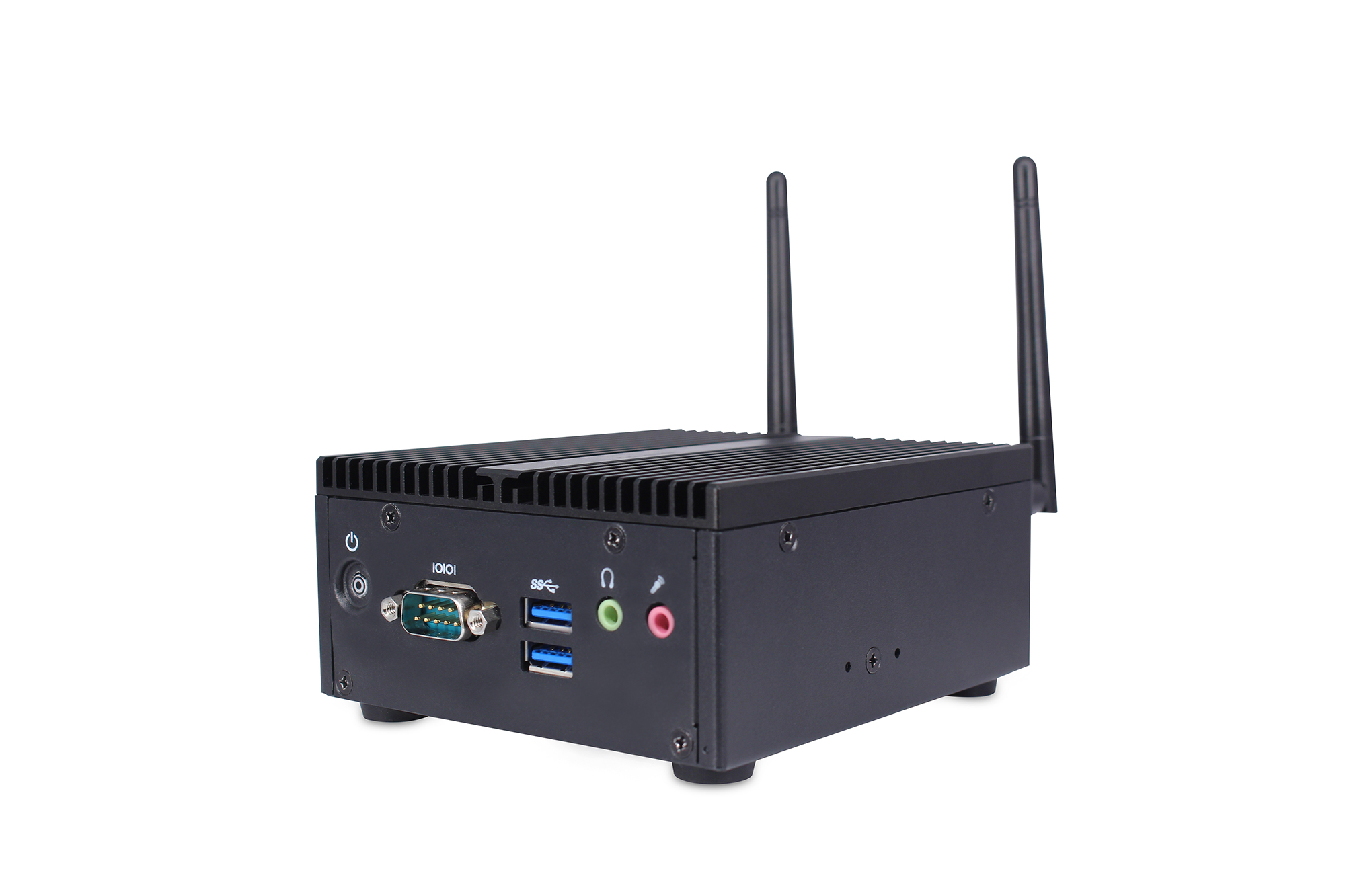

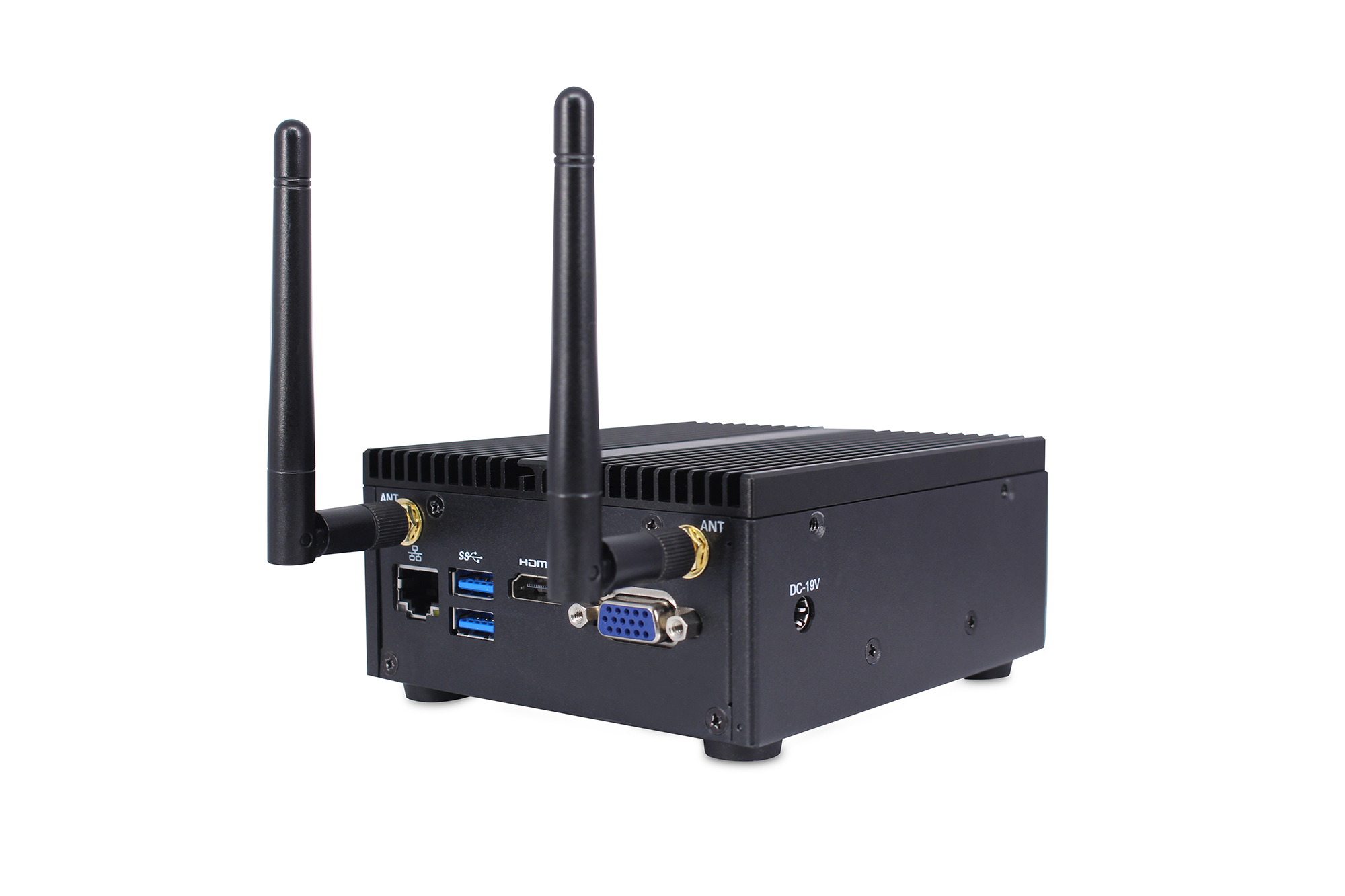

iBOXPC-5005A
High Performance for Retail Applications
Model No. : 5005A
- Industrial Fanless design small size system with Gemini Lake CPU
- Intel Entry Level J5005 Quad Core CPU benchmark up to 3000
- Dual Display 1x VGA, 1x HDMI (support 4K)
- 4x USB 3.0 Type A and 1x COM
- One 2.5″ HDD/SSD space
- Support WiFi/Bluetooth function(Option)
- High performance/Low price ratio for POS, Digital Signage, and Retail / Hospitality applications
- Robust aluminum housing for heat dissipation & durability
- Suitable for space-limited environments
Focus market：
Back Office ERP Server
High Performance for Retail Applications
With more power & performance the iBOXPC-5005A provides enough power to meet demands for as a small Back Office ERP Server or other processor intensive retail applications. This Box PC solution is aimed at high volume retail with a need for higher performance in the back office or at the counter. This flexible modular approach offers capability and performance that will grow with your unique retailing needs.
Back Office ERP Server | High Performance Retail Applications
- Free up valuable counter space with a compact and affordable system.
- Provides retailers of all sizes with reliability and features that maximize operating cost efficiency.
- Robust, extended lifecycle industrial platform well suited for Back Office ERP service.
- Modular platforms with enhanced security providing retailers and hospitality operators the flexibility to deploy solutions in a variety of scenarios.
Ultra-Compact Design
Cost Effective Computing Performance
Delivering the consistent service that customers expect no matter the business size, Poindus Retail Solutions combine the power, performance and security to keep businesses running smoothly. The Box PC solutions can be deployed in strategic areas providing computing assets where they are needed in any retail scenario. Our Box PCs feature ultra-compact design and are powered by Intel® processors with low-power consumption in a fanless architecture. The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
Specification
| iBOXPC 5005A | |
| Main Board | |
| Processor | Intel® Gemini Lake Processor J5005 QC 10W 1.5GHz (Fanless) Quad Core 1.50~2.80GHz 4MB Cache – TPD 10W |
| Chipset | CPU Integrated |
| System Memory | 1 x DDR4 SO-DIMM slot，Max. to 8GB, support up to 2400MHz |
| Graphics Engine | Intel® UHD Graphics 605 |
| Storage | |
| HDD/SSD | 1 x 2.5″ SATA drive for HDD/SSD |
| Flash Memory | 1 x NAND FL EMMC 32GB/64GB (Option) |

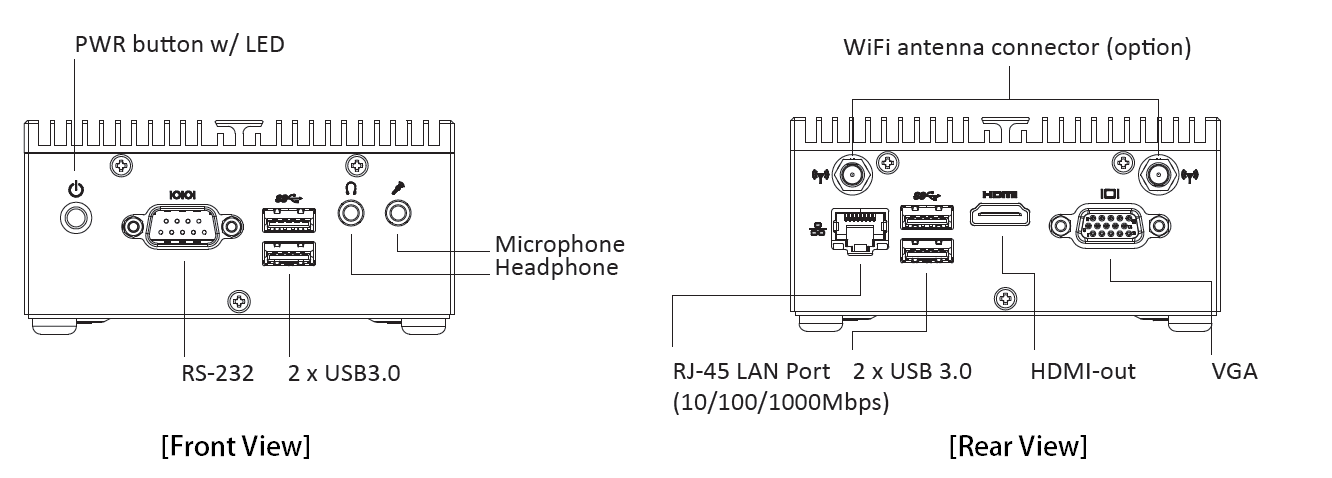

| I/O Ports | |
| USB | 2 x USB 3.0 Front 2 x USB 3.0 Rear |
| Serial/COM | 1 COM |
| VGA / HDMI | 1 x VGA, 1 x HDMI 1.4b Rear |
| LAN Port | 1 x RJ45 LAN port Rear |
| Cash Drawer Port | N/A |
| DC Jack | 1 x DC IN side |
| LPT Port | N/A |
| PS2 | N/A |
| Audio out/MIC In | 1 x Microphone Jack & 1 x HeadphoneJack Front |
| Power LED | Yes |
| WiFi | 1 x M.2 slot(Support NGFF-2230 Wifi/BT) with 2 pcs Antenna (Option) |
| Power Switch | |
| 1 Front | |
| Power Adapter | |
| DC 19 volt 40W power adapter | |
| Optional Accessories | |
| Alternative Front Cover | Front Power LED, Power Switch & USB Port(Optional) |
| Compliance | |
| EMC Safety | CE, FCC, LVD, RoHS |
| Environment | |
| Operating Temperature | 0 °C ~ 50°C ( 32°F ~ 122°F ) |
| Storage Temperature | -10°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 20% – 85% RH non condensing |
| Storage Humidity | 20% – 85% RH non condensing |
| Dimension( Wx H x D ) | |
| 54.4 x 109.4 x 131mm | |
| Weight | |
| 0.8Kg (1.2KG with adapter) | |
| Mounting | |
| Supports 75 x 75 and 100 x 100 mm and wall mount kit (Option) | |
| OS Support | |
| Windows 10 IOT | |
