Panel PC

Panel PC designed to thrive in harsh environments and fit into any scenario.

VariPPC 250i

Take Your Store Experience to the Next Level

  • Intel 6th Generation Celeron i3, i5 high-end processors in a fanless structure.
  • True flat 15” 4:3 LCD (LED backlight), 400 nits with IP66 protection.
  • All in One POS configuration available.
  • High speed Type C interface for customizable IO box to meet project specification.
  • 1 x 24V, 2 x 12V Powered USB for retail peripherals (IO box) (Option).
  • Quick SWAP IO box for easy maintenance.
  • Peripheral compatibility across the whole VariPOS 2 Series: MSR, iButton, Fingerprint, RFID.

All in One Mountable Aesthetic Panel PC
Designed for Diverse Applications

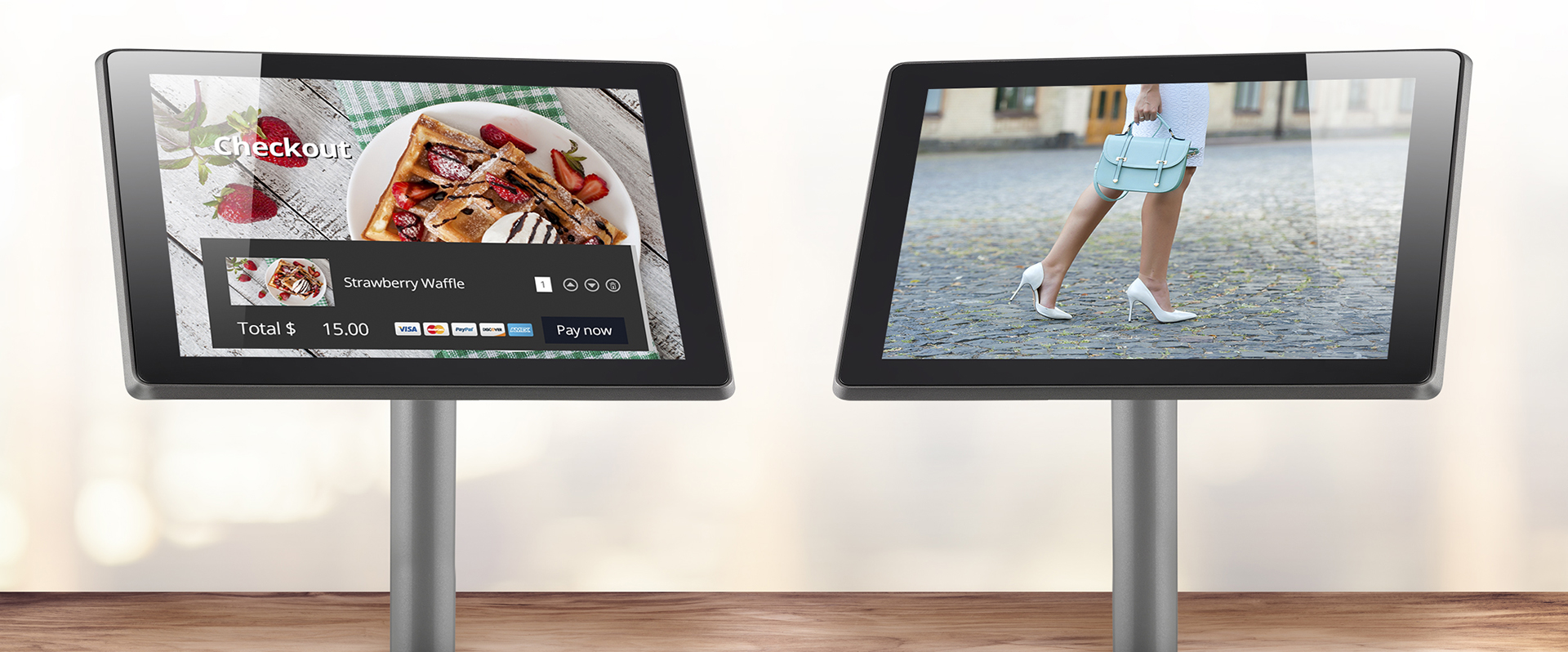

VariPPC 250i durability and flexibility meets the demand with Pole- or Wall mountable options and frees up space for application, especially in hospitality & retail scenario. The aesthetic appearance & slim panel configures All in One POS function can build your business to a higher level elegantly.

Deliver the Power to Perform

Full Range Intel Processors

Supports Microsoft Windows platform from POS Ready 7 to Windows 10 (32/64bit) ensures compatibility with your preferred Windows software solution.

FANLESS

Fan-less architecture has the benefit of silent running and prolongs the life of the terminal, ensuring a great return on investment.

Intel TPM

6th Gen Intel Core processors protect IoT systems and data through hardware- and software-based security hardening, keeping connected devices secure.

Powered USB Connections

The I/O provides everything you would expect from a high performance POS terminal including Powered USB for your retail peripherals.

IP66 Spill Proof

Combined with Front Panel IP66 (Ingress Protection) dust and waterproof protection, is perfectly suited for the rigors of hospitality and retail environments.

High Speed USB Type C Connector
Redefining Service

The flexibility of VariPPC 250i transforms any retail spaces into
versatile pay points and strategic touch points with the customizable I/O box
which connects all your devices through a single high speed USB Type C connector maintaining high I/O transfer rates.

The independently mountable I/O box for Panel PC configuration ensures a clutter-free point of sale station with advanced cable management; overcoming project limitations with advanced customization options.

Poindus Retail-hardened solutions help retailers maintain high uptime ensuring transactions are completed and minimize the need for technical after-service.

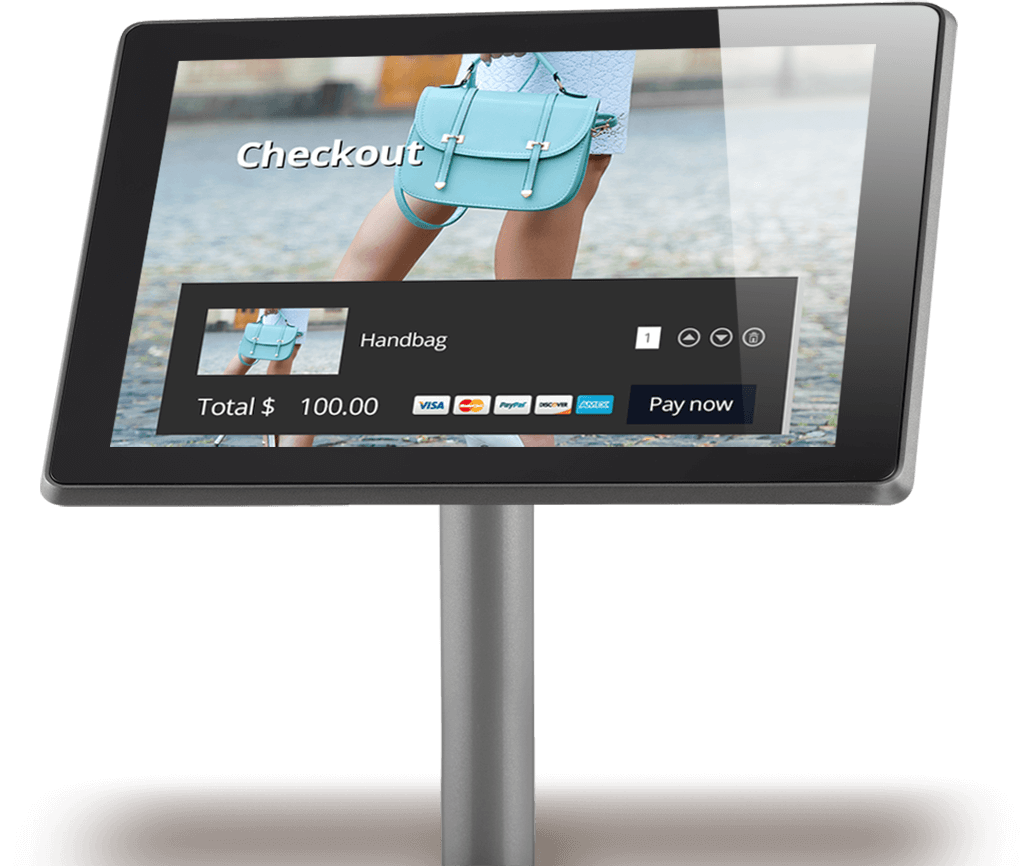

Retail Hardened Pole Mounted POS designed for the demands of the retail & hospitality world

An Ideal Retail-Ready Solution
with Advanced I/O Customization

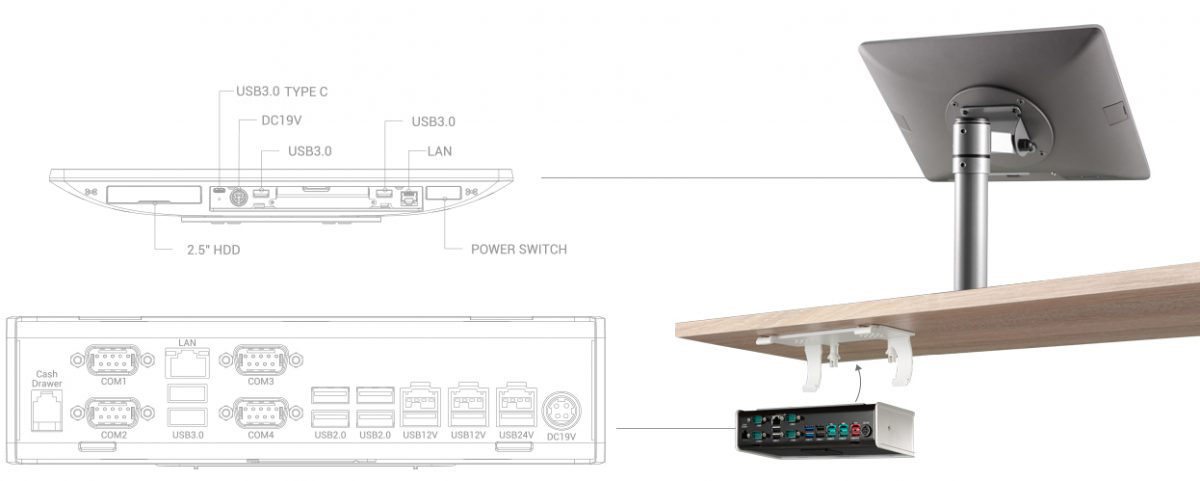

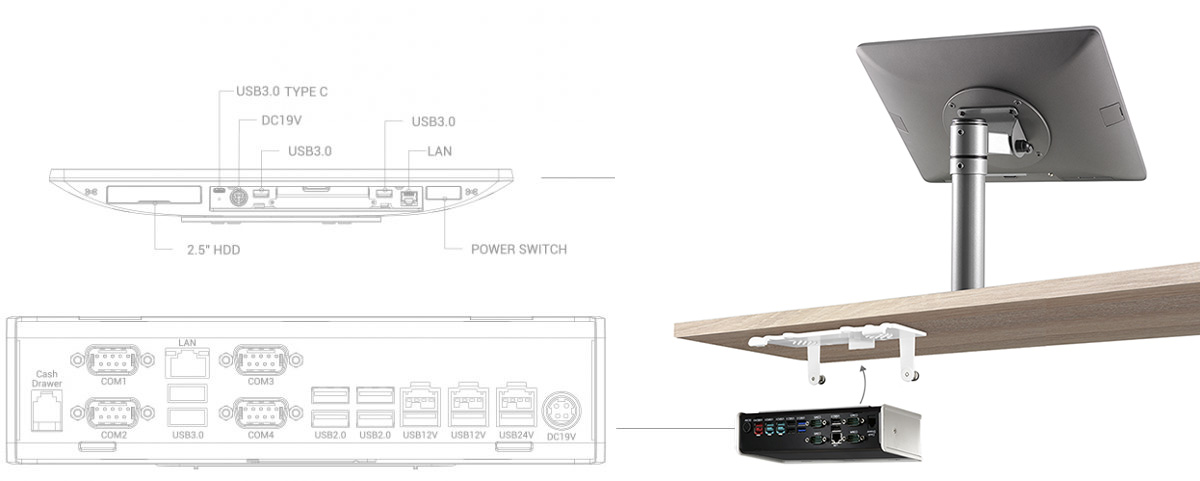

Independently mountable I/O box for Panel PC configuration provides
clutter-free point of sale stations with advanced cable management.

The extendable I/O box supports for all the retail peripheral products to
establish a complete retail environment and level up your sales force.

Overcome project limitations whatever the deployment, Check-out,
interactive signage or self-service kiosk.

Efficient Service Benefit
with Quick Swap & Maintenance

Simplified Installation and Serviceability has been designed in to the VariPPC 250i to provide quick and easy service for routine maintenance schedules, significantly reducing engineer onsite visit time.

The quick service design reduces downtime and is easy to clean and maintain for the user; reducing service resources and lowering the total cost of ownership (TCO).

Specification

   VariPPC 250i (PE17 MB + PE18 VariIO) / VariPPC 250
  Main Board
  Processor Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz)
  Chipset CPU Integrated
  System Memory 1 x SO-DIMM DDR4 slot, 4GB RAM as standard.  Max. memory support up to 16GB.   Easy acess with secured cover for easy maintainence.
  TPM Intel F/W
  Display & Touch
  LCD Size 15″ 4:3 TFT LCD (LED backlight)
  Brightness 400nits
  Resolution 1024 x 768 (4:3)
  Touch True Flat Projected Capacitive Technology
  Storage
  HDD/SSD 1 x SATA III (2.5”)
  I/O & Expansion
  DC Input 1 x Mini Din 4P (DC +19V only)
  LAN port 1 x Gigabit Ethernet by RJ-45
  USB port 2 x USB 3.0
  Bus Expansion 1 x Mini-PCI-E Slot
  Power Switch 1 x power on/off button
  Speaker HD Audio, 2W Speaker x 2
  OS Support
  Win10 2016 (64bit), Win8.1 (64bit), Win7/POS Ready 7 (32/64bit)
  Power Adapter
  External adapter, DC Model :  Voltage:+19VDC, Std. 65watt. (VariIO / Powered USB requires 180watt adaptor)
  Compliance
  Certifications CE, FCC, LVD, RoHS
  Protection IP 66 on front panel
  Material
  Main Unit: Die-Cast Aluminum
  Color
  Main Unit: Silver / White
  Dimension( Wx H x D )
  365.89 x 281.89 x  43.23
  Environmental Condition
  Operating 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
  Storage -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
  MSR ISO 3-Tracks Slim MSR USB Type
  ibutton Dallas USB Type
  RFID 13.56Mhz USB Type
  Fingerprint DigitalPersona U.are.U 4500 Module USB Type
  Scanner 2D scanner, USB Type
