Display

Display solutions that allow touchpoint deployment in multiple situations.

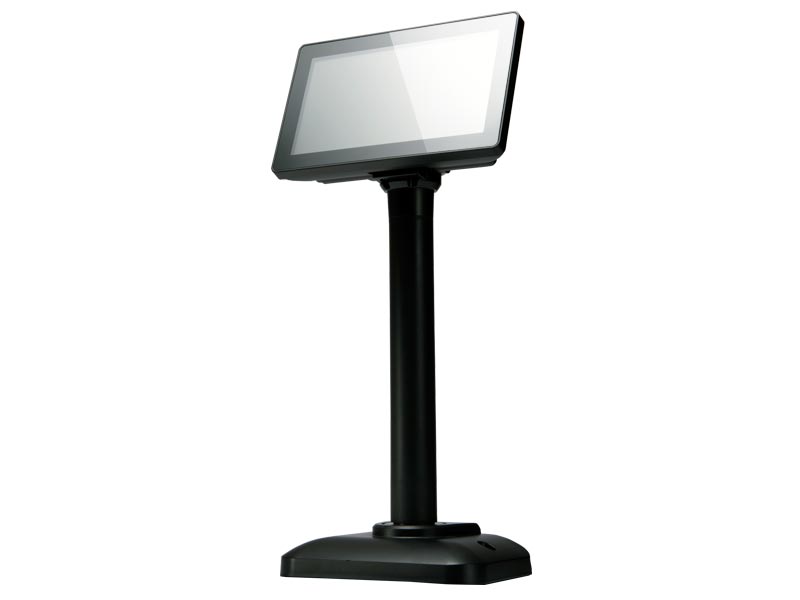

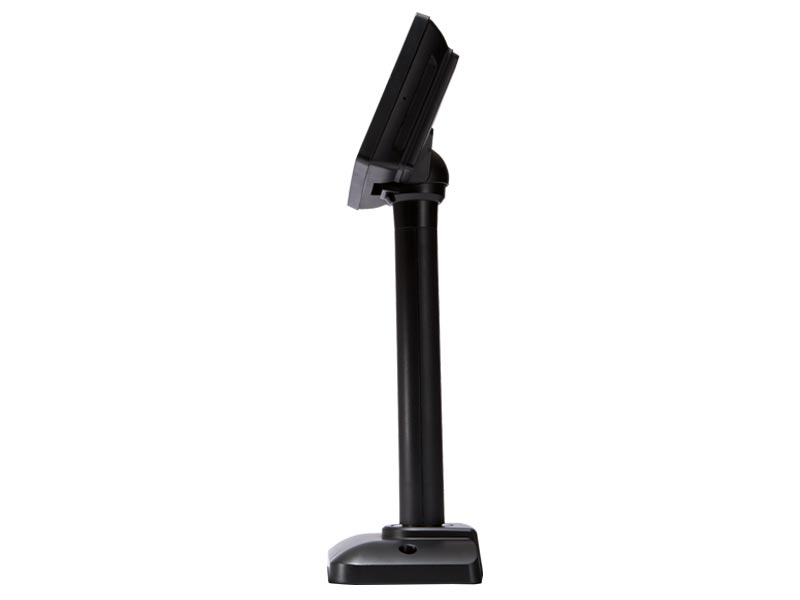

7″ True Flat Display (Glass Overlay)

Model No. : M363ND / M363NC

  • High Strength Glass Overlay
  • USB and VGA Interface Available
  • Die-Cast Aluminum Base *Optional
  • Plastic or Metal Pole Base *Optional
  • Easy Cable Management
  • Spill Proof and Anti-Dust
  • Best Choice for Space Limited Retail/Hospitality Environments
  • True Flat Designed to Suit Harsh Environments

Product Detail

USB Interface Available
VGA Interface Available
True Flat Design
Wall Mount Available
Die-Casting
Base for Option
7”, 8” and 10” Pole
Base for Option

Specification

  M363
  Description
  M363ND:  7″ VGA Non-touch (16:9)
  M363NC:  7″ USB Non-touch (16:9)
  Display
  Display 7″
  True-Flat YES (IP54)
  Interface VGA / USB
  Resolution 800 x 480
  Viewing Angle 60/70/70/70 degree (U/D/L/R)
  Brightness (nits) 350
  Contrast Ratio 500 : 1
  Response Time (ms) 20
  Power Supply M363ND: DC 12V
M363NC: DC 5V (USB)
  OS Support M363ND: N/A
M363NC: Windows 10 、 8.1 、 8 、 7 ,Linux Ubuntu
  Touch Type
  Touch Type Non-Touch
  Input Terminals
  For Video Signal M363ND: Mini DIN 8-pin
M363NC: USB Type B
  For Power M363ND: DC Jack
M363NC: USB Type B
  Physical Dimension
  Dimensions
(W x H x D) mm
184.5 x 118 x 34.5
  Weight (N. W.) (Kg) 0.5
  Environment
  Operating Condition  0ºC~40ºC
  Storage Condition  -10ºC~50ºC
  Power Consumption M363ND: 6W
M363NC: 2.5W
  Certifications
  EMI / Safety CE, FCC
  Options
  Wall Mount Kit Option, 75 x 75mm VESA
  Base Option
  Pole Stand Option
  e-Brochure and Datasheet↓
