Display
Display solutions that allow touchpoint deployment in multiple situations.

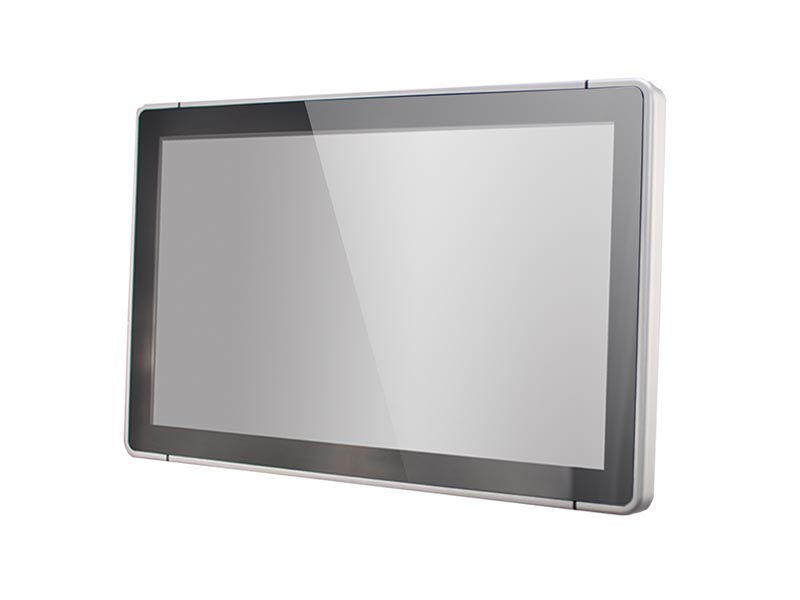

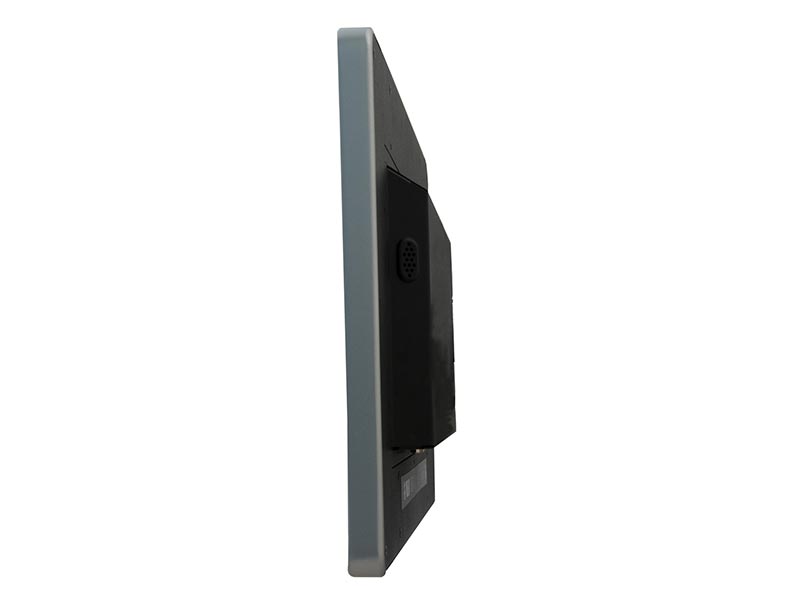

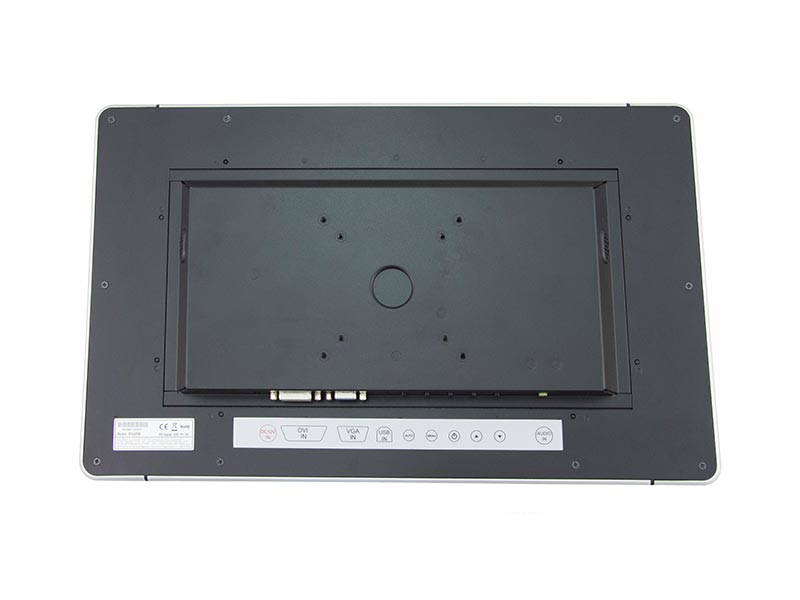

18.5″ True-Flat P-Cap Touch Display
Model No. : M168PB | M168GB
- 16:9 Wide Screen
- P-Cap Multi Touch | Non-Touch
- Slim for Advanced Usage
- Metal Case Designed
- True Flat and Bezel Free
- 6H Scratch Resistance Level
- Ingress Protection Rate: IP54
Specification
| M168 | |
| Description | |
| 18.5″ VGA/DVI PCAP (16:9) | |
| Display | |
| Display Size | 18.5″ |
| True-Flat | YES (IP54) |
| Interface | VGA+DVI |
| Resolution | 1366 x 768 |
| Viewing Angle | 80/80/85/85 degree (U/D/L/R) |
| Brightness (nits) | 250 |
| Contrast Ratio | 1000:1 |
| Response Time (ms) | 5 |
| Power Supply | DC 12V |
| OS Support | Windows 10 、 8.1 、 8 、 7 |
| Touch Type | |
| Touch Type | M168PB: Projected Capacitive (USB) |
| M168GB: Non-Touch | |
| Input Terminals | |
| For Video Signal | D-Sub 15-pin, DVI-D, VGA |
| For Power | DC Jack |
| For Touch Signal | USB Type B |
| For Audio | 2 x 2W speakers (Built-in) |
| Physical Dimension | |
| Dimensions(W x H x D) mm | 472 x 293 x 43 |
| Weight (N. W.) (Kg) | 5.86 |
| Environment | |
| Operating Condition | 0ºC~45ºC |
| Storage Condition | -20ºC~60ºC |
| Power Consumption | Max. 20W |
| Certifications | |
| EMI / Safety | CE, FCC |
| Options | |
| Wall Mount Kit | Option, 75 x 75mm or 100 x 100mm VESA |
| Base | Option |
| MSR | N/A |
| VFD | N/A |
| Pole Stand | N/A |
| 2nd Display | N/A |
