BOX PC M843

Modular Computing Solution For Retail Applications.
A compact yet powerful computing platform designed for a broad range of deployments in retail environments.

Model No. : M843MY / M843Mv

  • Fanless Intel Bay Trail-D J1900 & Ivy Bridge i3-3217U
  • Robust aluminum housing for heat dissipation & durability
  • Easy access to main board & components providing effortless maintenance
  • Suitable for space-limited environment
  • Flexibility in integration with peripherals as a POS solution
  • VESA Mountable

Outstanding Performance

M843MY

M843MV

Specification

   BOX PC M843
  Main Board
  Processor M843MY: Intel® Celeron J1900  2.0GHz ,Cache 2MB
M843MV: Intel® Core i3-3217U 1.8GHz,Cache 3MB
  Chipset M843MY: CPU Integrated
M843MV: Intel® HM76
  System Memory DDR3L SO-DIMM, up to 8GB
  Storage
  HDD/SSD 1 x 2.5″ SATA HDD or SSD
  Flash Memory 1 (Alternative)

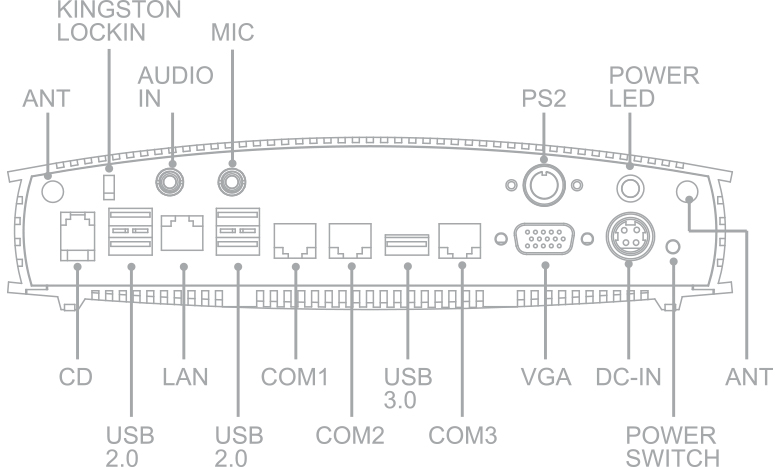

  I/O Ports
  USB 5 x USB 2.0 (4 Rear Panel, 1 front Panel)
1 x USB 3.0 (Rear Panel)
  Serial/COM M843MY:  3 x RS-232(RJ48 connector),COM1/2/3 Pin10 w/RI/5V/12V Selectable by BIOS (default is RI)
M843MV: 3 x RS-232 (RJ48 connector),COM 1 and COM2 +5V, COM3 +12V, Power Enabled by BIOS
  VGA 1
  LAN Port 1
  Cash Drawer Port 1
  DC Jack 1
  LPT Port 1 (Optional)
  PS2 1 (Optional)
  Audio out/MIC In 1 ( optional)
  Power LED 1 (Optional)
  WiFi Mini PCI-E WLAN CARD  IEEE 802.11 b/g/n with 2 pcs Antenna (Optional)
  Power Switch
  1
  Power Adapter
  M843MY: External power adapter, 65W/19V
  M843MV: External power adapter, 90W/19V
  Optional Accessories
  Alternative Front Cover Front Power LED & USB Port(Optional)
  Compliance
  EMC Safety CE, FCC, LVD, RoHS
  Environment
  Operating Temperature 0 °C ~ 35°C ( 32°F ~ 95°F )
  Storage Temperature -10°C ~ 60°C (-4°F ~ 140°F)
  Operating Humidity 20% – 85% RH non condensing
  Storage Humidity 20% – 85% RH non condensing
  Weight
  1.66 Kgs (3.65 Lbs)
  Dimension( Wx H x D )
  210 x165 x 55 mm
  OS Support
  Windows 10 IOT, Windows 8.1, Windows 7, POSready 7
