BOXPC

Compact PC solutions that integrated with Poindus display products.

BOX PC M842

Modular Computing Solution For Retail Applications
A compact yet powerful computing platform designed for a broad range of deployments in retail environments.

Model No. : M842MY

  • Fanless Intel Celeron J1900
  • Robust aluminum housing for heat dissipation & durability
  • Easy access to main board & components providing effortless maintenance
  • Suitable for space-limited environments
  • Flexibility in integration with peripherals as a POS solution
  • As Mini POS System: Use as base for 8.4”and 10.4” Monitors
  • VESA Mountable

Product Detail

Specification

   BOX PC M842
  Main Board
  Processor Intel® Celeron J1900  2.0GHz ,Cache 2MB
  Chipset CPU Integrated
  System Memory DDR3L SO-DIMM, up to 8GB
  Storage
  HDD/SSD 1 x 2.5″ SATA HDD or SSD
  Flash Memory 1 (Alternative)

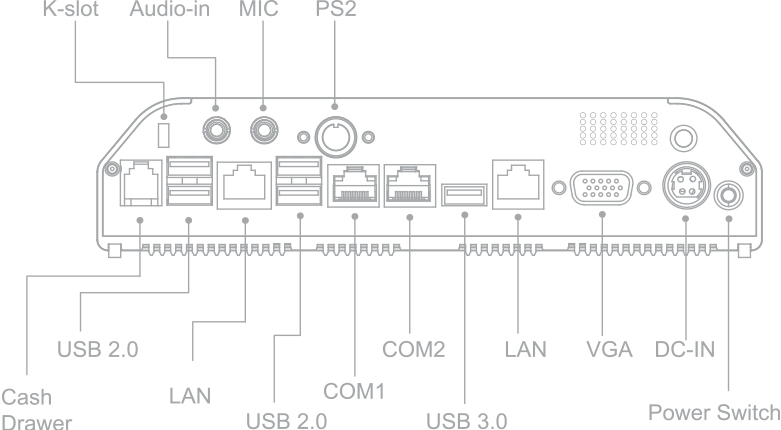

  I/O Ports
  USB 5 x USB 2.0 (4 Rear Panel, 1 front Panel-Optional)
1 x USB 3.0 (Rear Panel)
  Serial/COM 3 x RS-232(RJ48 connector),COM1/2/3 Pin10 w/RI/5V/12V Selectable by BIOS (default is RI)
  VGA 1
  LAN Port 1
  Cash Drawer Port 1
  DC Jack 1
  LPT Port 1 (Optional)
  PS2 1 (Optional)
  Audio out/MIC In 1 (Optional)
  Power LED 1 (Optional)
  WiFi N/A
  Power Switch
  1 + 1 Optional with front USB Port
  Power Adapter
  External power adapter, 65W/19V
  Optional Accessories
  Alternative Front Cover Front Power LED, Power Switch & USB Port(Optional)
  Compliance
  EMC Safety CE, FCC, LVD, RoHS
  Environment
  Operating Temperature 0 °C ~ 35°C ( 32°F ~ 95°F )
  Storage Temperature -10°C ~ 60°C (-4°F ~ 140°F)
  Operating Humidity 20% – 85% RH non condensing
  Storage Humidity 20% – 85% RH non condensing
  Weight
  1.3 Kgs (2.86Lbs)
  Dimension( Wx H x D )
  195 x 165 x 45 mm
  OS Support
  Windows 10 IOT, Windows 8.1, Windows 7, POSready 7
e-Brochure and Datasheet↓
