Tablet

Allowing you to maximize the value of your mobile solution with affordable enterprise functionality.

G10s Mobile Tablet

A modular approach for optimal configuration

  • 1D/2D optical scanner, with long distance option
  • Smart Card (EMV Level 1 & 2) and encrypted MSR Combo
  • Capacitive fingerprint reader & Multiple RFID reader options
  • User-selectable touch mode sensitivity (Stylus, Hand, Rain or Glove)
  • High resolution, autofocus rear camera with flash; front-facing webcam, audio and mic for conferencing
  • WLAN, Bluetooth 4.0 and NFC communication
  • Expanded user-accessible I/O, including USB, HDMI and Micro SD slot
  • Multi-vendor mPOS integration for Chip & PIN
  • IP65 rated protection and  Shock-proof design built survive MIL-STD-810G 1.2 meter drop testing
  • Multiple docking and battery charge options available for different environments and operations
  • Long 8-hour battery life, hotswappable for uninterrupted use during long shifts

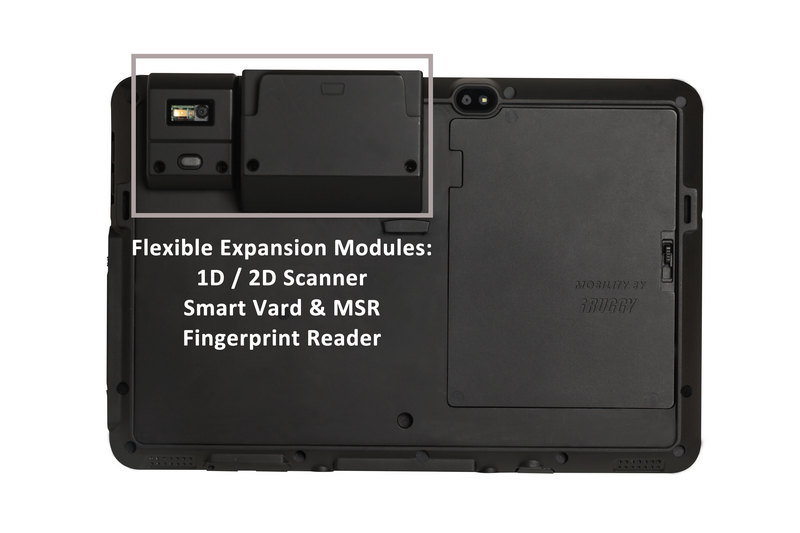

Fit for Purpose

Introducing ADD-f(x) modular design to optimize tablet functionality for your specific application requirements.  A unique approach to configurability, new G10 ADD-f(x) architecture features 3 universal module bays to support a growing selection of mix-and-match function expansion modules.

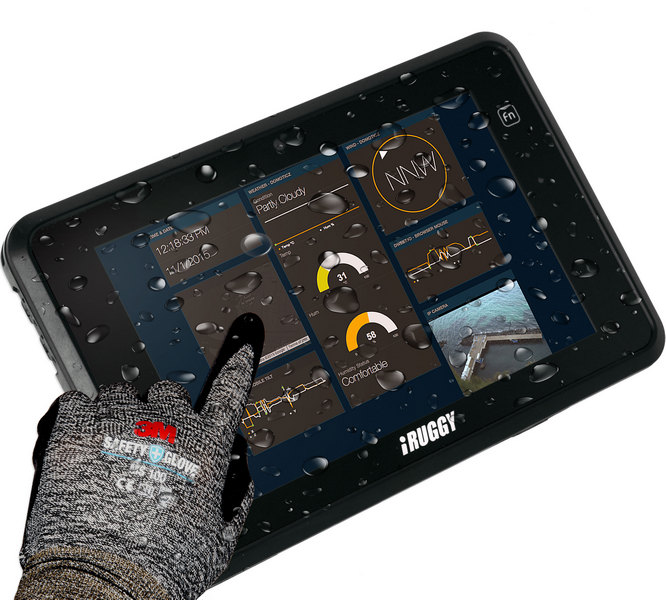

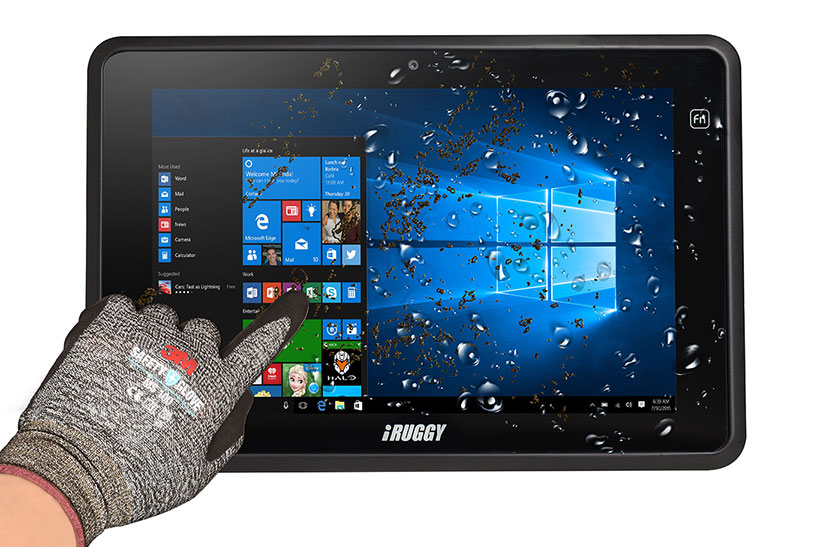

Just the Right Touch

Ensuring quick response and precision under different conditions, the G10s offers in4Touch technology allowing the user to quickly toggle between touch modes, auto sensing to detect and adjust automatically for stylus or palm interference.

Multiple Ways to Connect

Extend your range beyond Wi-Fi and Bluetooth with optional support for 3G or LTE data communication, with dedicated GPS. The G10 Mobile Tablet offers an incredible range of user-accessible I/O for a rugged tablet, including video, audio and USB, expandable further through multiple docking options.

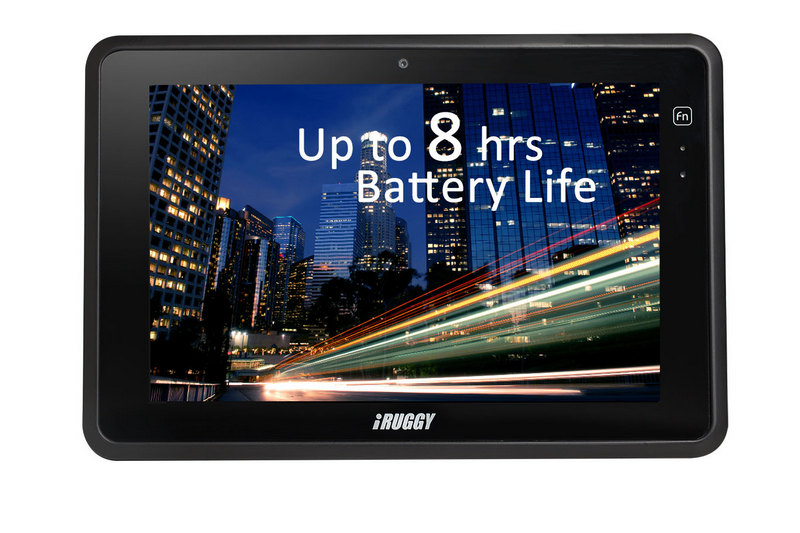

Keep it Moving

Extended battery life, multiple charging options and a hot swappable battery design mean uninterrupted availability to keep your operation in constant motion.

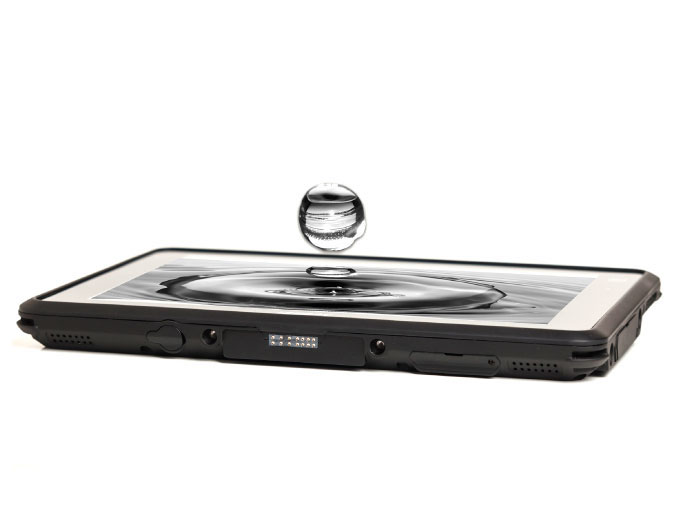

Born Rugged

The G10s Mobile Tablet was purpose-built for durability with IP65 rated protection against liquid and dust ingress and impact resistance to survive the 1.2 meter (4 feet) drop MIL-STD-810G specification.  Rugged by design, not made rugged through features added post production.

Specification

 G10s Mobile Tablet
 Main Board
 Processor  Intel® Quad-Core 2.56GHz
 System Memory  4GB memory
 Storage  64GB storage
 Display & Touch
 LCD Size  10.1″
 Resolution  1920×1200
 Touch Technology  Multi-touch
 Wireless Networking
 Wireless LAN  802.11 ac
 Bluetooth  4.0+LE, (Class 2, 10 meters)
 NFC  1
 LTE / GPS  Factory Option
 I/O & Expansion
 USB 2.0  Yes
 Micro HDMI  Yes
 Micro USB   Support OTG
 Additional peripheral I/O available through optional POS Docking Station
 Audio
 1 W Stereo Speaker  Yes
 Audio Jack  Yes
 Microphone  Yes
 Control / Indicator
 Camera  8MP autofocus rear camera with LED flash
 Peripherals
 MSR  3 Tracks MSR/IC Card reader (EMV L1/L2)(Optional)
 SCR
 Scanner  1D/2D Barcode Scanner (Optional)
 FingerPrint  Optional
 LF, HF, UHF RFID readers  Optional
 Rear mounting bracket for mPOS devices  Optional
 LAN and COM I/O module  Optional
 Battery & Power
 Battery  3.7V 8000 mAH
 Power Adapter  DC-in, with external AC adapter
 (Output 5V DV, 4A, Input 100-240VAC, 50/60Hz) for charging
 OS Support
 Windows 10 IoT Enterprise, Android 7
 Compliance
 Fall Security  IP65 (display side), 1.2 M drop specification
 Color
 Black
 Dimension( Wx H x D )
 277 x 185 x 20 mm
 Weight
 997 g (with Battery)
 Environmental
 Operating Condition  -10˚C ~ 50˚C, max. 35˚C when Charging Bettary
90% RH non-condensing
 Storage Condition  -20˚C ~ 70˚C,
90% RH non-condensing
 Optional Accessories
 POS Docking Station   1 x LAN, 3 x USB, 1 x COM, 1 x CD
 VESA charging mount  Optional
 Vehicle charging mount   Optional
 2mm precision tip stylus  Optional
e-Brochure and Datasheet↓
