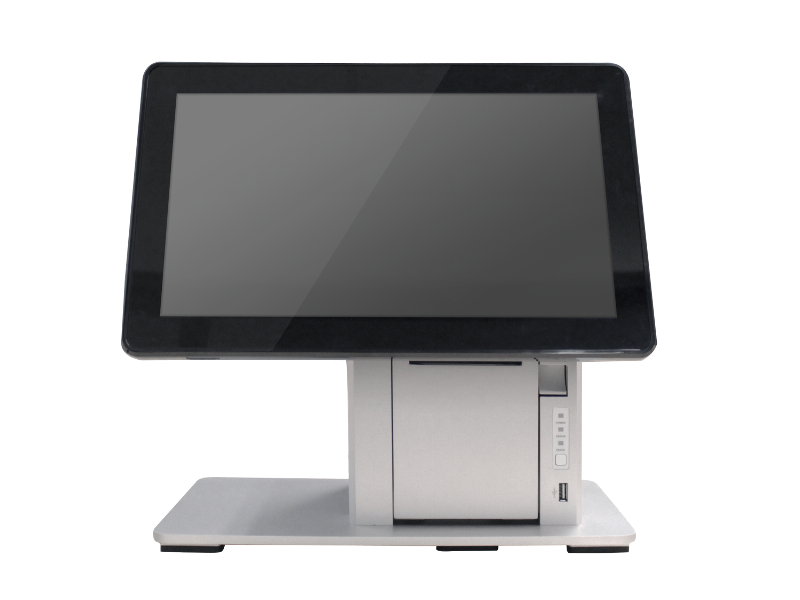

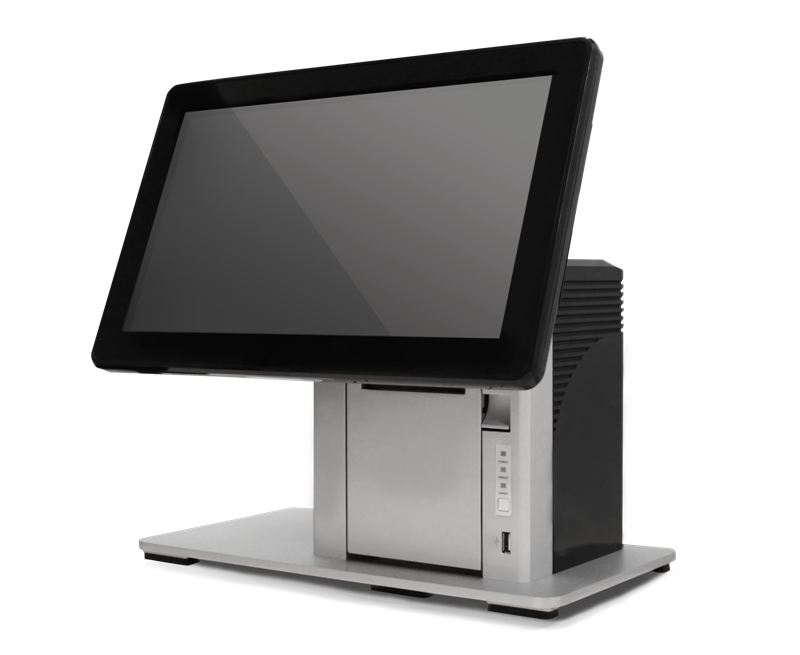

VariPOS 311
Printer Integrated, the Space Saving Expert
- Intel Celeron J1900 2.0GHz, Cache 2MB
- 14″ HD 16:9 True Flat P-Cap Touch Screen
- IP 54 waterproof resistance
- pSSD 64GB
- An integrated 3″ USB type printer
- Peripheral support (LCM, 10.1” Second display, MSR, SCR & iButton)
- Lightweight, die-cast aluminum casing with an aesthetic design to match individual shop design.
- Windows 10 IoT
Small Footprint All-In-One POS / Kiosk System
14″ Display with Integrated 3″ Printer
VariPOS 311 powered by the Intel J1900 with a 14” HD display and an integrated quality 3” printer in a fan-less architecture; designed for POS/Kiosk deployments in space restricted environments. Bring space management to an incredible level and enhance business efficiency without compromising performance.
Intel® Energy Efficient Quad Core Processing
Supporting Windows Platforms
Intel Celeron J1900
VariPOS 311 is a Fanless All-In-One POS terminal combining the Intel Celeron J1900 CPU with a 14” Capacitive Touch widescreen in a stunning compact design.
Windows
Seamless Integration
Supports Win 10 IOT, providing the ideal platform for ISVs and SIs to reduce development time and ease the burden.
Compact Solution with 14″ HD Display
and Full Peripheral Support
Printer Integrated

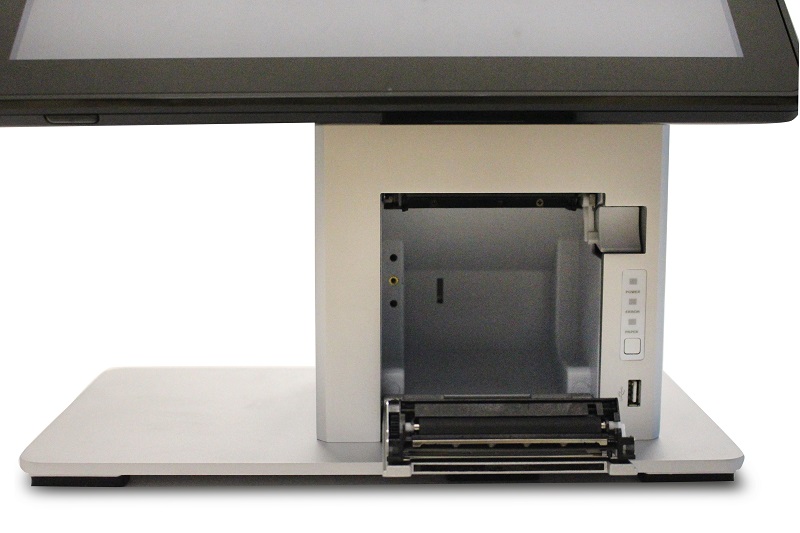

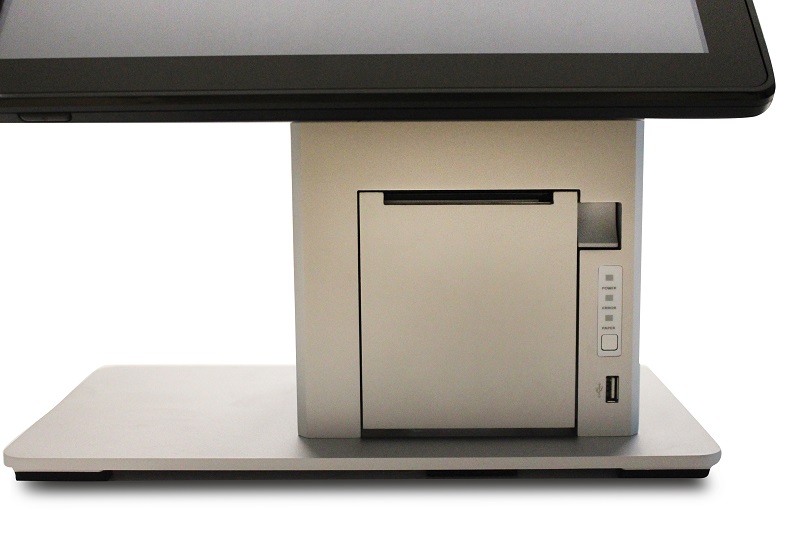

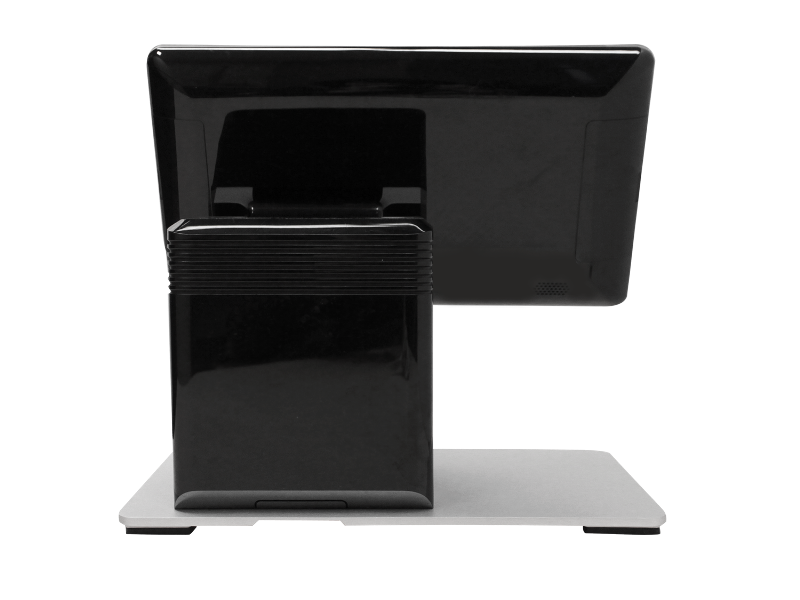

Poindus VariPOS 311 comes with an integrated 3” USB type receipt printer as an All-In-One POS / Kiosk with a compact footprint for space-limited retail and hospitality environments, providing a new opportunity to every shop.
Full Peripheral Support

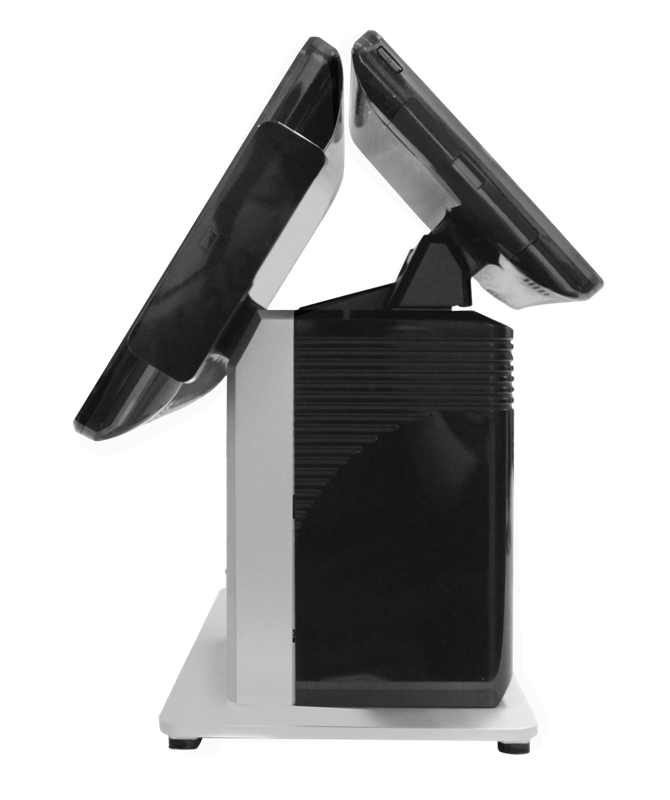

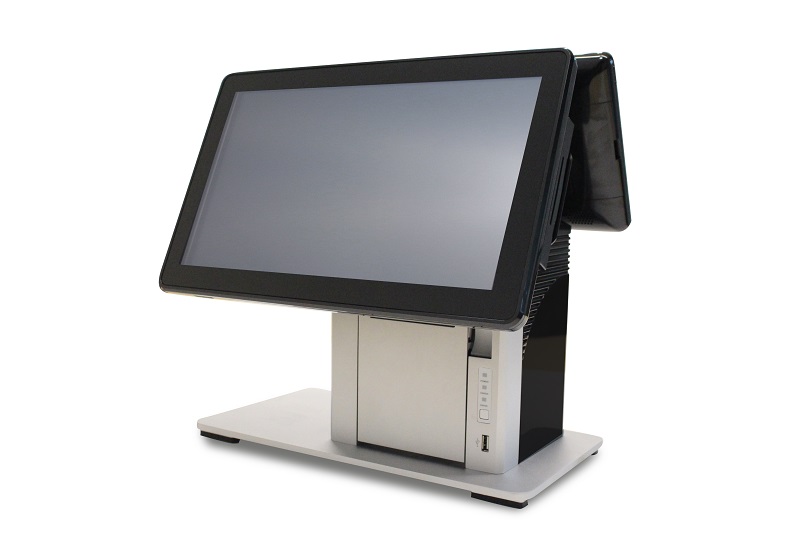

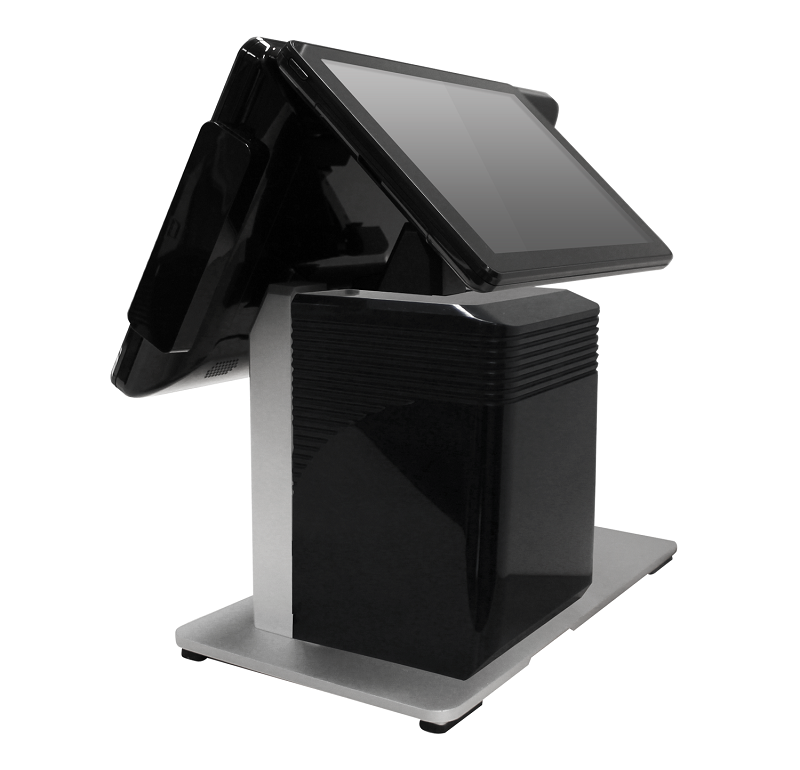

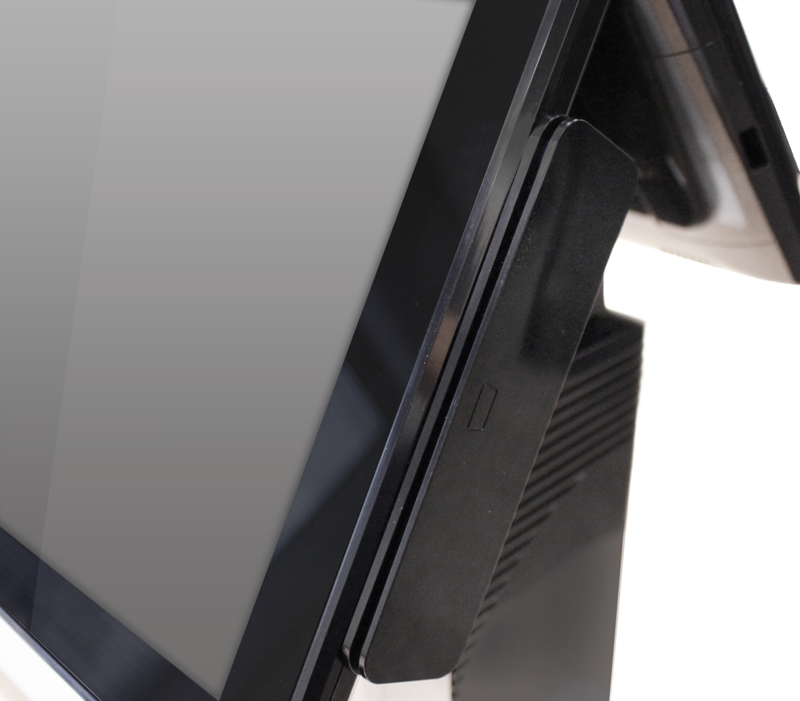

Enhanced security through the integrated iButton, and diversity in peripheral expansion, optional pole mounted VFD, 10.1″ second display available to support the cashier environment and improve the customer experience.
Feature Rich Solution that fits into Multiple Scenarios, without Compromise on Functionality or Quality
VariPOS 311 Small footprint POS / Kiosk & Ticketing Terminal supports the Windows Ecosystem and ready for multiple peripheral configuration allowing seamless integration in most hospitality and retail scenarios. The Efficient Eco-friendly minimal power advantage provides the best service in every environment.
The small footprint allows minimalist installations in virtually any restricted space like Quick Service Restaurants (QSR), Cafés, F&B, Bakery’s and Pop-Up Retail. Functionality makes our solution a winner for POS deployment in Department Stores, Salons, Cosmetics, Jewelry, Boutiques and Book Stores. Perfectly suited for Hotel Reception Tasks such as Visitor Registration and booking. When configured as a Self Service Kiosk with ticket issue for unattended access, can be implemented for Queue Management in Pharmacy’s, Welcome Station Self Check-In or Hotel Vehicle Parking Check-In etc.
VariPOS 311 Modular Design Reduces the Complexity of Rollouts & Integration.
In busy Retail & Hospitality Environments cables become disconnected, terminals get banged around; the VariPOS 311 chassis encases all parts including the receipt printer providing additional protection and lowering support calls and engineer callouts for trivial issues.
The terminal provides a total All-In-One Solution that can be deployed rapidly and allows for simple Maintenance & Servicing.
Specification
| VariPOS 311 | ||
| Main Board | ||
| Processor | Intel® Celeron J1900 2.0GHz,Cache 2MB | |
| Chipset | CPU Integrated | |
| System Memory | 1 x SO-DIMM n DDR3L, up to 8GB | |
| Display & Touch | ||
| LCD Size | 14″ HD 16:9 TFT-LCD (LED Backlight) | |
| Brightness | 200nits | |
| Resolution | 1366 x 768 | |
| Touch Technology | True Flat Projected Capacitive Technology | |
| Storage | ||
| pSSD | 64GB pSSD | |
| I/O & Expansion | ||
| DC Input | 1 x Mini Din 4P (DC 19V only) | |
| Cash Drawer | 1 x RJ-11, 12V or 24V(default) | |
| LAN port | 1 x Gigabit Ethernet by RJ-45 | |
| USB port | 4 x USB 3.0 (1 x USB 2.0 In Front) | |
| COM port | 3 x RS232 (RJ-48 connector), Support (RI / 5V /12V) | |
| Power Switch | 1 x power on / off switch button | |
| Speaker | 2W Speaker x 2 | |
| OS Support | ||
| Windows 10 IOT, Windows 8.1, Windows 7, POS Ready 7 | ||
| Power Adapter | ||
| External adapter, DC Model: 120Watts, Voltage:+19VDC 6.32 Amax | ||
| Compliance | ||
| Certifications | CE, FCC, LVD, RoHS, WEEE, REACH | |
| Protection | IP54 on front panel | |
| Material | ||
| Main Unit: Die-Cast Aluminum ; I/O Cover: Plastic | ||
| Color | ||
| Black | ||
| Dimension( Wx H x D ) | ||
| 363 x 340 x 188 | ||
| Weight | ||
| 5 Kgs | ||
| Environmental | ||
| Operating Condition | 0ºC ~ 35ºC, 20% ~ 80% RH, non-condensing | |
| Storage Condition | -20°C ~ 60°C, 10% – 90% RH non-condensing | |
| Integrated Printer | ||
| printer | 3″ Printer ,170mm/sec, auto cutter, paper drop change (3″ or 2″),out of paper sensor |
|
| Power Button | 1 | |
| Printer Feed Button | 1 | |

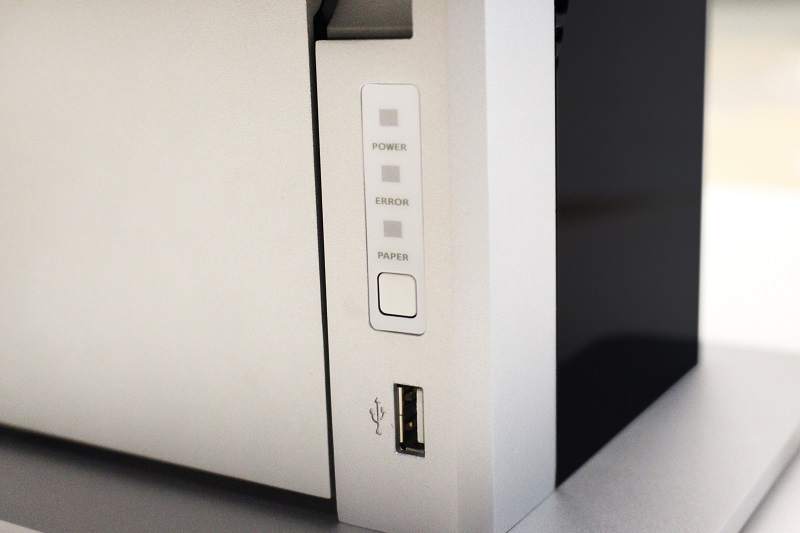

| Printer LED Indicator | 3 (paper, error, power) | |
| Optional Accessories (More Information) | ||
| VFD/LCM | VFD: 20 x 2, USB Type (Graphic Mode) | |
| MSR | ISO 3-Tracks MSR, USB Type | |
| iButton | USB Type | |
| SCR & MSR | Combo MSR & Smart Card Reader (Unipay) | |
| 2nd Display | Pole mount(75*75mm) 10.1″ LCD Resolution 1280 x 800, VGA Type |
|
